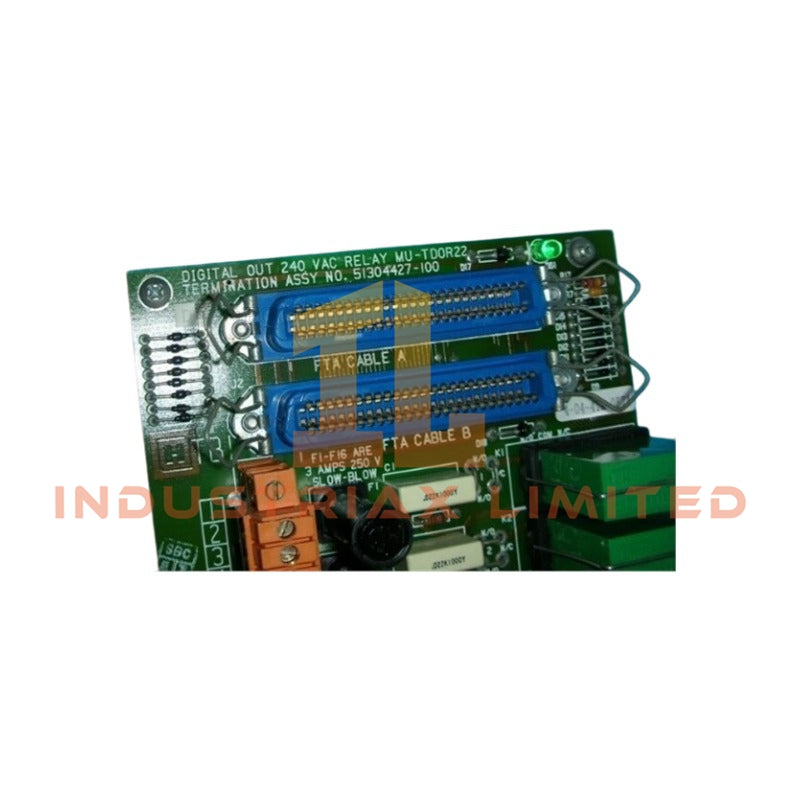

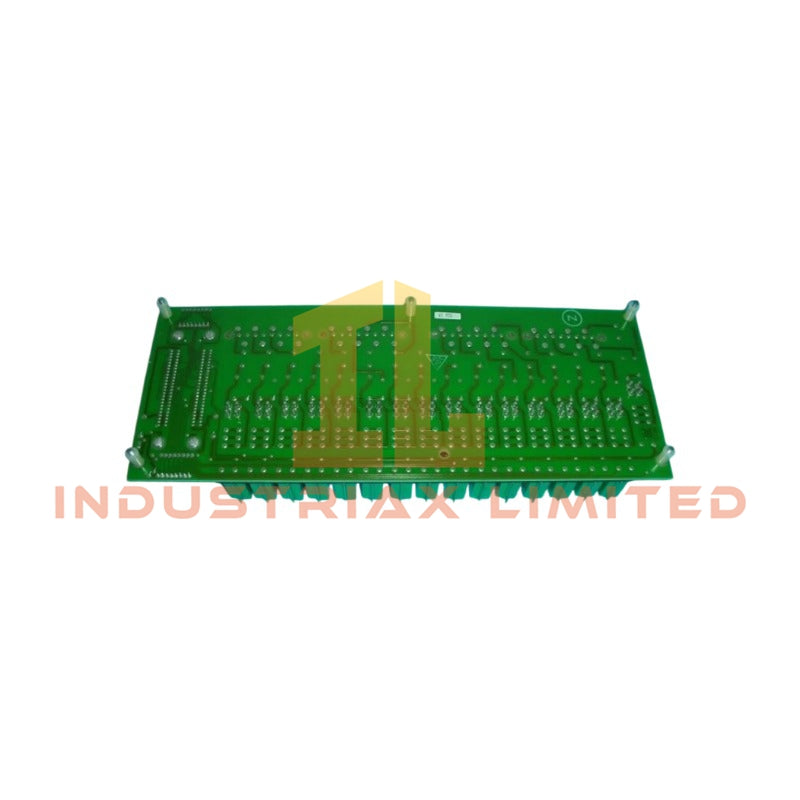

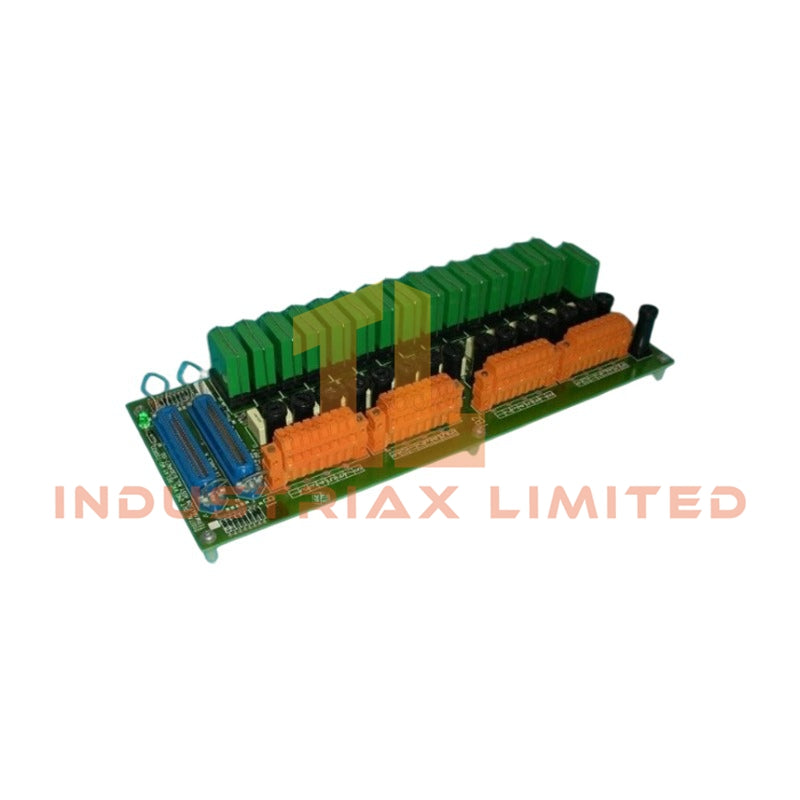

Honeywell MU-TDOR22 Digital Output Relay FTA

Configured for relay-based field signal switching in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-TDOR22 (51304427-100) (MU-TDOR22 Digital Output Relay FTA) provides direct electrical execution between controller output channels and external field loads.

Hardware Specifications

Parameter	Specification
Model	MU-TDOR22
Brand	Honeywell
Part Number	51304427-100
Origin	USA
Module Type	Digital Output Relay Field Termination Assembly (FTA)
System Compatibility	Honeywell TDC 3000 / Experion PKS HPM and APM subsystems
Channel Count	16 digital output channels (typical configuration)
Output Type	Relay contact outputs
Isolation Type	Galvanic isolation between control logic and field circuits
Mounting Type	FTA mounting channel / DIN rail mounting
Operating Temp	0 deg C to 60 deg C
Storage Temp	-40 deg C to 85 deg C
Relative Humidity	5% to 95% RH, non-condensing
Power Consumption	Determined by connected relay configuration and field load requirements
Field Connection	Screw terminal field wiring interface
Status Indication	Individual channel LED status indication

DCS Field Signal Isolation and Relay Output Interface

The MU-TDOR22 provides relay-based switching between Honeywell control system output signals and external electrical devices. It separates the low-voltage controller interface from field-side circuits through galvanic isolation.

In addition, the module supports discrete output applications including solenoid valve activation, motor starter commands, alarm outputs, and indicator control. The relay contacts transfer controller commands without directly exposing the I/O electronics to field voltage transients.

For Honeywell process control installations, the module architecture supports isolated channel operation and maintains separation between individual field circuits. However, this unit does not provide analog measurement functions such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, or Profibus PA communication.

The relay interface allows maintenance personnel to identify output conditions through local LED indicators. Furthermore, socketed relay designs on compatible configurations allow relay replacement without disturbing permanent field wiring.

Frequently Asked Questions

Q: Can the MU-TDOR22 directly drive field devices from the controller output signal?
A: The MU-TDOR22 provides relay contact switching. External field power is required according to the connected device voltage and current requirements.

Q: Does the MU-TDOR22 provide channel isolation between output circuits?
A: The module provides galvanic isolation between control-side electronics and field-side circuits. The exact isolation arrangement depends on the installed relay configuration.

Q: Can the MU-TDOR22 be installed as a hot-swappable module?
A: The FTA mounting arrangement does not define hot-swap capability. Maintenance should follow the approved Honeywell TDC 3000 or Experion PKS shutdown and replacement procedures.

Field Installation Guidelines

• Install the MU-TDOR22 on the specified Honeywell FTA mounting structure and verify mechanical alignment before wiring.
• Confirm terminal assignments against the system engineering drawings before connecting field devices.
• Separate relay output wiring from low-level signal wiring to reduce electrical interference.
• Connect cable shields according to the site grounding standard and avoid multiple ground points on shielded field cables.
• Verify field load voltage and current ratings before energizing relay contacts.
• Use external protection devices where required for inductive loads such as solenoid valves and contactor coils.
• Inspect terminal tightening and cable routing during commissioning to prevent loose connections and unwanted electrical noise.
