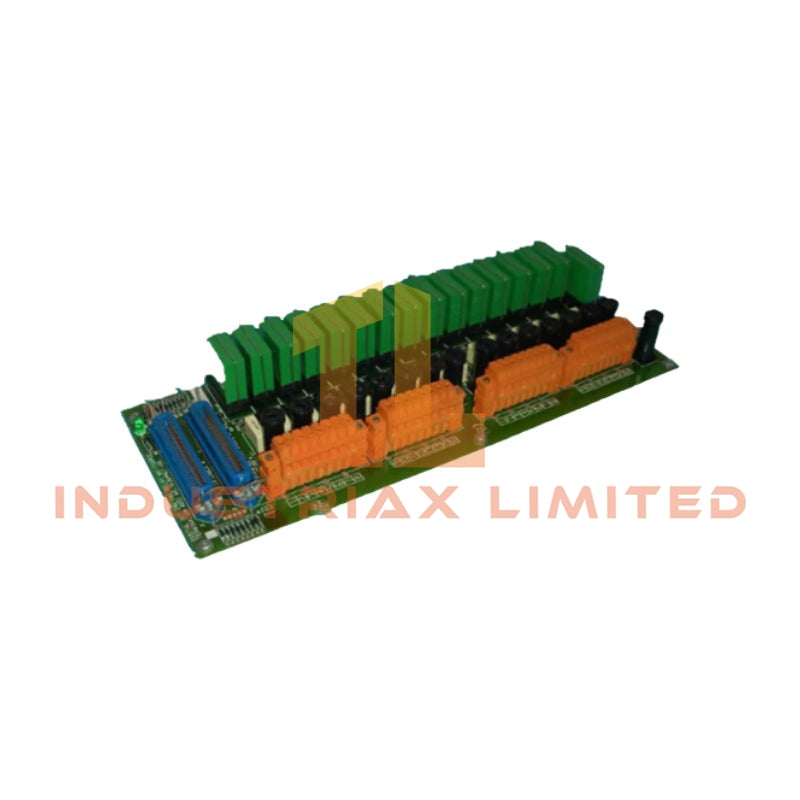

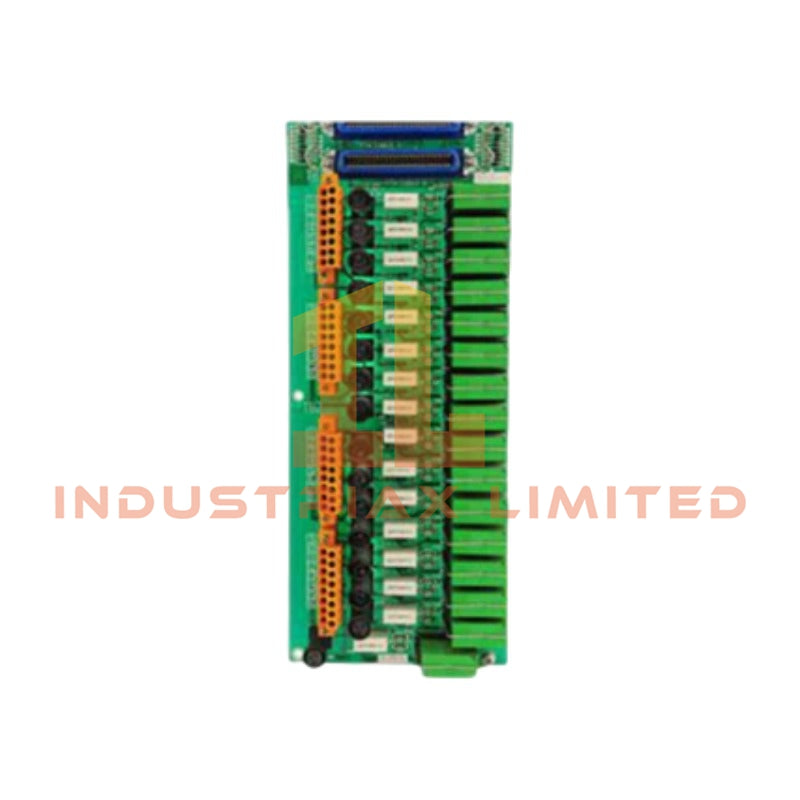

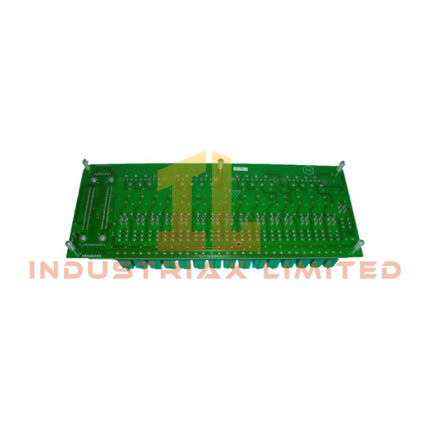

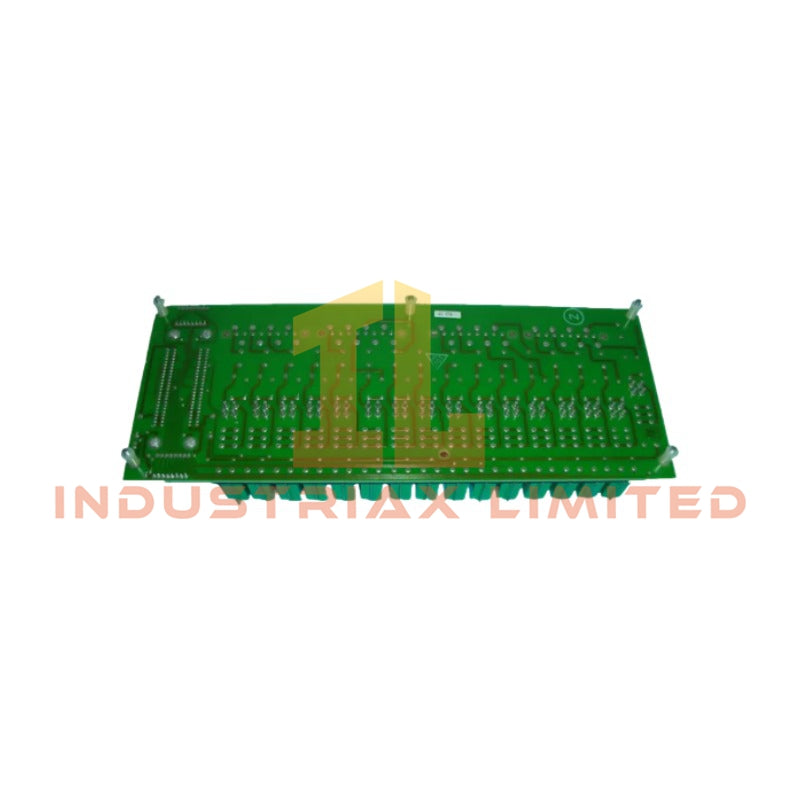

Honeywell MU-TDOD12 Digital Output Field Termination Assembly

The Honeywell MU-TDOD12 (51304423-100), also cataloged as the MU-TDOD12 Digital Output Field Termination Assembly, operates as a dedicated hardware component for digital signal termination and field wiring distribution within Honeywell TDC 3000 and Experion PKS system platforms.

Hardware Specifications

Parameter	Specification
Model	MU-TDOD12 (51304423-100)
Brand	Honeywell
Origin	USA
Module Type	Digital Output Field Termination Assembly (DO FTA)
System Compatibility	Honeywell TDC 3000 and Experion PKS control systems
Signal Type	Digital output field signal termination
Channel Capacity	Typically 16 digital output channels
Field Connection	Screw terminal blocks for field wiring
System Interface	Multi-pin cable connection to I/O module interface
Isolation Function	Field-side signal isolation and protection
Mounting Type	Honeywell FTA mounting channel or DIN rail compatible installation
Weight	Approx. 0.5 kg to 0.8 kg
Dimensions	Standard Honeywell FTA footprint
Power Consumption	Passive termination assembly, power consumption depends on connected I/O interface

Process Control Signal Isolation and DCS Interface

The MU-TDOD12 provides the electrical termination path between Honeywell digital output I/O modules and external field devices. It routes controller-generated switching signals to actuators, relays, solenoid valves, and other discrete devices.

Furthermore, the assembly supports channel-to-channel isolation practices within process control wiring environments. The termination structure reduces wiring complexity and maintains separation between controller electronics and field circuits. It connects with Honeywell I/O architectures that may include digital signal conditioning and field termination requirements.

The module functions as a passive field interface component. Therefore, external power requirements depend on the connected digital output card configuration and field device load characteristics.

Frequently Asked Questions

Q: Does the MU-TDOD12 provide independent digital output processing?
A: No. The MU-TDOD12 is a field termination assembly. It terminates and distributes signals from the connected Honeywell digital output I/O module without performing control logic execution.

Q: Can the MU-TDOD12 support direct connection to field devices?
A: Yes. The assembly provides terminal points for field wiring. However, the connected I/O module and field device electrical ratings must match the installed configuration.

Q: Does the MU-TDOD12 require firmware updates?
A: No. The assembly is a hardware termination component and does not contain user-configurable firmware.

Field Installation Guidelines

• Install the MU-TDOD12 on the specified Honeywell FTA mounting structure or compatible DIN rail system.
• Verify terminal assignments before connecting field wiring to prevent incorrect digital output routing.
• Use appropriate cable separation between signal wiring and high-voltage power conductors to reduce electrical interference.
• Connect cable shields according to the system grounding design and plant electrical standards.
• Confirm that the connected field device voltage and current ratings match the digital output module specifications.
• Inspect terminal tightening torque and conductor condition during commissioning and maintenance activities.
