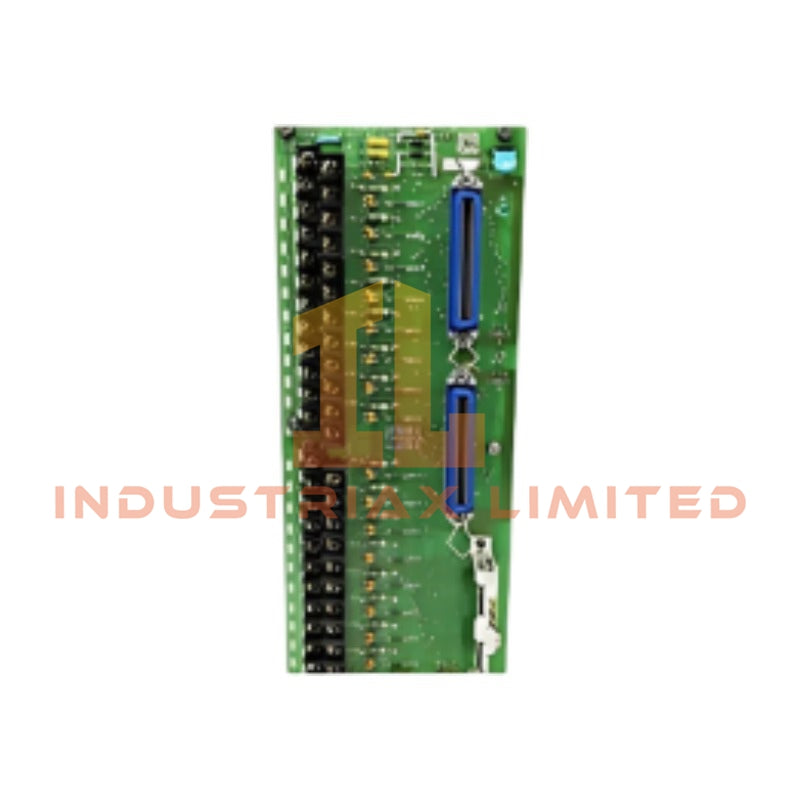

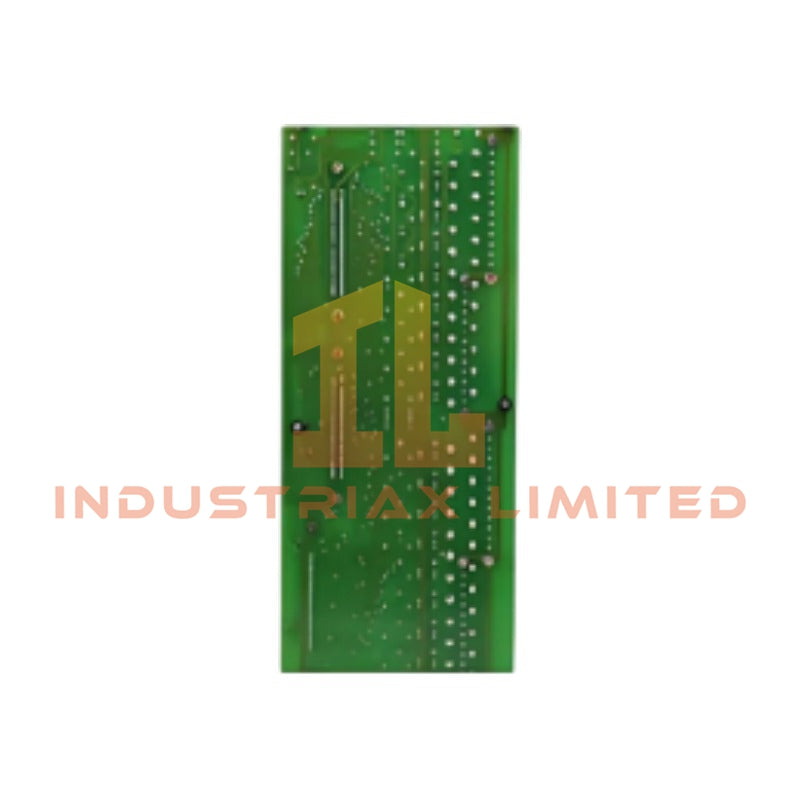

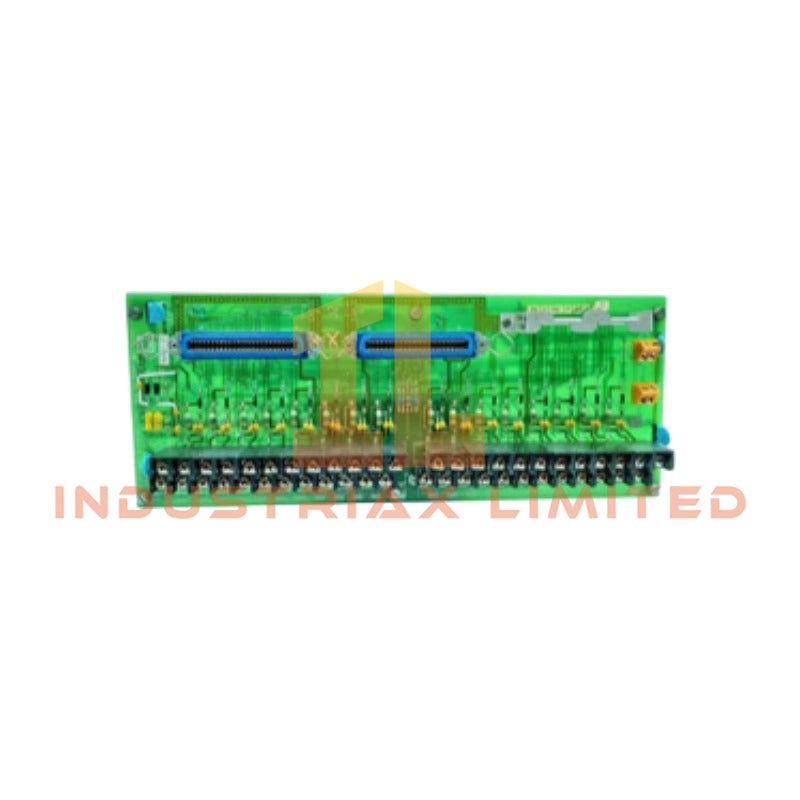

Honeywell MU-TAIH53 High Level Analog Input Termination Assembly

Configured for high-level analog signal termination in Honeywell Experion PKS and TDC 3000 systems, the Honeywell MU-TAIH53 (MU-TAIH53 High Level Analog Input Termination Assembly) provides direct physical and electrical execution for field transmitter signal conditioning.

Hardware Specifications

Parameter	Specification
Model	MU-TAIH53
Brand	Honeywell
Origin	United States
Module Type	High Level Analog Input (HLAI) Termination Assembly
System Compatibility	Honeywell Experion PKS and TDC 3000 control systems
Input Channels	16 channels
Signal Input Range	4-20 mA and 1-5 VDC
Current Input Conversion	250 ohm precision shunt resistor interface
A/D Conversion Resolution	16 bit minimum
Signal Isolation	Field-to-logic galvanic isolation
Environmental Protection	Conformal coating for industrial environments
Operating Temp	0 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95% RH, non-condensing
Power Consumption	24 VDC nominal system supply

4-20 mA HART and DCS Signal Interface Characteristics

The MU-TAIH53 processes high-level analog transmitter signals before the signals enter Honeywell I/O processing modules. Therefore, the termination assembly maintains signal integrity between field instruments and the control system.

The module supports standard process instrumentation interfaces, including 4-20 mA current loops and 1-5 VDC voltage inputs. In addition, the termination design incorporates channel-to-channel isolation methods to reduce interference between independent field signals.

The assembly supports applications where analog transmitters require controlled termination, signal conversion, and electrical separation. Moreover, the conformal coating protects circuit assemblies against industrial contamination and corrosive environments.

Frequently Asked Questions

Q: Does the MU-TAIH53 directly execute control logic processing?
A: No. The MU-TAIH53 functions as a termination assembly. It conditions and routes field analog signals to Honeywell I/O processing hardware.

Q: What field signals can the MU-TAIH53 accept?
A: The module accepts high-level analog signals, including 4-20 mA current inputs and 1-5 VDC voltage inputs from process transmitters.

Q: Does the MU-TAIH53 provide electrical isolation between field wiring and control electronics?
A: Yes. The termination assembly provides galvanic isolation to separate field-side electrical conditions from system-side electronics.

Field Installation Guidelines

Install the MU-TAIH53 inside the designated Honeywell control cabinet according to the system hardware configuration drawings.

Use shielded instrumentation cables for analog field wiring where required by the installation environment. Connect cable shields according to the grounding method defined by the control system engineering standard.

Separate analog signal cables from high-voltage power conductors and switching circuits to reduce electromagnetic interference. Verify field polarity, loop continuity, and transmitter power requirements before connecting the termination assembly.

Confirm that the installed assembly matches the configured Honeywell I/O module type before system startup. Perform loop checks after installation to validate signal scaling and channel assignment.
