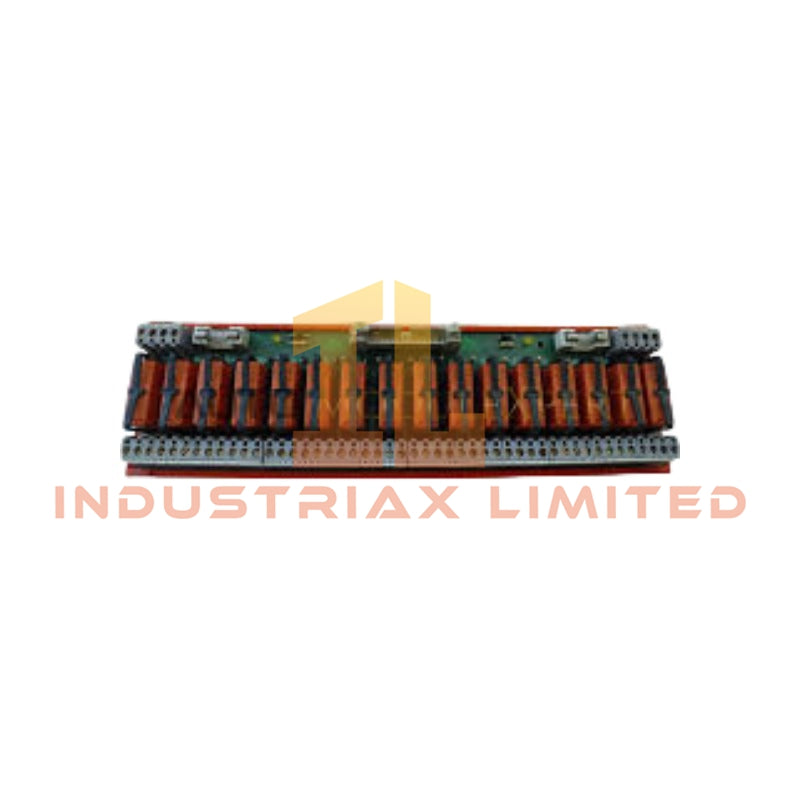

Honeywell MU-GAIH83 High-Level Analog Input Field Termination Assembly

Configured for high-level analog signal termination in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-GAIH83 (MU-GAIH83 High-Level Analog Input Field Termination Assembly) provides direct physical and electrical signal interface execution for field input circuits.

Hardware Specifications

Parameter	Specification
Model	MU-GAIH83
Brand	Honeywell
Product Type	High-Level Analog Input Field Termination Assembly (HLAI FTA)
Power Consumption	Passive signal termination assembly; no separate power consumption data provided
Input Channels	16 channels
Input Signal Type	4-20 mA DC or 1-5 VDC
Protection Function	Galvanic Isolation (GI) and Intrinsic Safety (IS)
Connector Type	Round crimp pin connectors
System Compatibility	Honeywell TDC 3000 and Experion PKS
Hazardous Area Compliance	ATEX and IECEx compatible according to provided specifications

Process Control Signal Isolation and HART Loop Interface

The MU-GAIH83 interfaces field analog devices with Honeywell process control systems through high-level analog input termination circuits. The module supports 4-20 mA DC and 1-5 VDC signals for transmitter and measurement device connections.

Furthermore, the galvanic isolation design separates field wiring circuits from control system electronics. This channel isolation reduces ground loop effects and limits electrical interference during analog signal transmission.

The intrinsic safety protection structure controls energy transfer between the field device and the control system. Therefore, the assembly supports connections to instruments installed in hazardous area environments when applied with approved system barriers and installation methods.

Frequently Asked Questions

Q: Does the MU-GAIH83 provide direct analog signal conversion?
A: No. The MU-GAIH83 functions as a Field Termination Assembly for signal termination, isolation, and interface connection. Signal processing occurs through the associated Honeywell control system input hardware.

Q: What field signals can connect to the MU-GAIH83?
A: The assembly supports 4-20 mA DC and 1-5 VDC analog input signals according to the provided technical specifications.

Q: Can the MU-GAIH83 be installed in hazardous areas?
A: The module includes Intrinsic Safety and Galvanic Isolation functions. Installation must follow the approved Honeywell system configuration and hazardous area wiring requirements.

Field Installation Guidelines

• Install the MU-GAIH83 within the designated Honeywell termination cabinet or approved field interface enclosure.
• Use the specified round crimp pin connectors to maintain correct signal termination and mechanical retention.
• Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference.
• Connect cable shields according to the plant grounding specification and avoid multiple grounding points that may create ground loops.
• Verify field transmitter signal polarity before connecting 4-20 mA DC or 1-5 VDC circuits.
• Confirm hazardous area installation requirements before connecting intrinsically safe field devices.
• Inspect terminal connections and cable routing during commissioning to ensure correct signal continuity.
