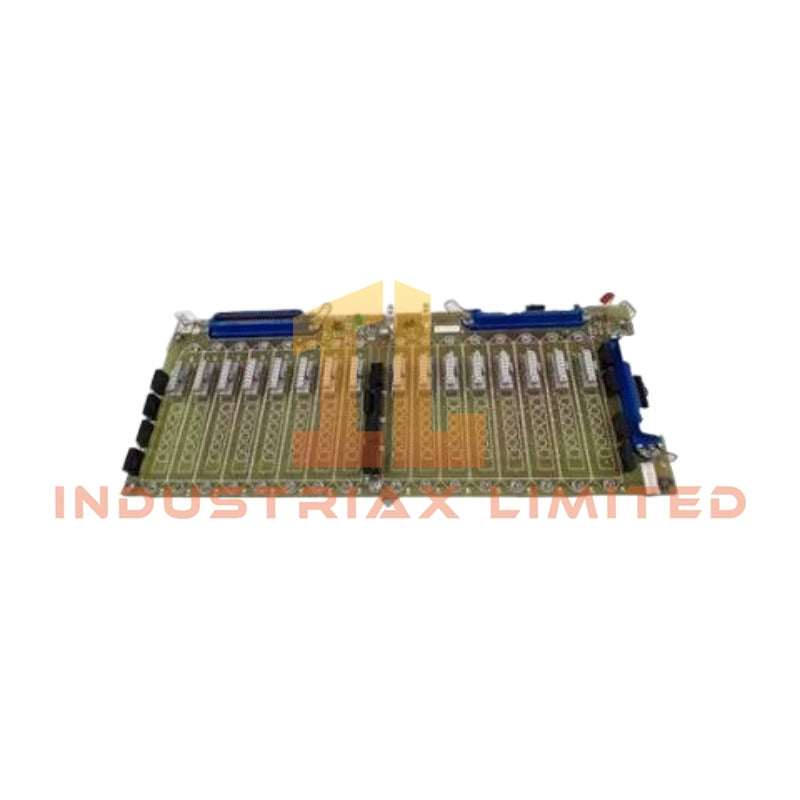

Honeywell MU-GAIH13 Galvanically Isolated High-Level Analog Input FTA

The Honeywell MU-GAIH13-100, also cataloged as the MU-GAIH13 Galvanically Isolated High-Level Analog Input FTA, operates as a dedicated hardware component for analog signal isolation and transmitter interface processing within Honeywell TDC 3000, HPM, and Experion PKS platforms.

Hardware Specifications

Parameter	Specification
Model	MU-GAIH13
Brand	Honeywell
Origin	USA
Part Number	51304718-100
Module Type	Galvanically Isolated High-Level Analog Input Field Termination Assembly
System Compatibility	Honeywell TDC 3000, HPM, Experion PKS
Channel Count	16 Channels
Input Signal Types	4-20 mA DC, 1-5 VDC, 0-10 VDC
Field Interface	Compression Terminals
FTA Size	Size B, approximately 307 mm
Isolation Type	Galvanic isolation between field circuits and system electronics
Transmitter Support	2-wire and 3-wire analog transmitters
Coating	Conformal coating for industrial environmental protection
Certification	CE compliant

4-20 mA HART Loop and Channel Isolation Characteristics

The MU-GAIH13 provides isolated analog signal termination for process transmitters connected to Honeywell control systems. Therefore, the module maintains electrical separation between field wiring and internal I/O processing circuits.

The FTA supports standard process analog inputs including 4-20 mA DC current loops and voltage input ranges. In addition, the galvanic isolation design reduces signal disturbance caused by ground potential differences, field noise, and transient electrical conditions.

The module architecture aligns with Honeywell process control requirements for channel-to-channel isolation and protected analog measurement paths. Furthermore, the transmitter interface supplies floating DC power for compatible 2-wire and 3-wire field devices.

Frequently Asked Questions

Q: Does the MU-GAIH13 support direct connection of 4-20 mA transmitters?
A: Yes. The module interfaces with 2-wire and 3-wire transmitters using 4-20 mA DC input signals and provides transmitter excitation capability.

Q: What is the purpose of galvanic isolation in the MU-GAIH13?
A: Galvanic isolation separates field signal circuits from control electronics to reduce ground loop effects and prevent electrical interference from affecting I/O processing.

Q: Can the MU-GAIH13 operate in redundant system configurations?
A: The supplied data indicates redundancy support capability; however, specific redundancy switching behavior depends on the installed Honeywell controller and I/O architecture.

Field Installation Guidelines

• Install the MU-GAIH13 according to the Honeywell cabinet layout and FTA mounting requirements.
• Use the specified compression terminals for field wiring termination and verify conductor tightness before commissioning.
• Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference.
• Apply proper shield grounding practices according to the control system installation standard.
• Confirm transmitter polarity, loop wiring configuration, and signal range before connecting field devices.
• Verify galvanic isolation performance during commissioning by checking field-to-system electrical separation.
• Inspect conformal coating condition when installing or servicing the module in corrosive environments.
