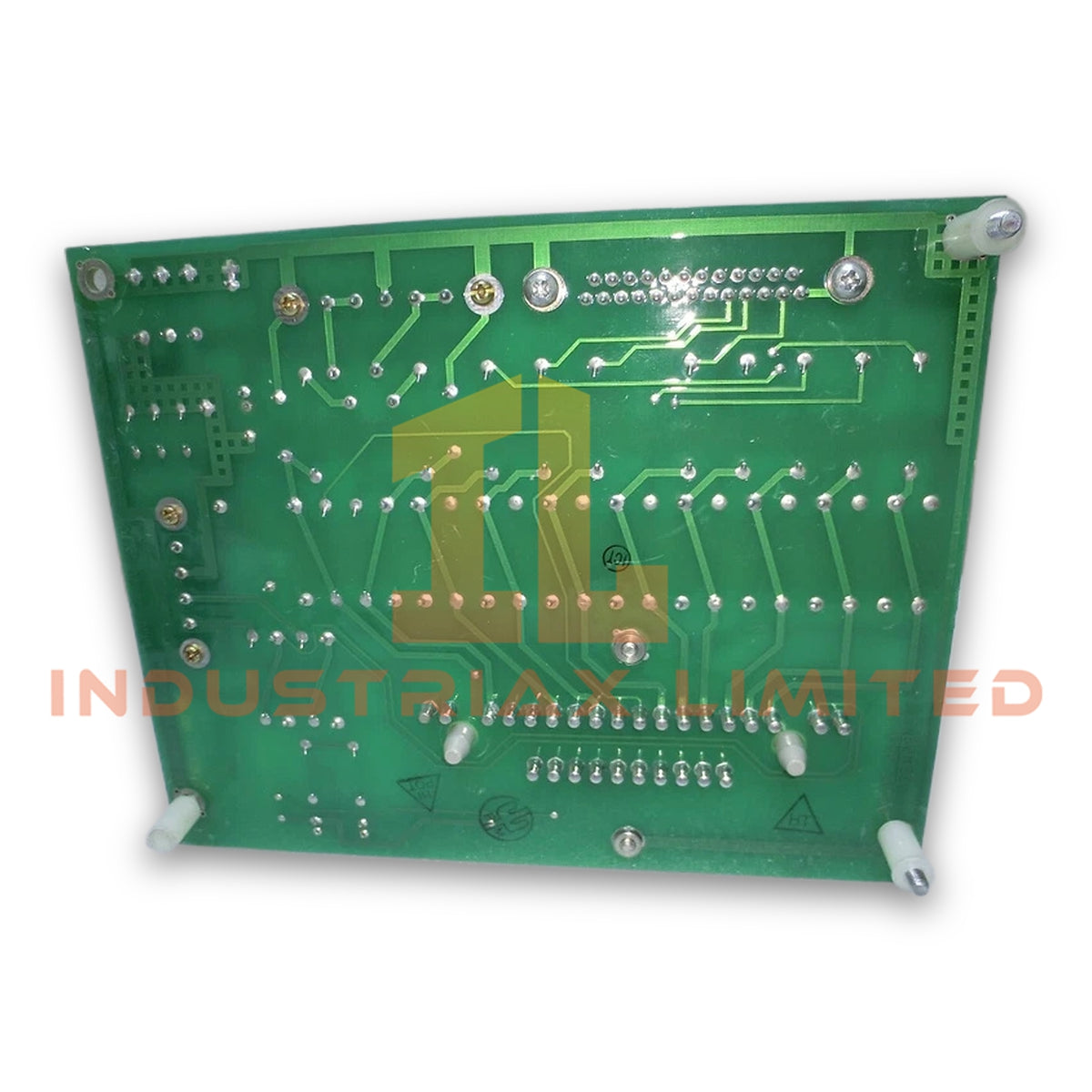

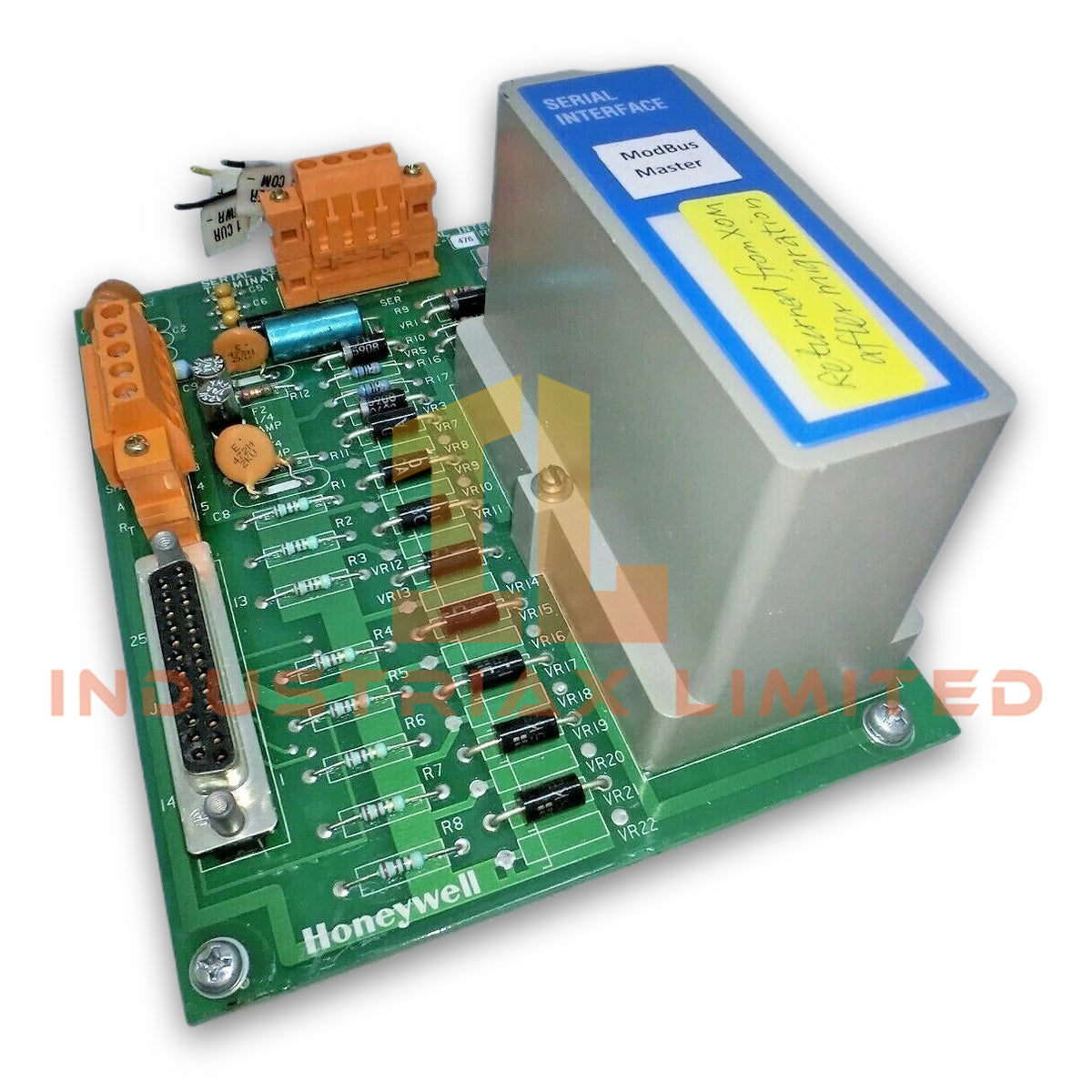

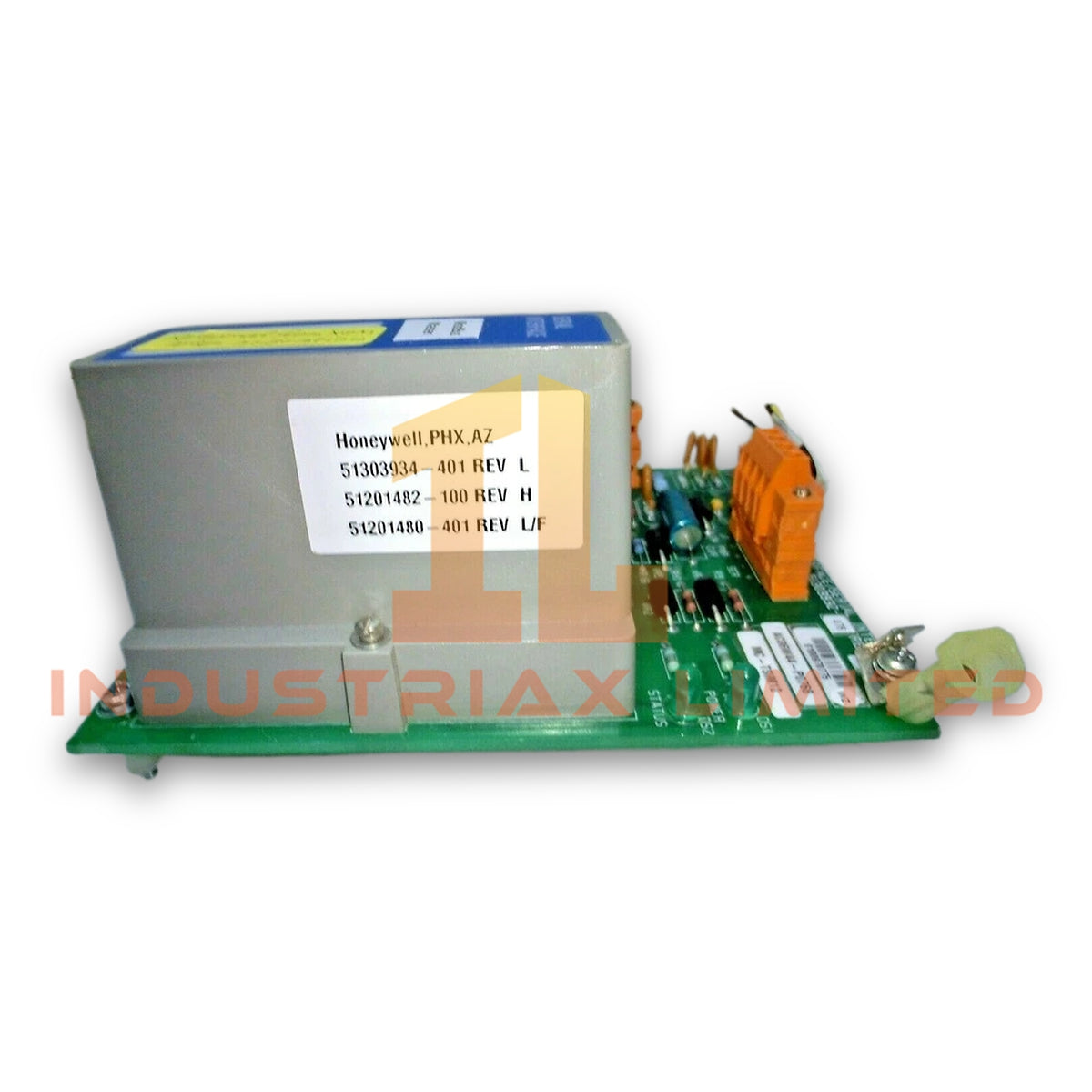

Honeywell MC-TSIM12 Serial Device Interface / Digital Input Termination Assembly

Configured for isolated digital signal acquisition and serial device interfacing in Honeywell Experion PKS and TDC 3000 systems, the Honeywell MC-TSIM12 51303932-471 (MC-TSIM12 Serial Device Interface / Digital Input Termination Assembly) provides direct field signal conditioning and electrical isolation.

Hardware Specifications

Parameter	Specification
Model	MC-TSIM12 51303932-471
Brand	Honeywell
Origin	USA
Dimensions	152 mm x 121 mm x 25 mm
Module Type	Serial Device Interface / Digital Input Termination Assembly (FTA)
System Compatibility	Honeywell Experion PKS / TDC 3000 DCS
Supported Protocols	Modbus RTU / Serial Data Interfacing
Physical Interfaces	RS-232 / RS-485 / RS-422
Digital Input Channels	12 isolated digital input channels
Input Signal Type	Dry contact or voltage-based ON/OFF signals
Nominal Input Voltage	24 VDC (18 VDC to 30 VDC operating range)
Isolation Rating	1500 VDC channel-to-channel and channel-to-system isolation
Coating	Conformal coating, CE compliant
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Not specified in available data
Mounting Format	DIN rail, panel, or marshalling rack mounting

DCS Process Signal Isolation and Communication Characteristics

The MC-TSIM12 interfaces discrete field signals with Honeywell DCS processing equipment through isolated input channels. The module accepts dry contact and DC voltage ON/OFF signals, then transfers conditioned status information through the configured serial communication interface.

Furthermore, the design incorporates channel-to-channel isolation and channel-to-system isolation to reduce ground loop effects and limit electrical interference during field signal transmission. The module supports RS-232, RS-485, and RS-422 physical communication interfaces for connection with serial field devices.

For Honeywell process control architectures, the module operates with isolated digital signal handling rather than analog measurement functions. Therefore, it does not provide 4-20 mA HART loop processing or FOUNDATION Fieldbus / Profibus PA fieldbus conversion functions.

Frequently Asked Questions

Q: Does the MC-TSIM12 provide analog input measurement capability?
A: No. The MC-TSIM12 processes isolated digital ON/OFF signals and supports serial device interfacing. It does not perform analog signal measurement.

Q: What field wiring signals can the MC-TSIM12 accept?
A: The module accepts dry contact inputs and voltage-based digital input signals within the specified 24 VDC operating range.

Q: Does the module provide electrical isolation between field channels and the control system?
A: Yes. The design provides channel-to-channel and channel-to-system isolation to reduce interference caused by electrical potential differences.

Field Installation Guidelines

• Install the module according to the Honeywell system cabinet or marshalling rack installation requirements.
• Separate digital signal wiring from high-voltage power cables to reduce electromagnetic interference coupling.
• Connect cable shields according to the plant grounding standard and avoid multiple uncontrolled grounding points.
• Verify field input polarity and voltage level before connecting external digital devices.
• Use appropriate terminal blocks and maintain clear identification between field wiring and DCS interface wiring.
• Inspect connectors, terminals, and mounting hardware before system commissioning.
• Confirm serial communication wiring configuration, including RS-232, RS-485, or RS-422 selection, before applying power.
