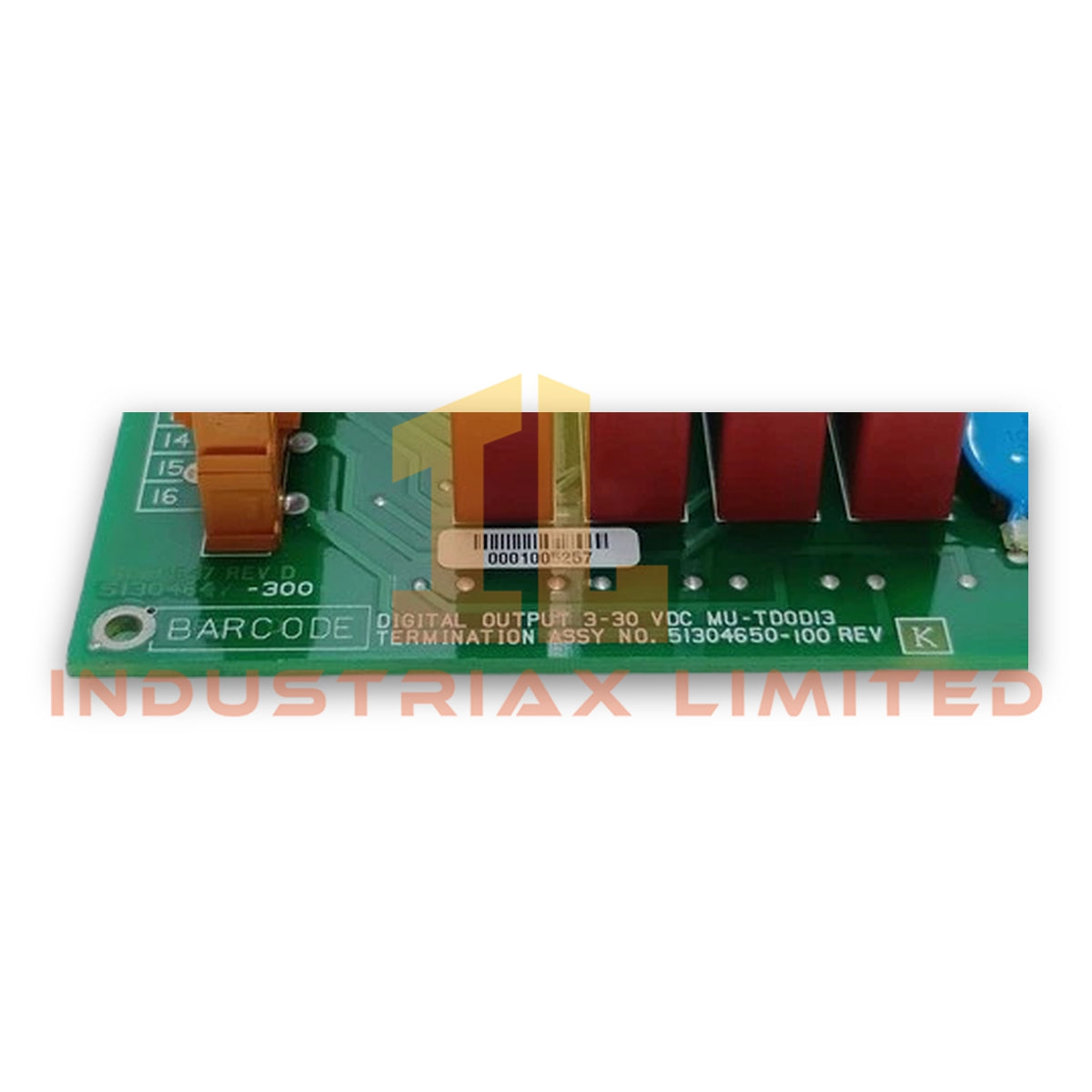

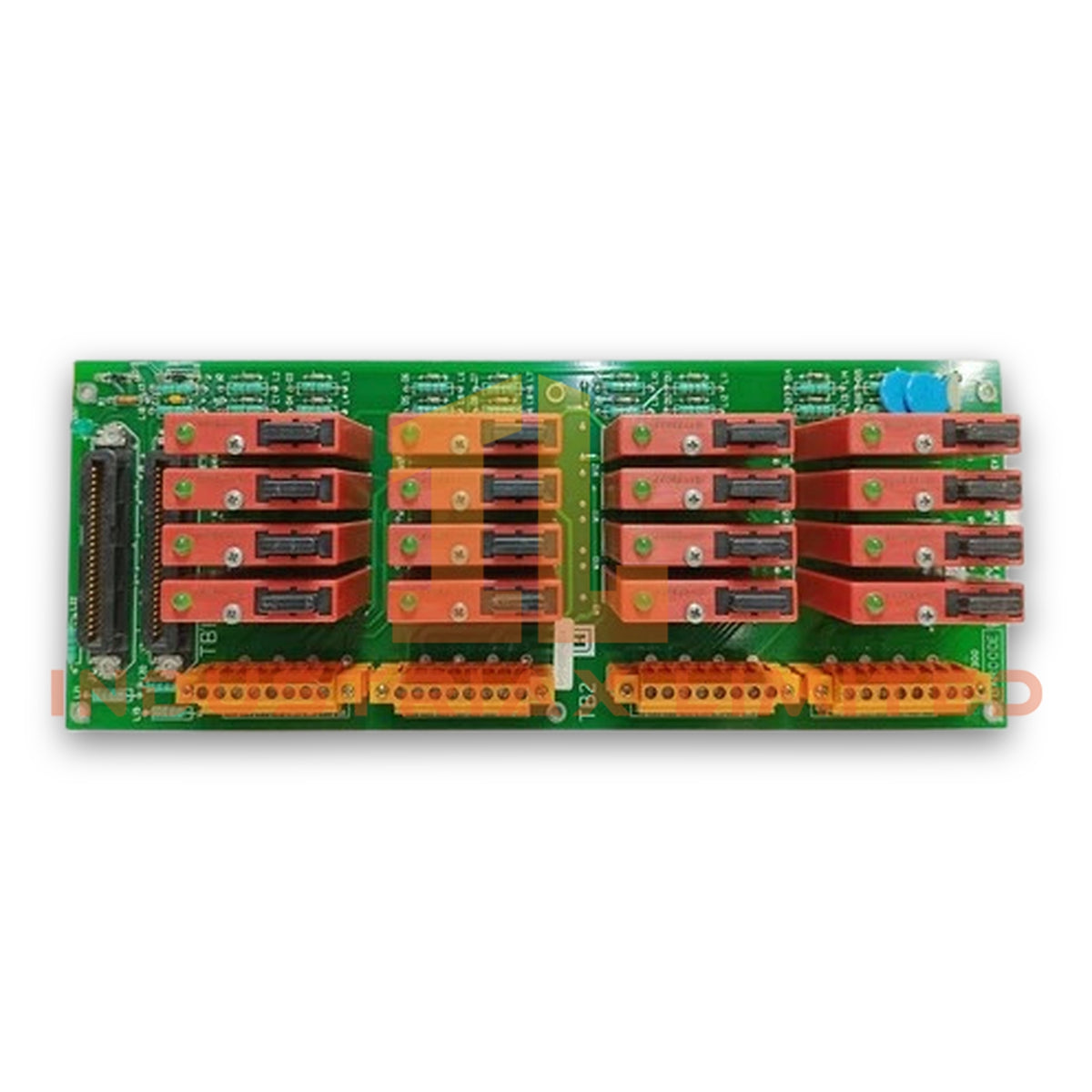

Honeywell MC-TDODI3 Digital Input/Output Field Termination Assembly

Configured for digital signal termination and field device interfacing in Honeywell TDC 3000, TPS, and High-Performance Process Manager systems, the Honeywell MC-TDODI3 51304650-150 (MC-TDODI3 Digital Input/Output Field Termination Assembly) provides direct physical and electrical signal conditioning between field wiring and process control I/O channels.

Hardware Specifications

Parameter	Specification
Model	MC-TDODI3
Brand	Honeywell
Origin	USA
Part Number	51304650-150
Product Type	Digital Input/Output Field Termination Assembly
System Compatibility	Honeywell TDC 3000, TPS, High-Performance Process Manager (HPM)
Signal Function	Digital input and digital output signal termination
I/O Configuration	Configurable digital I/O channels
Isolation Type	Channel-to-system electrical isolation
Isolation Rating	500 VDC / 1500 VAC typical
Power Consumption	Supplied through Honeywell I/O system power architecture
Power Supply Requirement	24 VDC nominal
Mounting Type	Honeywell standard I/O rack or panel mounting
Operating Temp	0 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95% RH, non-condensing
Dimensions	Standard Honeywell high-density FTA footprint
Weight	Approximately 0.5 kg

DCS Signal Isolation and Process Interface Characteristics

The MC-TDODI3 provides digital signal termination functions for Honeywell process control architectures. It accepts field-level discrete signals and transfers conditioned status information to the control processor. In addition, it supports output signal distribution for connected field actuators and indication devices.

The assembly applies channel-to-system isolation to reduce the influence of ground potential differences and electrical disturbances. Therefore, field wiring remains separated from the controller-side signal path during normal operation.

For Honeywell DCS installations, the module architecture supports digital field circuits rather than analog measurement loops. As a result, it does not perform 4-20 mA signal conversion or HART communication functions. Instead, it focuses on discrete status detection and command execution.

Frequently Asked Questions

Q: Does the MC-TDODI3 support analog input or analog output signals?
A: No. The MC-TDODI3 is designed for digital input and digital output signal handling. Analog signal conversion functions require dedicated Honeywell analog I/O assemblies.

Q: Can the MC-TDODI3 be replaced while the control system remains powered?
A: Replacement depends on the installed Honeywell rack configuration and system maintenance procedures. Verify hot-swap permissions in the applicable HPM or TPS hardware documentation before removal.

Q: What installation factor affects digital signal performance most?
A: Proper field wiring separation, shield grounding practices, and avoidance of high-voltage cable routing near signal conductors directly affect signal integrity.

Field Installation Guidelines

• Install the MC-TDODI3 according to Honeywell I/O rack and termination assembly installation procedures.
• Confirm module addressing and channel configuration before connecting field devices.
• Route digital signal cables separately from motor power lines, switching circuits, and high-current conductors.
• Connect cable shields according to the site grounding standard to minimize electrical interference.
• Verify field device voltage levels and polarity before energizing output circuits.
• Inspect terminal connections for correct tightening and mechanical stability during commissioning.
• Follow approved maintenance procedures when removing or replacing the assembly from an active control cabinet.
