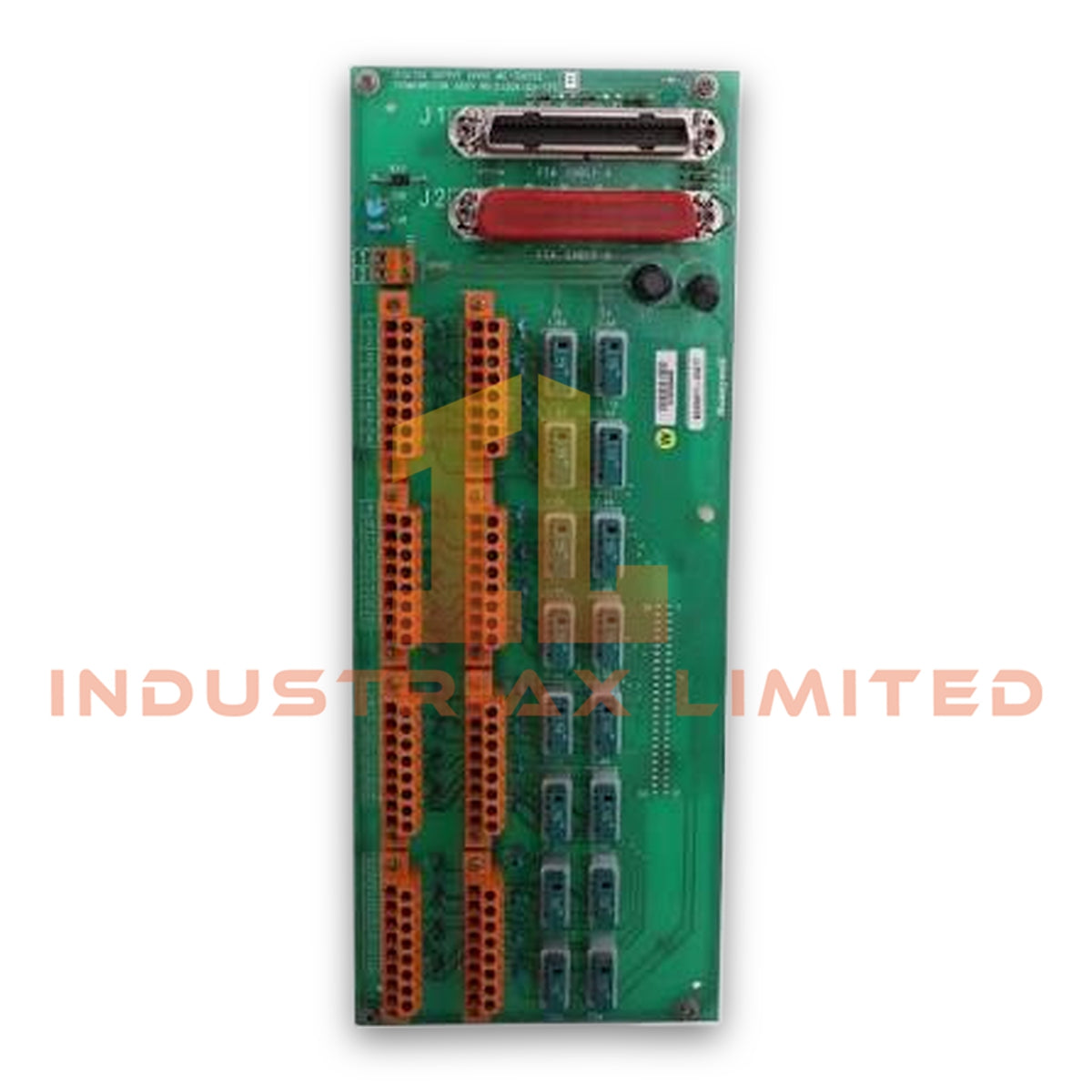

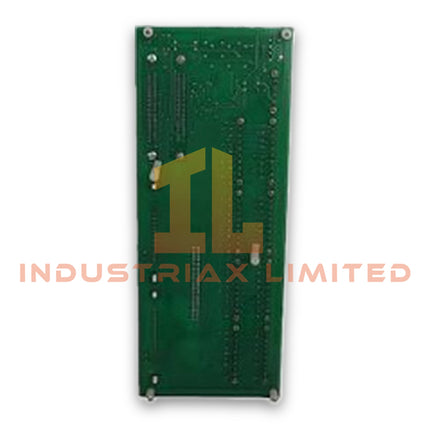

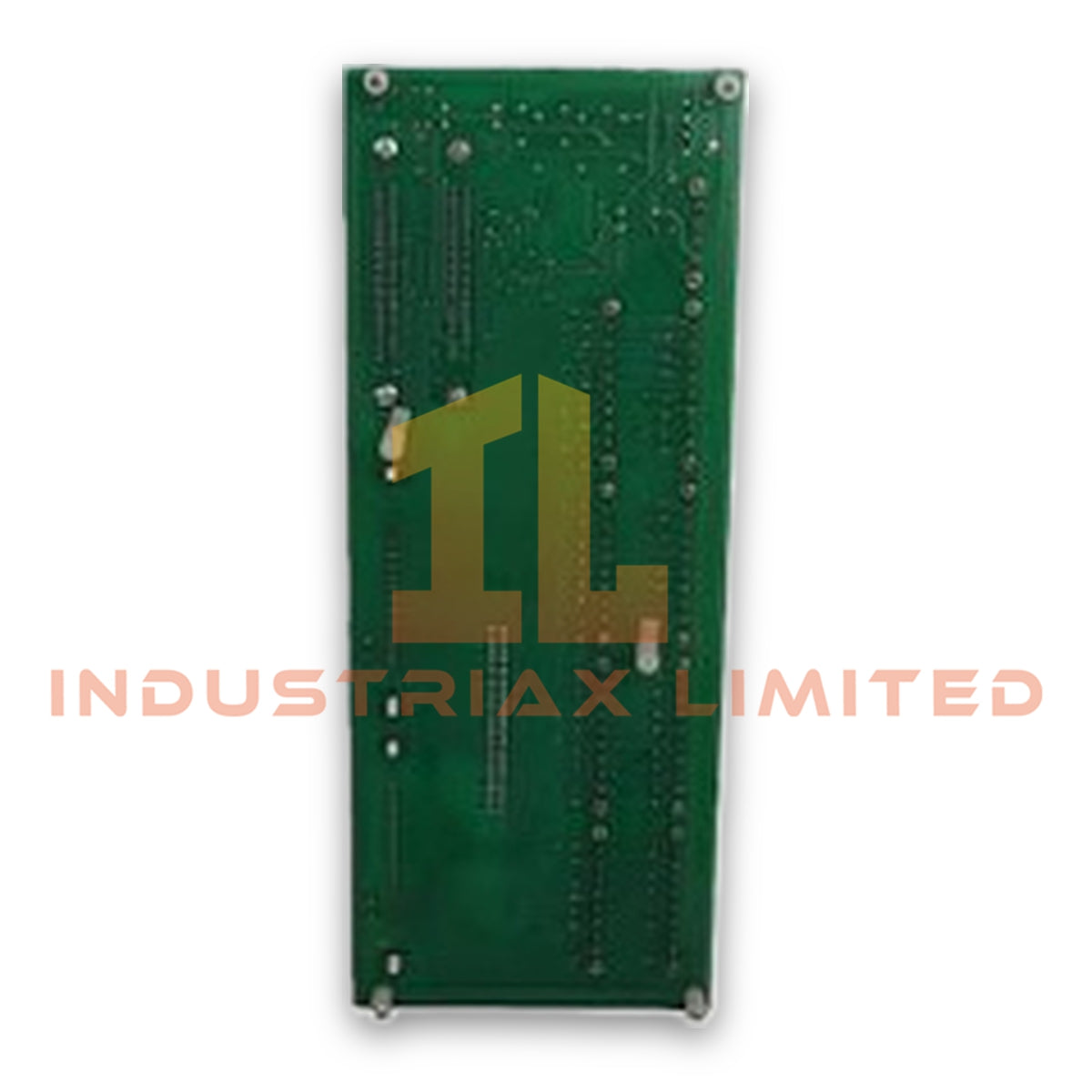

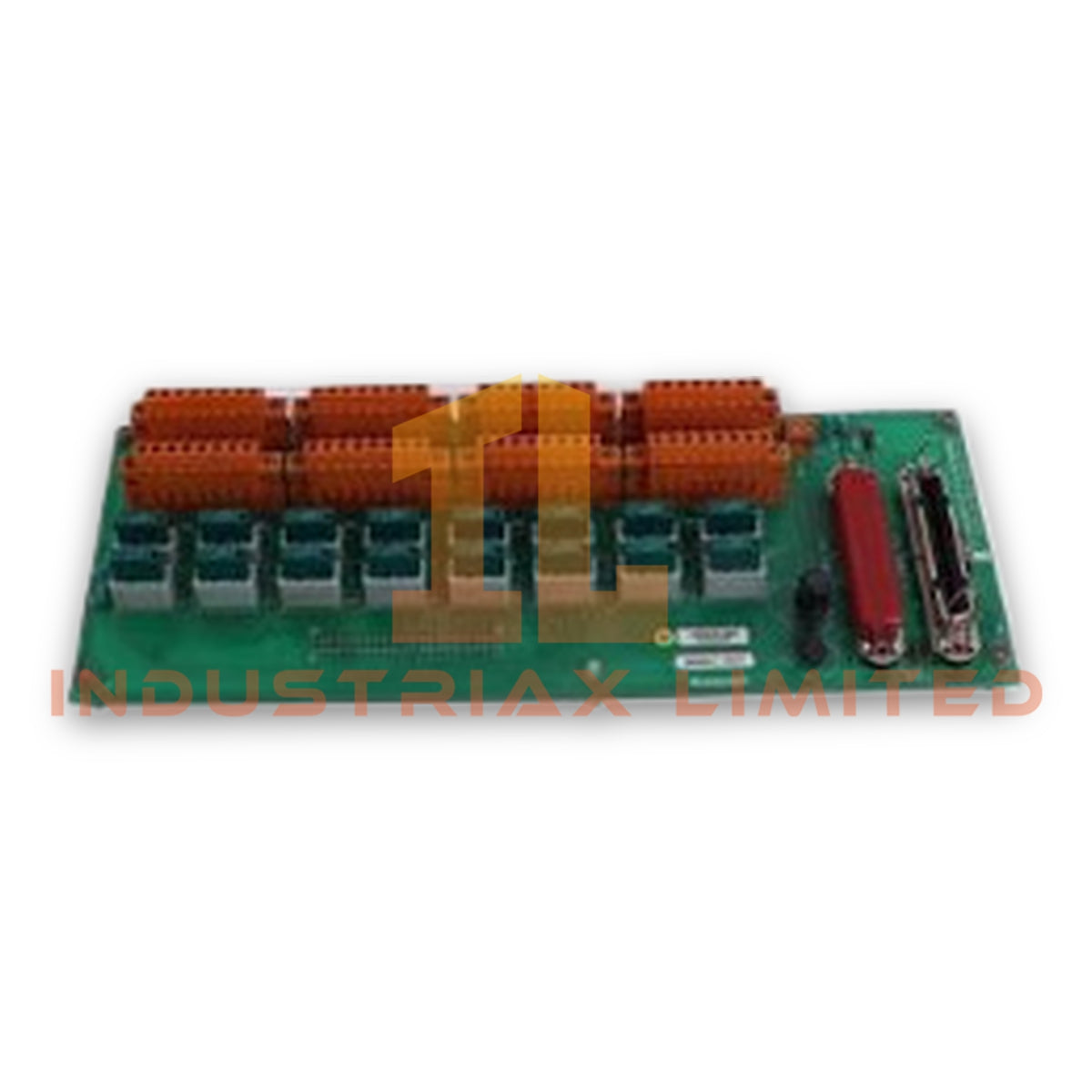

Honeywell MC-TDIA22 Digital Input Field Termination Assembly

Configured for digital signal termination in Honeywell TDC 3000 and Experion PKS High-Performance Process Manager (HPM) I/O systems, the Honeywell MC-TDIA22 51304431-175 (MC-TDIA22 Digital Input Field Termination Assembly) provides direct electrical interfacing between field discrete devices and DCS input processing circuits.

Hardware Specifications

Parameter	Specification
Model	MC-TDIA22
Brand	Honeywell
Origin	USA
Operating Temp	0 deg C to +60 deg C
Power Consumption	Supplied through connected I/O interface; value not specified
Part Number	51304431-175
Module Type	Digital Input Field Termination Assembly (FTA)
Application System	Honeywell TDC 3000, Experion PKS, High-Performance Process Manager (HPM)
Input Channels	32 digital input channels
Input Signal Type	Discrete ON/OFF, dry contact, solid-state input
Input Voltage	24 VDC nominal
Field Connection	Screw-clamp terminal blocks
Controller Connection	Multi-pin ribbon cable interface
Isolation Method	Optical isolation between field wiring and logic circuitry
Mounting Method	DIN rail or cabinet panel mounting
Environmental Protection	Conformal coating available on standard units

DCS Digital Input Signal Conditioning and Isolation

The MC-TDIA22 receives field contact signals and transfers conditioned digital states to Honeywell I/O processor assemblies. The termination assembly applies signal isolation and electrical conditioning before the controller reads the input status.

Furthermore, the module supports Honeywell DCS architectures that require discrete field termination for process switches, relay contacts, pushbuttons, and proximity-based switching devices. The optical isolation design separates field wiring circuits from internal control electronics and reduces interference from electrical transients.

For Honeywell process control installations, the termination assembly maintains compatibility with distributed I/O structures where channel-to-channel signal separation and controlled field wiring termination are required. The design supports discrete signal acquisition rather than analog measurement functions such as 4-20 mA HART or FOUNDATION Fieldbus communication.

Frequently Asked Questions

Q: Does the MC-TDIA22 support analog input signals?

A: No. The MC-TDIA22 is a digital input termination assembly designed for discrete ON/OFF signals from field devices. It does not process analog current or voltage measurement signals.

Q: Can the MC-TDIA22 operate as a standalone I/O controller?

A: No. The module functions as a field termination interface and requires connection to compatible Honeywell I/O processor hardware within TDC 3000 or Experion PKS architectures.

Q: Does the MC-TDIA22 provide electrical isolation between field wiring and the DCS electronics?

A: Yes. The assembly uses optical isolation to separate field input circuits from internal logic-side electronics.

Field Installation Guidelines

• Install the MC-TDIA22 inside an appropriate control cabinet or approved panel enclosure.
• Verify terminal identification before connecting field digital input wiring.
• Separate low-level digital signal wiring from high-voltage power cables to reduce electrical interference.
• Use shielded wiring when required by the field device installation standard, and connect shields according to the plant grounding specification.
• Confirm field device voltage compatibility before applying 24 VDC input signals.
• Check ribbon cable orientation and connector alignment before connecting the termination assembly to the I/O processor interface.
• Perform continuity testing and point-to-point verification after completing field wiring.
