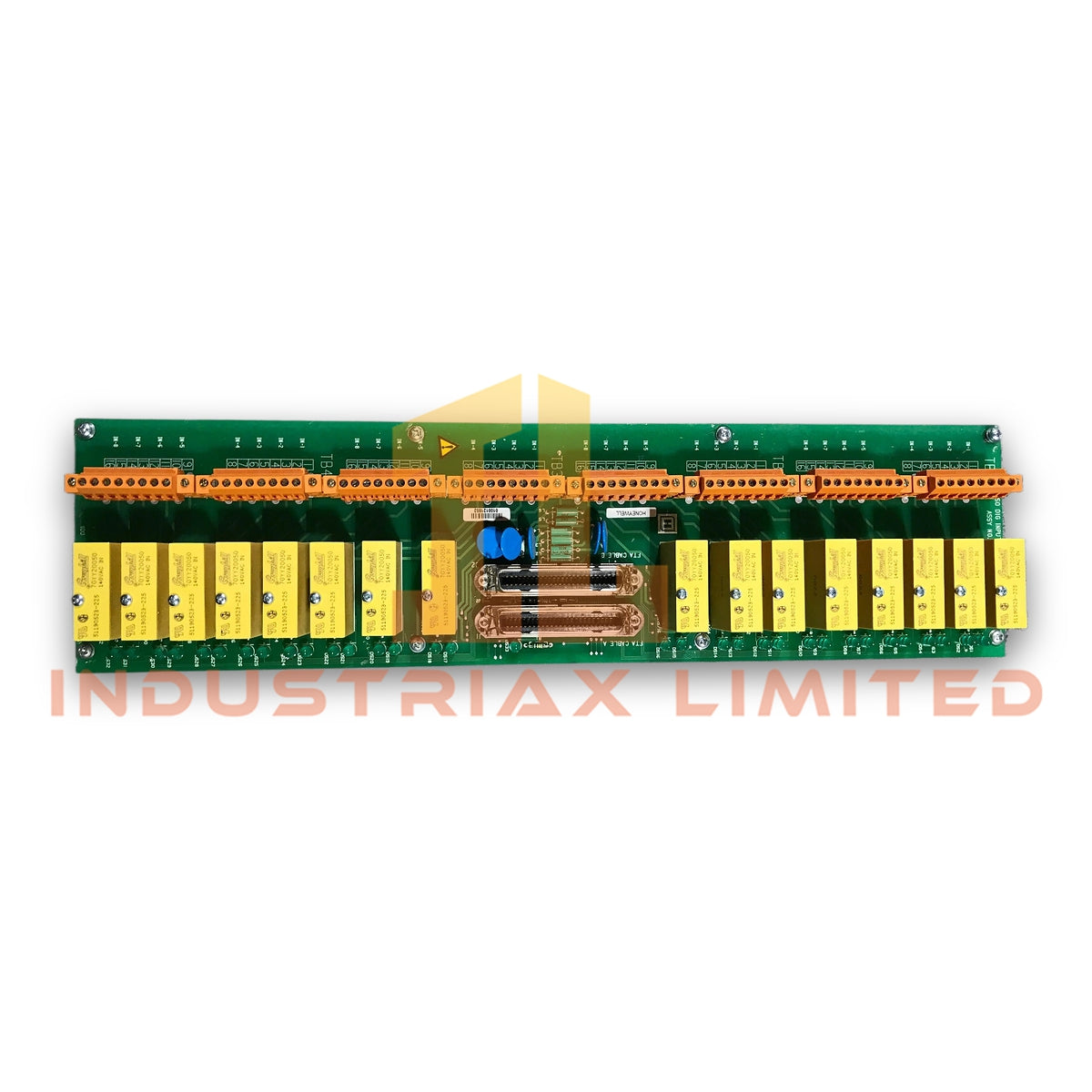

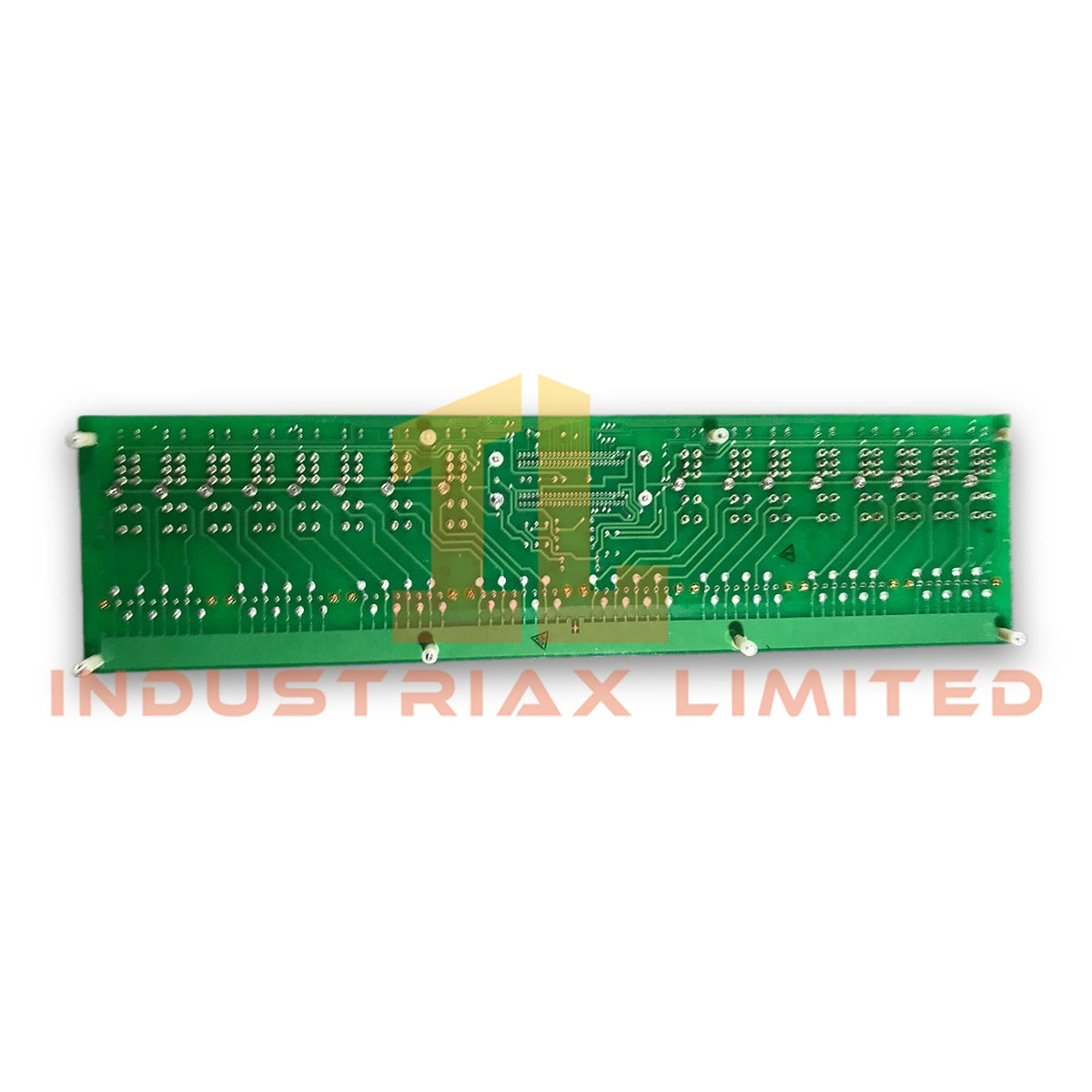

Honeywell MC-TDIA12 51304439-175 Isolated Digital Input Board

The Honeywell MC-TDIA12 51304439-175, also cataloged as the MC-TDIA12 Isolated Digital Input Board, operates as a dedicated hardware component for AC digital signal acquisition within Honeywell control system I/O architectures.

Hardware Specifications

Parameter	Specification
Model	MC-TDIA12 51304439-175
Brand	Honeywell
Product Type	Isolated Digital Input Board
Spare Model	51304439-175
Origin	USA
Weight	1.14 kg
Dimensions	46.2 x 12 x 5 cm
Input Channels	32
Digital Input Voltage	90-132 VAC rms
Frequency Range	47-63 Hz
Galvanic Isolation	1500 VAC rms or +/-1500 VDC
Sense Current	3.5 mA minimum
Absolute Delay Across Input Filter and Isolation	25 ms maximum
Accumulated Input Frequency	Not applicable
Tariff Code	8537101190
Shipment Location	Xiamen, China

Channel-to-Channel Isolation and DCS Signal Processing

The Honeywell MC-TDIA12 51304439-175 uses isolated digital input channels to acquire field AC status signals and transfer discrete states into the control system. The board supports 32 input channels and accepts 90-132 VAC rms field signals.

Furthermore, the module applies galvanic isolation between field circuits and internal electronics. The isolation rating reaches 1500 VAC rms or +/-1500 VDC, which separates external wiring conditions from the control hardware signal path.

For Honeywell process control systems, channel-to-channel isolation supports discrete field device monitoring where electrical separation is required. The input circuit design manages switching signals with a maximum delay of 25 ms across the input filter and isolation stages.

Frequently Asked Questions

Q: What type of field signals does the Honeywell MC-TDIA12 51304439-175 accept?
A: The MC-TDIA12 accepts 90-132 VAC rms digital input signals with a frequency range of 47-63 Hz.

Q: Does the MC-TDIA12 provide electrical isolation between field inputs and internal circuits?
A: Yes. The board provides galvanic isolation rated at 1500 VAC rms or +/-1500 VDC.

Q: How many digital input channels are available on this board?
A: The MC-TDIA12 provides 32 isolated digital input channels for discrete signal acquisition.

Field Installation Guidelines

• Install the MC-TDIA12 51304439-175 according to the Honeywell system hardware configuration and approved cabinet wiring practices.
• Verify that field wiring voltage levels match the specified 90-132 VAC rms digital input range before connection.
• Separate AC digital input wiring from low-level analog signal cables to reduce electrical interference.
• Connect cable shields according to the control cabinet grounding design and site electrical standards.
• Check terminal connections for correct polarity and secure mechanical fastening before system startup.
• Confirm isolation requirements when connecting field devices located in electrically noisy environments.
• Avoid routing signal cables near high-current power conductors unless proper separation or shielding methods are applied.
