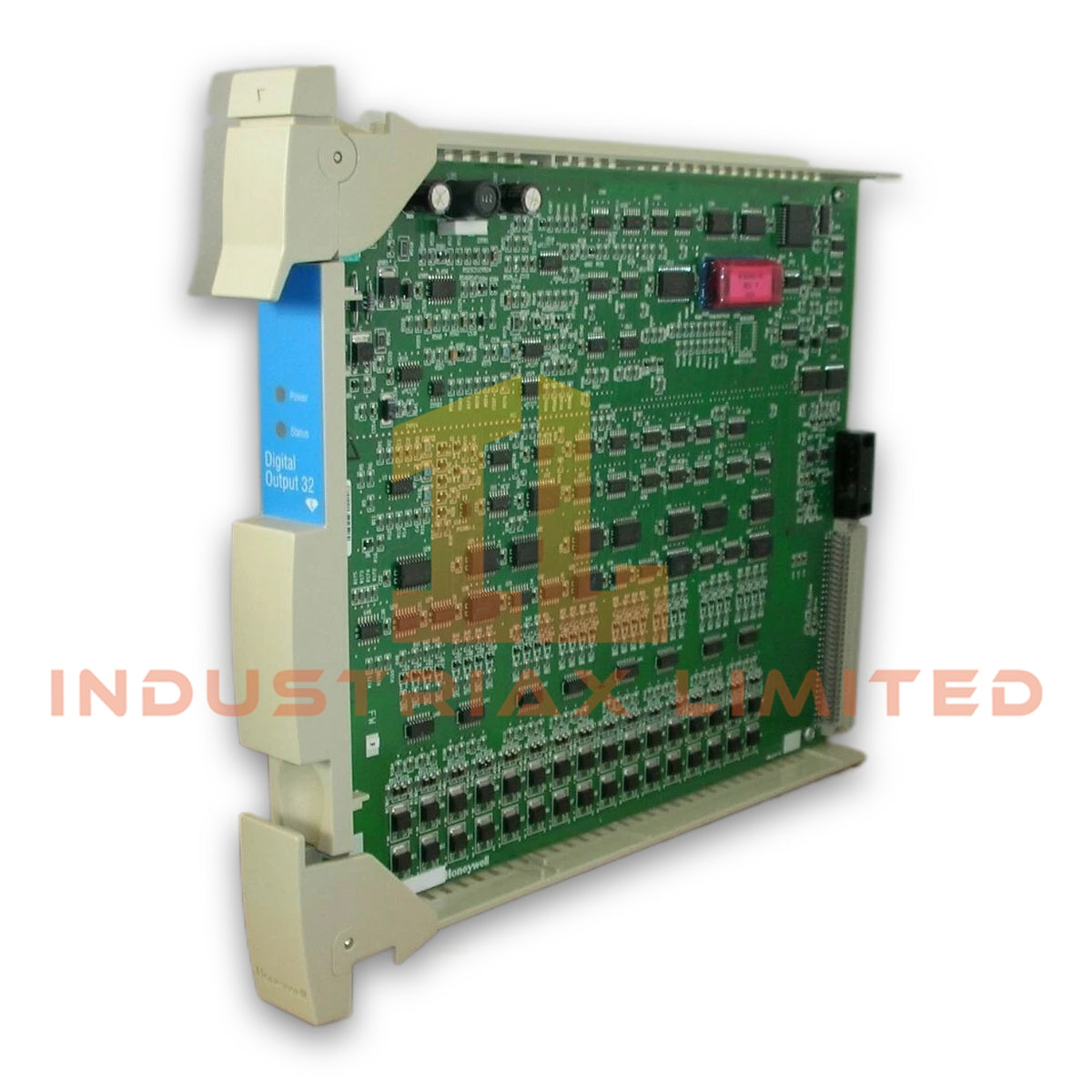

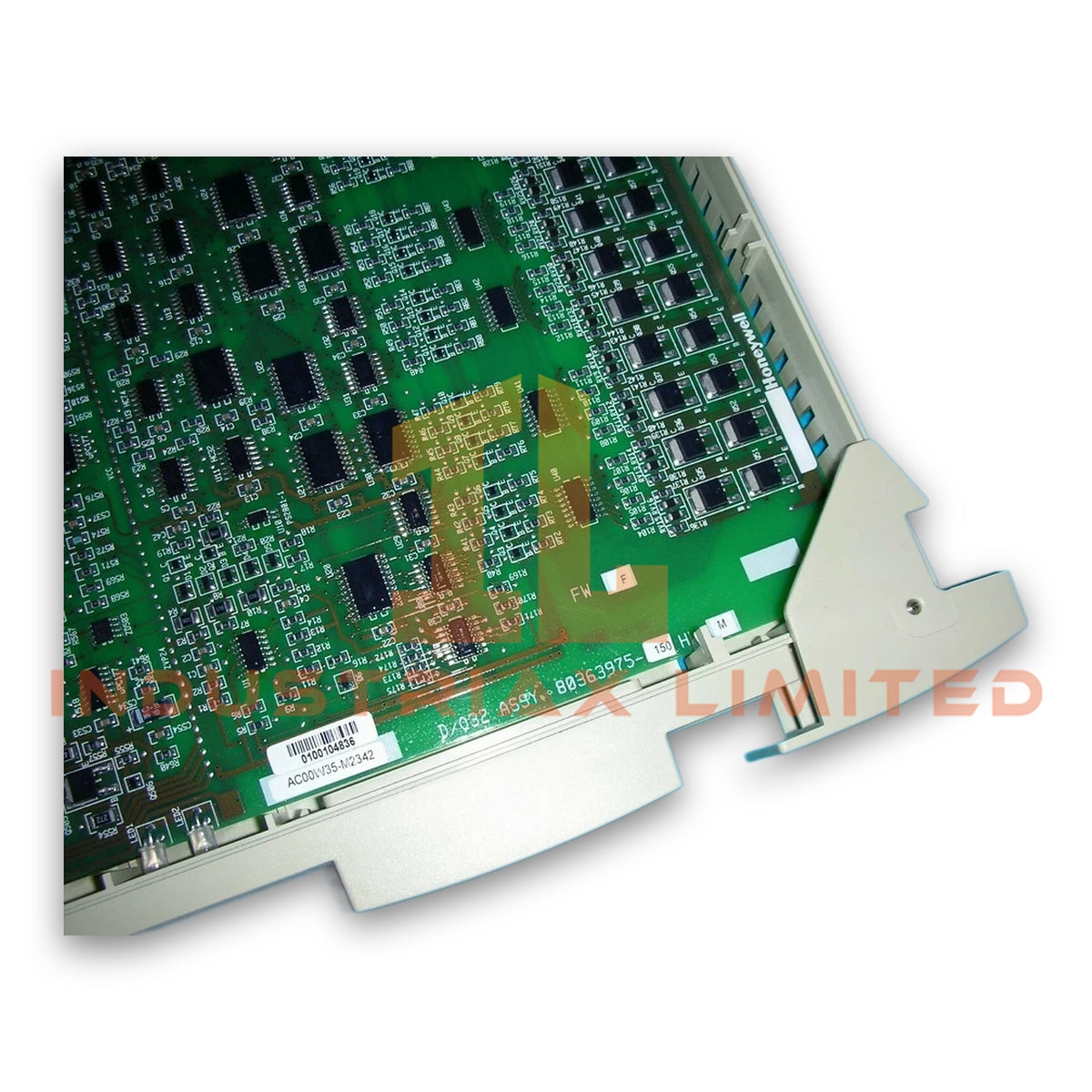

Honeywell MC-PDOY22 80363975-150 Digital Output Relay Module
Configured for relay-based digital output execution in Honeywell I/O control platforms, the Honeywell MC-PDOY22 80363975-150 (MC-PDOY22 Digital Output Relay Module) provides direct physical switching for field load circuits. The module operates with 32 output channels and supports open-collector output interfaces within compatible Honeywell IOP systems.
Hardware Specifications
Parameter
Specification
Model
MC-PDOY22 80363975-150
Brand
Honeywell
Product Type
Digital Output Relay Module
Compatible System
Honeywell IOP - MU/MC-PDOY22
Origin
USA
Weight
0.58 kg
Dimensions
32 x 27.9 x 2.9 cm
Operating Temp
Not specified
Power Consumption
Not specified
Output Channels
32
Output Type
Open-collector
Load Voltage Range
15-30 VDC
On-State Voltage
0.5 V max at 0.5 A load current
Off-State Voltage
30 VDC max
Off-State Leak Current
0.5 A max
Turn-On/Turn-Off Time
200 msec max
Electrical Function
Digital output relay switching
Tariff Code
8537101190
Channel Isolation and DCS Output Interface Characteristics
The MC-PDOY22 provides discrete output control through open-collector switching channels. Therefore, each channel transfers controller commands into field-side electrical actions through defined load voltage ranges.
Furthermore, Honeywell DCS output modules commonly operate with channel-level signal conditioning and controlled field interfaces. The module design supports structured I/O allocation and maintains stable communication between the controller logic and physical output circuits.
The MC-PDOY22 belongs to Honeywell process control hardware families where digital output execution interfaces with DCS field devices. However, this module specification does not define analog signal protocols such as 4-20 mA HART, FOUNDATION Fieldbus, or Profibus PA.
Frequently Asked Questions
Q: How many output points does the Honeywell MC-PDOY22 provide? A: The MC-PDOY22 provides 32 digital output channels with open-collector output type.
Q: What field voltage range does the MC-PDOY22 support? A: The module supports a load voltage range of 15-30 VDC, with a maximum off-state voltage of 30 VDC.
Q: What is the maximum switching response time of the MC-PDOY22? A: The specified maximum turn-on and turn-off time is 200 msec.
Field Installation Guidelines
Install the MC-PDOY22 according to the Honeywell I/O rack and cabinet wiring requirements.
Verify the module position and I/O addressing before connecting field output wiring.
Use appropriate terminal wiring practices for open-collector output circuits.
Separate output signal wiring from high-voltage power cables to reduce electrical interference.
Connect cable shields according to the system grounding design and avoid multiple-point grounding paths.
Confirm load voltage polarity and current requirements before energizing field devices.
Inspect connector seating and module alignment during installation and maintenance activities.
