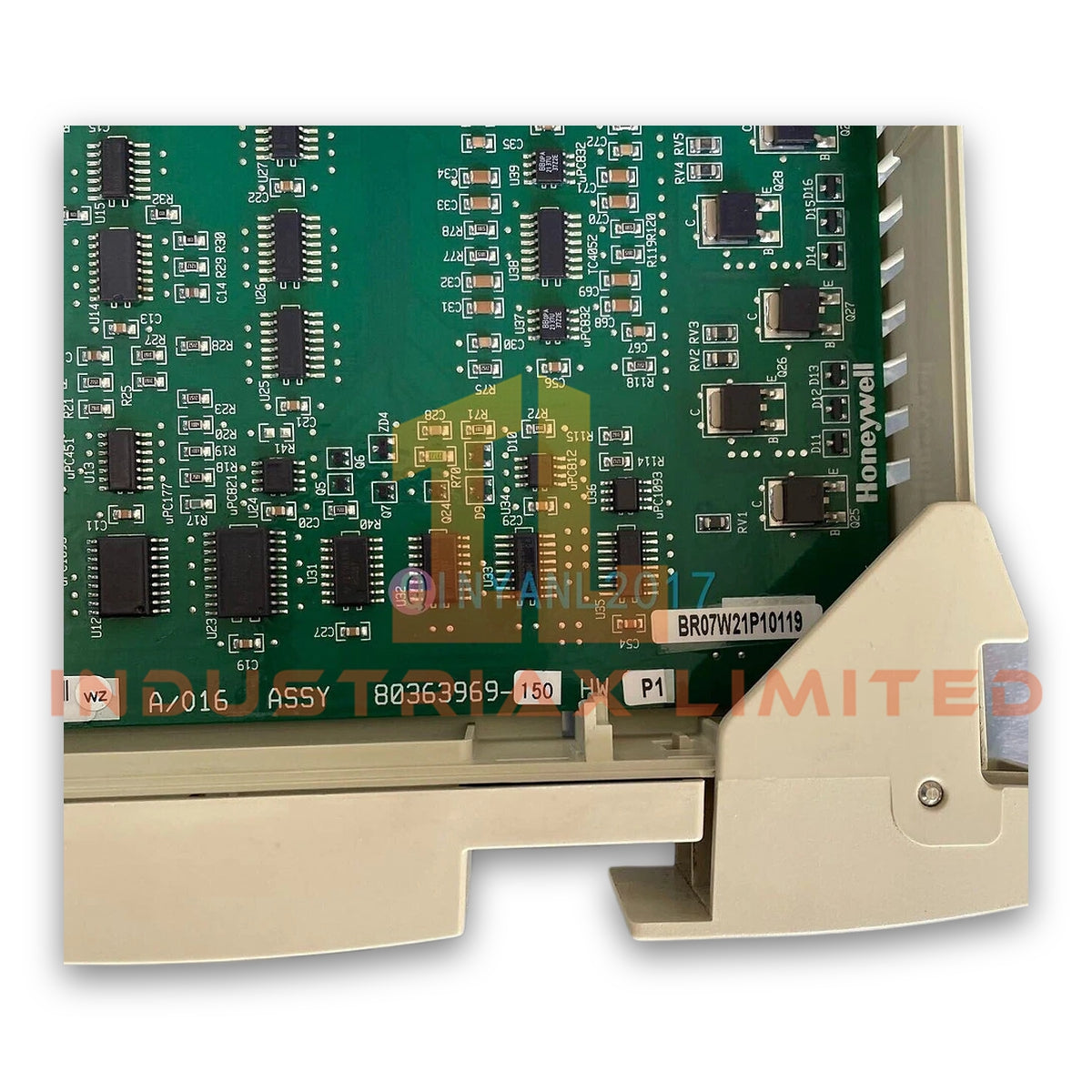

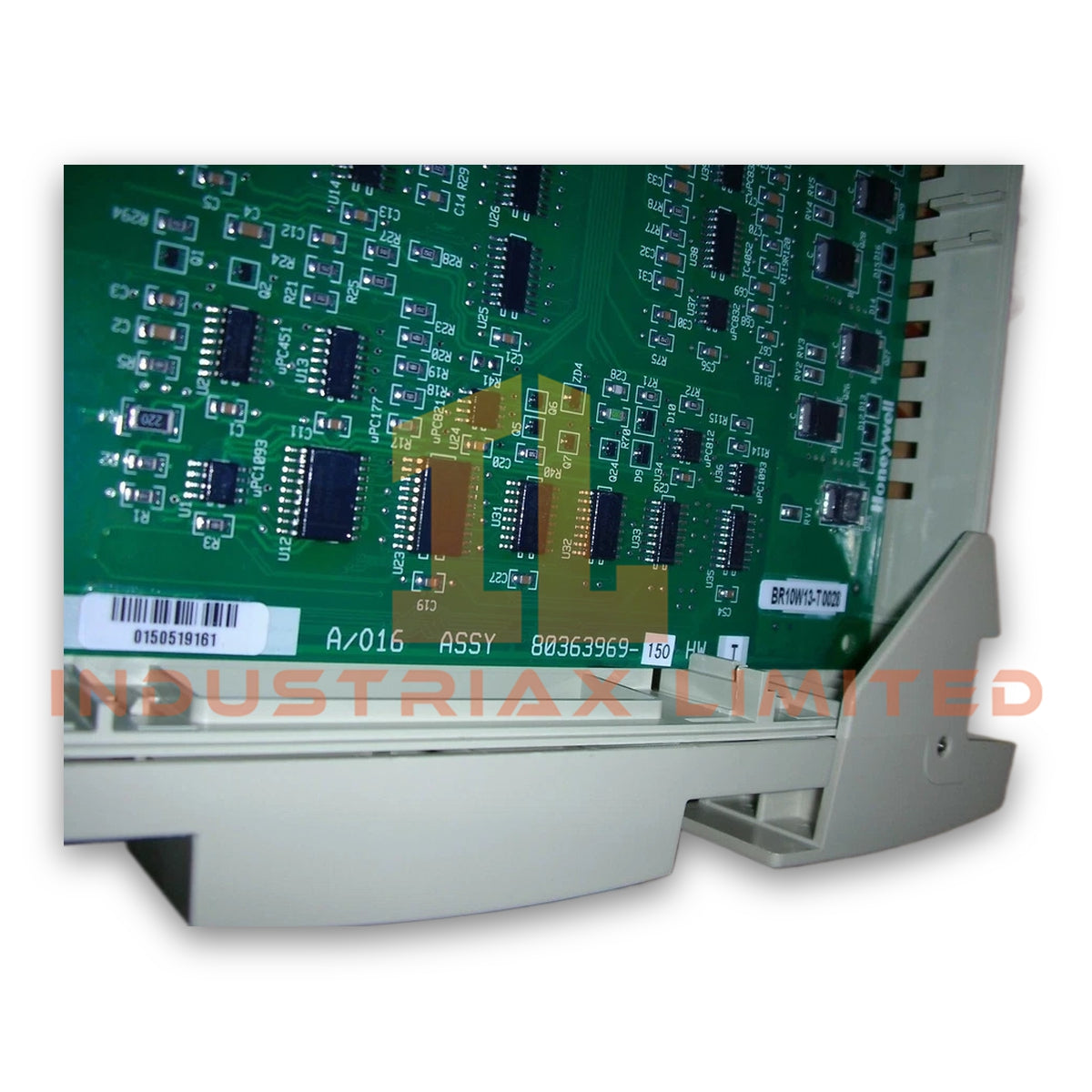

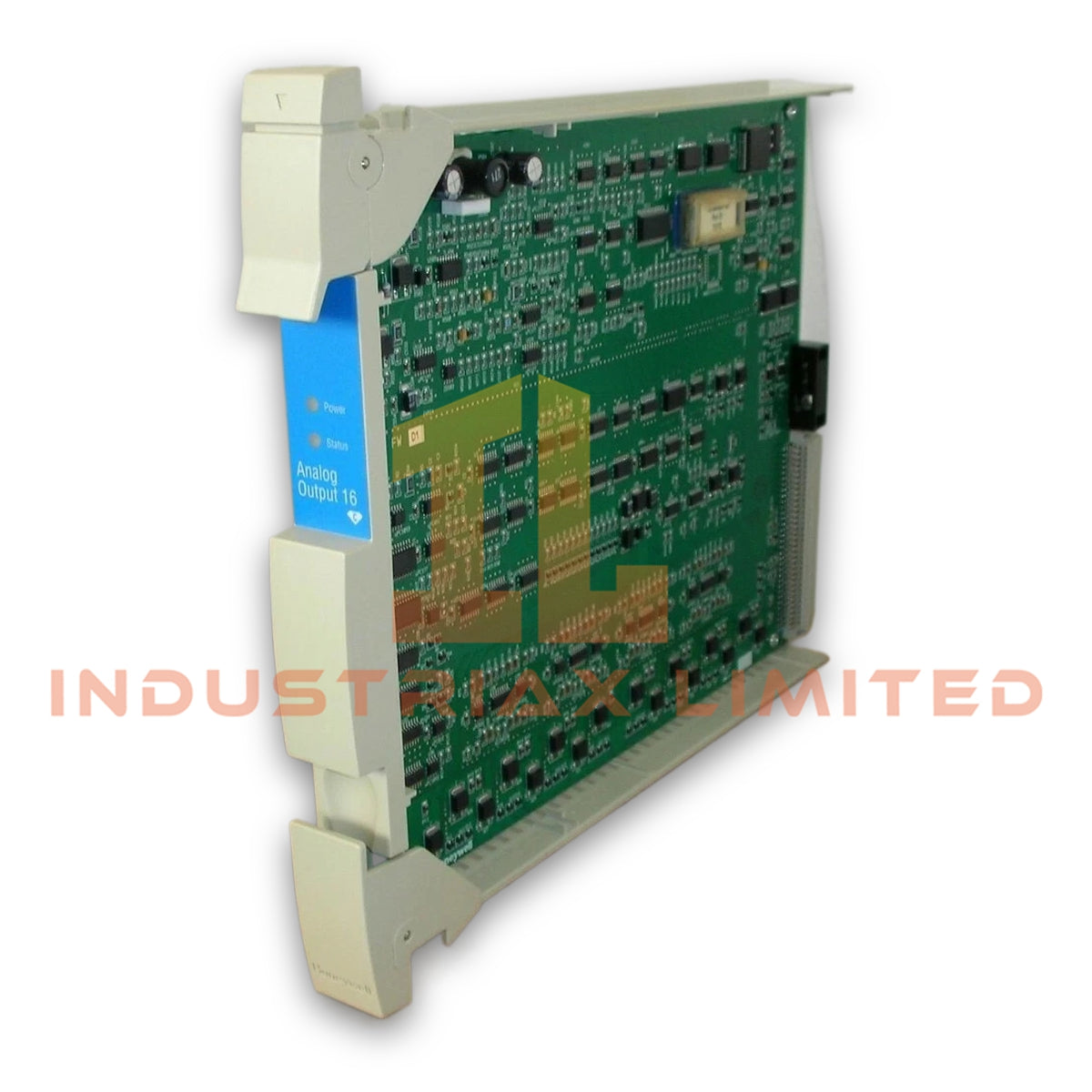

Honeywell MC-PAOY22 80363969-150 Analog Output Module

The Honeywell MC-PAOY22 80363969-150, also cataloged as the MC-PAOY22 Analog Output Module, operates as a dedicated hardware component for 4-20 mA current signal execution within Honeywell process control I/O systems.

Hardware Specifications

Parameter	Specification
Model	MC-PAOY22 80363969-150
Brand	Honeywell
Product Type	Analog Output Module
Origin	USA
Weight	0.6 kg
Dimensions	3 x 32 x 28 cm (estimated shipping size)
Operating Temp	-20 deg C to +60 deg C
Humidity	5-95% non-condensing
Power Consumption	24 VDC +/-10%, 120 mA max
Output Type	4-20 mA current loop
Output Channels	8 isolated outputs
Resolution	16-bit
Accuracy	+/-0.1% of full scale
Channel-to-Channel Isolation	500 V AC
Field-to-Logic Isolation	1500 V AC
Tariff Code	8537101190

4-20 mA Process Output Isolation and Signal Handling

The Honeywell MC-PAOY22 80363969-150 provides eight isolated analog output channels for direct current loop control. Each channel generates 4-20 mA signals for field devices such as control valves, actuators, and analog positioning equipment.

Furthermore, the module applies channel-to-channel isolation at 500 V AC and field-to-logic isolation at 1500 V AC. Therefore, the output interface separates field wiring disturbances from internal controller electronics.

The module supports DCS analog output functions with 16-bit resolution and +/-0.1% full-scale accuracy. In addition, the isolated output architecture supports process instrumentation requiring stable current loop transmission.

Honeywell process I/O platforms commonly apply 4-20 mA HART loop protocol communication methods for instrument-level signal integration. The MC-PAOY22 design focuses on analog current output execution and electrical separation between field circuits and control logic.

Frequently Asked Questions

Q: How many analog output channels does the MC-PAOY22 80363969-150 provide?
A: The module provides 8 isolated analog output channels with 4-20 mA current loop output capability.

Q: What isolation levels are specified for the MC-PAOY22 module?
A: The module specifies 500 V AC channel-to-channel isolation and 1500 V AC field-to-logic isolation.

Q: What power supply requirement does the MC-PAOY22 use?
A: The module operates with a 24 VDC supply rated at +/-10% tolerance and consumes up to 120 mA.

Field Installation Guidelines

Install the MC-PAOY22 80363969-150 in the designated Honeywell I/O rack position according to the system hardware configuration manual.

Verify that field wiring uses appropriate shielded instrumentation cable for 4-20 mA current loop connections. Connect cable shields according to the site grounding practice to reduce electromagnetic interference.

Separate analog output wiring from high-voltage power cables and switching circuits. Confirm terminal connections before applying power to prevent incorrect field loop polarity.

Before commissioning, check channel assignments, output scaling parameters, and field device response through the control system configuration tools.

Spesifikasi

• Merek: Honeywell
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
