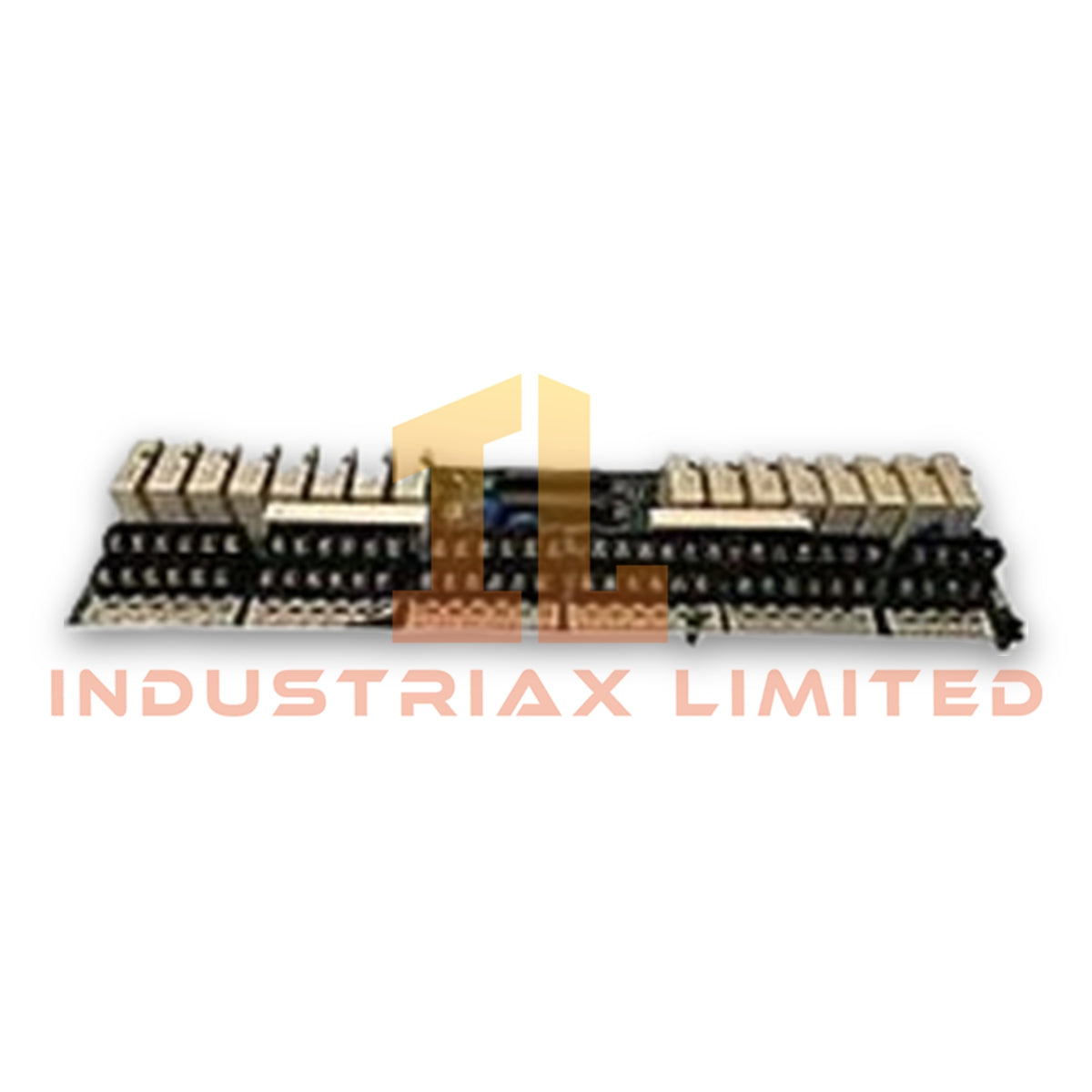

Honeywell MC-DDOY22 Redundant Digital Output Module

Configured for discrete signal execution in Honeywell TDC 3000 and Experion PKS platforms, the Honeywell MC-DDOY22 (MC-DDOY22 Redundant Digital Output Module) provides direct electrical control of field output devices through redundant DCS I/O processing.

Hardware Specifications

Parameter	Specification
Model	MC-DDOY22
Brand	Honeywell
Origin	USA
Operating Temp	-20 deg C to +60 deg C
Power Consumption	Dependent on system rack configuration and field load
Module Type	Redundant Digital Output (DO) I/O Processor Set
System Compatibility	Honeywell TDC 3000 / Experion PKS PM, APM, HPM I/O Systems
Output Channels	32 channels
Output Signal	24 VDC nominal
Output Type	Solid-state transistor / open collector output
Output Current	0.5 A to 1.0 A per channel depending on FTA configuration
Isolation	Channel-to-channel and channel-to-system isolation
Protection Functions	Over-current protection, surge suppression, short-circuit monitoring
Diagnostics	Module status monitoring and channel output verification
Status Indicators	Power, module status, and channel LED indicators
Redundancy Configuration	Dual processor output module arrangement
Replacement Method	Supports online module replacement under approved system procedures

DCS Process Signal Interface and Isolation

The MC-DDOY22 operates as a Honeywell DCS digital output interface that converts internal control commands into discrete electrical signals. It drives external devices including solenoid valves, relays, alarms, and actuator control circuits.

Furthermore, the module applies channel-to-channel isolation and channel-to-system isolation to reduce electrical interference between field circuits and control electronics. The design supports discrete output monitoring, fault detection, and redundant processor operation within Honeywell Process Manager and Experion PKS architectures.

For Honeywell process control systems, digital output modules typically operate alongside field termination assemblies and distributed I/O hardware. Therefore, proper FTA selection and wiring configuration determine the final field voltage and load characteristics.

Frequently Asked Questions

Q: Does the MC-DDOY22 support redundant operation without stopping process execution?
A: The MC-DDOY22 uses a redundant processor arrangement that allows automatic fault handling and output continuity according to the configured Honeywell DCS architecture.

Q: Can the module drive field devices directly?
A: The module provides discrete voltage output signals, but the final field connection depends on the installed FTA, external power supply arrangement, and connected load requirements.

Q: What installation factors affect output signal performance?
A: Field cable routing, grounding practices, shielding methods, and separation from high-voltage wiring affect output signal integrity.

Field Installation Guidelines

1. Install the MC-DDOY22 in the designated Honeywell I/O rack position according to the system hardware configuration.
2. Verify the module address, rack assignment, and controller configuration before applying field power.
3. Route digital output wiring separately from high-current motor cables and high-voltage power conductors to reduce electrical noise coupling.
4. Connect cable shields according to the site grounding standard and avoid multiple uncontrolled grounding points.
5. Confirm field device ratings before connecting solenoid valves, relays, or actuator circuits to prevent output overload conditions.
6. Perform module diagnostics through the Honeywell engineering workstation after installation to verify channel status and redundancy operation.
