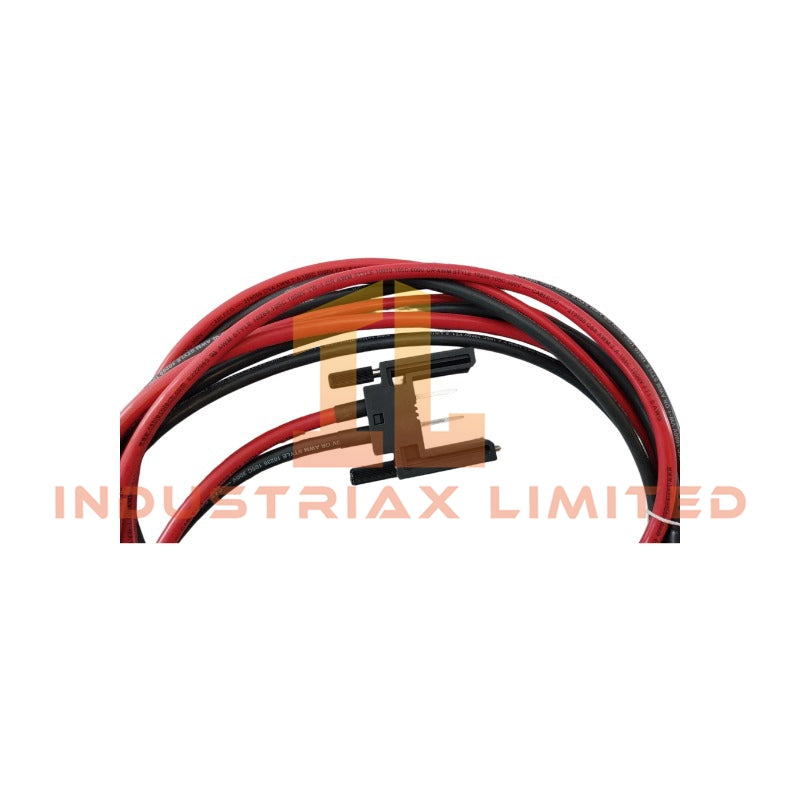

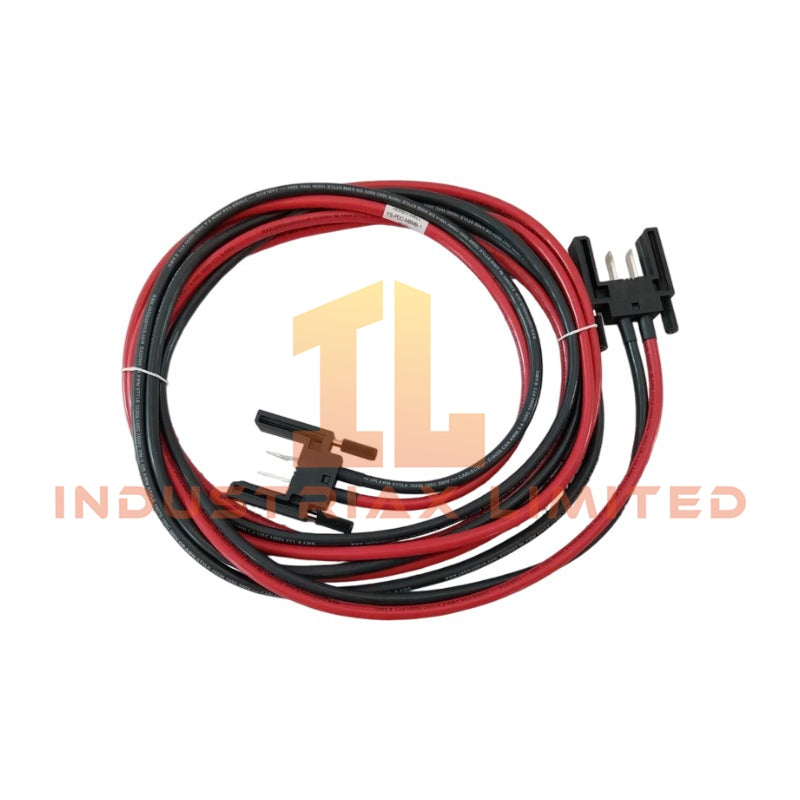

Honeywell FS-PDC-MBMB-1 Power Distribution Cable

Configured for 24 VDC and 48 VDC power rail interconnection in Honeywell Safety Manager systems, the Honeywell FS-PDC-MBMB-1 (FS-PDC-MBMB-1 Power Distribution Cable) provides direct electrical power transfer between FS-MB-0001 mains power rails inside control cabinets.

Hardware Specifications

Parameter	Specification
Model	FS-PDC-MBMB-1
Brand	Honeywell
Origin	USA
Power Consumption	Passive cable assembly, no independent power consumption
Product Type	Power Distribution Cable
System Compatibility	Honeywell Safety Manager / FSC System
Application	FS-MB-0001 mains power rail to mains power rail connection
Operating Voltage	24 VDC / 48 VDC
Current Rating	Up to 30 A per cable; up to 100 A with dual parallel cable configuration
Connector Type	Polarized plug with integrated locking screws
Installation Location	Internal cabinet power distribution wiring

Honeywell Power Distribution and Cabinet Electrical Interface

The FS-PDC-MBMB-1 transfers DC power between matching FS-MB-0001 mains power rails within Honeywell Safety Manager cabinet assemblies. The polarized connector design maintains correct polarity during installation and prevents incorrect cable insertion.

In addition, the integrated locking screws secure the connector directly to the power rail housing nut positions. This mechanical retention reduces the possibility of connector loosening caused by cabinet vibration or maintenance activities.

The cable supports high-current cabinet power distribution configurations. Therefore, systems requiring current capacity above 30 A can install two FS-PDC-MBMB-1 cables in parallel, with one cable positioned near the upper section and one near the lower section of the power rails.

Frequently Asked Questions

Q: Can the FS-PDC-MBMB-1 connect different types of power rails?
A: No. The FS-PDC-MBMB-1 is designed for connection between FS-MB-0001 mains power rails of the same type.

Q: Does the FS-PDC-MBMB-1 require a separate power supply or communication interface?
A: No. The cable assembly provides passive DC power distribution and does not contain active electronics or communication circuits.

Q: How is higher cabinet current capacity achieved with this cable?
A: A dual FS-PDC-MBMB-1 parallel configuration increases current handling capability for applications requiring up to 100 A distribution capacity.

Field Installation Guidelines

• Install the FS-PDC-MBMB-1 only between compatible FS-MB-0001 mains power rails.
• Verify DC voltage level and polarity before connecting the cable assembly.
• Tighten the integrated locking screws to maintain mechanical retention after installation.
• Route the cable inside the cabinet according to the approved power wiring layout.
• Separate high-current DC power cables from sensitive signal wiring to reduce electrical interference.
• Inspect connector seating and mechanical fastening during cabinet commissioning and maintenance procedures.
