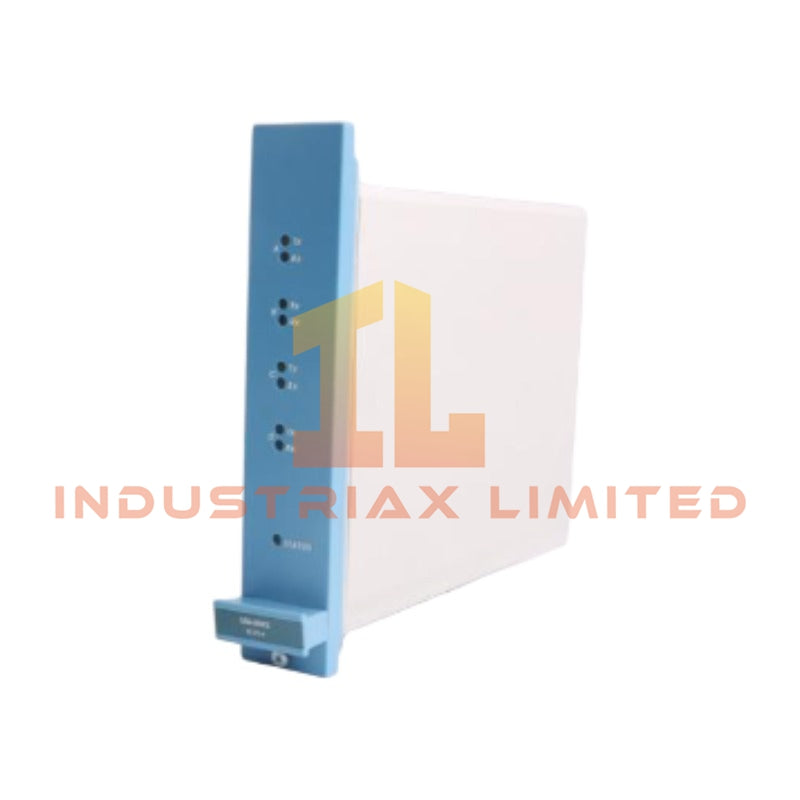

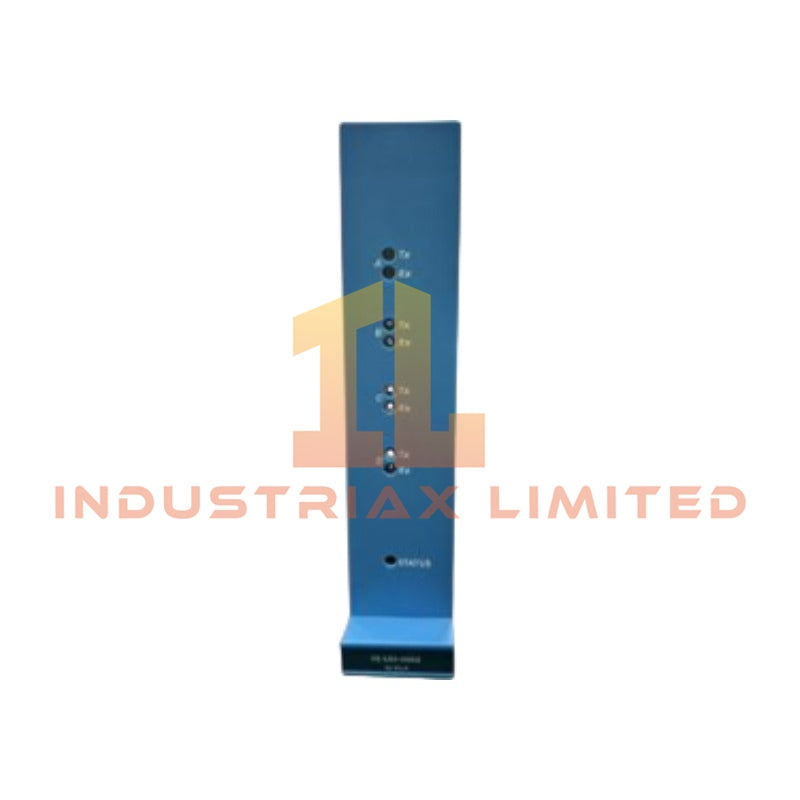

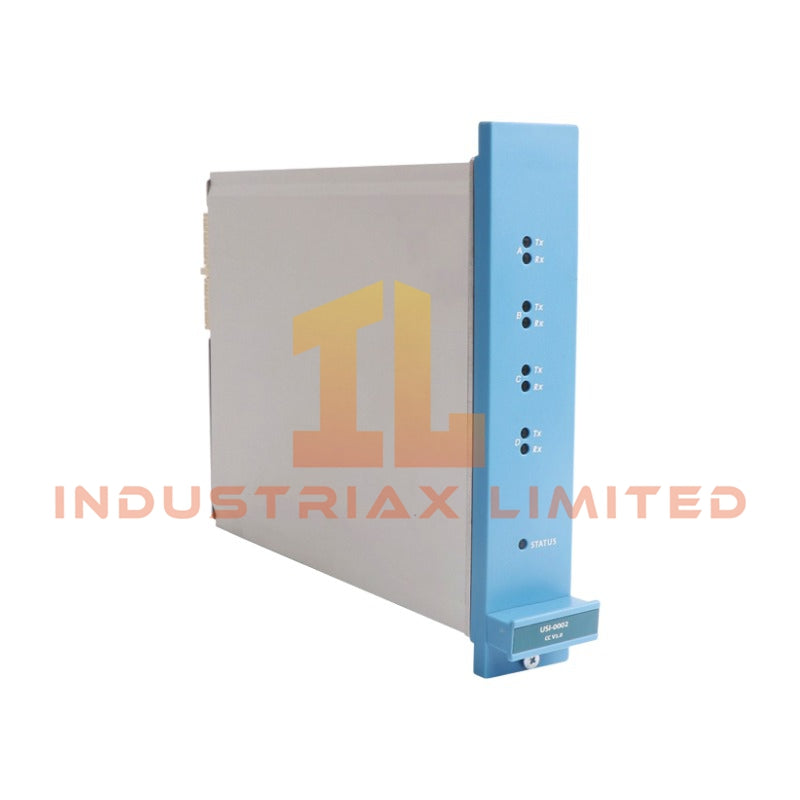

The Honeywell FC-USI-0002, also cataloged as the FC-USI-0002 Universal Safety Interface Module, operates as a dedicated hardware component for safety controller communication management within the Honeywell Safety Manager system.
Hardware Specifications
Parameter
Specification
Model
FC-USI-0002
Brand
Honeywell
Product Type
Universal Safety Interface Module
System Platform
Honeywell Safety Manager / Experion PKS
Origin
USA
Weight
Approx. 0.70 kg
Dimensions
176 mm x 35.2 mm x 212 mm
Operating Temp
-5 deg C to +70 deg C
Storage Temp
-40 deg C to +85 deg C
Relative Humidity
10% to 95% non-condensing
Power Supply
5 VDC +/- 5%
Power Consumption
Max. 6 W (5 VDC at 1.2 A)
Processor
Motorola Communications Processor MPC8260 / MPC8270 class
Flash Memory
8 MB system and application storage
Local SRAM
8 MB with error detection and correction
Shared RAM
256 KB for processor data exchange
Ethernet Interfaces
2 x 10/100 Mbps Fast Ethernet channels
Serial Interfaces
2 x RS-232 / RS-485 communication channels
Galvanic Isolation
>= 2.5 kVDC between power and Ethernet signal; >= 1.5 kVDC between Ethernet signal and casing; >= 1.5 kVDC between power and casing
Safety Application Rating
Supports SIL 1 to SIL 3 applications according to IEC 61508 / IEC 61511
Certifications
CE, TÜV, UL, CSA, FM
Honeywell Safety Manager Communication Interface and Isolation Functions
The FC-USI-0002 manages communication paths between the Safety Manager controller and external engineering or supervisory systems. It provides hardware-level separation between safety execution circuits and external communication networks.
Furthermore, the module performs power-up diagnostic routines before system initialization. These routines verify processor registers, local memory integrity, shared RAM operation, and software execution status.
The module incorporates galvanic isolation between power circuits, communication interfaces, and chassis ground. Therefore, it reduces electrical interference transfer between connected system sections.
For Safety Manager architectures using Quad Processor Pack (QPP) configurations, the FC-USI-0002 supports controller communication coordination and fault-tolerant system designs.
4-20 mA HART and Process Communication Interface Adaptation
Within Honeywell process control environments, interface modules commonly maintain communication separation between field-level signals and controller networks. The FC-USI-0002 does not provide direct analog input processing; however, it supports the communication infrastructure that connects Safety Manager processing resources with external control and engineering environments.
In addition, the module architecture supports isolated communication paths required by systems containing field interfaces using protocols such as 4-20 mA HART, FOUNDATION Fieldbus, and Profibus PA through associated Honeywell interface components.
The hardware isolation design maintains channel separation and prevents communication disturbances from affecting safety processor execution.
Frequently Asked Questions
Q: Does the FC-USI-0002 provide direct field signal input channels? A: No. The FC-USI-0002 functions as a universal safety interface and communication module. Field signal acquisition requires dedicated Honeywell Safety Manager I/O modules.
Q: Does the FC-USI-0002 support redundant controller architectures? A: Yes. The module supports integration with Safety Manager systems using Quad Processor Pack configurations and fault-tolerant controller structures.
Q: What diagnostic functions does the module perform during startup? A: The module executes startup diagnostics that check processor registers, memory resources, and software integrity before allowing normal system operation.
Field Installation Guidelines
Install the FC-USI-0002 only within the designated Honeywell Safety Manager controller enclosure and approved rack position.
Verify the 5 VDC supply connection polarity before module insertion.
Confirm that communication cables use appropriate shielding practices to reduce electromagnetic interference.
Connect cable shields according to the system grounding design and avoid creating unwanted ground loops.
Separate communication wiring from high-voltage power cables during cabinet installation.
Inspect backplane connectors for contamination, mechanical damage, or improper seating before replacement installation.
Confirm firmware compatibility with the installed Safety Manager controller configuration before module commissioning.
