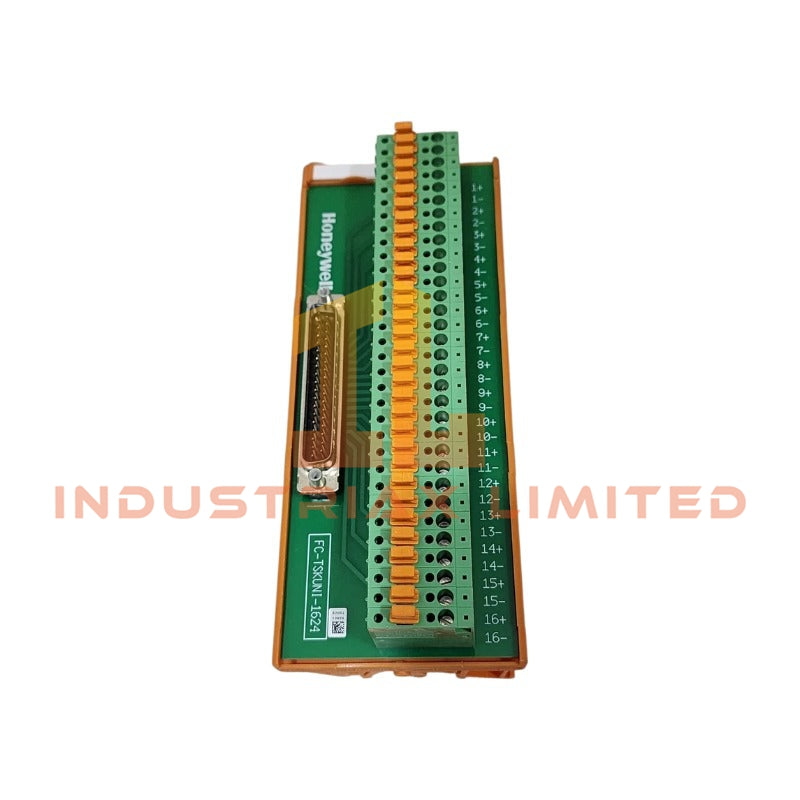

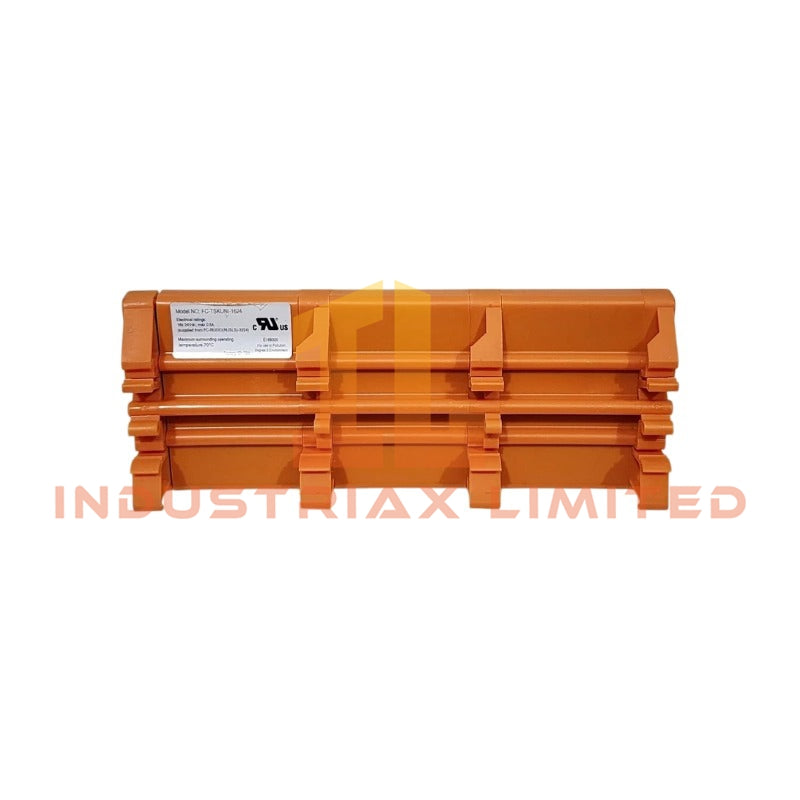

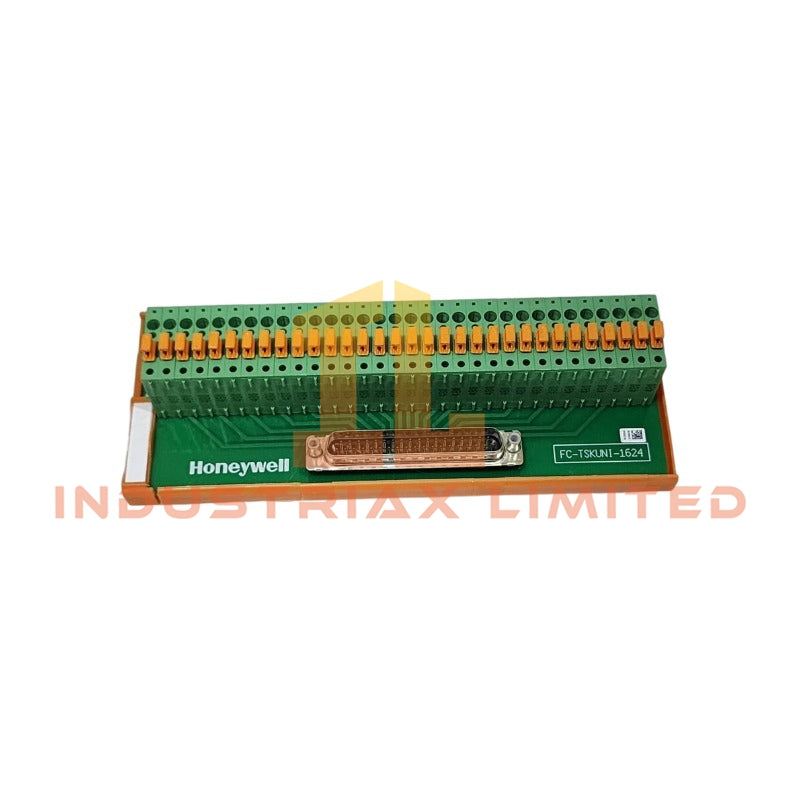

Honeywell FC-TSKUNI-1624 Field Termination Assembly

Configured for universal safety I/O field signal termination in Honeywell Safety Manager systems, the Honeywell FC-TSKUNI-1624 (FC-TSKUNI-1624 Field Termination Assembly) provides direct physical isolation and wiring execution for 16 safety I/O channels.

Hardware Specifications

Parameter	Specification
Model	FC-TSKUNI-1624
Brand	Honeywell
Origin	USA
Operating Temp	-5 deg C to +70 deg C (standard cabinet); -40 deg C to +70 deg C (remote cabinet)
Power Consumption	Passive field termination assembly; no independent power consumption specified
Product Type	Field Termination Assembly (FTA)
System Compatibility	Honeywell Safety Manager / Experion PKS / Universal Safety I/O
Channel Capacity	16 channels
Terminal Type	Knife disconnect terminals
Signal Compatibility	Universal Safety I/O DI, DO, AI, AO
Nominal Voltage	24 VDC
Mounting Type	DIN rail / cabinet mounting
Safety Integrity Level	Up to SIL 3 according to IEC 61508 / IEC 61511
Storage Temperature	-40 deg C to +85 deg C
Relative Humidity	5% to 95% RH, non-condensing

Universal Safety I/O Signal Termination and Isolation

The FC-TSKUNI-1624 provides channel-level field wiring termination for Honeywell Universal Safety I/O systems. Each channel includes knife disconnect functionality, which allows technicians to isolate individual field circuits during loop testing, commissioning, and fault diagnosis.

In addition, the assembly supports multiple signal categories including digital input, digital output, analog input, and analog output connections. The termination design maintains channel separation and supports controlled maintenance procedures within Safety Instrumented System installations.

Channel Isolation and Safety Instrumentation Interface

The Honeywell FC-TSKUNI-1624 supports safety I/O architectures that require SIL 3 level application design. The knife disconnect terminals provide a physical separation point between field devices and controller-side I/O interfaces.

Furthermore, the assembly supports field instrumentation loops using standard industrial wiring practices. Engineers can perform calibration and troubleshooting activities without removing permanent field conductors from terminal positions.

Frequently Asked Questions

Q: Does the FC-TSKUNI-1624 provide signal processing functions?
A: No. The FC-TSKUNI-1624 operates as a passive Field Termination Assembly. It provides field wiring termination and disconnect functions without executing application logic.

Q: How many field channels can the FC-TSKUNI-1624 terminate?
A: The assembly supports 16 Universal Safety I/O channels for connection to Honeywell Safety Manager architectures.

Q: Can technicians isolate individual field circuits during maintenance?
A: Yes. The integrated knife disconnect terminals allow individual channel isolation for testing, calibration, and troubleshooting activities.

Field Installation Guidelines

• Install the FC-TSKUNI-1624 inside an approved Honeywell Safety Manager cabinet or compatible remote I/O enclosure.
• Mount the assembly on a suitable DIN rail or cabinet mounting structure according to system installation requirements.
• Separate field signal wiring from high-voltage power cables to reduce electromagnetic interference.
• Connect cable shields according to the site grounding philosophy and applicable Honeywell installation documentation.
• Verify terminal identification before connecting field instruments, valves, switches, or transmitters.
• Confirm channel allocation within the Safety Manager configuration before system commissioning.
• Use approved wiring practices for safety instrumented circuits and maintain clear separation between independent safety channels.
