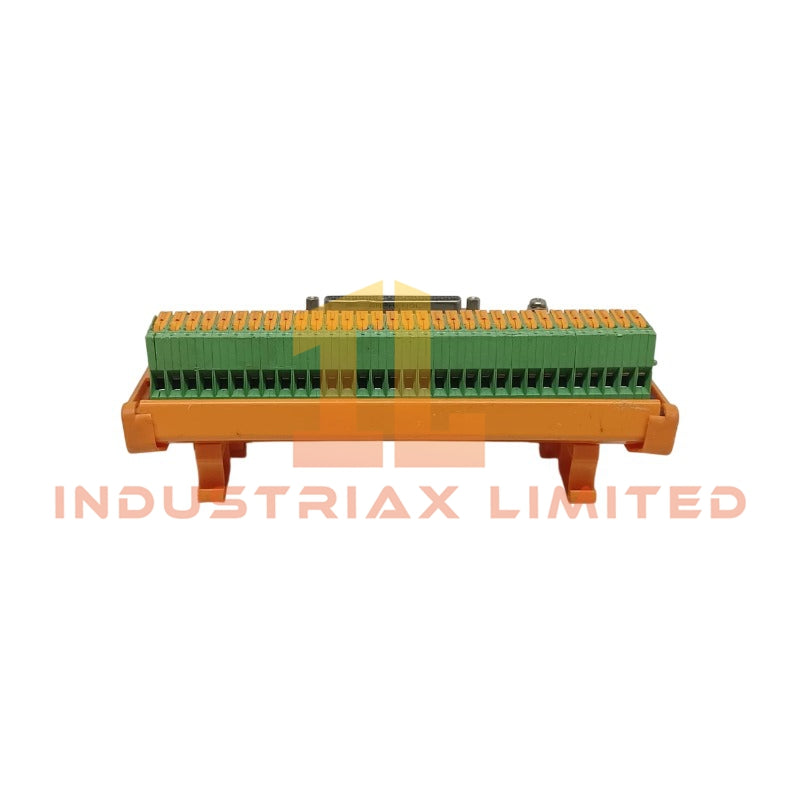

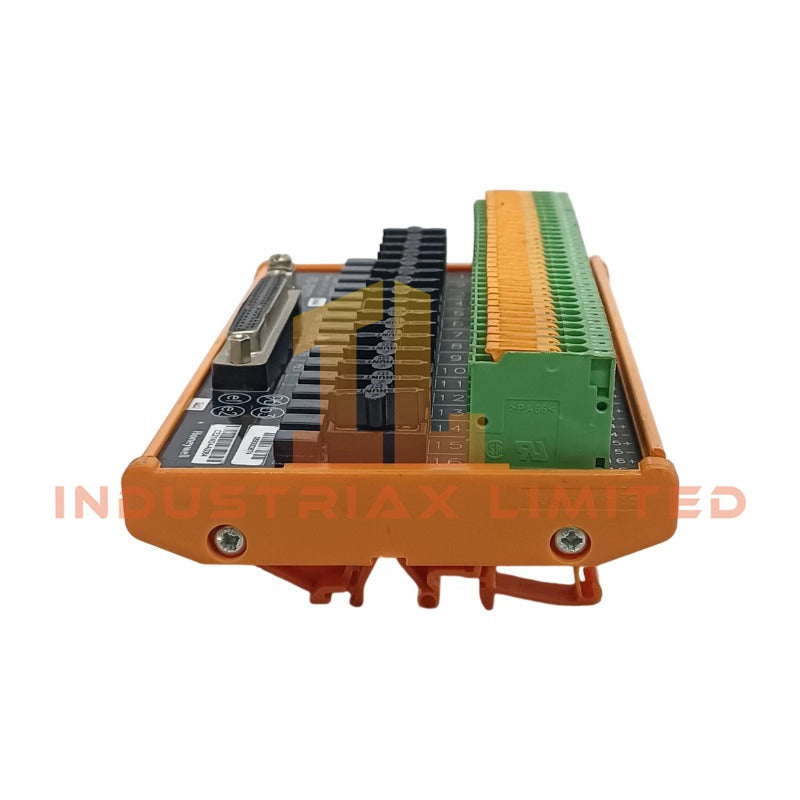

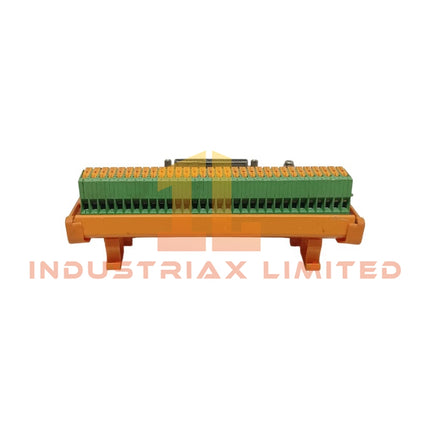

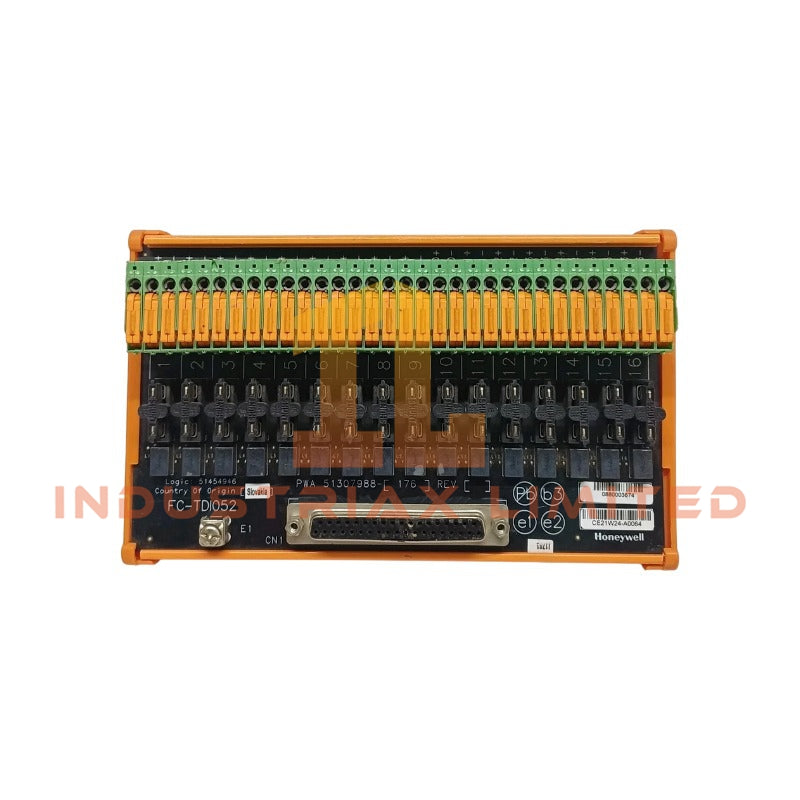

Honeywell FC-TDIO52 Safety Manager SC Hardware

Configured for digital input and output signal execution in Honeywell Safety Manager SC platforms, the Honeywell FC-TDIO52 (FC-TDIO52 Safety Digital I/O Module) provides direct physical and electrical execution for configurable field signal processing.

Hardware Specifications

Parameter	Specification
Model	FC-TDIO52
Brand	Honeywell
Product Type	Safety Digital Input and Output Module
System Platform	Safety Manager SC Hardware
Origin	USA
Weight	0.55 kg
Dimensions	20.8 cm x 12.1 cm x 5.5 cm
Operating Temp	-10 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Operating Voltage	24 VDC nominal
Power Consumption	Typically <20 W
I/O Configuration	Configurable digital input and output channels
Input Channels	16 or more digital inputs
Output Channels	16 or more digital outputs
Mounting Type	DIN rail or panel mount
Safety Compliance	IEC 61508 SIL3, ISO 13849-1, and applicable safety certifications
Communication Protocols	Modbus TCP, Profibus, EtherCAT, CANopen, and other industrial protocols
Tariff Code	8537101190
Place of Shipment	Xiamen, China

Honeywell Safety I/O Signal Processing and Isolation

The FC-TDIO52 provides configurable digital input and output processing for Safety Manager SC architectures. The module handles field-level switching signals through dedicated I/O channels and transfers status information through the safety control network.

Furthermore, the module design supports safety-oriented signal handling with channel separation and electrical isolation practices. Honeywell safety platforms typically integrate field interface modules with diagnostic monitoring functions to identify wiring faults, channel discrepancies, and abnormal input states.

The FC-TDIO52 applies Honeywell process control hardware principles, including channel-to-channel isolation requirements used in safety and DCS environments. Additionally, digital field signals can be integrated with industrial communication structures supporting protocols such as Profibus and Modbus TCP.

Frequently Asked Questions

Q: Does the FC-TDIO52 support both digital input and digital output functions?
A: Yes. The FC-TDIO52 provides configurable digital input and output channels, including 16 or more digital input channels and 16 or more digital output channels.

Q: What power supply does the FC-TDIO52 require?
A: The module operates with a 24 VDC nominal supply and consumes typically less than 20 W during operation.

Q: Can the FC-TDIO52 be installed in standard control cabinets?
A: Yes. The module supports DIN rail or panel mounting configurations for industrial control cabinet installation. Field wiring should follow applicable shielding, grounding, and segregation practices.

Field Installation Guidelines

• Install the FC-TDIO52 inside a suitable control cabinet with protection from dust, moisture, and excessive vibration.
• Connect the 24 VDC supply using correctly rated industrial wiring and verify polarity before energizing the module.
• Separate digital signal wiring from high-voltage power cables to reduce electromagnetic interference.
• Apply proper shield termination and grounding methods according to the site electrical design standard.
• Verify field device wiring, input polarity, and output load characteristics before system commissioning.
• Confirm Safety Manager SC configuration parameters before placing the module into operational service.

Spesifikasi

• Merek: Honeywell
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
