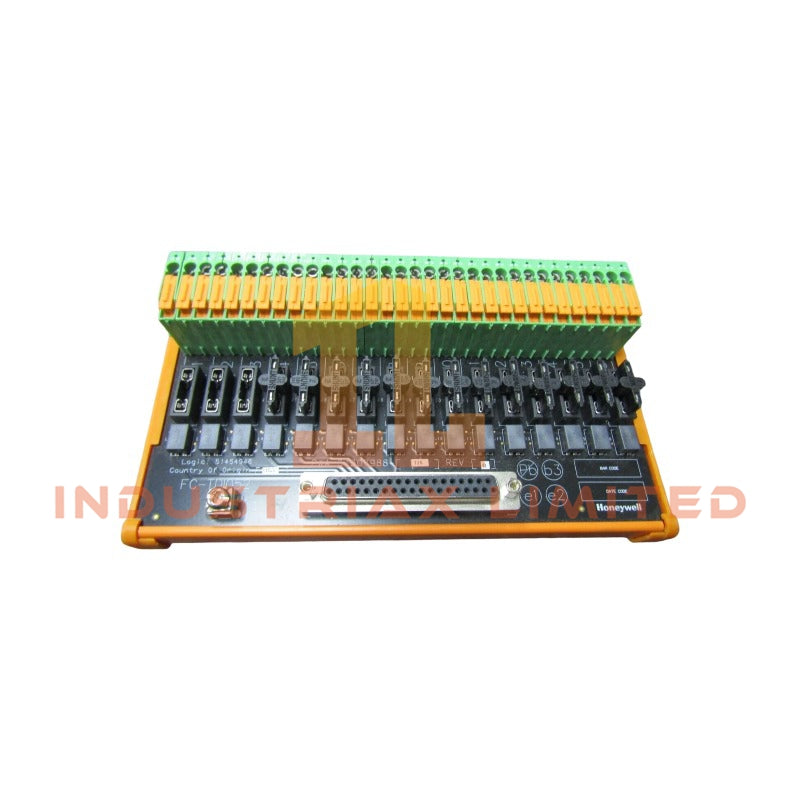

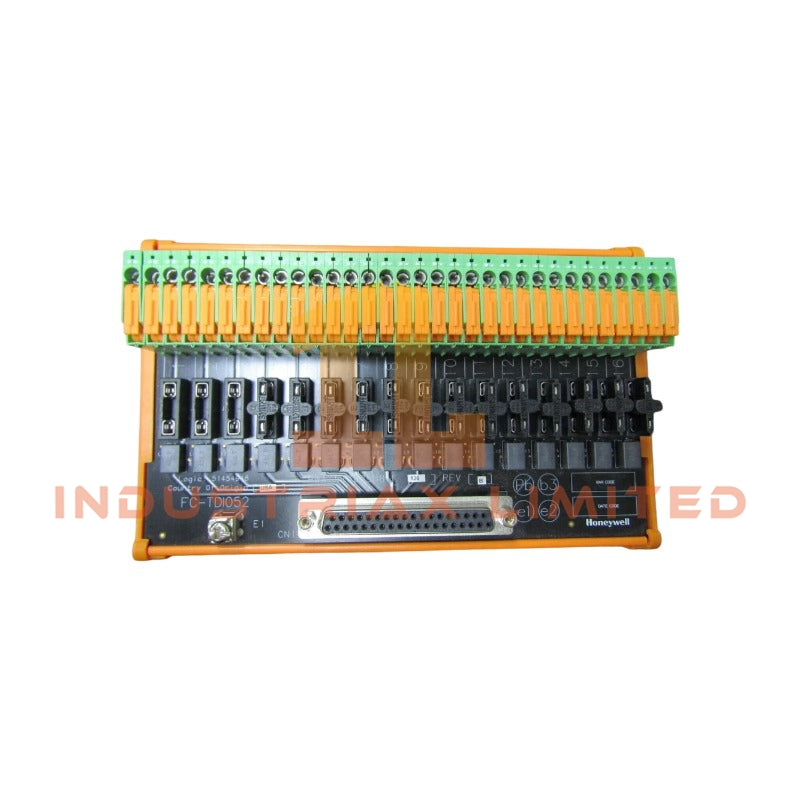

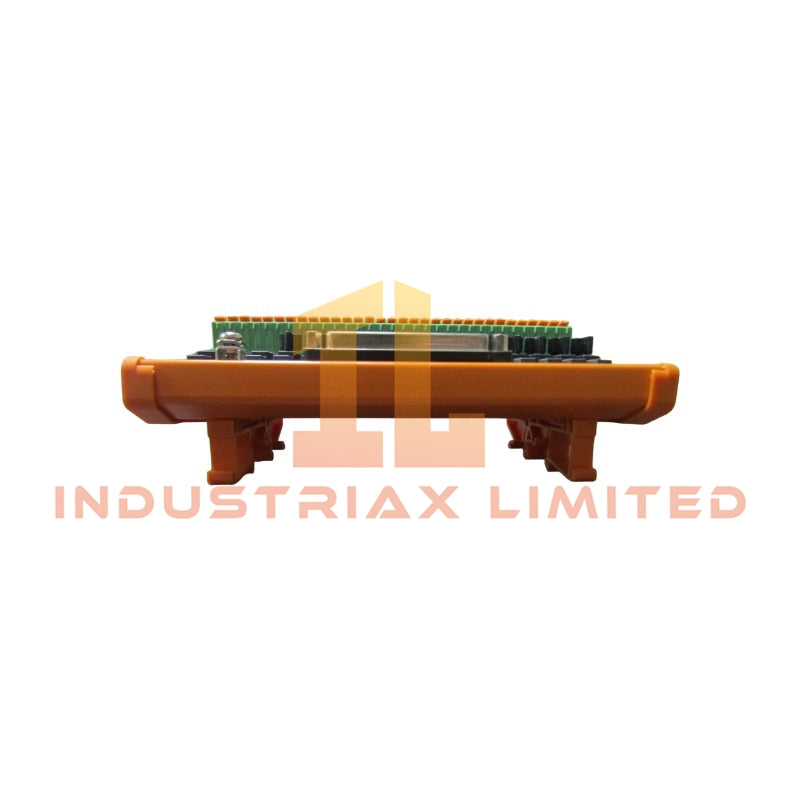

Honeywell FC-TDI052 Safety Digital I/O Module

The Honeywell FC-TDI052-51307988-176, also cataloged as the FC-TDI052 Safety Digital I/O Module, operates as a dedicated hardware component for digital field signal acquisition and output execution within Honeywell Safety Manager SC platforms.

Hardware Specifications

Parameter	Specification
Model	FC-TDI052 / 51307988-176
Brand	Honeywell
Origin	USA
Module Type	Safety Digital I/O Module
System Compatibility	Honeywell Safety Manager / Safety Manager SC / FSC systems
Channel Configuration	16 Digital I/O channels
Signal Type	Digital field input and output processing
Nominal Operating Voltage	24 VDC
Operating Voltage Range	18 to 32 VDC
Communication Interface	Safety Manager bus communication
Communication Support	Industrial Ethernet based system communication
Weight	0.55 kg
Dimensions	208 mm x 121 mm x 55 mm
Operating Temp	-10 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95% non-condensing
Power Consumption	< 20 W
Mounting Type	DIN rail / cabinet panel mounting

Safety Manager Digital Signal Processing and Isolation

The FC-TDI052 module processes discrete field signals between connected devices and the Honeywell Safety Manager controller. It performs channel-level signal monitoring and supports diagnostic functions for detecting abnormal field conditions, including open circuits and short circuits.

Furthermore, the module applies safety-oriented I/O handling methods for Safety Instrumented Functions (SIF). It supports applications requiring SIL level safety architectures when integrated with approved Safety Manager configurations.

The module uses channel-to-channel isolation methods to reduce electrical interference between independent field circuits. Therefore, it maintains signal integrity when multiple digital devices operate within the same control cabinet environment.

Frequently Asked Questions

Q: Does the FC-TDI052 support hot-swapping during system operation?
A: The FC-TDI052 installation method depends on the configured Safety Manager chassis and system operating rules. Maintenance personnel must follow the approved Honeywell replacement procedure before removing or inserting the module.

Q: What field signals does the FC-TDI052 process?
A: The module processes digital field signals for safety applications. Signal wiring must match the approved Honeywell Safety Manager field termination and configuration requirements.

Q: How does the module handle field wiring faults?
A: The FC-TDI052 provides diagnostic monitoring functions that identify field circuit conditions such as open circuits and short circuits through the safety controller interface.

Field Installation Guidelines

• Install the FC-TDI052 inside an approved Honeywell Safety Manager cabinet assembly with proper mechanical support.
• Verify that the module connector, backplane interface, and field termination connections are correctly aligned before energizing the system.
• Separate digital signal wiring from high-voltage power cables to reduce electromagnetic interference.
• Apply proper cable shielding and grounding practices according to the plant electrical installation standard.
• Confirm the 24 VDC supply polarity and field loop wiring before commissioning.
• Check module status indicators and controller diagnostics after installation to verify correct communication.
