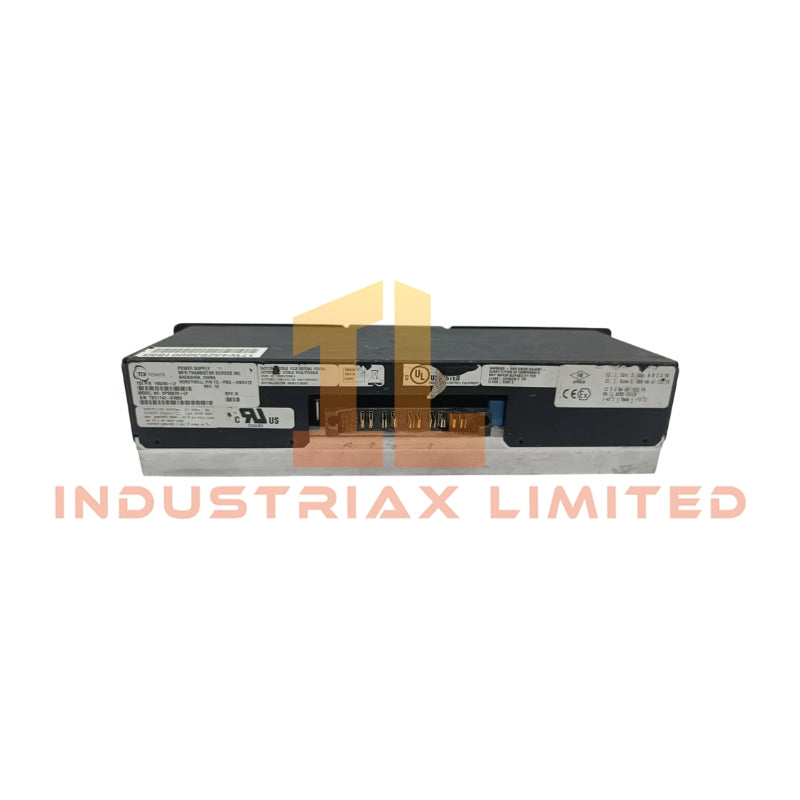

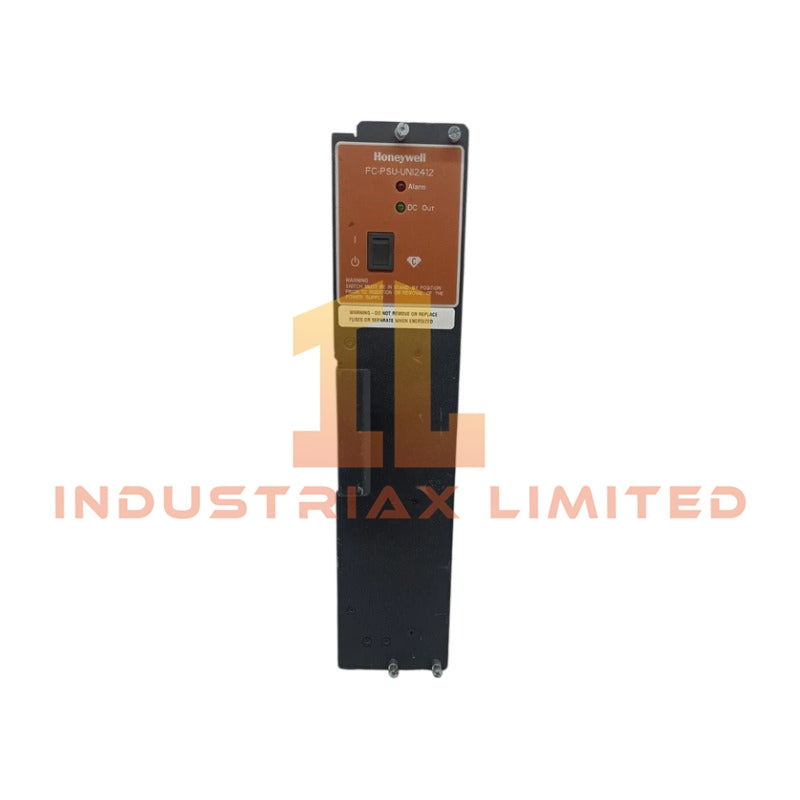

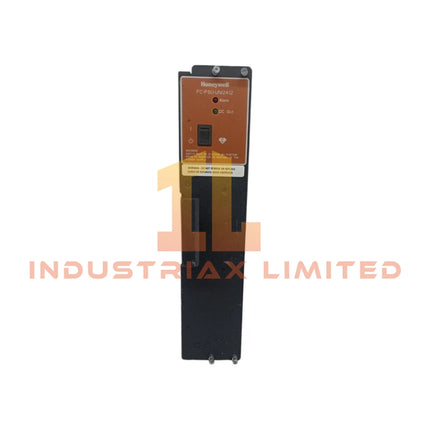

Honeywell FC-PSU-UNI2412 Universal Power Supply Unit

Configured for regulated DC power conversion in Honeywell Safety Manager and Fail Safe Controller (FSC) platforms, the Honeywell FC-PSU-UNI2412, also cataloged as the FC-PSU-UNI2412 Universal Power Supply Unit, provides direct AC to 25 VDC power conversion for system racks and connected modules.

Hardware Specifications

Parameter	Specification
Model	FC-PSU-UNI2412
Brand	Honeywell
Origin	USA
Operating Temp	-40 deg C to +60 deg C full load; up to +70 deg C with derating
Power Consumption	Maximum output power 300 W
Part Number	145245-LF
Device Type	Industrial Universal Power Supply Unit
Input Voltage	100-240 VAC
Input Frequency	47-63 Hz
Input Current	6 A max.
Output Voltage	25 VDC
Output Current	12 A
Thermal Derating	0.6 A/deg C above +60 deg C
Protection Functions	Short circuit, overvoltage, overcurrent, thermal overload protection
Redundant Operation	Supports redundant power supply configurations

Process Control Power Conversion and Isolation Characteristics

The Honeywell FC-PSU-UNI2412 supports power architectures used in Safety Manager and FSC systems by converting AC input voltage into a regulated 25 VDC output supply. Therefore, the unit maintains stable DC distribution for controller racks, I/O modules, and associated field interface equipment.

The power supply operates with a universal 100-240 VAC input range and supports different industrial power networks. Additionally, the unit incorporates protection circuits that monitor abnormal operating conditions, including output overload, excessive voltage, and thermal stress.

For Honeywell process control architectures, the PSU supports stable power delivery for modules using industrial communication and field interface methods. The system design can include channel-to-channel isolation requirements at the I/O level, while the FC-PSU-UNI2412 provides the DC power foundation for these isolated modules.

Frequently Asked Questions

Q: Can the FC-PSU-UNI2412 operate in a redundant power configuration?
A: Yes. The FC-PSU-UNI2412 supports integration into redundant power supply arrangements. The system designer must verify rack configuration and current loading requirements before installation.

Q: What AC input range does the FC-PSU-UNI2412 accept?
A: The unit accepts 100-240 VAC input voltage with an operating frequency range of 47-63 Hz.

Q: Does the FC-PSU-UNI2412 provide protection against electrical faults?
A: Yes. The power supply includes protection functions for short circuit, overvoltage, overcurrent, and thermal overload conditions.

Field Installation Guidelines

• Install the FC-PSU-UNI2412 inside the designated Honeywell Safety Manager or FSC equipment enclosure according to system hardware documentation.
• Verify AC input wiring polarity, protective grounding, and terminal tightening before energizing the unit.
• Keep AC input wiring separated from low-level signal cables to reduce electrical interference.
• Connect the 25 VDC output lines using appropriate industrial wiring practices and confirm the load current remains within the specified output capability.
• Maintain sufficient ventilation around the power supply to prevent thermal accumulation during continuous operation.
• For redundant configurations, verify power sharing connections and system load distribution before commissioning.

Spesifikasi

• Merek: Honeywell
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
