Keterangan

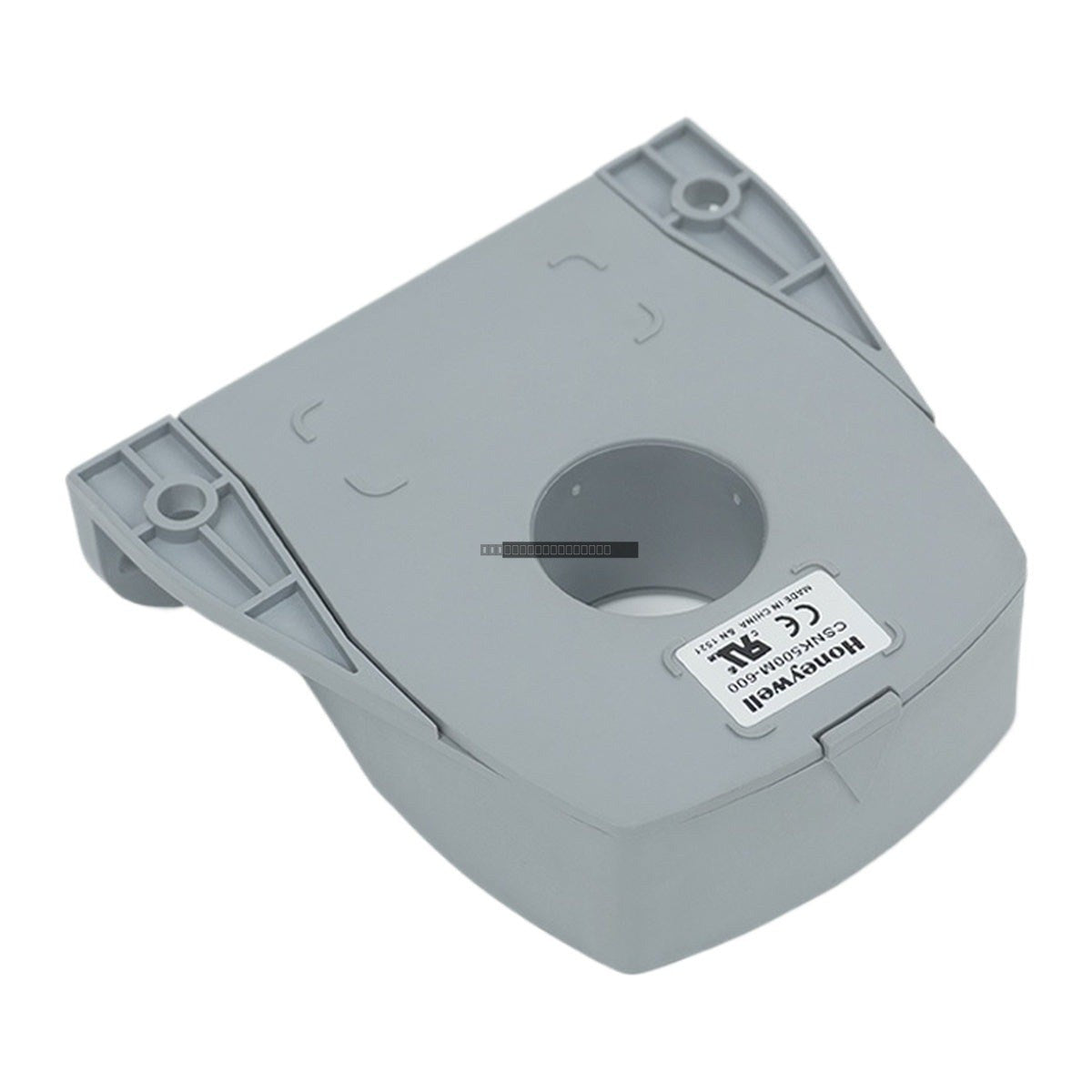

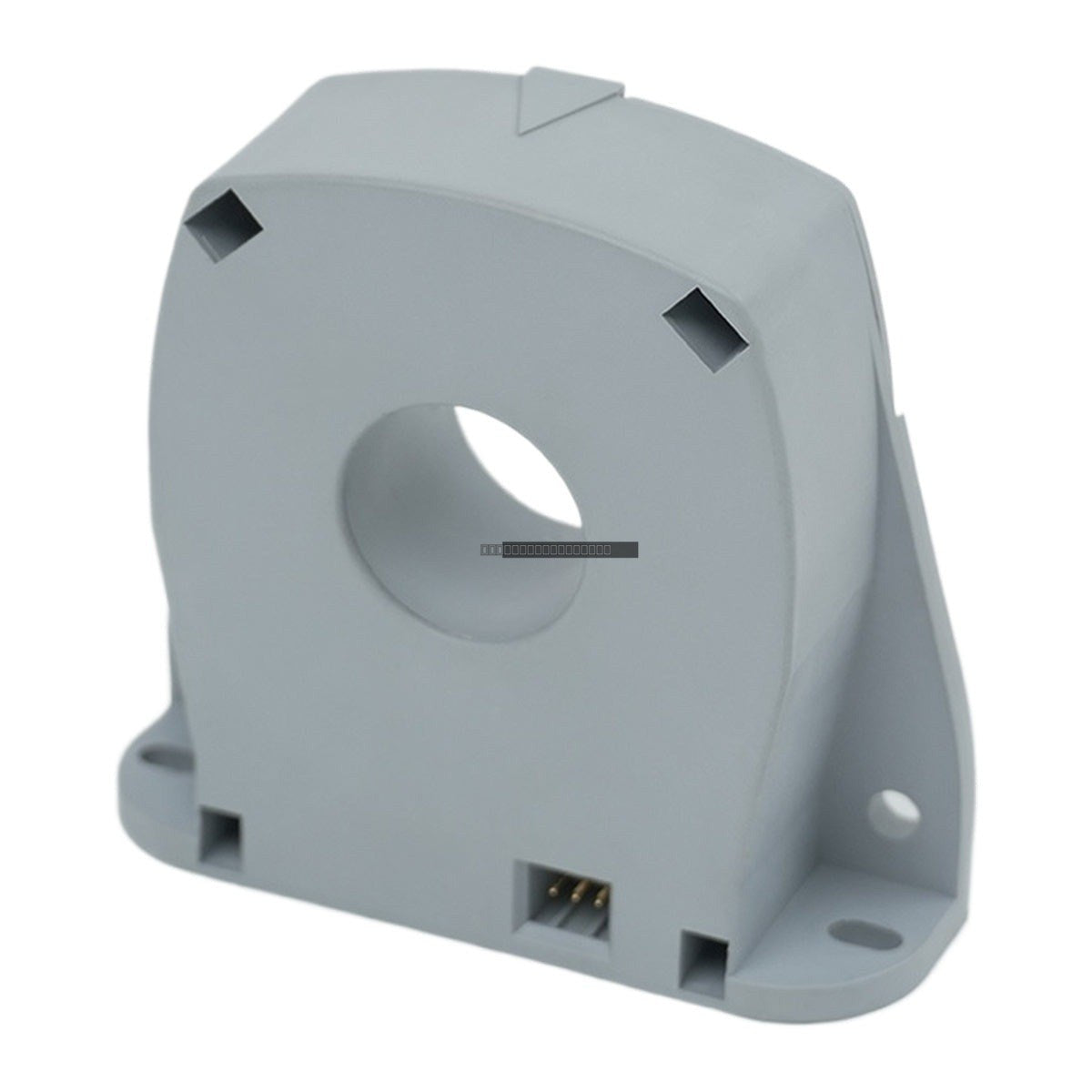

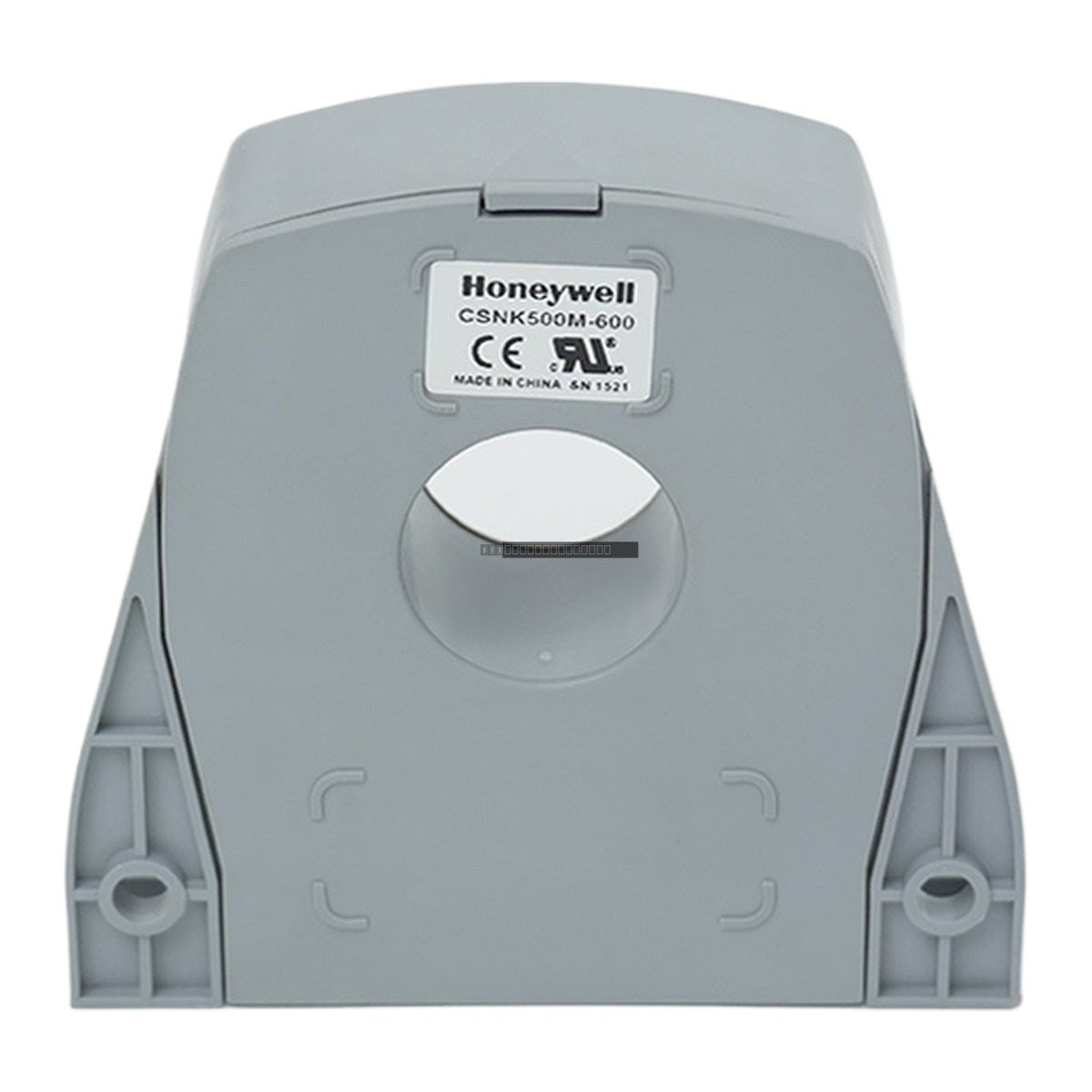

The Honeywell CSNK500M-600 is a high-performance, closed-loop current transducer engineered for the precise, isolated measurement of AC, DC, and impulse currents. Utilizing advanced Hall effect technology and the null-balance magnetic flux method, this sensor ensures high linearity and rapid response times, making it an essential component for demanding industrial power electronics.
Features
- Closed-loop Hall effect technology for superior accuracy and linearity.
- Bidirectional measurement capability for AC, DC, and pulsed currents.
- Ultra-fast response time (1 microsecond) for real-time monitoring and fault protection.
- Galvanic isolation between primary and secondary circuits.
- Single pass-through design for simplified primary conductor installation.
- Robust operation in extreme ambient temperatures ranging from -40 degC to +85 degC.
Applications
- Motor drives and variable frequency drives (VFDs).
- Renewable energy power converters (solar and wind).
- Welding equipment and heavy industrial machinery.
- Battery management systems (BMS) and EV assembly testing.
- Overcurrent and ground fault protection systems.
Technical Specifications
| Model |
CSNK500M-600 |
| Nominal Current |
500 A.t rms |
| Measuring Range |
0 to ±1200 A.t |
| Turns Ratio |
1 / 5000 |
| Nominal Output Current |
100 mA (at 500A) |
| Supply Voltage |
±15 V to ±18 Vdc (±5%) |
| Galvanic Isolation |
6 kV rms / 50 Hz / 1 minute |
| Operating Temperature |
-40 degC to +85 degC |
| Current Consumption |
20 mA + output current |
| Secondary Resistance |
50 ohm (at +70 degC) |
Installation Guidelines
-
Primary Conductor: Pass the conductor through the central aperture. For maximum accuracy, ensure the cable is centered and maintain a minimum distance of 5 mm from the sensor body for heat dissipation.
-
Magnetic Interference: Maintain a clearance of at least 25 mm (1 inch) from external magnetic components such as contactors or high-power transformers to prevent signal interference.
-
Mounting: The unit can be mounted in any orientation using the integrated screw holes.
-
Power Supply: Ensure the use of a regulated dual power supply (±15 V to ±18 Vdc). Unregulated supplies may result in measurement drift or potential sensor damage.
-
Connector: This model requires the Molex RSD-46607-001 mating harness for electrical connection.
FAQ
What is the primary function of the CSNK500M-600?
It provides electronic measurement of DC, AC, or pulsed currents with high precision and galvanic isolation, utilizing a feedback system to keep magnetic flux in the core at zero.
Can this sensor be used for high-speed switching applications?
Yes, its 1-microsecond response time makes it ideal for high-speed switching environments, such as those found in modern power converters and motor drives.
Is this sensor affected by the orientation of the primary conductor?
While the sensor can be mounted in any orientation, the primary conductor should be passed through the center of the aperture to maintain specified accuracy levels.
