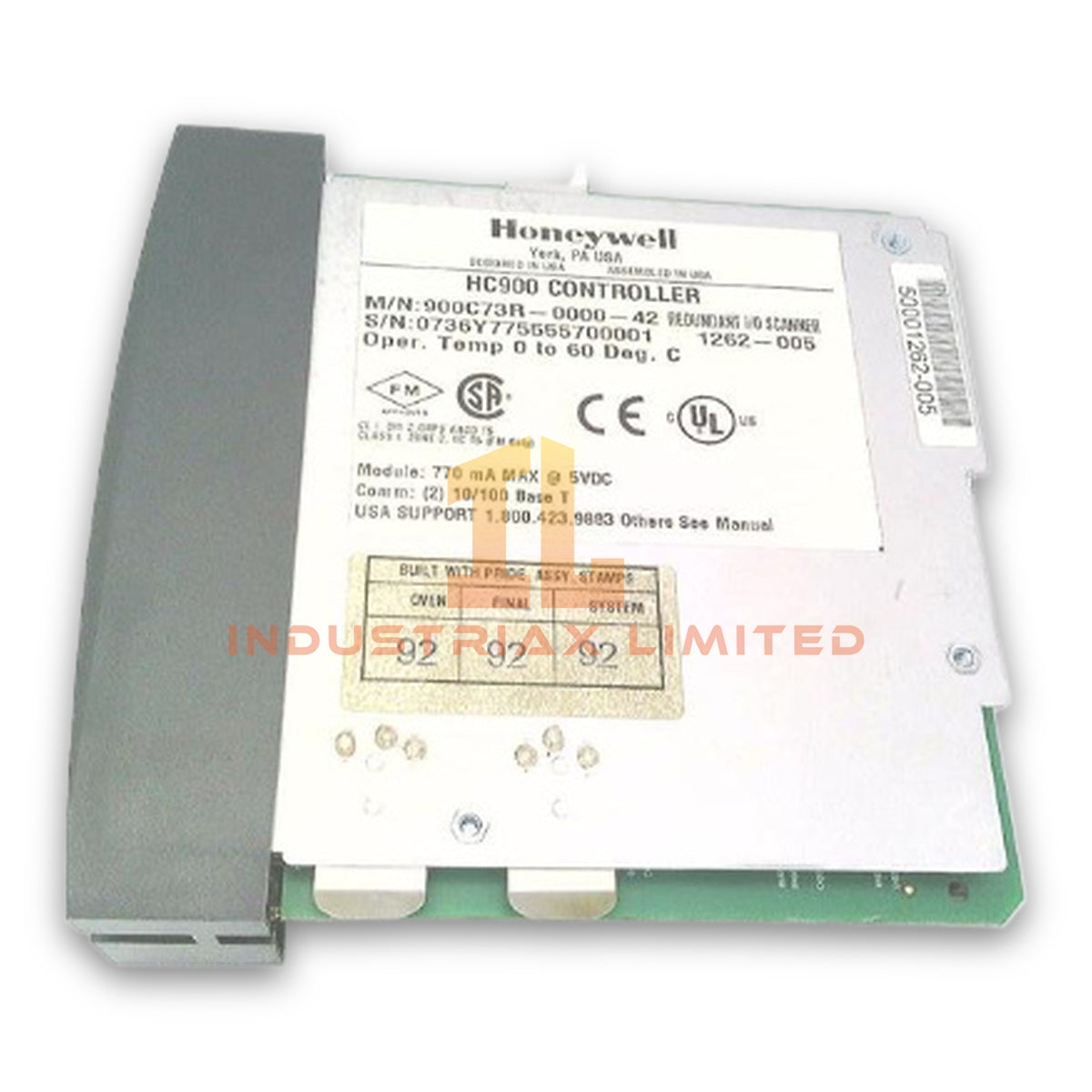

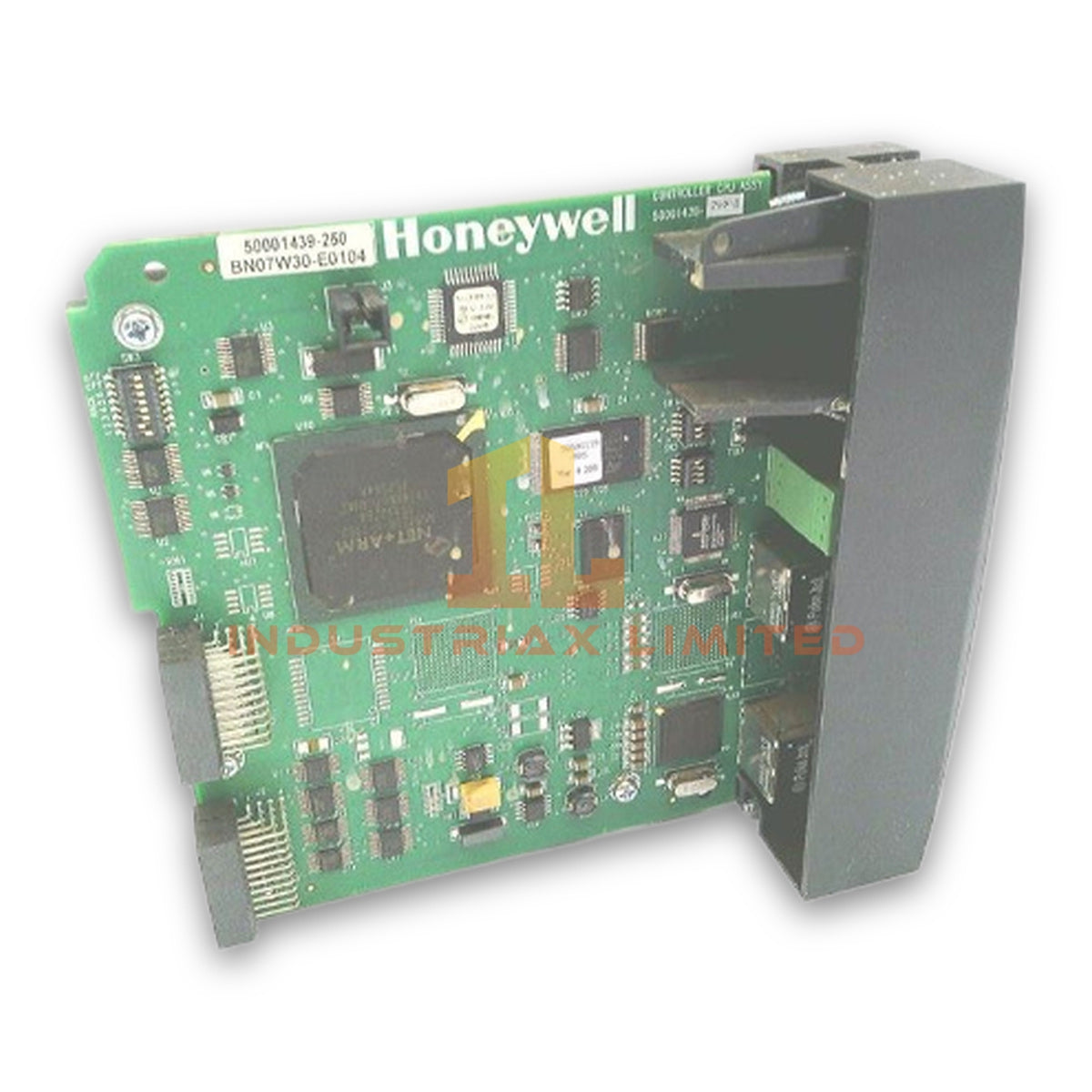

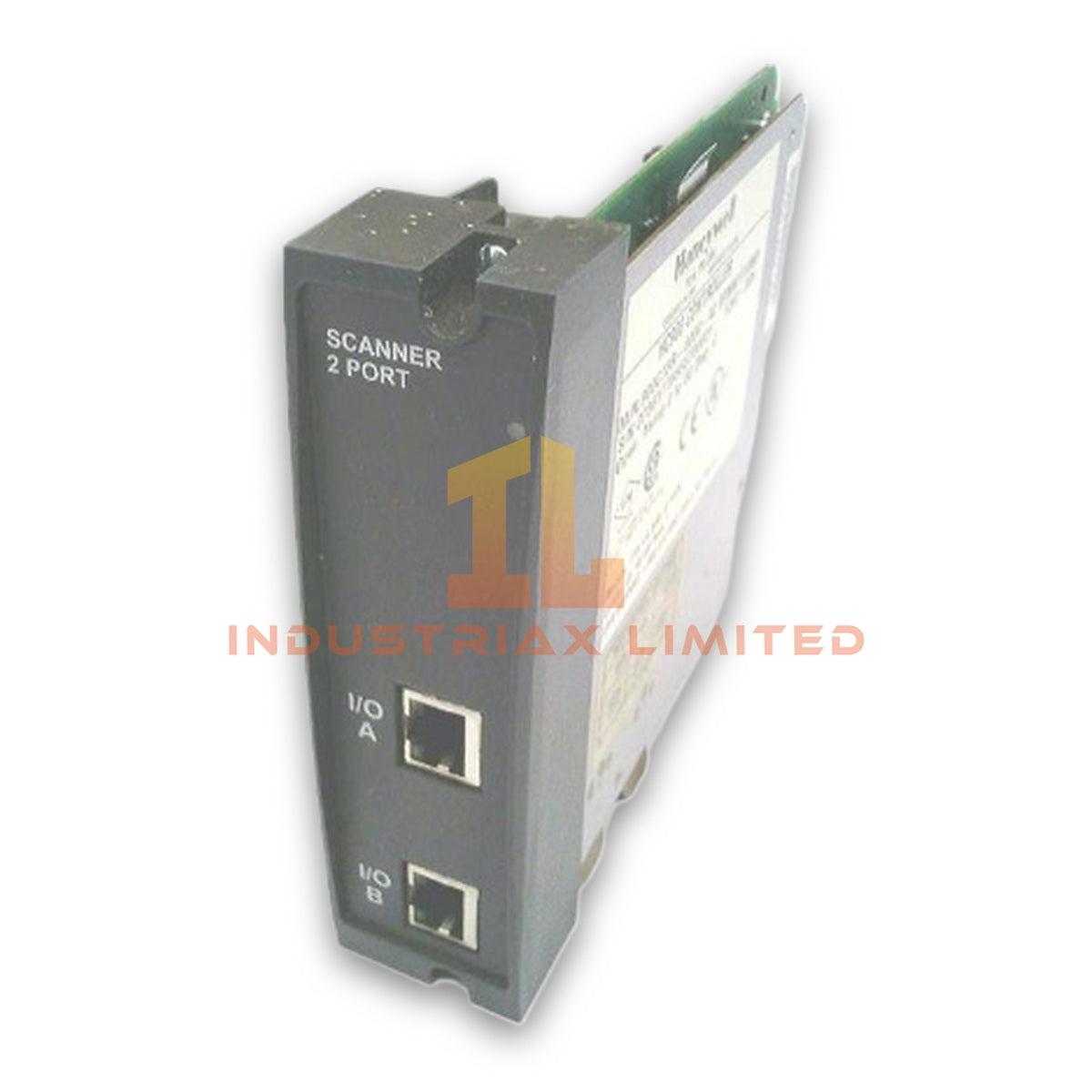

Honeywell ControlEdge HC900 Controller Component

Configured for process execution and controller logic management in the Honeywell ControlEdge HC900 system, the Honeywell ControlEdge HC900 Controller Component (HC900 Controller Module) provides direct physical and electrical execution for control processing, I/O coordination, and data handling.

Hardware Specifications

Parameter	Specification
Model	Honeywell ControlEdge HC900 Controller Component
Brand	Honeywell
Processor Architecture	32-bit RISC-based PowerPC e300 architecture
Memory Configuration	Flash memory for configuration storage; battery-backed RAM / DDR2 memory for runtime data retention
Control Function	PID loop control, Boolean logic execution, mathematical functions, analog processing, sequencing, ramp/soak programming
Scan Operation	Dual scan method for digital and analog processing tasks
Communication Interface	Ethernet interface with Modbus/TCP support and peer-to-peer controller communication
Mounting Structure	Modular rack-based controller architecture with 4, 8, and 12 slot configurations
I/O Handling	Supports hot-swappable I/O modules with automatic configuration recognition
Environmental Protection	Conformal coating options available for industrial environments requiring corrosion and gas protection

Process Control and DCS Interface Features

The Honeywell ControlEdge HC900 controller architecture manages analog and digital process signals through modular I/O expansion and controller-based execution. Therefore, the processor handles PID algorithms, logic operations, and scheduled control sequences directly within the controller environment.

The controller supports industrial communication functions through Ethernet and Modbus/TCP protocols. In addition, the architecture allows multiple host, HMI, and SCADA connections for supervisory data exchange.

For process instrumentation integration, HC900 systems support I/O modules designed for standard industrial signal handling, including 4-20 mA HART loop protocol applications, FOUNDATION Fieldbus and Profibus PA connectivity options where compatible interface modules are installed. Channel-to-channel isolation depends on the selected I/O module configuration.

The controller executes deterministic control tasks through its backplane communication structure. Furthermore, the modular design allows users to expand I/O density while maintaining controller configuration consistency.

Frequently Asked Questions

Q: Does the Honeywell ControlEdge HC900 Controller Component support hot-swapping of I/O modules?
A: Yes. The HC900 modular architecture supports hot-swappable I/O modules with automatic configuration recognition. Installation procedures must follow the system hardware manual and power isolation requirements.

Q: What communication protocols are supported by the HC900 controller platform?
A: The controller supports Ethernet communication using Modbus/TCP protocol and provides peer-to-peer communication between compatible HC900 controllers.

Q: How does the HC900 controller retain configuration data during power interruption?
A: The controller uses Flash memory for permanent configuration storage and battery-backed RAM / DDR2 memory for runtime data retention and recovery functions.

Field Installation Guidelines

• Install the controller module on the designated HC900 rack assembly and verify mechanical engagement with the backplane connector.
• Confirm that rack grounding follows industrial control panel grounding practices before applying power.
• Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference.
• Use shielded instrumentation cables for low-level analog signals and terminate shields according to site grounding standards.
• Verify Ethernet cable routing and connector installation before establishing Modbus/TCP communication.
• Check firmware compatibility between the controller module and installed I/O modules before system commissioning.
• Maintain adequate cabinet ventilation according to the installed enclosure design and environmental requirements.

Spesifikasi

• Merek: Honeywell
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
