Keterangan

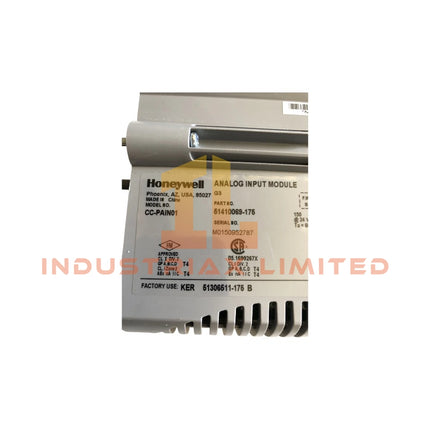

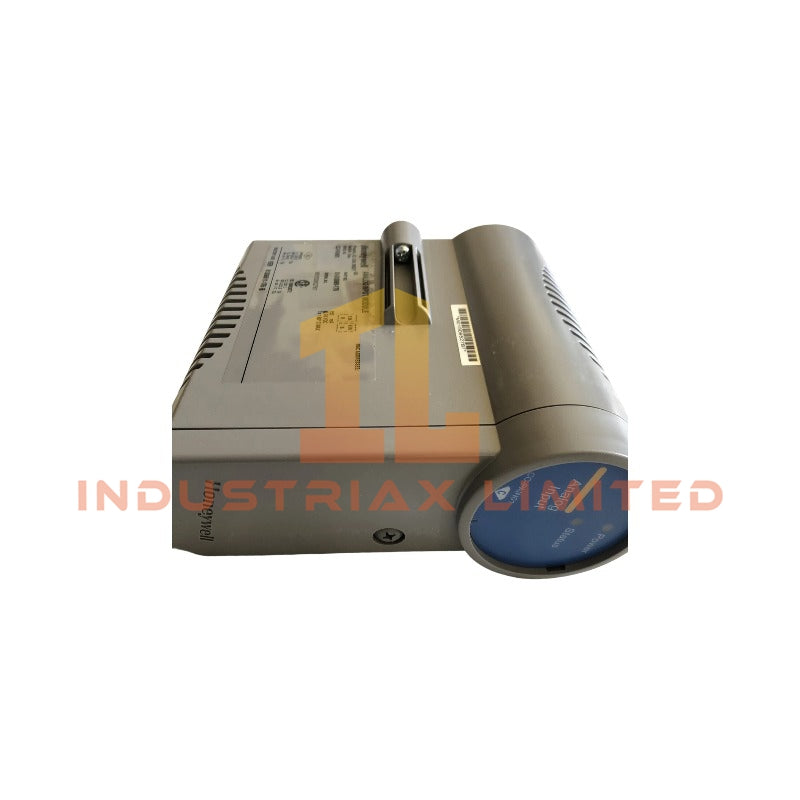

Honeywell CC-PAIN01 HLAI Module
The Honeywell CC-PAIN01, also cataloged as the CC-PAIN01 High-Level Analog Input (HLAI) Module, operates as a dedicated hardware component for acquisition of 4-20 mA and voltage-based process signals within the Experion PKS C300 controller I/O system.
Configured for analog signal acquisition in Experion PKS C300 controller architectures, the Honeywell CC-PAIN01 (CC-PAIN01 HLAI module) provides direct electrical interfacing between field transmitters and controller-level A/D conversion channels.

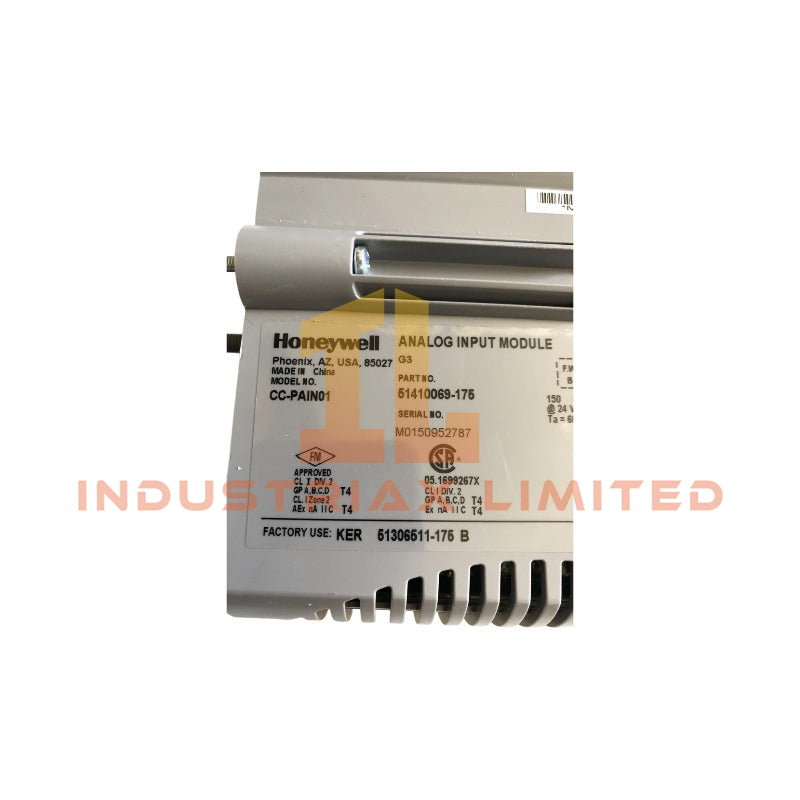

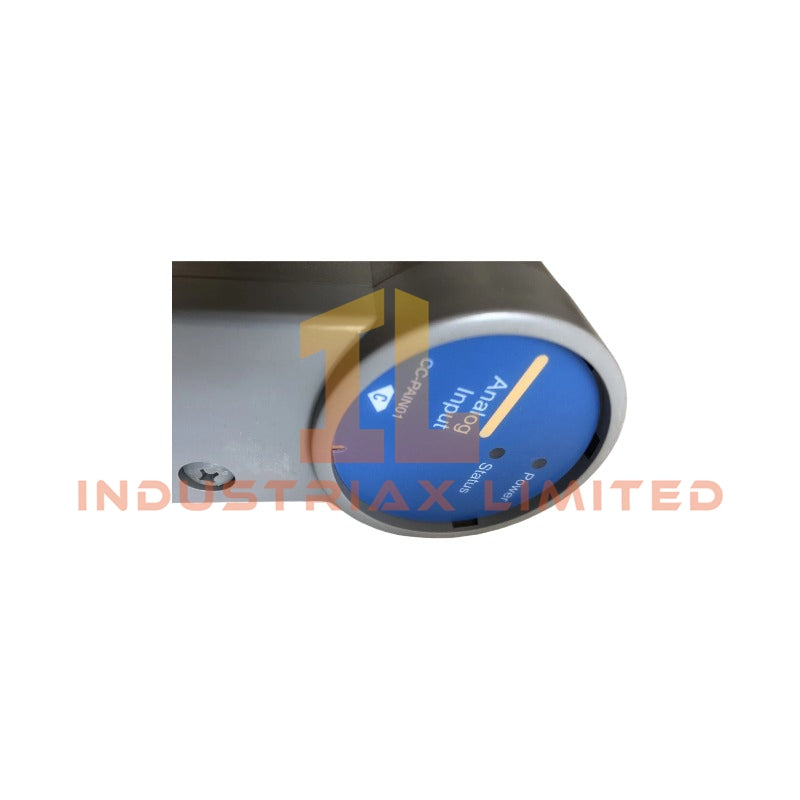

Hardware Specifications
Parameter
Specification
Model
CC-PAIN01
Brand
Honeywell
Origin
USA
Weight
Not explicitly specified (I/O module form factor depends on IOTA assembly)
Dimensions
Not specified (installed on compatible IOTA termination base)
Operating Temp
0 deg C to 60 deg C
Power Consumption
Approx. 4.5 W to 6 W (system dependent)
Module Type
High-Level Analog Input (HLAI)
Channel Count
16 channels
Input Signal Range
4-20 mA / 1-5 VDC
ADC Resolution
16-bit
Communication
HART pass-through (digital overlay on analog loop)
Electrical Isolation
Field-to-logic isolation up to 1500 VDC
Mounting
C300-compatible IOTA termination assembly
4-20 mA HART Loop Protocol and Channel Architecture
The CC-PAIN01 module implements per-channel analog acquisition based on 4-20 mA loop current measurement with embedded HART digital signal demodulation. Each input channel is electrically isolated at the field interface stage to prevent ground loop propagation across the backplane logic domain.
The module supports simultaneous analog sampling and HART communication overlay extraction, enabling bidirectional device-level diagnostics without interrupting primary process variable acquisition. Channel scanning is synchronized through C300 backplane scheduling logic, ensuring deterministic update behavior across multi-channel input frames.
Frequently Asked Questions (FAQ)
Q: Does CC-PAIN01 support hot-swap operation? A: Yes. The module supports removal and insertion under power (RIUP) when installed on a compatible C300 IOTA base, provided field loops are properly isolated.
Q: Is HART communication processed internally or passed through? A: HART signals are demodulated and passed through to higher-level asset management systems; configuration is not executed locally within the module.
Q: What isolation mechanism is used between field and controller domains? A: Galvanic isolation is implemented between field input circuitry and backplane logic to reduce noise coupling and ground potential interference.
Field Installation Guidelines
Install module only on compatible CC-TAI series or equivalent IOTA termination assemblies.
Maintain proper segregation between analog signal wiring and power conductors to reduce inductive coupling.
Ensure shield termination at single-point ground reference on cabinet side to avoid ground loops.
Verify loop integrity (4-20 mA continuity) prior to energizing controller backplane.
Observe HART loop resistance requirements for proper digital signal superimposition.
Insert module into powered system only after verifying slot addressing and controller synchronization state.
