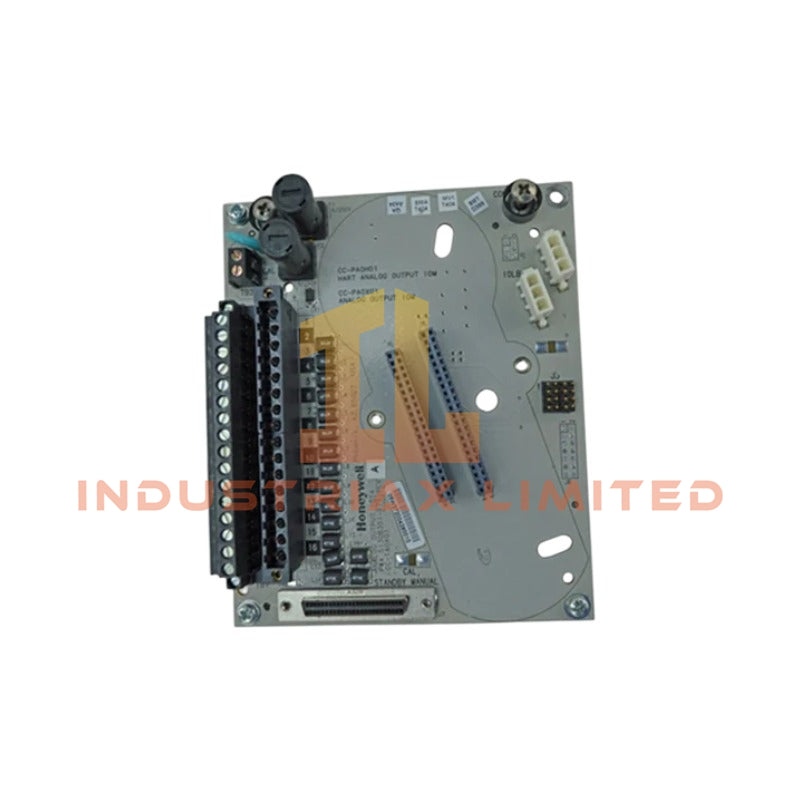

Honeywell CC-PA0H51 Analog Output Module

Configured for conversion of controller-side digital output commands into loop-powered current control signals in Experion PKS C300 systems, the Honeywell CC-PA0H51 (CC-PA0H51 AO module) provides direct physical/electrical execution of 4-20 mA analog output generation with embedded HART communication pass-through.

Hardware Specifications

Parameter	Specification
Model	CC-PA0H51
Brand	Honeywell
Origin	USA
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Approx. 4 to 5 W
Module Type	HART Analog Output Module
Channel Count	16 channels
Output Signal Range	4-20 mA
DAC Resolution	16-bit
HART Support	HART v5 / v6 / v7 pass-through
Load Resistance	0 to 750 ohm (at 24 VDC)
Isolation	1500 VAC channel-to-system

Process Control Signal Architecture (4-20 mA HART Loop Layer)

The CC-PA0H51 implements a dual-layer output structure combining analog current loop regulation and digital HART modulation over the same pair of conductors. In Honeywell Experion PKS architectures, loop command values are generated by C300 controller logic and translated into precision DAC output stages. HART FSK signaling is superimposed without affecting base 4-20 mA loop integrity, enabling bidirectional device-level diagnostics and configuration exchange. Channel-to-channel electrical isolation reduces loop interaction effects under multi-load termination conditions and maintains signal integrity during partial field short events.

Frequently Asked Questions (FAQ)

Q: Does the CC-PA0H51 support hot-swap replacement under energized backplane conditions?
A: Yes. The module supports Online Insertion and Removal (OIR) when used with a compatible IOTA, provided field loops are properly isolated according to system configuration rules.

Q: What is the behavior of the module under HART communication loading on multiple channels?
A: HART communication is independently modulated per channel; digital signal overlay does not interrupt analog current regulation within specified load limits.

Q: Can redundant configuration be implemented at channel level?
A: Redundancy is implemented at module/IOTA pairing level, not individual channel duplication; switching behavior depends on system redundancy architecture.

Field Installation Guidelines

• Install module only on compatible Honeywell C300 I/O termination assemblies (IOTA)
• Ensure loop power supply is within 24 VDC ±10 percent before commissioning
• Maintain shield grounding at single-point earth termination to avoid loop noise injection
• Verify each channel load resistance remains within 0 to 750 ohm operating envelope
• Avoid parallel routing of analog output wiring with high-frequency switching conductors
• Perform channel loop validation using 4-20 mA calibration source prior to HART commissioning

Configured for conversion of controller-side digital output commands into loop-powered current control signals in Experion PKS C300 systems, the Honeywell CC-PA0H51 (CC-PA0H51 AO module) provides direct physical/electrical execution of 4-20 mA analog output generation with embedded HART communication pass-through.

Hardware Specifications

Parameter	Specification
Model	CC-PA0H51
Brand	Honeywell
Origin	USA
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Approx. 4 to 5 W
Module Type	HART Analog Output Module
Channel Count	16 channels
Output Signal Range	4-20 mA
DAC Resolution	16-bit
HART Support	HART v5 / v6 / v7 pass-through
Load Resistance	0 to 750 ohm (at 24 VDC)
Isolation	1500 VAC channel-to-system

Process Control Signal Architecture (4-20 mA HART Loop Layer)

The CC-PA0H51 implements a dual-layer output structure combining analog current loop regulation and digital HART modulation over the same pair of conductors. In Honeywell Experion PKS architectures, loop command values are generated by C300 controller logic and translated into precision DAC output stages. HART FSK signaling is superimposed without affecting base 4-20 mA loop integrity, enabling bidirectional device-level diagnostics and configuration exchange. Channel-to-channel electrical isolation reduces loop interaction effects under multi-load termination conditions and maintains signal integrity during partial field short events.

Frequently Asked Questions (FAQ)

Q: Does the CC-PA0H51 support hot-swap replacement under energized backplane conditions?
A: Yes. The module supports Online Insertion and Removal (OIR) when used with a compatible IOTA, provided field loops are properly isolated according to system configuration rules.

Q: What is the behavior of the module under HART communication loading on multiple channels?
A: HART communication is independently modulated per channel; digital signal overlay does not interrupt analog current regulation within specified load limits.

Q: Can redundant configuration be implemented at channel level?
A: Redundancy is implemented at module/IOTA pairing level, not individual channel duplication; switching behavior depends on system redundancy architecture.

Field Installation Guidelines

• Install module only on compatible Honeywell C300 I/O termination assemblies (IOTA)
• Ensure loop power supply is within 24 VDC ±10 percent before commissioning
• Maintain shield grounding at single-point earth termination to avoid loop noise injection
• Verify each channel load resistance remains within 0 to 750 ohm operating envelope
• Avoid parallel routing of analog output wiring with high-frequency switching conductors
• Perform channel loop validation using 4-20 mA calibration source prior to HART commissioning
