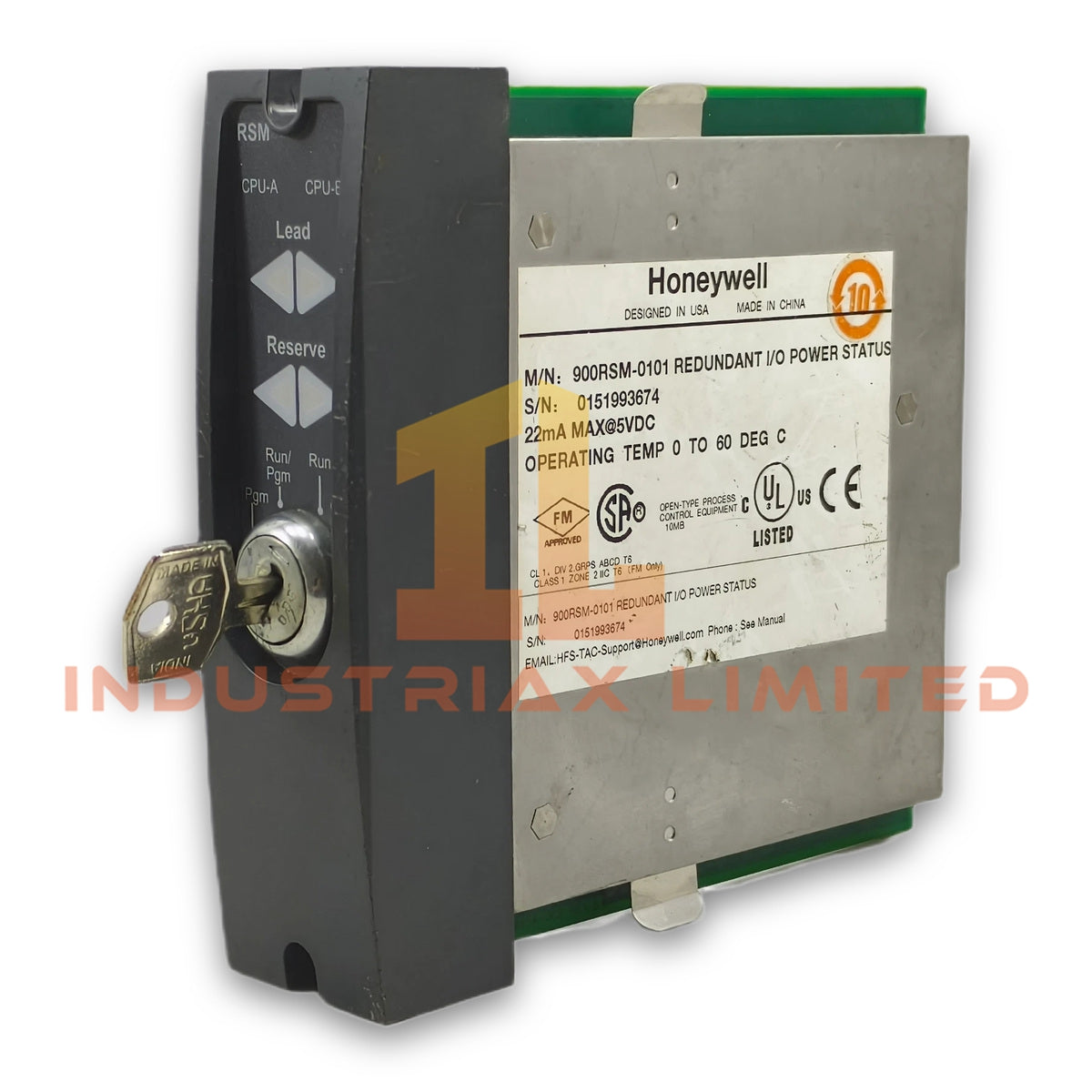

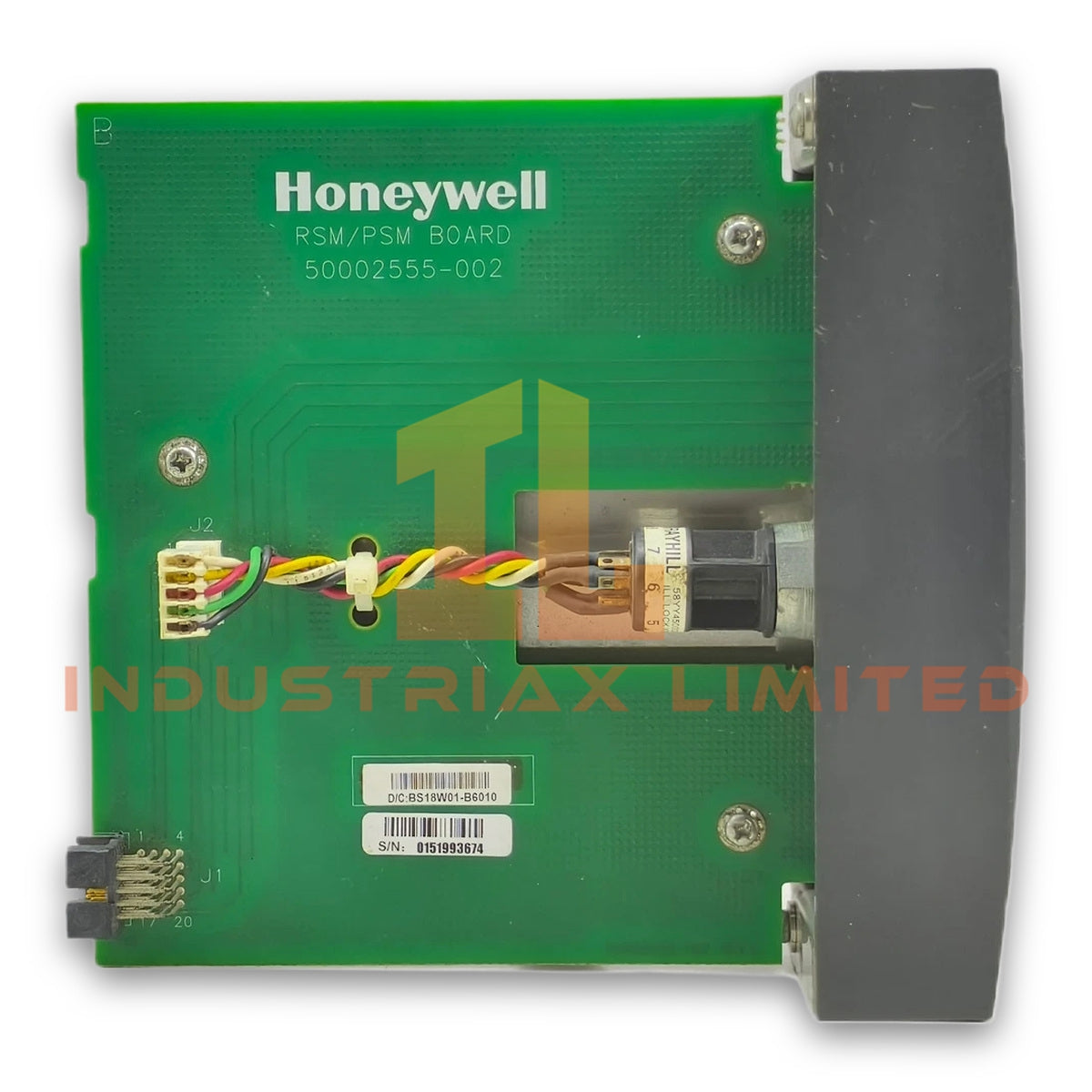

Honeywell 900RSM-0101 Redundant Switch Module

The Honeywell 900RSM-0101, also cataloged as the 900RSM-0101 Redundant Switch Module, operates as a dedicated hardware component for CPU redundancy control and active/standby switching within the Honeywell ControlEdge HC900 controller system.

Hardware Specifications

Parameter	Specification
Model	900RSM-0101
Brand	Honeywell
Origin	USA
Weight	0.4 kg
Dimensions	137 x 35.6 x 151.7 mm
Operating Temp	0 deg C to +60 deg C
Power Consumption	5 VDC, 22 mA maximum
Product Type	Redundant Switch Module
System Compatibility	Honeywell ControlEdge HC900 Controller System
Functional Role	Redundant CPU status monitoring and manual/automatic switchover control
Mounting Type	HC900 controller rack mounting
Redundancy Function	Active/standby CPU failover management
Diagnostics	CPU status, communication link, and redundancy health monitoring
Mode Selection	RUN, PROGRAM, RUN/PROG, manual switchover position
Hot-Swap Capability	Supports module replacement under controlled rack conditions

Honeywell Process Control Redundancy Management

The 900RSM-0101 manages redundant CPU operating states through direct rack-level communication and controller status monitoring. The module supervises Lead and Reserve processor conditions, then initiates a controller state transition when the active processor requires replacement or fault isolation.

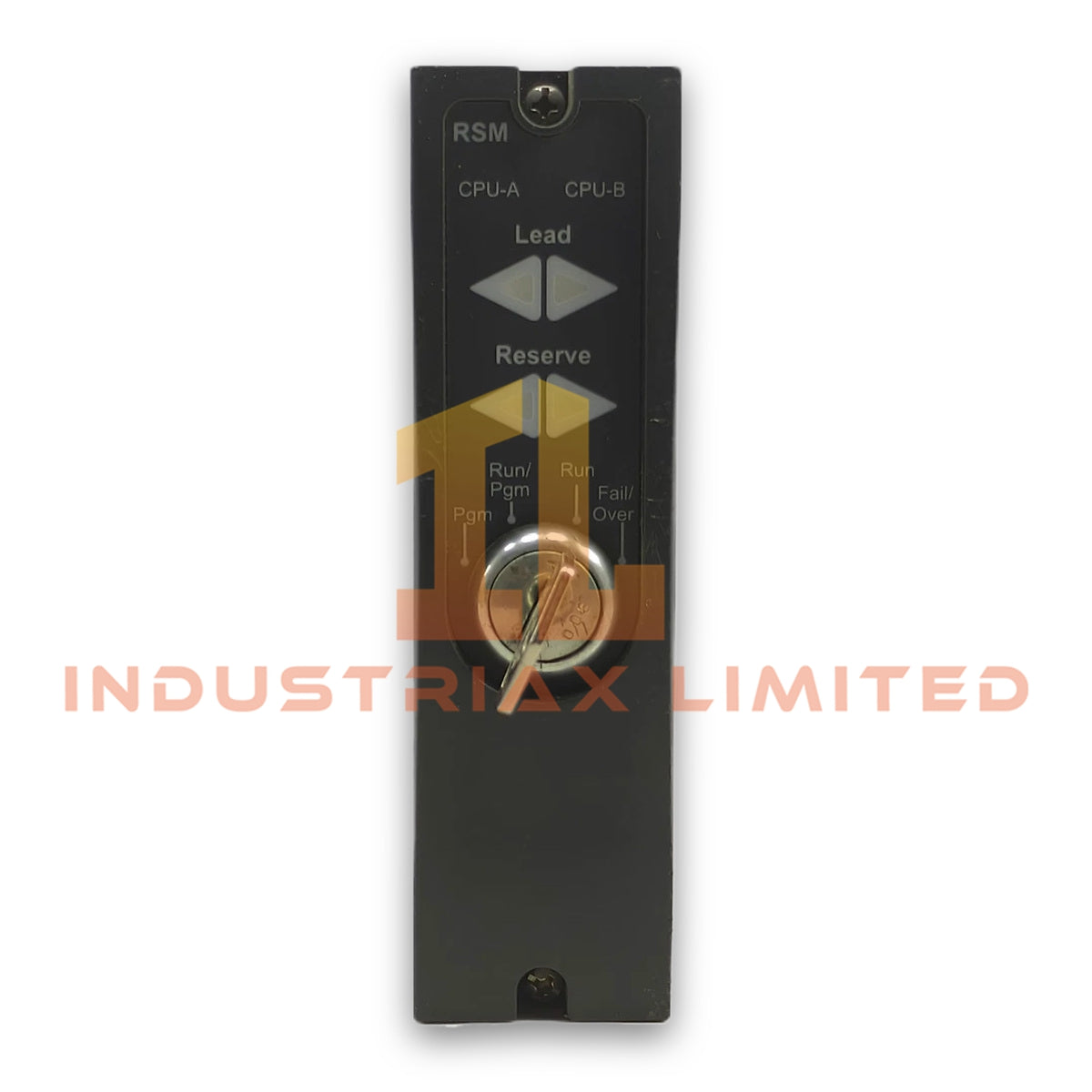

For ControlEdge HC900 architectures, the module maintains hardware coordination between redundant processors. It provides status indication through dedicated LED signals and supports manual control through a keyed mode switch. The design focuses on controller state management rather than field signal processing.

Honeywell process control modules commonly integrate with industrial communication structures supporting 4-20 mA HART loop protocol, FOUNDATION Fieldbus / Profibus PA connectivity, and channel-to-channel isolation concepts. The 900RSM-0101 itself performs redundancy management functions and does not provide direct field I/O conversion.

Frequently Asked Questions

Q: Does the 900RSM-0101 process analog or digital field signals?
A: No. The module does not provide analog input, analog output, or digital I/O channels. It controls redundant CPU status and switchover functions within the HC900 controller architecture.

Q: Can the 900RSM-0101 perform automatic controller failover?
A: Yes. The module monitors redundant processor states and supports automatic transfer from the active CPU to the reserve CPU when configured redundancy conditions are detected.

Q: What is the power requirement of the 900RSM-0101?
A: The module receives rack-provided power and consumes a maximum of 5 VDC at 22 mA.

Field Installation Guidelines

Install the 900RSM-0101 in the designated Honeywell ControlEdge HC900 rack position according to the controller hardware configuration manual.

Verify that the rack backplane connection is fully seated before applying system power. Keep the module away from high-current switching devices, motor drives, and sources of electromagnetic interference.

Use proper cabinet grounding practices and maintain separation between control wiring and power wiring. Follow the recommended shielding and grounding methods for connected communication cables.

Before replacing the module, confirm the redundant controller operating state and verify that the active and reserve CPU status indicators match the expected configuration. Perform functional checks after installation to confirm correct redundancy operation.
