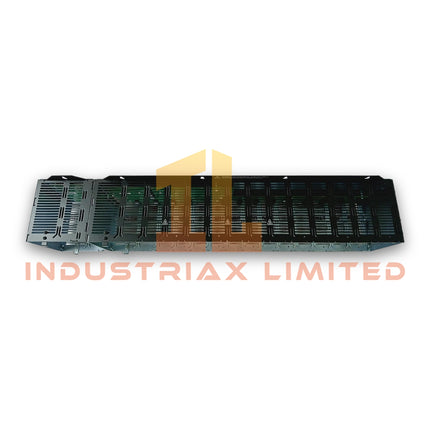

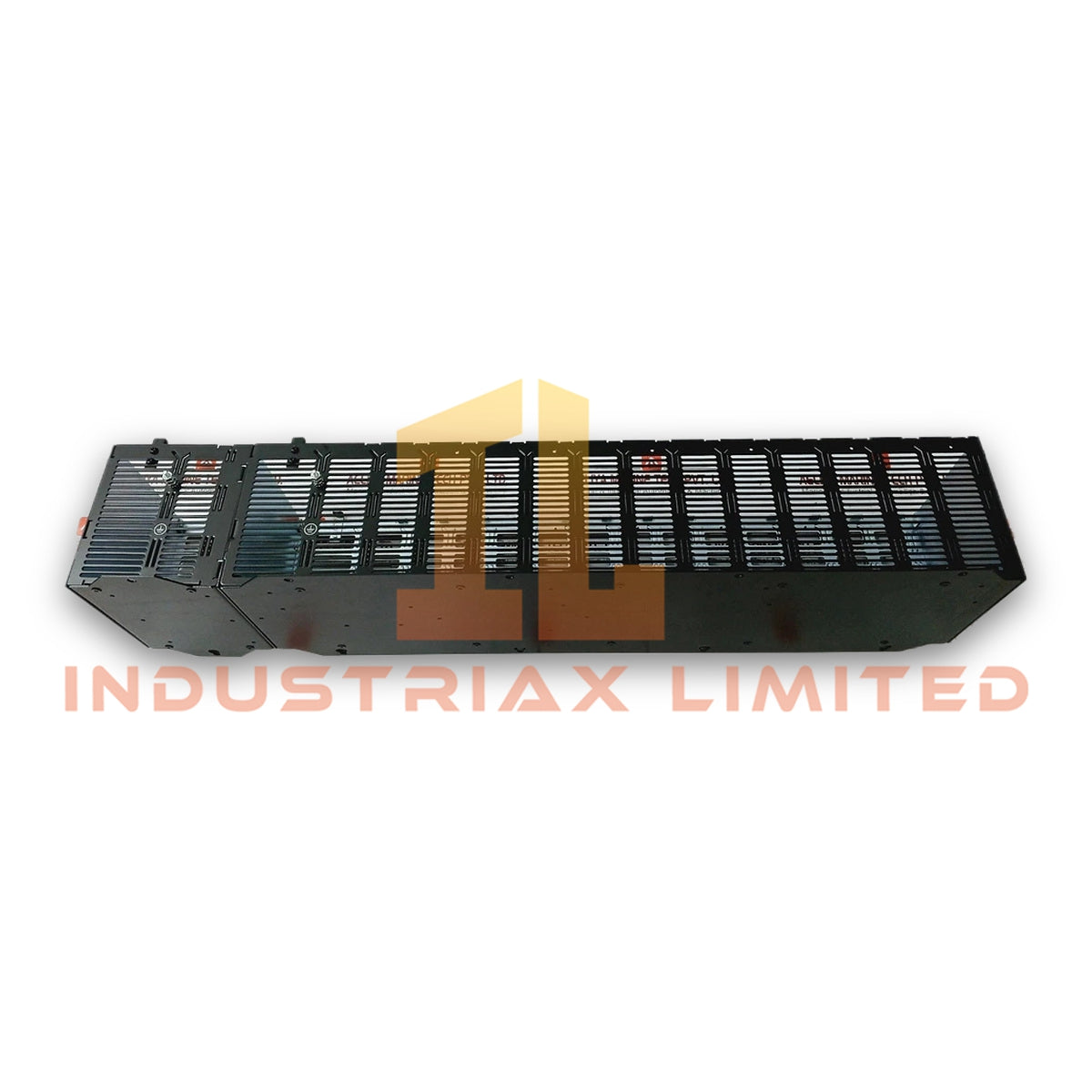

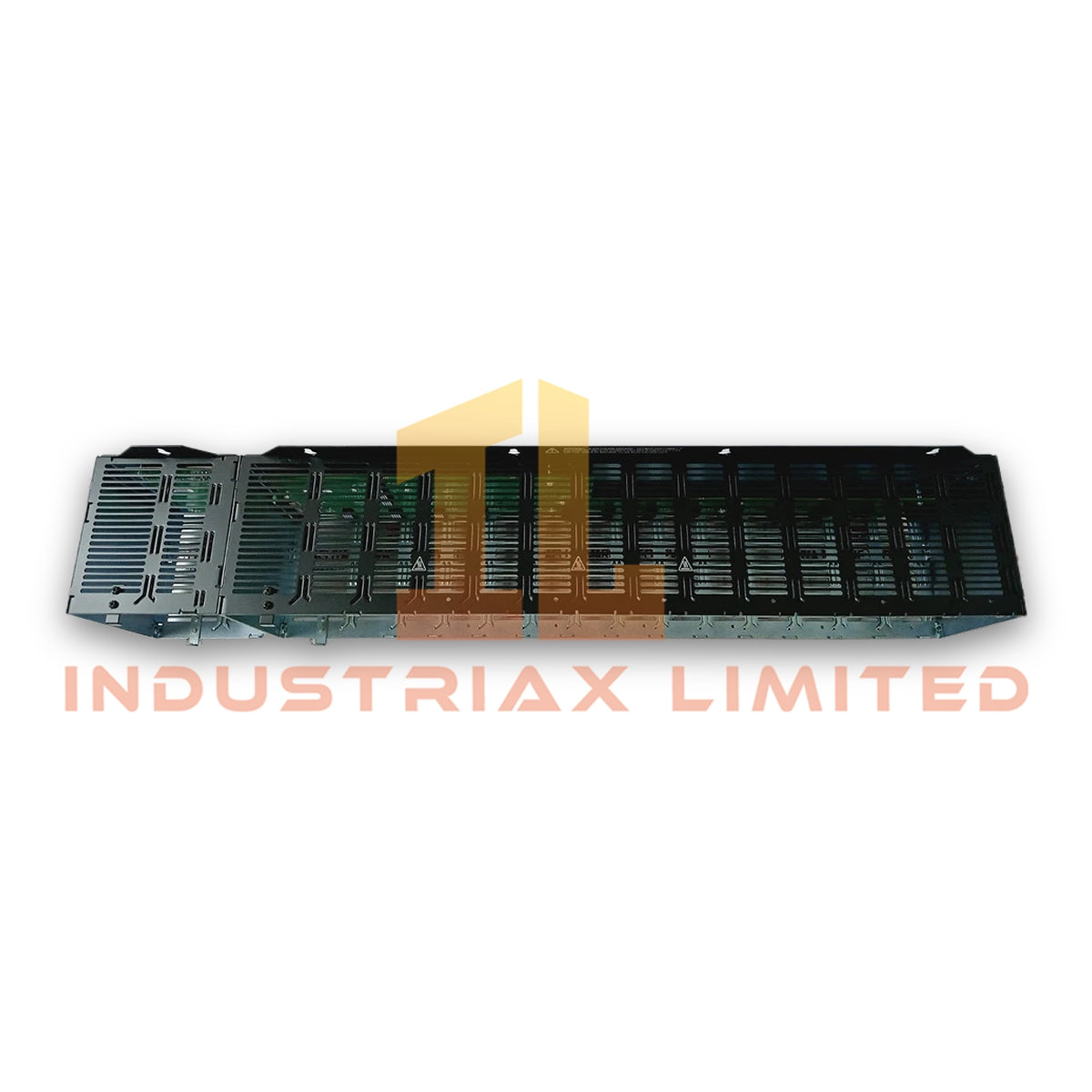

Configured for redundant power distribution in the Honeywell ControlEdge HC900 system, the Honeywell 900R12R-0300 (900R12R-0300 12 I/O Slot Rack) provides physical mounting and backplane connection for I/O modules. This rack assembly supports extended temperature operation from -40 deg C to +70 deg C.
Hardware Specifications
Parameter
Specification
Model
900R12R-0300
Brand
Honeywell
Product Type
I/O Rack
System Platform
ControlEdge HC900
Rack Capacity
12 I/O slots
Power Configuration
Redundant power support
Origin
USA
Weight
4 kg
Dimensions
13.7 x 51.1 x 15.1 cm
Operating Temp
-40 deg C to +70 deg C
Storage Temp
-40 deg C to +85 deg C
Relative Humidity
5% to 95% non-condensing
Power Consumption
Dependent on installed I/O modules and power supply configuration
Process Control Rack Architecture

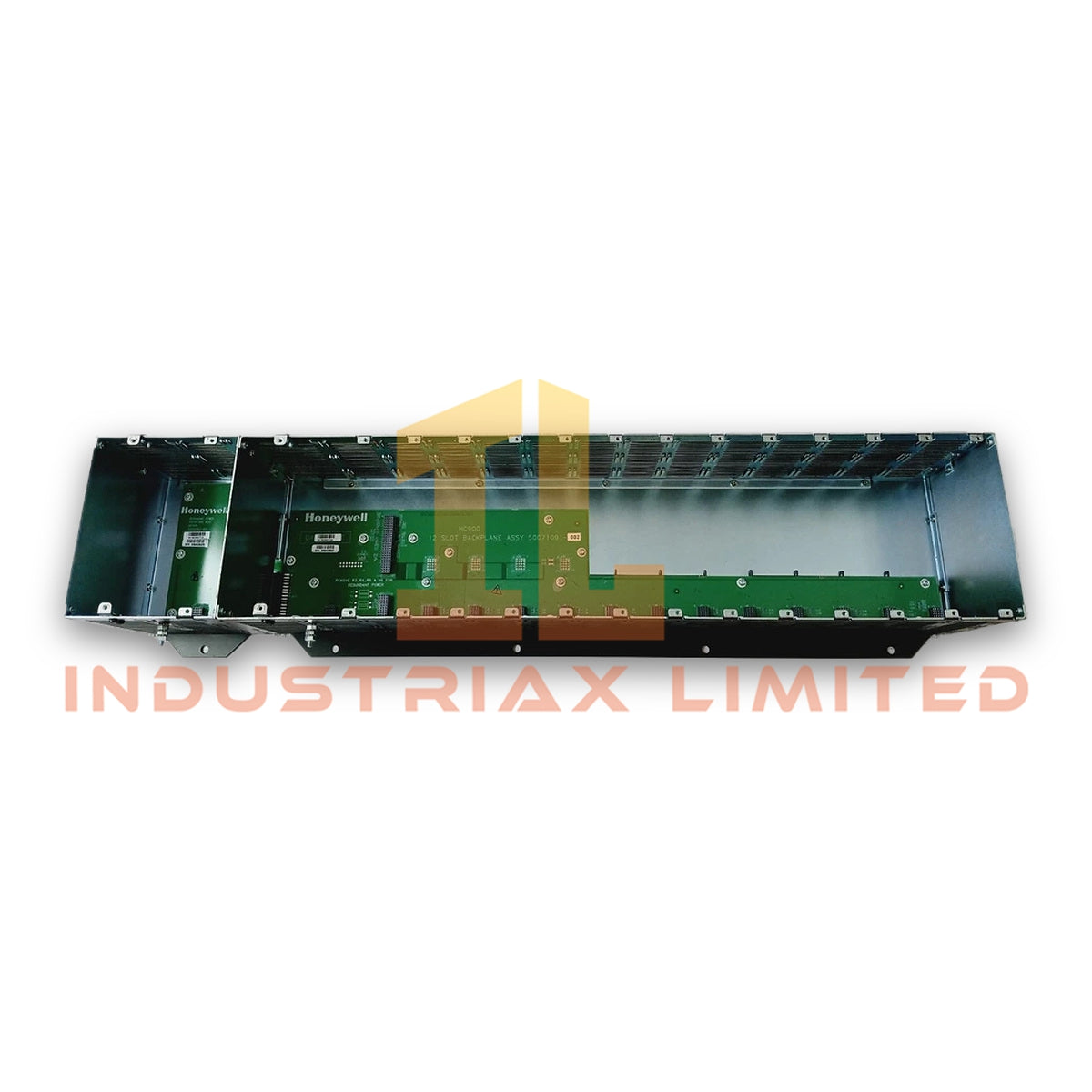

The Honeywell 900R12R-0300 provides the mechanical structure and electrical backplane interface for ControlEdge HC900 I/O modules. Therefore, the rack maintains module positioning, power distribution paths, and communication connections between installed hardware units.
The rack supports redundant power configurations, which allows the control system design to include separate power sources for increased system availability. In addition, the extended temperature specification permits installation in industrial environments with wide operating temperature variation.
For Honeywell process control architectures, the rack assembly supports I/O expansion requirements while maintaining module alignment and backplane connectivity. Channel isolation, field signal processing, and HART or FOUNDATION Fieldbus functions depend on the installed I/O modules rather than the rack assembly itself.
Frequently Asked Questions
Q: How many modules can the 900R12R-0300 rack accommodate? A: The 900R12R-0300 provides 12 I/O module slots for compatible Honeywell ControlEdge HC900 modules.
Q: Does the rack provide redundant power support? A: Yes. The 900R12R-0300 rack assembly supports redundant power configurations within the ControlEdge HC900 system architecture.
Q: Can the rack operate in extended temperature conditions? A: Yes. The specified operating temperature range is -40 deg C to +70 deg C.
Field Installation Guidelines
Install the 900R12R-0300 on a suitable control cabinet mounting structure with sufficient mechanical support. Verify that the rack backplane connectors remain clean and free from contamination before inserting I/O modules.
Maintain proper separation between field wiring and power conductors to reduce electrical interference. Connect cabinet grounding according to the site electrical standard and verify the protective earth path before system power application.
Before startup, confirm that installed modules match the rack configuration and that redundant power connections follow the system wiring documentation. Check module seating, connector engagement, and cabinet environmental conditions during commissioning.
