Honeywell 900R08R-0200 ControlEdge HC900 8-Slot I/O Rack Configured for modular I/O expansion and redundant power distribution in the Honeywell ControlEdge...
Baca selengkapnya

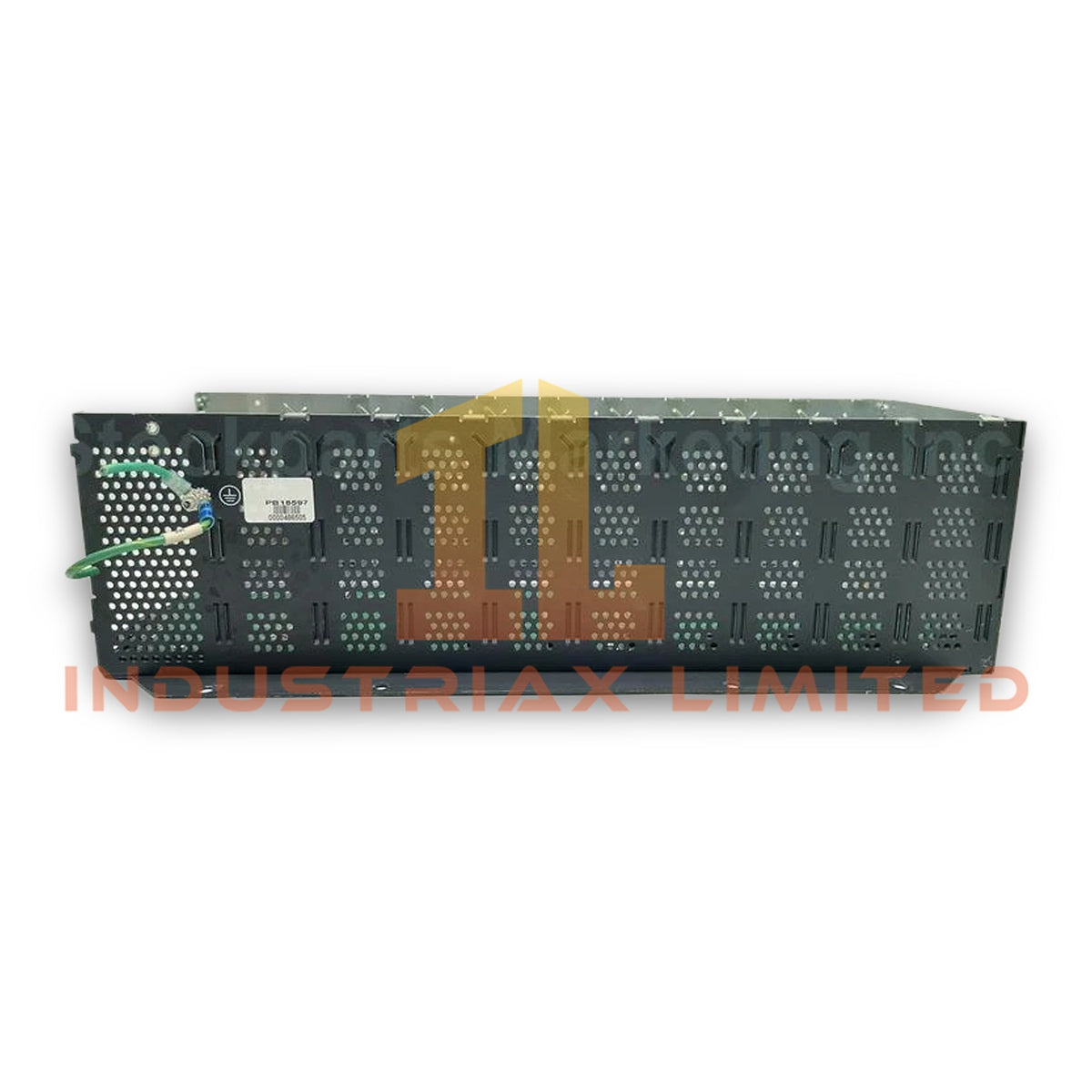

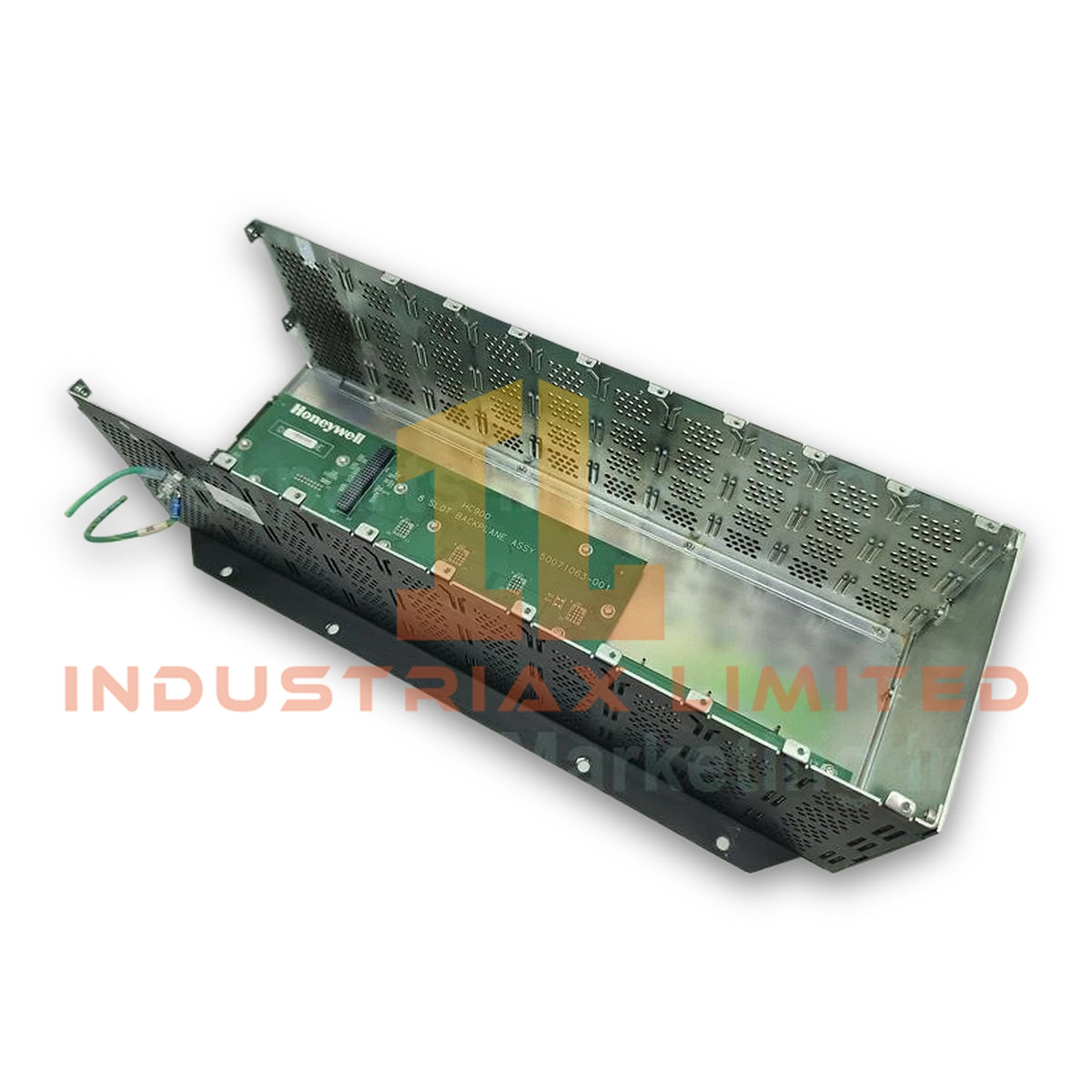

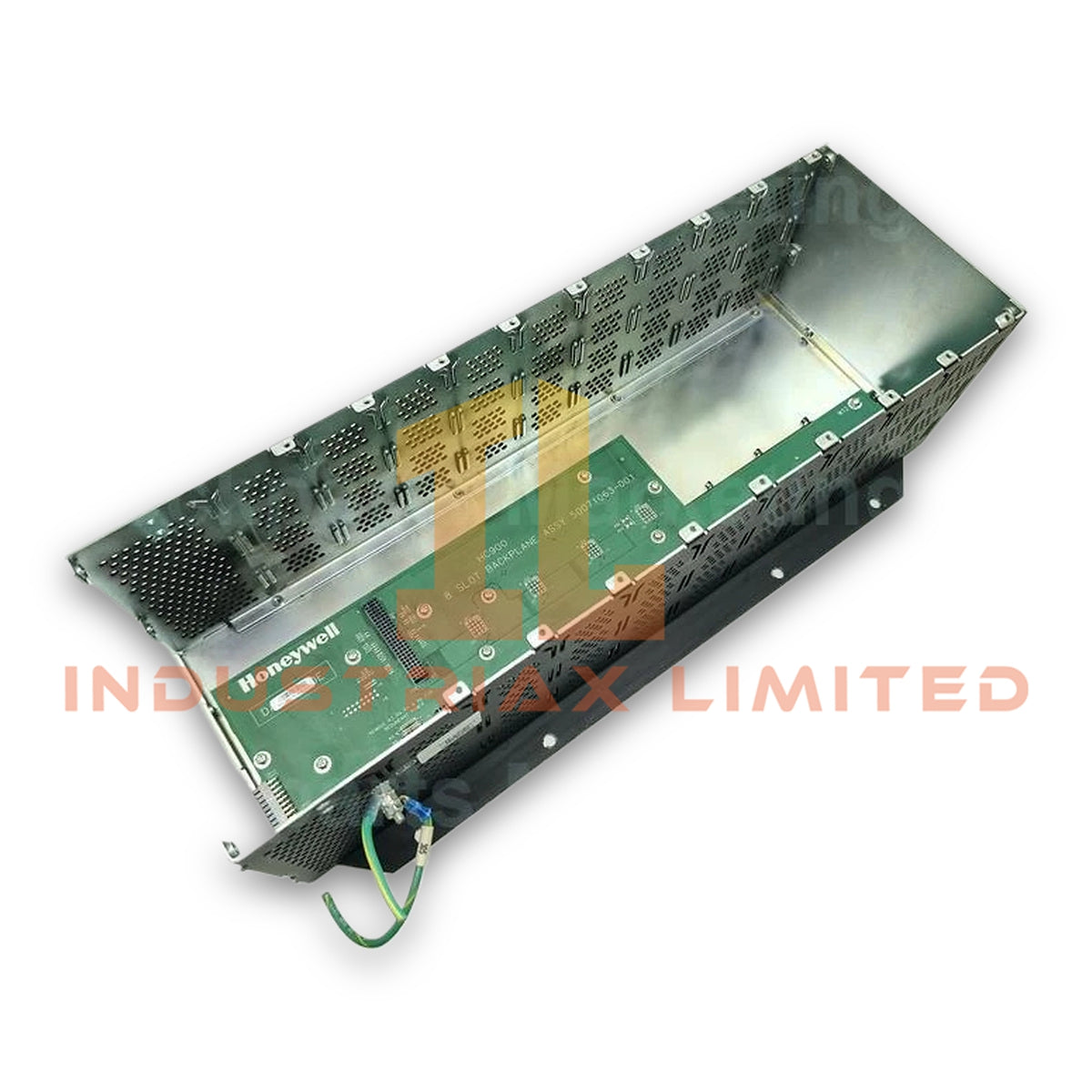

Configured for modular I/O expansion and redundant power distribution in the Honeywell ControlEdge HC900 system, the Honeywell 900R08R-0200 (900R08R-0200 8-Slot I/O Rack) provides the physical backplane interface for controller and I/O module installation.
Hardware Specifications
Parameter
Specification
Model
900R08R-0200
Brand
Honeywell
Origin
United States
Product Type
8-Slot I/O and Controller Rack
System Platform
ControlEdge HC900
Rack Capacity
8 I/O module slots
Power Supply Support
Dual redundant power supply configuration
Hot-Swap Function
Supports live insertion and removal of compatible I/O modules under system power
Dimensions
137 mm H x 530.9 mm W x 151.7 mm D
Weight
Approximately 4422 g
Power Consumption
Backplane dependent; determined by installed modules and power supply configuration
Environmental Protection
Conformal coating, G3 harsh environment compliant
Certifications
CE, UL, CSA, ATEX / FM Class 1 Div 2 (system dependent)
Process Control Rack Integration and Signal Isolation
The Honeywell 900R08R-0200 provides the mechanical backplane structure for ControlEdge HC900 controller and I/O module assemblies. Therefore, it maintains the electrical connection between installed modules and the internal system bus.
The rack design supports process control module installation where analog and digital field signals require controlled routing. In addition, compatible Honeywell modules can implement features such as 4-20 mA HART loop protocol handling, FOUNDATION Fieldbus / Profibus PA connectivity, and channel-to-channel isolation at the module level.
The rack itself does not perform signal conversion or protocol processing. Instead, it supplies the physical mounting and interconnection platform required by installed control modules.
Frequently Asked Questions
Q: Does the 900R08R-0200 support redundant power supply operation? A: Yes. The rack supports dual redundant power supply configurations when used with compatible ControlEdge HC900 power modules.
Q: Can I/O modules be replaced while the rack remains powered? A: The rack supports hot-swap installation and removal of compatible I/O modules. Replacement procedures must follow Honeywell system maintenance instructions.
Q: Does the rack provide analog signal isolation or HART communication processing? A: No. The rack provides mechanical mounting and backplane interconnection. Signal isolation and communication functions depend on the installed I/O modules.
Field Installation Guidelines
Install the 900R08R-0200 on a stable control cabinet mounting surface with sufficient clearance for module insertion and wiring access.
Verify that the rack backplane connectors remain free from dust, moisture, and mechanical contamination before module installation.
Route field wiring separately from high-voltage power conductors to reduce electrical interference. Maintain proper cable shielding and connect shield layers according to the grounding requirements of the installed ControlEdge HC900 modules.
Before applying system power, confirm the correct placement of controller modules, I/O modules, and redundant power components. Check all module seating positions to ensure proper backplane engagement.
