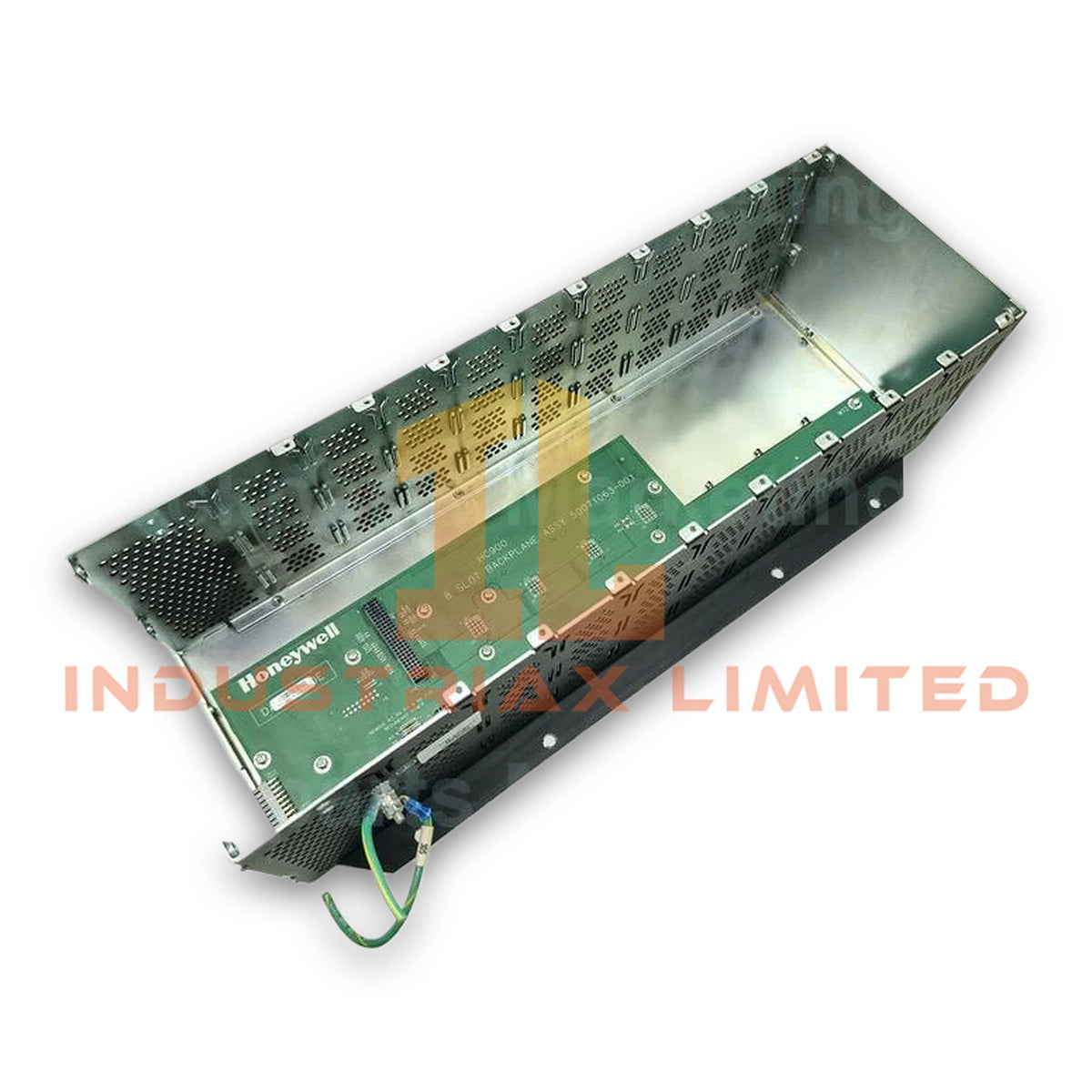

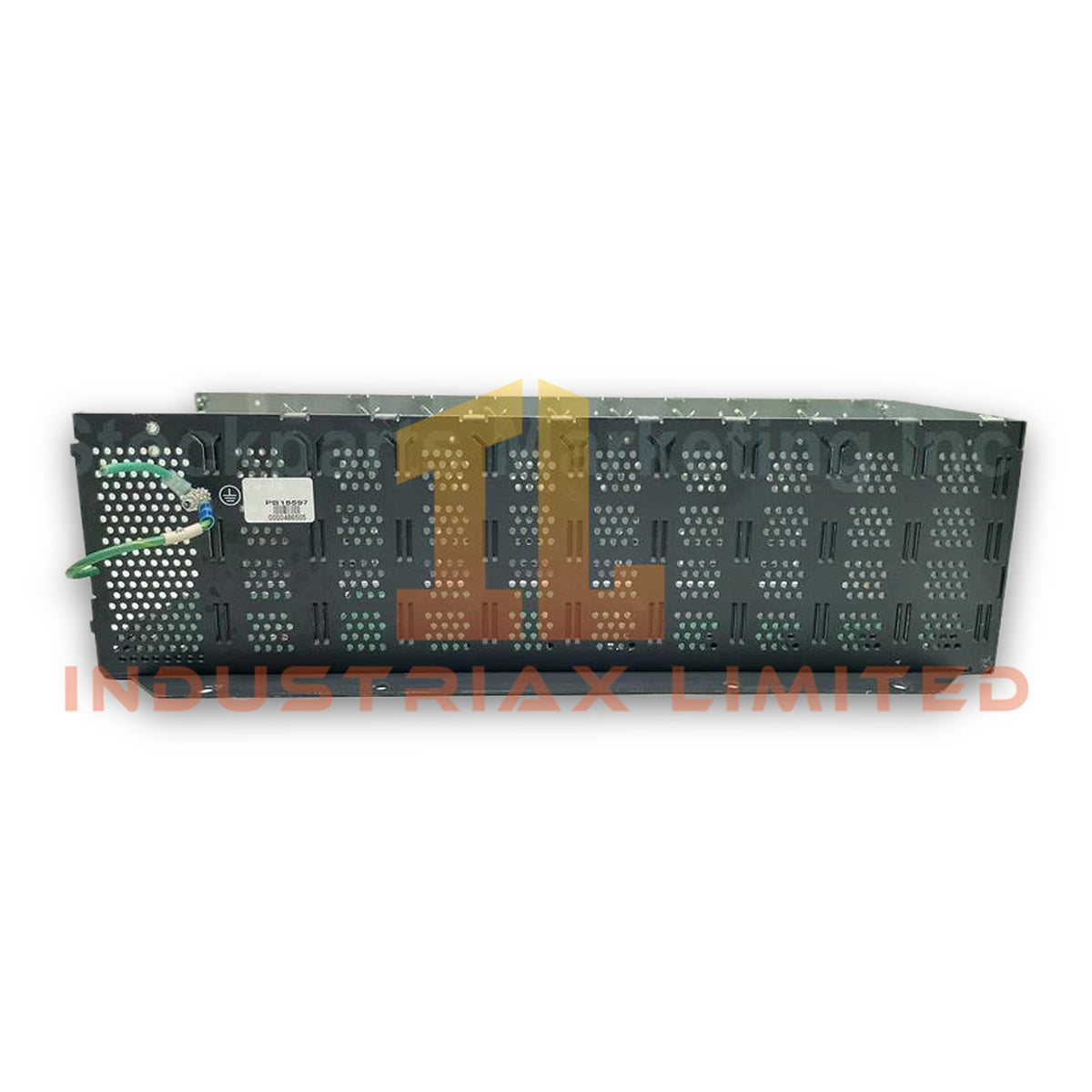

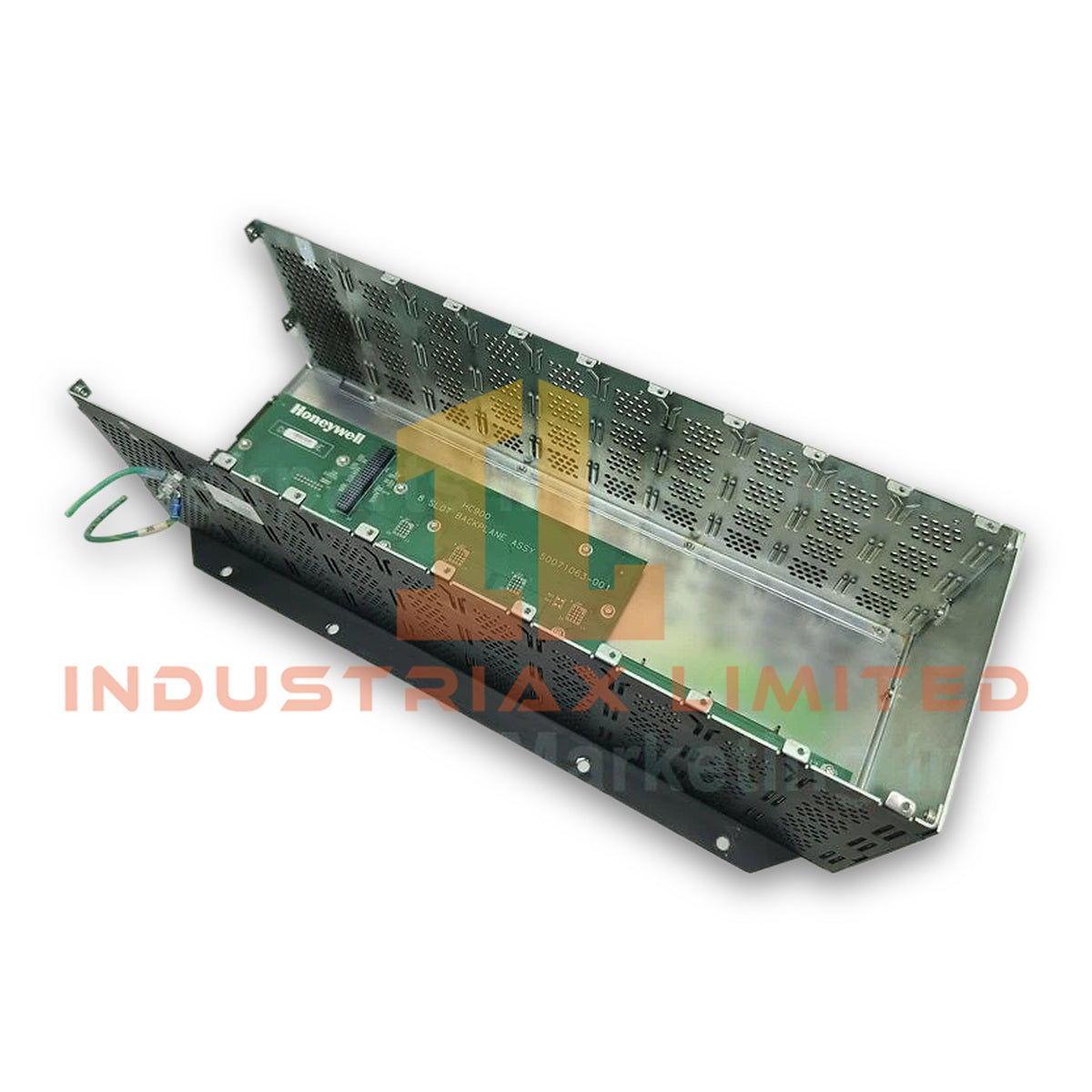

Configured for module mounting and internal bus distribution in the Honeywell ControlEdge HC900 system, the Honeywell 900R08-0200 (900R08-0200 8-Slot I/O Rack) provides physical support and electrical interconnection for installed controller, power, and I/O hardware.
Hardware Specifications
Parameter
Specification
Model
900R08-0200
Brand
Honeywell
Product Family
ControlEdge HC900
Device Type
8-Slot I/O Rack / Chassis
Origin
USA
Weight
Approx. 3.126 kg
Dimensions
137 mm H x 419.1 mm W x 151.7 mm D
Operating Temp
0 deg C to 60 deg C
Storage Temperature
-40 deg C to 70 deg C
Relative Humidity
10% to 90% non-condensing
Power Consumption
Passive rack backplane distribution; power consumption depends on installed modules
I/O Capacity
Supports up to 8 I/O module positions
Power Configuration
Single power supply support, non-redundant rack version
Mounting Type
Panel mount or DIN rail installation with applicable mounting accessories
Process Control Backplane and Signal Integration Features
The 900R08-0200 rack provides the mechanical and electrical platform for Honeywell ControlEdge HC900 controller assemblies. It distributes internal backplane communication between the processor module, power supply module, and installed I/O modules.
Furthermore, the rack design supports process control configurations where analog and digital field signals interface through HC900 I/O modules. Depending on the installed modules, the system can support industrial signal standards including 4-20 mA HART loop protocol, FOUNDATION Fieldbus connectivity, and channel-to-channel isolation functions.
The rack itself does not perform signal conversion or measurement functions. Instead, it provides the physical bus structure required for connected controller and I/O modules to exchange process data.
Frequently Asked Questions
Q: Does the Honeywell 900R08-0200 provide redundant power supply operation? A: No. The 900R08-0200 is a standard single power supply rack version. Redundant power configurations require compatible redundant rack models.
Q: Can the 900R08-0200 operate as a standalone control device? A: No. The rack requires compatible ControlEdge HC900 processor, power, and I/O modules to form a functional control assembly.
Q: Does the rack determine the connected I/O signal type? A: No. The installed I/O modules define signal functions such as analog input, analog output, digital input, digital output, and communication interfaces.
Field Installation Guidelines
Install the 900R08-0200 on a mechanically stable panel or approved mounting structure. Verify that the rack position allows sufficient access for module insertion, wiring terminals, and maintenance operations.
Connect the rack according to the ControlEdge HC900 installation documentation. Keep signal wiring separated from high-voltage power cables to reduce electrical interference. Use appropriate cable shielding and connect shield layers according to the plant grounding practice.
Before installing modules, inspect the rack connectors and backplane contacts for contamination or mechanical damage. Confirm that all modules are correctly seated and secured before applying system power.
During commissioning, verify processor communication, module recognition, and I/O status through the HC900 configuration software before connecting field devices.
