Keterangan

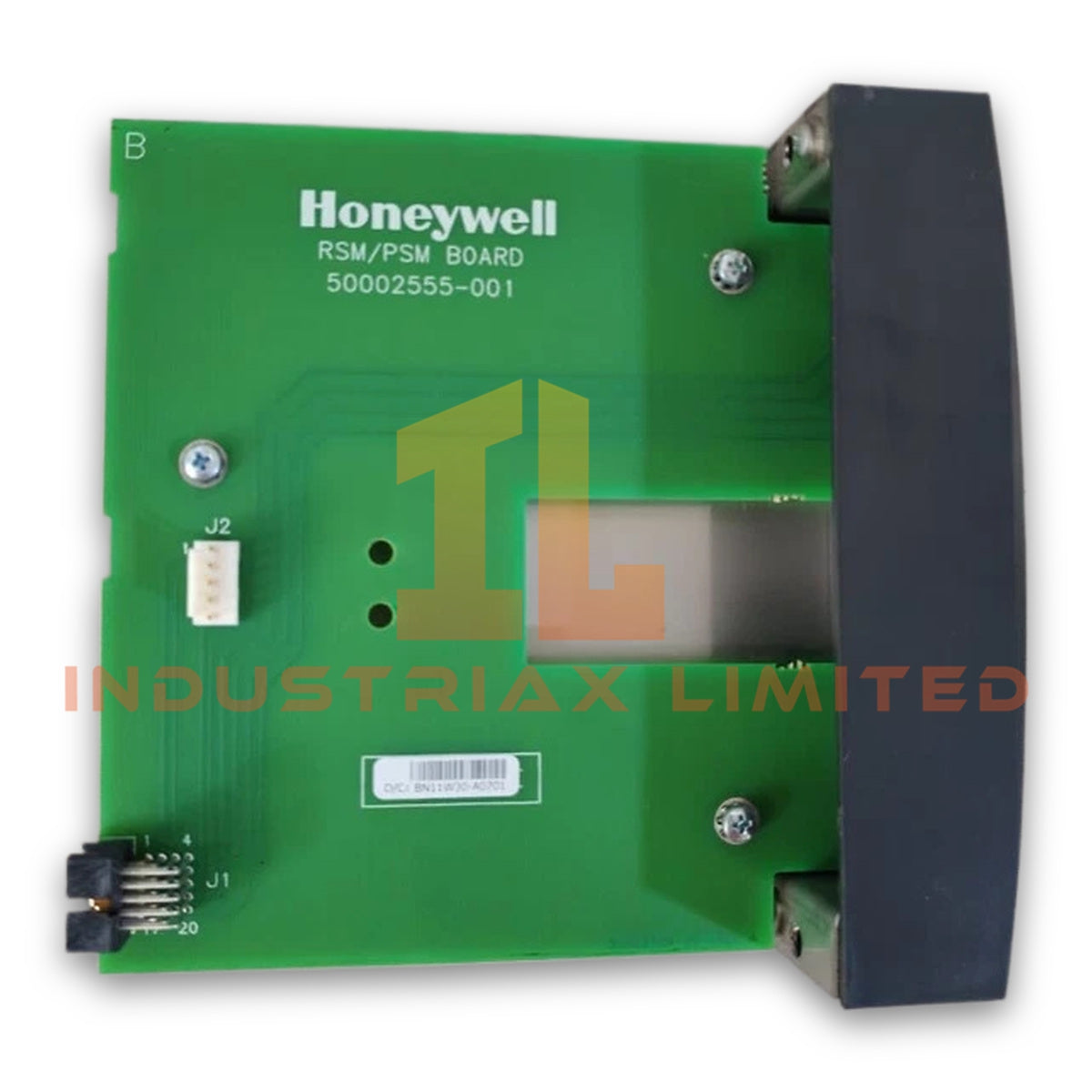

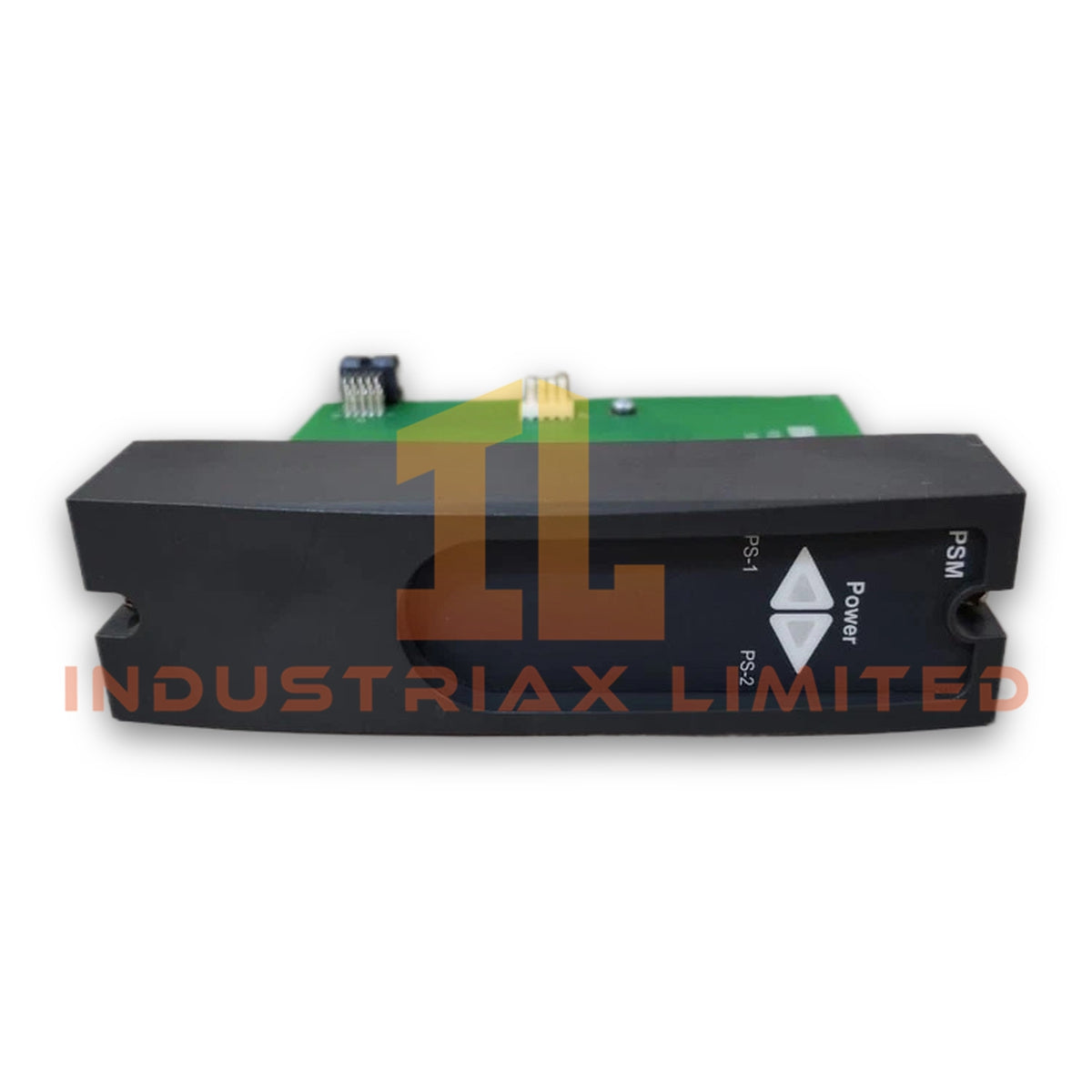

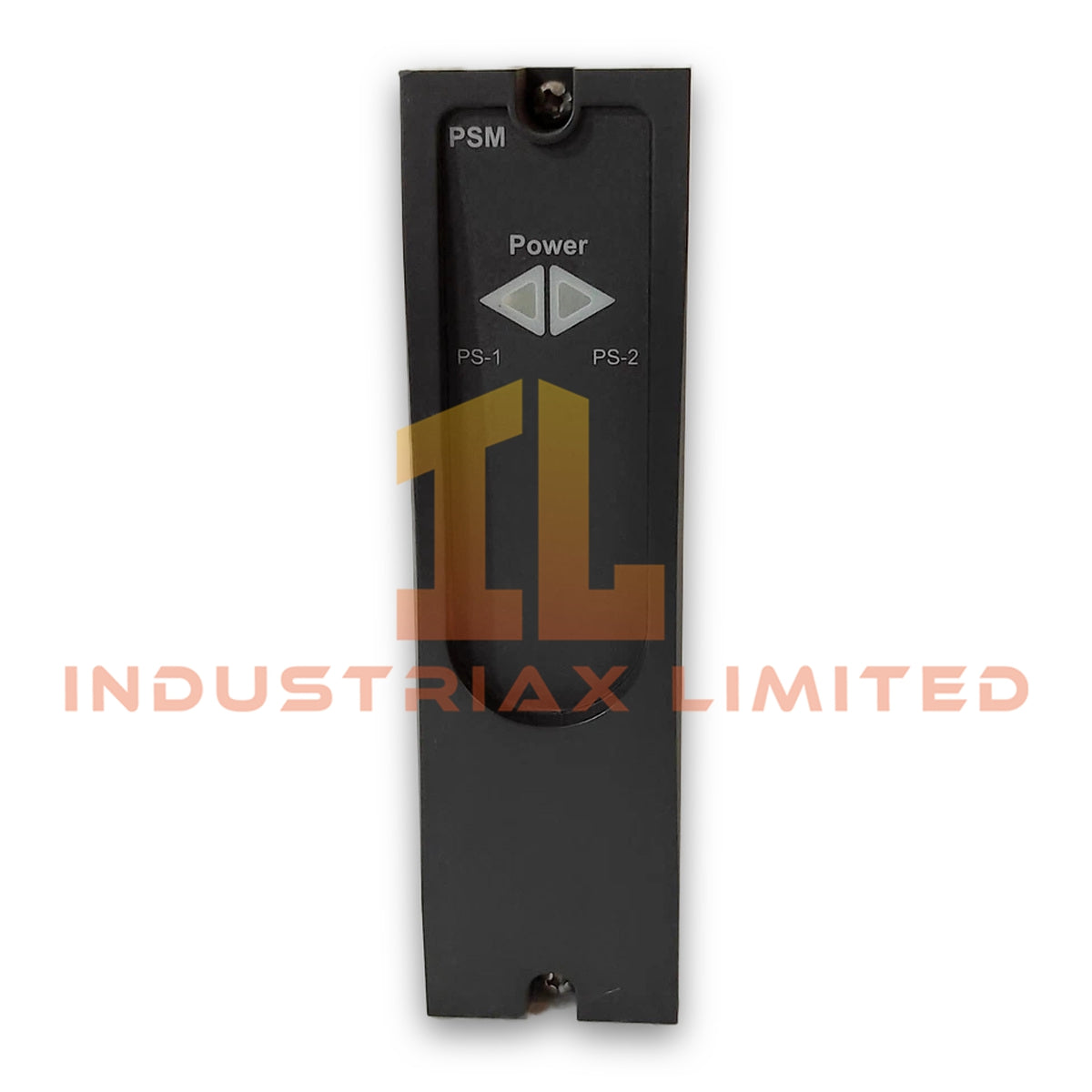

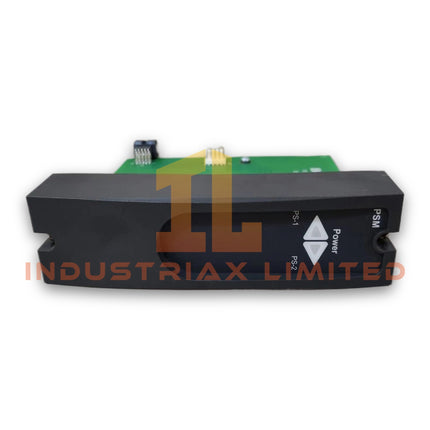

Honeywell 900PSM-0001 Redundant I/O Power Status Module
The Honeywell 900PSM-0001, also cataloged as the 900PSM-0001 Redundant I/O Power Status Module, operates as a dedicated hardware component for monitoring dual I/O power supply status within the Honeywell HC900 Process Controller platform. It supervises power conditions and provides status information to the controller backplane.
Hardware Specifications
Parameter
Specification
Model
900PSM-0001
Brand
Honeywell
Product Type
Redundant I/O Power Status Module
System Compatibility
Honeywell HC900 Process Controller Series
Operating Voltage
24 VDC nominal system power configuration
Power Consumption
22 mA max. at 5 VDC
Weight
Not specified
Dimensions
Not specified
Operating Temp
0 deg C to 60 deg C
Mounting Type
HC900 Series C rack installation
Function
Dual I/O power supply monitoring and status reporting
Maintenance Feature
Supports module replacement procedures within the HC900 rack environment
Process Control Power Monitoring and Diagnostic Functions
The Honeywell 900PSM-0001 monitors redundant I/O power supply conditions and transfers power status information through the HC900 controller architecture. It detects abnormal voltage conditions and supports controller diagnostics during maintenance activities.
In addition, the module supports process control hardware supervision by maintaining continuous observation of redundant supply states. It works with HC900 rack power structures where proper voltage distribution and channel-to-channel isolation requirements apply.
The module design aligns with Honeywell process control practices that use diagnostic feedback for field I/O management. Therefore, technicians can identify power-related conditions before they affect connected I/O modules.
Frequently Asked Questions
Q: What is the primary function of the Honeywell 900PSM-0001? A: The module monitors redundant I/O power supply status and provides diagnostic feedback within the Honeywell HC900 controller rack.
Q: Does the 900PSM-0001 provide field signal measurement functions? A: No. The module does not process analog or digital field signals. It supervises I/O power conditions only.
Q: Can the module operate outside the HC900 rack environment? A: No. The 900PSM-0001 is designed for installation within compatible Honeywell HC900 rack configurations.
Field Installation Guidelines
Install the 900PSM-0001 only in a compatible HC900 rack position according to the controller hardware configuration.
Verify that the redundant I/O power supplies are correctly wired before inserting the module.
Keep power wiring separated from high-noise signal cables to reduce electrical interference.
Confirm backplane connections are clean and fully seated before system startup.
Follow plant grounding practices for rack assemblies and shielded cable installations.
Check diagnostic indicators after installation to confirm correct power status reporting.
