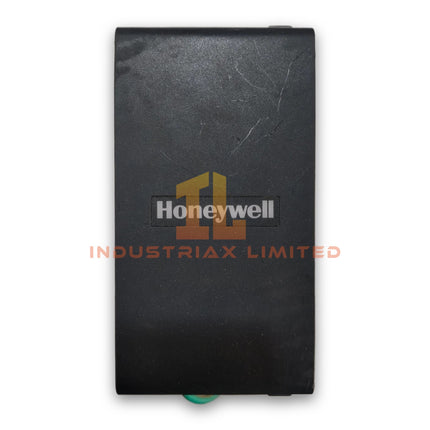

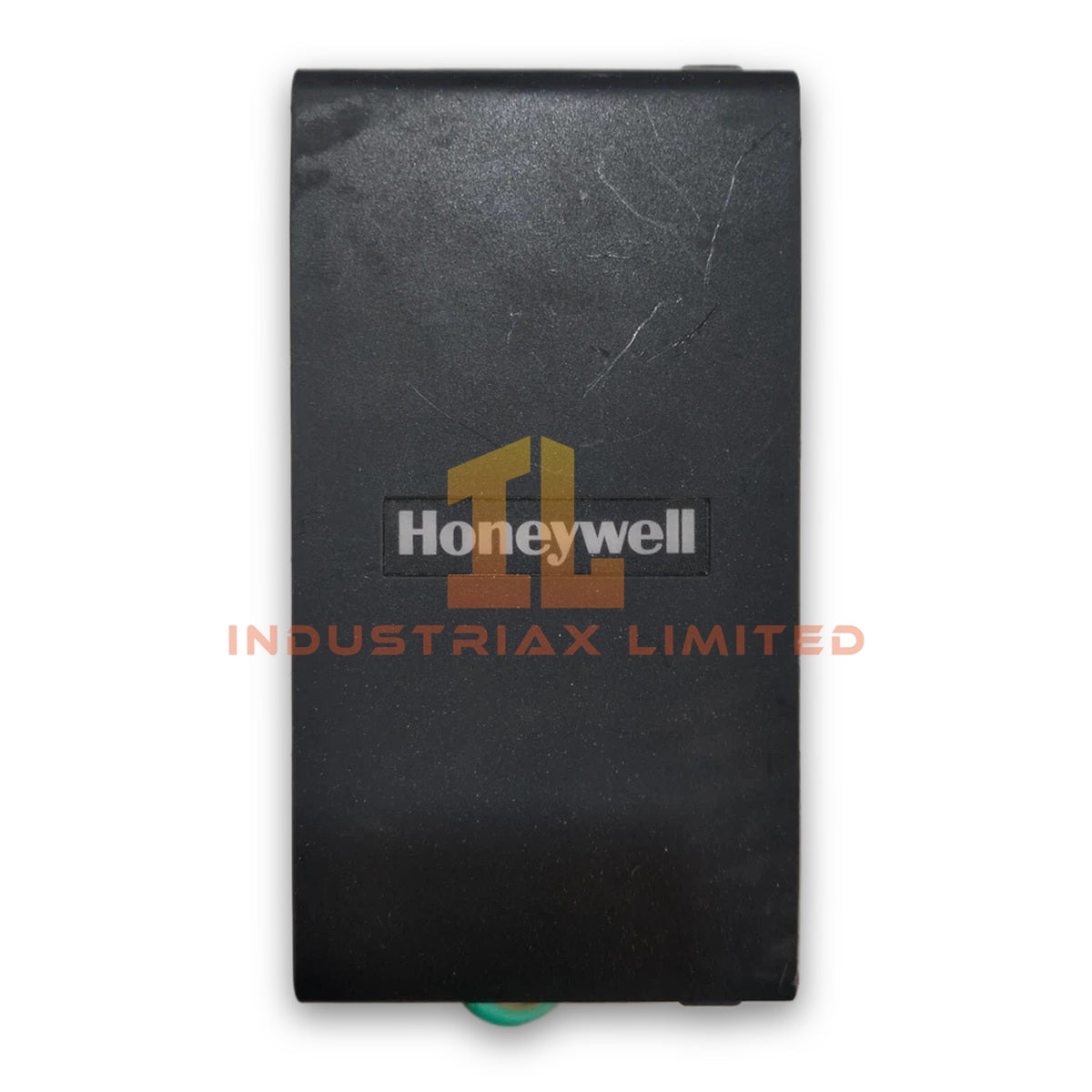

Honeywell 900P01-0301 ControlEdge HC900 AC Power Supply Module

Configured for AC to DC power conversion in the Honeywell ControlEdge HC900 system, the Honeywell 900P01-0301 (900P01-0301 AC Power Supply Module) provides direct electrical power delivery for controller racks and connected I/O modules.

Hardware Specifications

Parameter	Specification
Model	900P01-0301
Brand	Honeywell Process Solutions
Origin	USA
Product Series	ControlEdge HC900 PS-AC 900
Module Type	AC Power Supply Module
Input Voltage	120 / 240 VAC
Input Frequency	47 - 63 Hz
Power Output	58 W / 60 W nominal capacity
Connection Type	Screw Terminals
Mounting Type	HC900 modular rack mounting
Weight	Approx. 820 g
Dimensions	137.0 mm H x 72.6 mm W x 148.0 mm D

Process Control Power Conversion and Isolation Features

The Honeywell 900P01-0301 supports ControlEdge HC900 rack power distribution by converting 120 / 240 VAC input into regulated DC power for system modules. Therefore, the module maintains the electrical supply path between the AC source and the controller backplane.

For Honeywell process control platforms, power modules operate with industrial control architectures that commonly require channel-to-channel isolation practices, controlled grounding, and separation between field wiring and controller power circuits. The 900P01-0301 uses screw terminal connections to provide direct field wiring termination for AC input power.

The module supports the HC900 modular rack structure and supplies power to connected controller components according to rack loading requirements. Additionally, installation practices must maintain proper wiring segregation to reduce electrical interference on process control circuits.

Frequently Asked Questions

Q: What input voltage range does the Honeywell 900P01-0301 support?
A: The module accepts 120 / 240 VAC input with an operating frequency range of 47 - 63 Hz.

Q: What connection method does the 900P01-0301 use for field power wiring?
A: The module uses screw terminal connections for AC power input termination.

Q: Can the 900P01-0301 operate outside the ControlEdge HC900 rack system?
A: The module is designed for installation within Honeywell ControlEdge HC900 controller and I/O rack assemblies. Standalone operation is not specified.

Field Installation Guidelines

• Install the module only in compatible Honeywell ControlEdge HC900 rack assemblies.
• Verify AC input voltage before connecting field power conductors.
• Maintain separation between AC power wiring and low-level signal wiring to reduce electromagnetic interference.
• Connect protective grounding according to the cabinet grounding design and local electrical standards.
• Confirm rack power loading requirements before installing additional controller or I/O modules.
• Inspect screw terminal connections for proper mechanical tightening during commissioning.
• Use shielded signal wiring and correct grounding methods for adjacent analog or communication circuits.
