Keterangan
Honeywell 900P01-0001 ControlEdge HC900 AC Power Supply Module
The Honeywell 900P01-0001, also cataloged as the 900P01-0001 AC Power Supply Module, operates as a dedicated hardware component for regulated DC power conversion within the Honeywell ControlEdge HC900 controller rack system.
Process Control Power Conversion and Protection Features
The Honeywell 900P01-0001 provides AC to DC power conversion for the ControlEdge HC900 rack infrastructure. It supplies regulated 5 VDC and 24 VDC outputs to support CPU modules, I/O modules, and communication components.
In addition, the module integrates internal protection circuits that monitor abnormal electrical conditions. These functions include overcurrent limiting, overvoltage protection, and short-circuit isolation to protect connected rack electronics.
The power module supports Honeywell process control architectures that require stable DC distribution. Furthermore, the design uses channel-to-channel isolation principles within the wider ControlEdge HC900 system architecture to reduce interference between field signals and controller electronics.
For process instrumentation integration, Honeywell control platforms commonly support 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA communication environments through compatible interface modules. The 900P01-0001 supplies the rack power infrastructure required by these process control modules.
Frequently Asked Questions

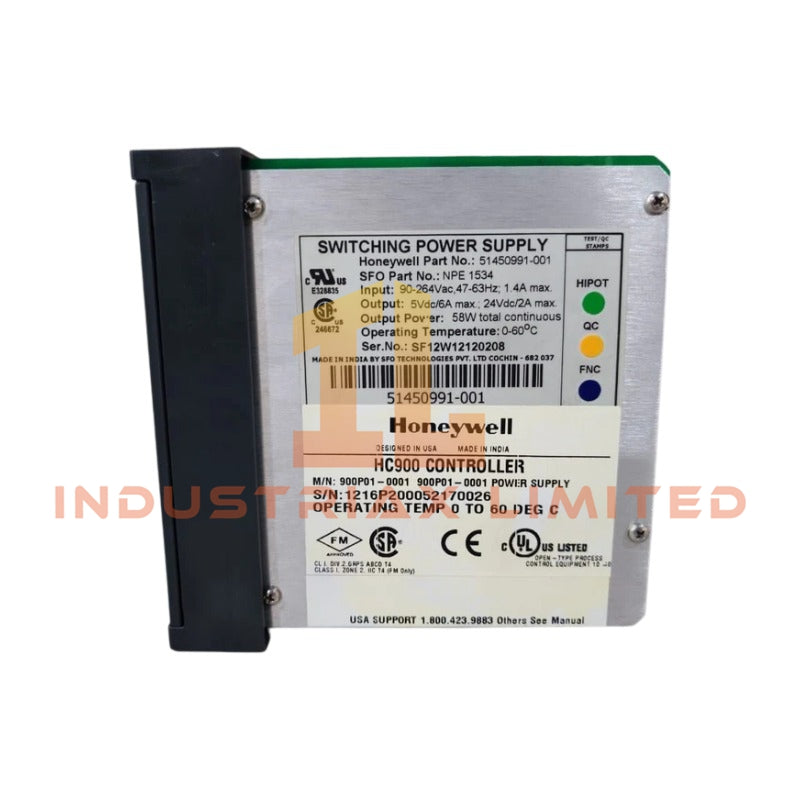

Q: Does the Honeywell 900P01-0001 support universal AC input operation? A: Yes. The module accepts 90-264 VAC input power across 47-63 Hz without external voltage selection jumpers.
Q: Can the 900P01-0001 directly power field devices? A: No. The module provides rack-level DC power for HC900 controller components, including CPU, I/O, and communication modules. Field device power requirements depend on external power distribution equipment.
Q: Is the 900P01-0001 designed for redundant power operation? A: The module operates as an HC900 rack power supply component. Redundant power configurations depend on the installed rack architecture and compatible system hardware.
Field Installation Guidelines
Install the 900P01-0001 only in compatible Honeywell ControlEdge HC900 or 900 Series rack positions.
Verify AC input wiring before energizing the module. Follow the terminal identification marked on the hardware.
Separate AC power wiring from low-level analog signal wiring to reduce electrical noise coupling.
Use proper grounding practices between the rack chassis, protective earth connection, and cabinet grounding system.
Confirm that connected modules remain within the power output capability of the supply.
Maintain adequate cabinet ventilation because the module uses natural convection cooling.
Inspect terminal connections periodically for mechanical loosening caused by industrial vibration.
