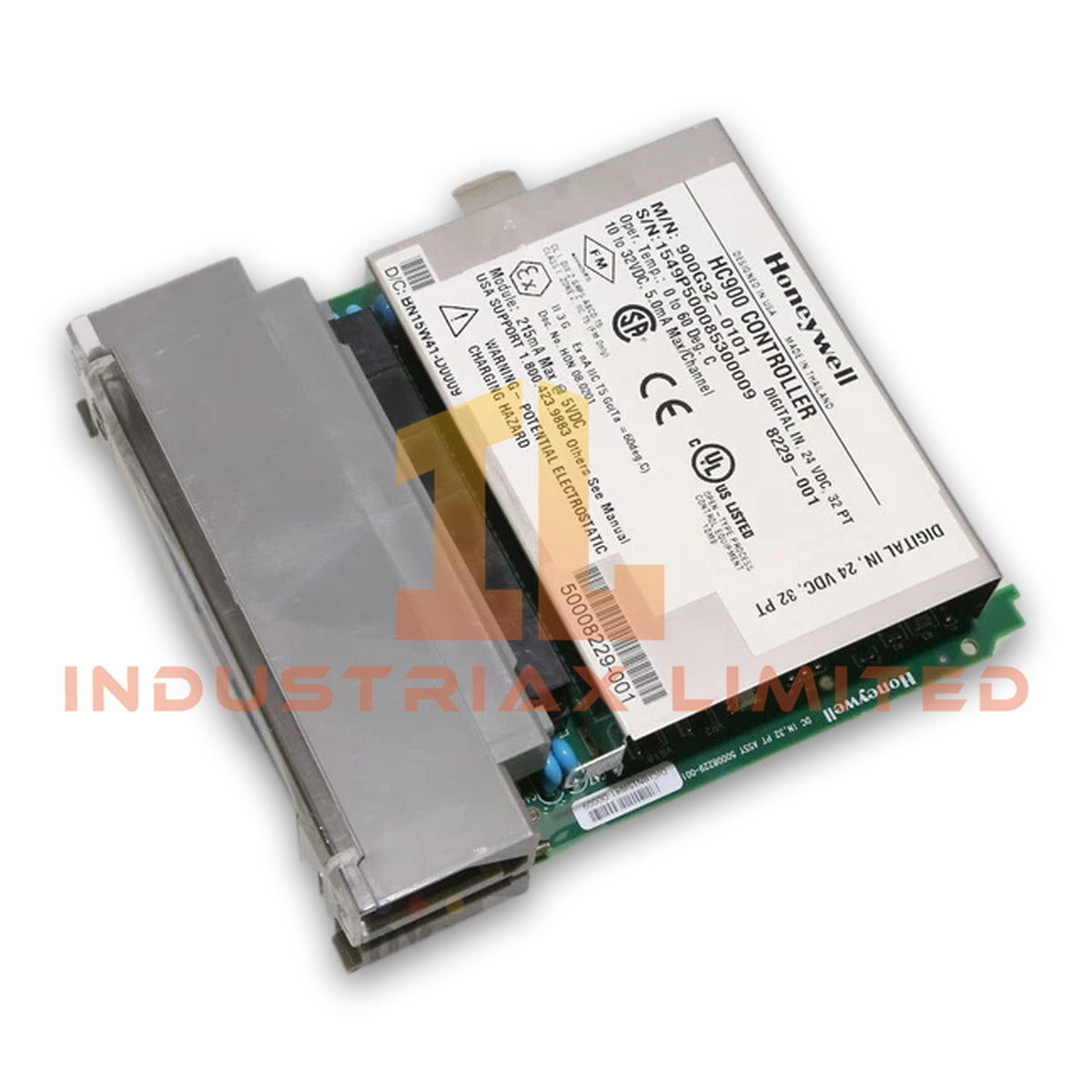

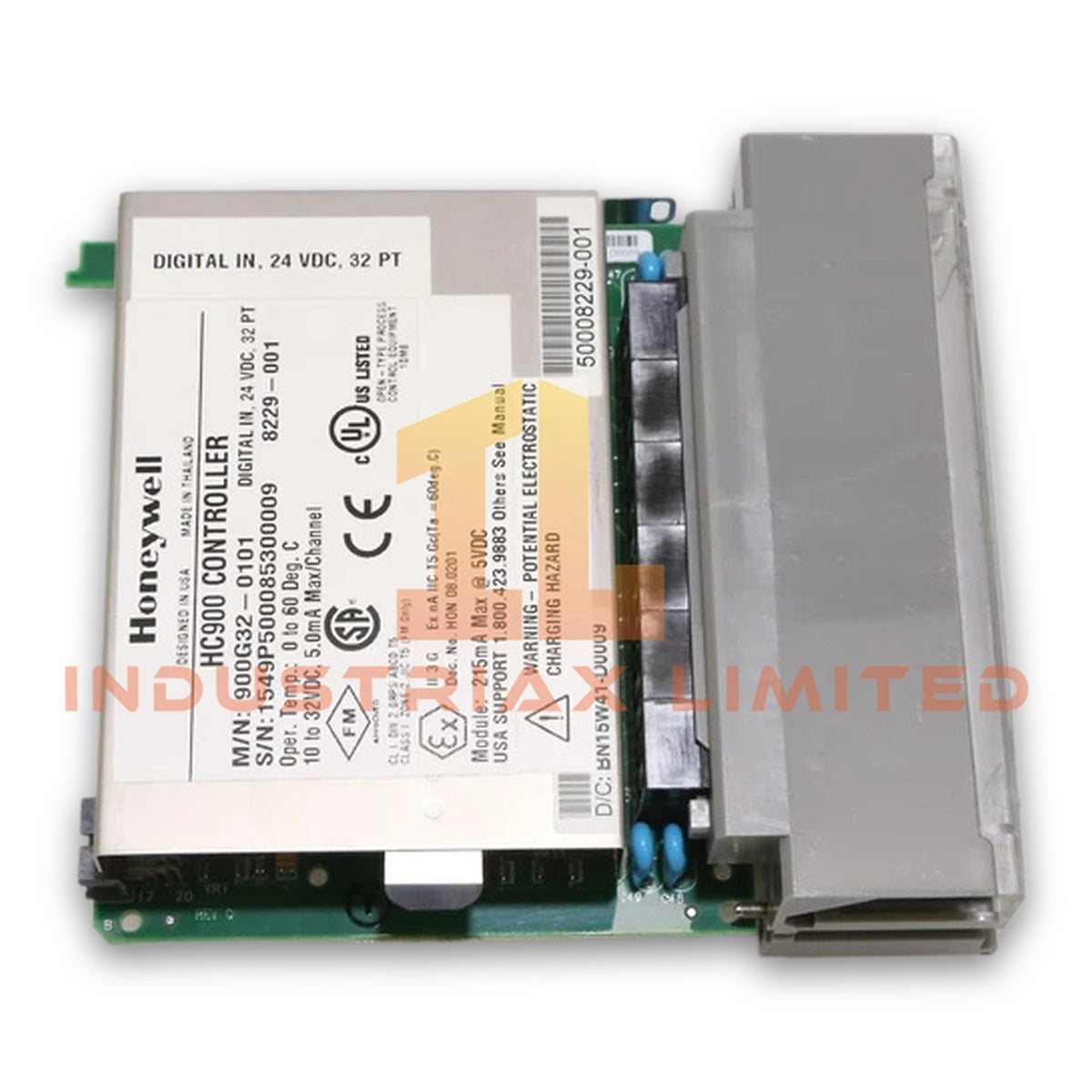

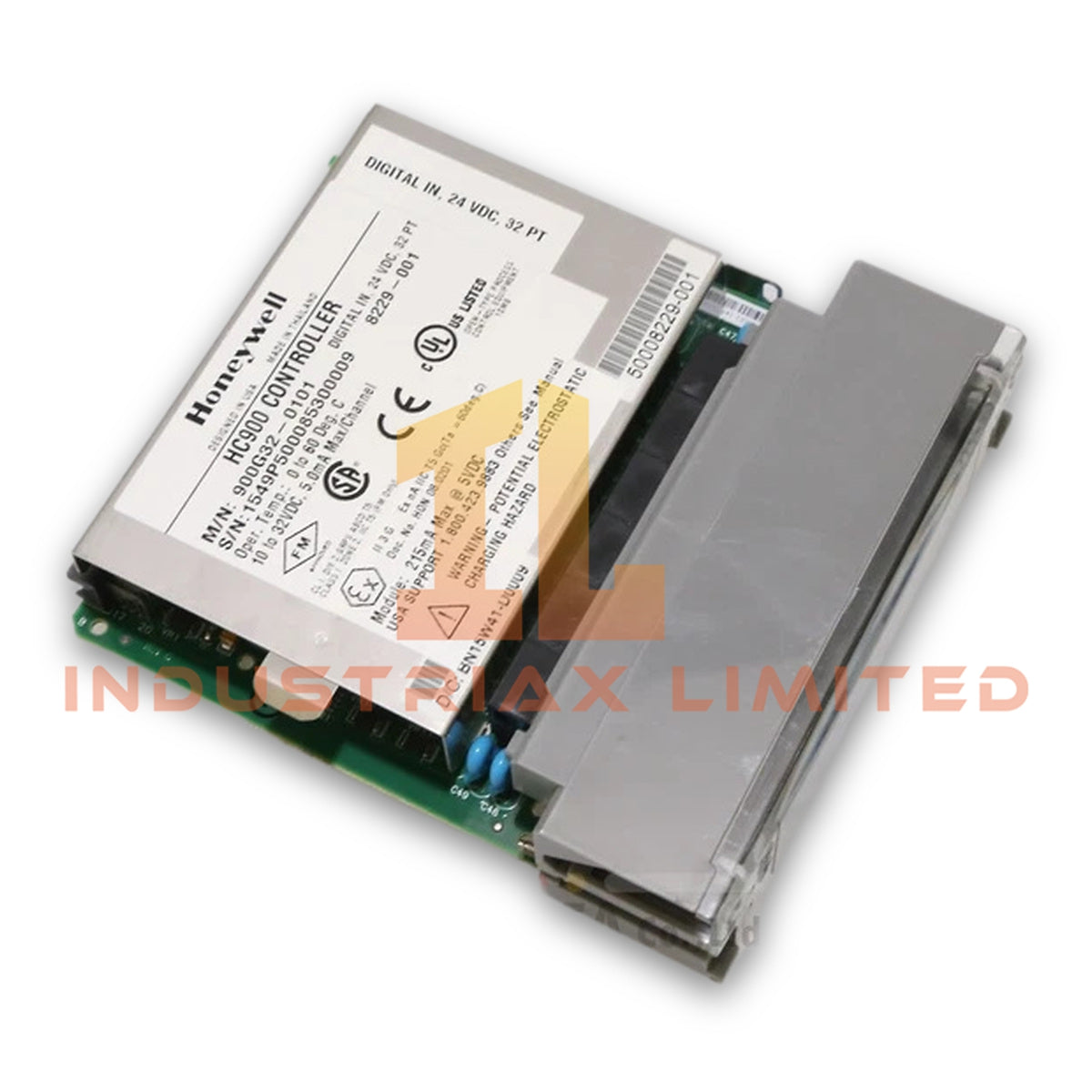

Honeywell 900G32-0101 Digital Input Module

The Honeywell 900G32-0101, also cataloged as the 900G32-0101 Digital Input Module, operates as a dedicated hardware component for 32-channel discrete signal acquisition within the Honeywell ControlEdge HC900 Process Controller system.

Hardware Specifications

Parameter	Specification
Model	900G32-0101
Brand	Honeywell
Origin	USA
Product Type	32-Channel Digital Input Module
Input Type	24 VDC Digital Input
Number of Channels	32 channels
Operating Voltage Range	10 to 32 VDC
Input Current	5.0 mA maximum per channel
Power Consumption	215 mA maximum at 5 VDC internal rack power
Weight	Approximately 175 g to 210 g
Dimensions	137 mm Height x 35.6 mm Width
Operating Temp	0 deg C to 60 deg C
Hazardous Location Rating	Class I, Division 2, Groups A, B, C, D
Installation Method	ControlEdge HC900 rack mounting
Signal Type	Discrete ON/OFF field input signals

Process Control Signal Handling and Isolation Features

The Honeywell 900G32-0101 acquires 32 discrete field signals from switches, pushbuttons, relay contacts, and industrial sensor outputs. It processes 24 VDC input states through the ControlEdge HC900 rack interface and transfers status information to the controller logic.

Additionally, the module supports channel-to-channel isolation design practices within Honeywell process control architectures. Therefore, engineers can apply proper field wiring separation and grounding methods to reduce signal interference during digital input monitoring.

The module operates as part of the ControlEdge HC900 I/O structure and maintains direct communication through the controller backplane. Furthermore, the module design supports industrial control applications requiring compact I/O density and standardized digital signal collection.

Frequently Asked Questions

Q: What type of field signals does the Honeywell 900G32-0101 accept?
A: The module accepts 24 VDC discrete input signals with an operating voltage range of 10 to 32 VDC from industrial field devices.

Q: How much rack power does the 900G32-0101 consume?
A: The module consumes a maximum of 215 mA at 5 VDC from the ControlEdge HC900 internal rack power supply.

Q: Can the module be installed in hazardous locations?
A: The module supports Class I, Division 2, Groups A, B, C, D hazardous location ratings when installed according to the applicable system installation requirements.

Field Installation Guidelines

• Install the module only in a compatible Honeywell ControlEdge HC900 rack assembly.
• Verify that field wiring voltage levels match the specified 10 to 32 VDC input range before connection.
• Separate digital input wiring from high-voltage power cables to minimize electrical interference.
• Connect cable shields according to the plant grounding standard when shielded signal cables are used.
• Confirm rack power availability before inserting or removing the module.
• Follow approved maintenance procedures when performing module replacement or system servicing.
