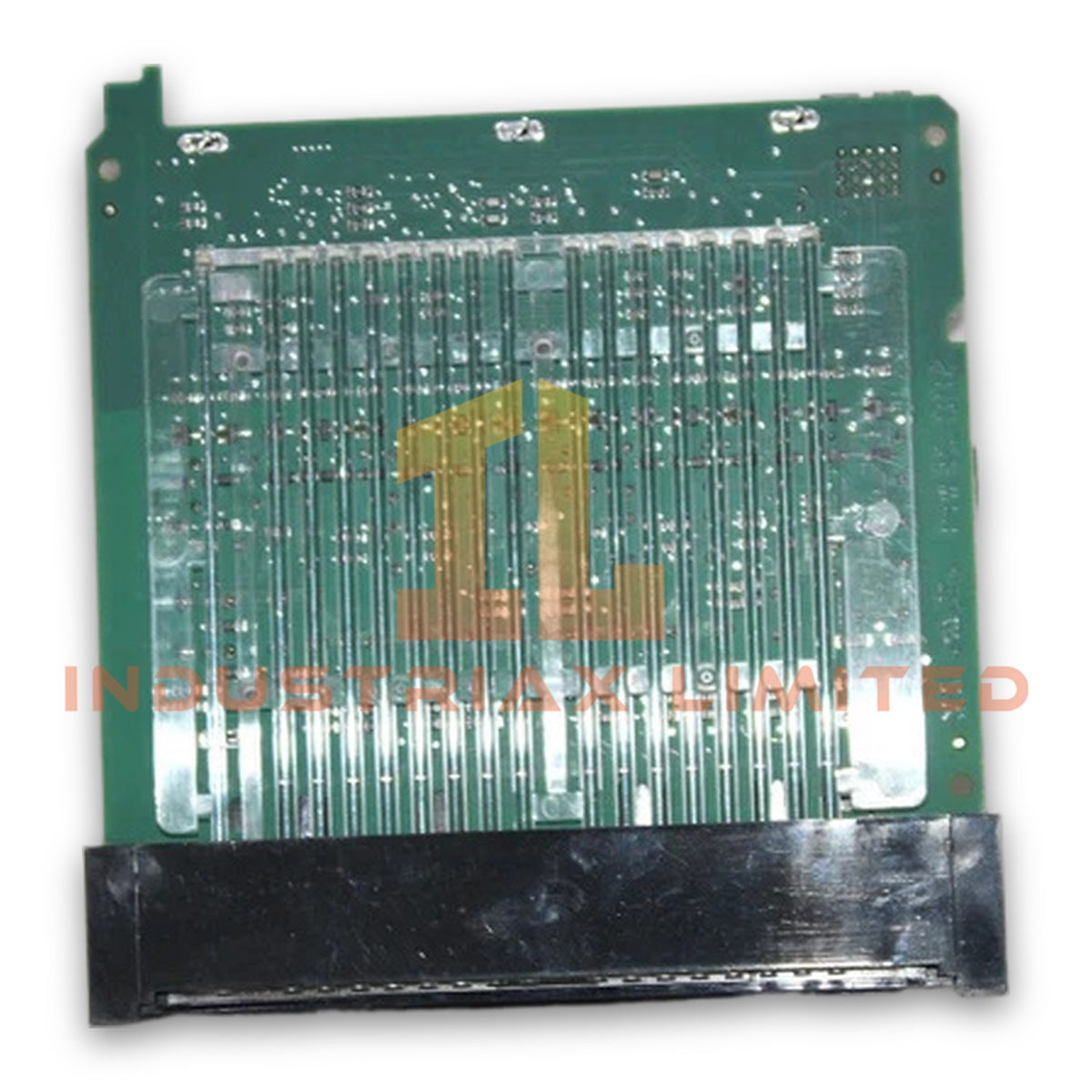

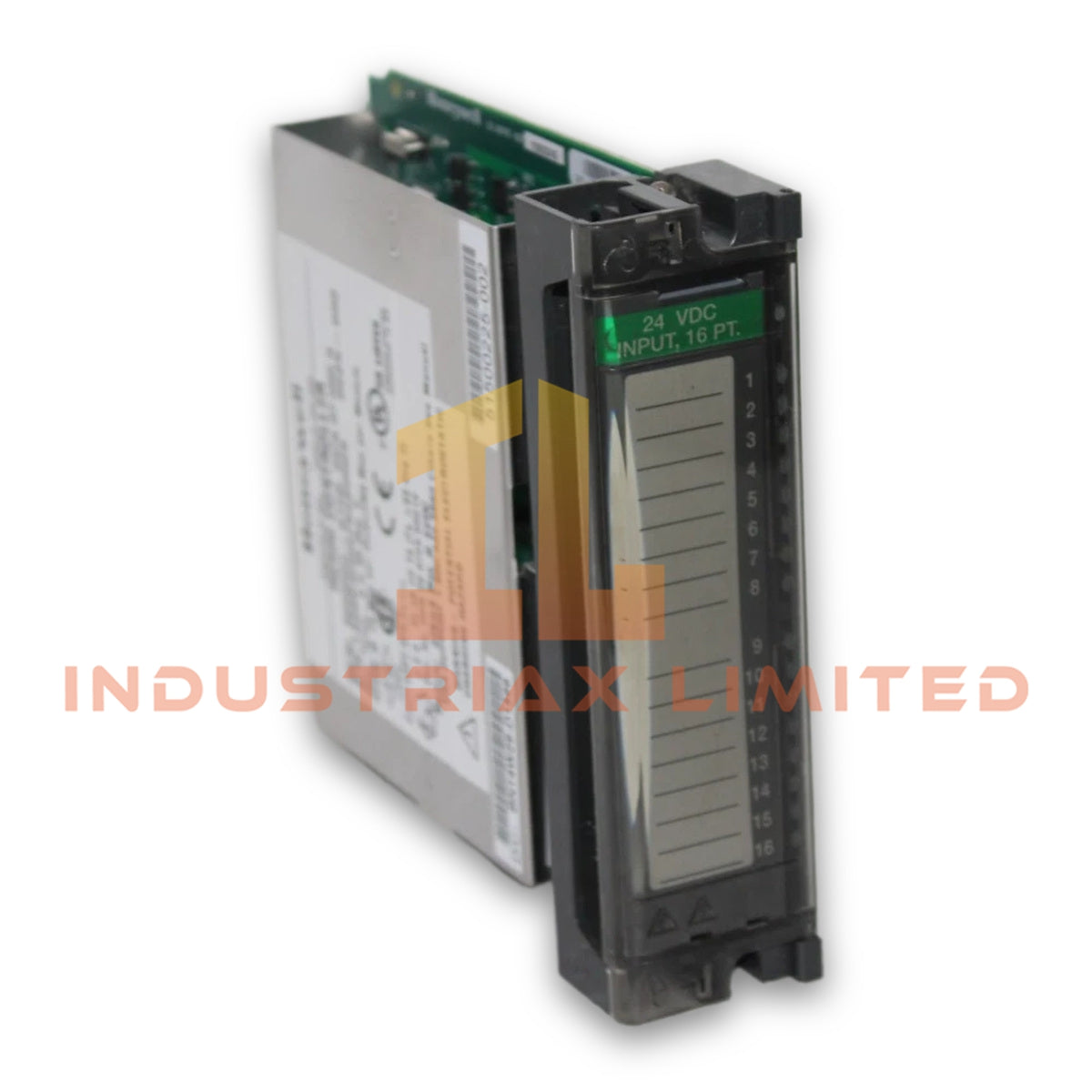

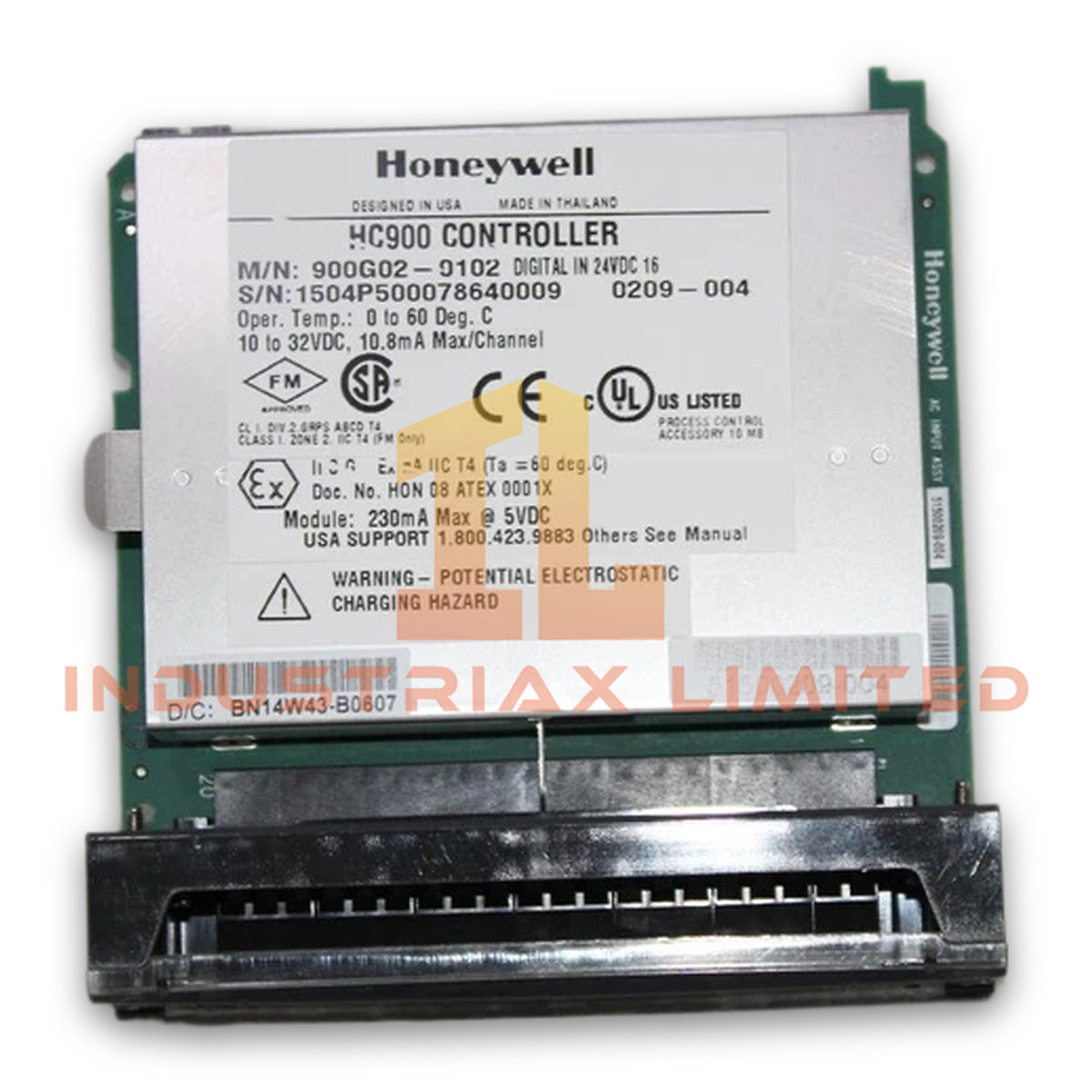

Honeywell 900G02-0102 Digital Input Module

Configured for discrete signal acquisition in the Honeywell ControlEdge HC900 control system, the Honeywell 900G02-0102 (900G02-0102 Digital Input Module) provides direct electrical monitoring of 16 digital field input channels.

Hardware Specifications

Parameter	Specification
Model	900G02-0102
Brand	Honeywell
Origin	United States
Product Type	Digital Input Module
Channel Count	16 Channels
Input Type	Digital Input
System Platform	Honeywell ControlEdge HC900
Weight	0.2 kg
Dimensions	13.3 x 14.1 x 3.2 cm (shipping size)
Status	Discontinued by manufacturer

Channel Isolation and Process Signal Interface

The Honeywell 900G02-0102 provides 16 digital input channels for monitoring binary field devices within the HC900 controller architecture. The module receives discrete electrical states from connected field devices and transfers status information through the controller backplane interface.

The module design supports process control applications that require channel-to-channel signal separation and stable digital status detection. Therefore, installation should maintain proper field wiring practices to reduce electrical interference and signal distortion.

Frequently Asked Questions

Q: What type of signals does the Honeywell 900G02-0102 process?
A: The 900G02-0102 is a digital input module designed to process discrete ON/OFF field signals through 16 input channels.

Q: Can the 900G02-0102 operate as a standalone input device?
A: No. The module requires installation within the Honeywell ControlEdge HC900 hardware platform and communicates through the system backplane.

Q: Is the 900G02-0102 available as a current production module?
A: The manufacturer has discontinued the 900G02-0102 model. Existing installations may continue using supported spare or replacement strategies defined by the control system configuration.

Field Installation Guidelines

Install the 900G02-0102 module in the designated HC900 rack position according to the controller hardware configuration manual.

Connect field input wiring using proper industrial control cabinet practices. Separate digital signal cables from high-voltage power conductors to minimize electromagnetic interference. Maintain correct terminal identification during wiring replacement or maintenance activities.

Verify module seating, backplane engagement, and cabinet grounding before system startup. Use shielded cables where required by the field device installation standard, and connect shields according to the plant grounding procedure.

Confirm the controller configuration database matches the installed module type before returning the control system to operation.

Spesifikasi

• Merek: Honeywell
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
