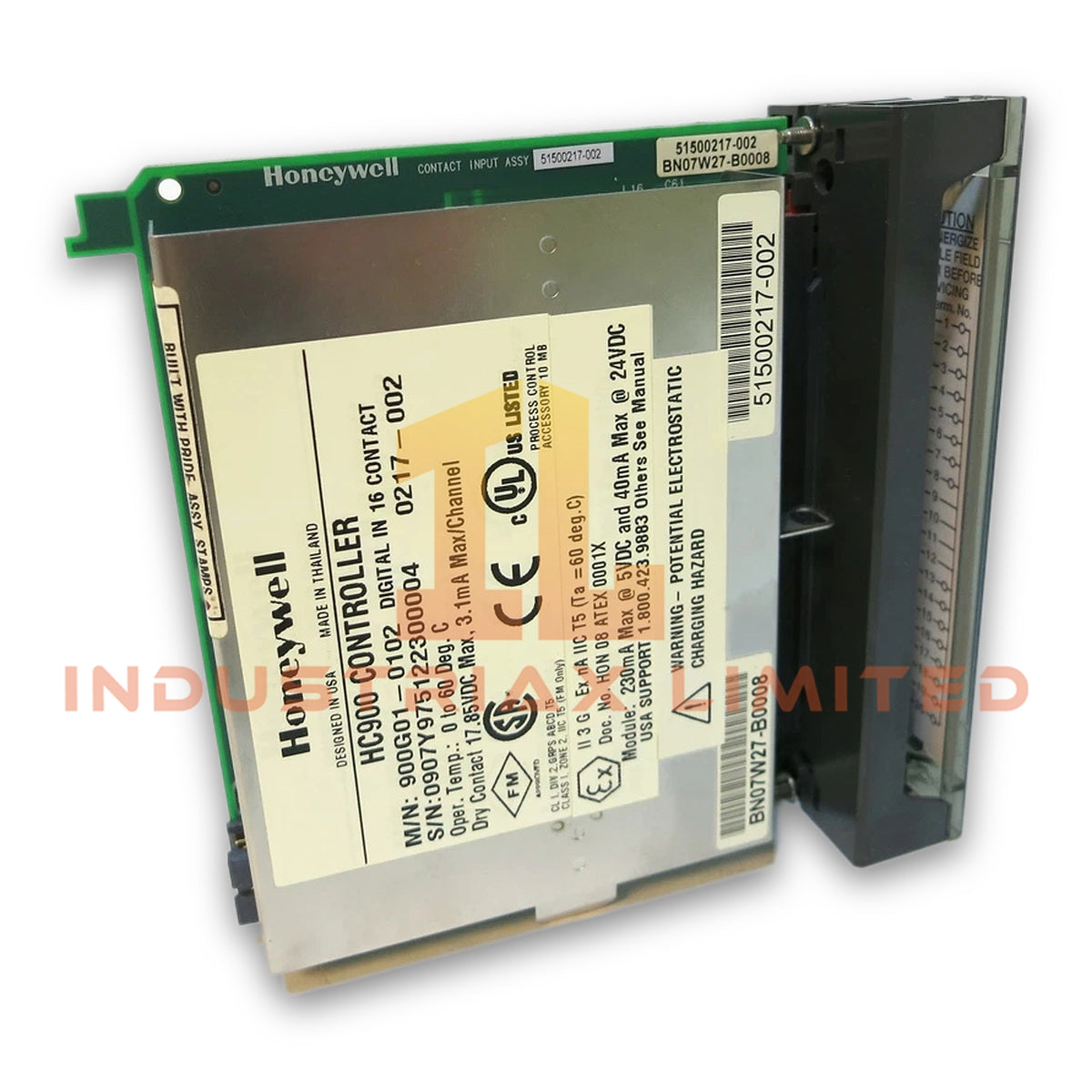

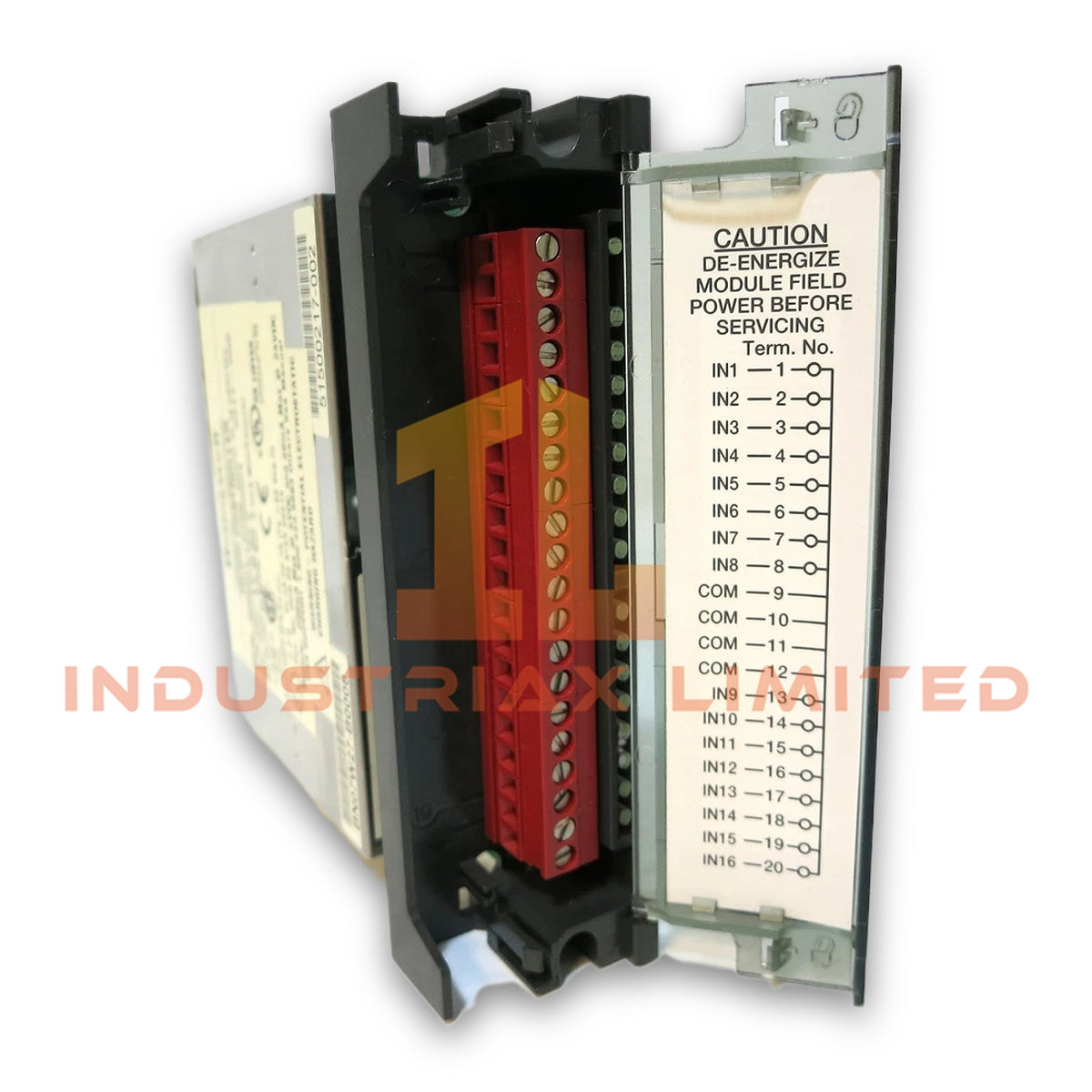

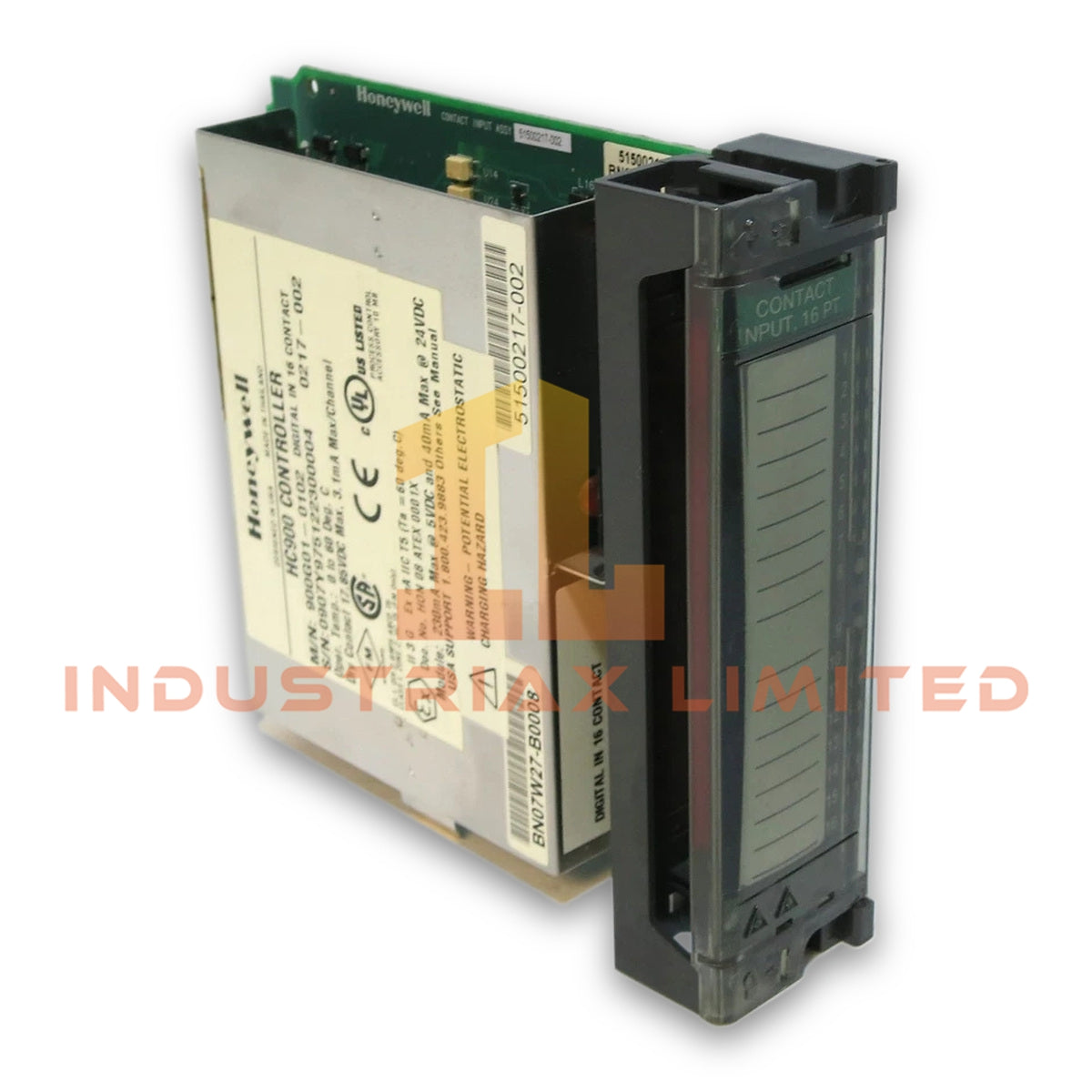

Honeywell 900G01-0102 ControlEdge HC900 Digital Input Module
Configured for binary status monitoring and discrete signal acquisition within ControlEdge HC900 Process and Safety Controller platforms, the Honeywell 900G01-0102 (51500217-002 Digital Input Module) provides direct physical/electrical execution. Specifically, this hardware unit processes external contact closures and DC voltage inputs, converting field-level binary states into deterministic controller data through the internal backplane bus. Furthermore, it operates continuously to monitor switches, dry contacts, and digital sensors without signal degradation under standard operating conditions.
Hardware Specifications
Parameter
Specification
Model
900G01-0102
Brand
Honeywell
Origin
Made in USA / Mexico
Weight
0.35 kg
Dimensions
110 mm x 35 mm x 105 mm
Operating Temp
0 deg C to 60 deg C
Power Consumption
2.5 W max from backplane
Number of Channels
16 Channels
Input Type
Contact / Dry Contact or DC Voltage compatible
Compatibility
HC900 Controller Racks / Process Controller systems
Isolation
Optical channel-to-channel and channel-to-backplane isolation
Honeywell Process Control & DCS Architecture
Operating within industrial process control and manufacturing automation architectures, the module executes channel-to-channel isolation and galvanic signal filtering. Specifically, each of the 16 input channels incorporates optical isolation barriers to suppress electromagnetic interference (EMI) and common-mode transient voltages originating from external field wiring. Consequently, high-frequency noise from heavy inductive loads is prevented from corrupting the internal backplane bus communication. In addition, the circuit design maintains steady state voltage thresholds to accurately discriminate between open and closed contact states, thereby ensuring reliable digital telemetry across extended operational lifecycles.
Frequently Asked Questions
Q: What are the restrictions regarding hot-swap operations on the Honeywell 900G01-0102 module?
A: The module supports hot-insertion and removal under power when installed within approved HC900 chassis racks, provided that field wiring terminal blocks are securely latched and no excessive transient currents are present on the backplane bus.
Q: How is backplane power loading calculated when multiple 900G01-0102 modules are mounted in a single rack?
A: Each module consumes a maximum of 2.5 W from the 24 VDC rack power supply. System integrators must sum the current draw of all adjacent I/O cards to ensure total power consumption does not exceed the maximum output rating of the system power supply unit.
Q: What is the nominal response time for channel state transitions?
A: The hardware filtering circuit introduces a fixed nominal input response time of 8 ms to eliminate contact bounce from mechanical switches prior to registering state changes in the controller register.
Field Installation Guidelines
When deploying the Honeywell 900G01-0102 module in an industrial enclosure, technicians must adhere to standard electrical safety and shielding practices. Specifically, mount the unit securely onto standard 35 mm DIN rails or designated HC900 chassis backplanes, ensuring proper mechanical engagement and ground continuity. Furthermore, route all field input wiring separately from high-voltage AC power cables and variable frequency drive (VFD) motor leads to minimize capacitive coupling and cross-talk. Ground all signal cable shields at a single designated grounding bar to maintain noise immunity and protect sensitive internal components from electrostatic discharge (ESD) and surge transients.
