Keterangan

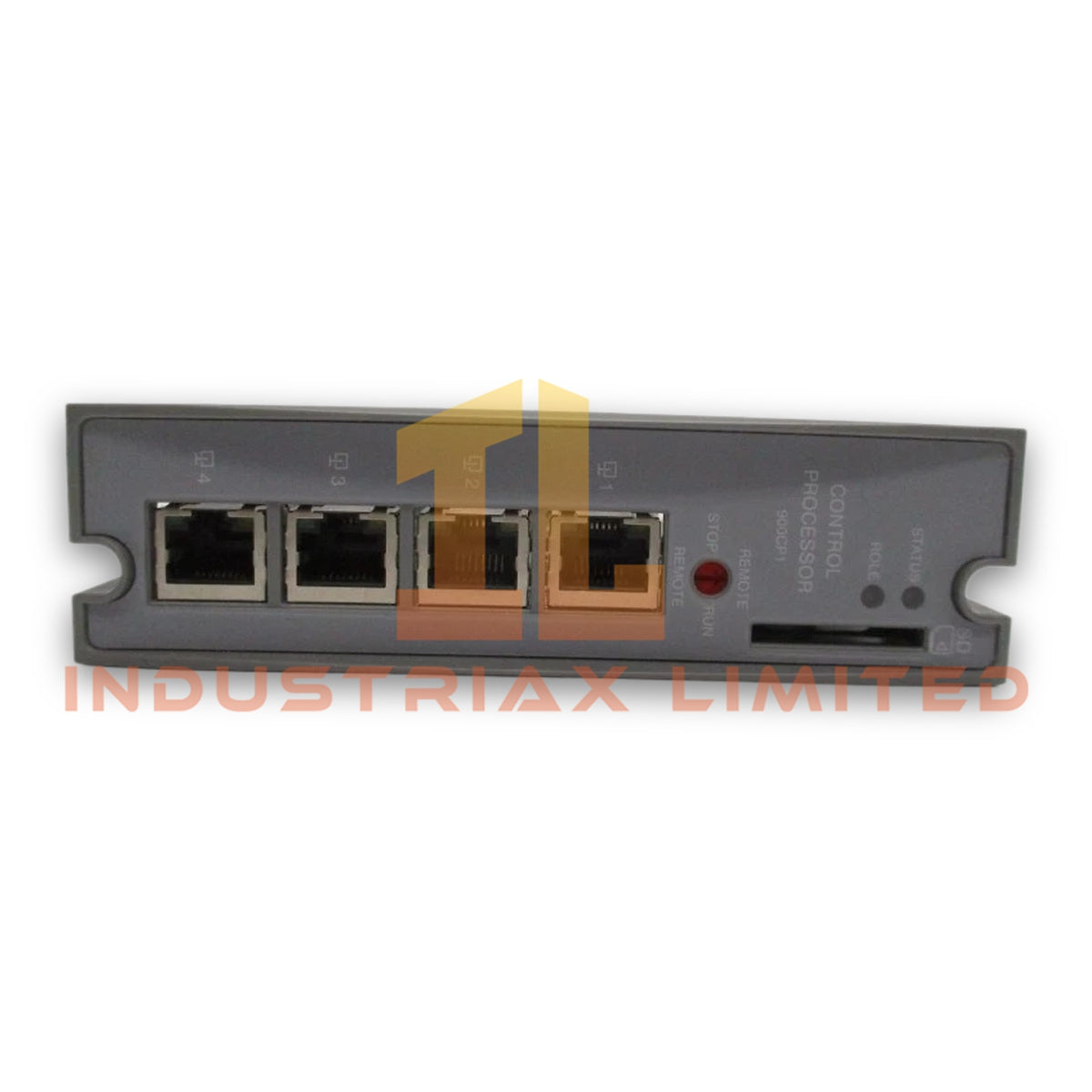

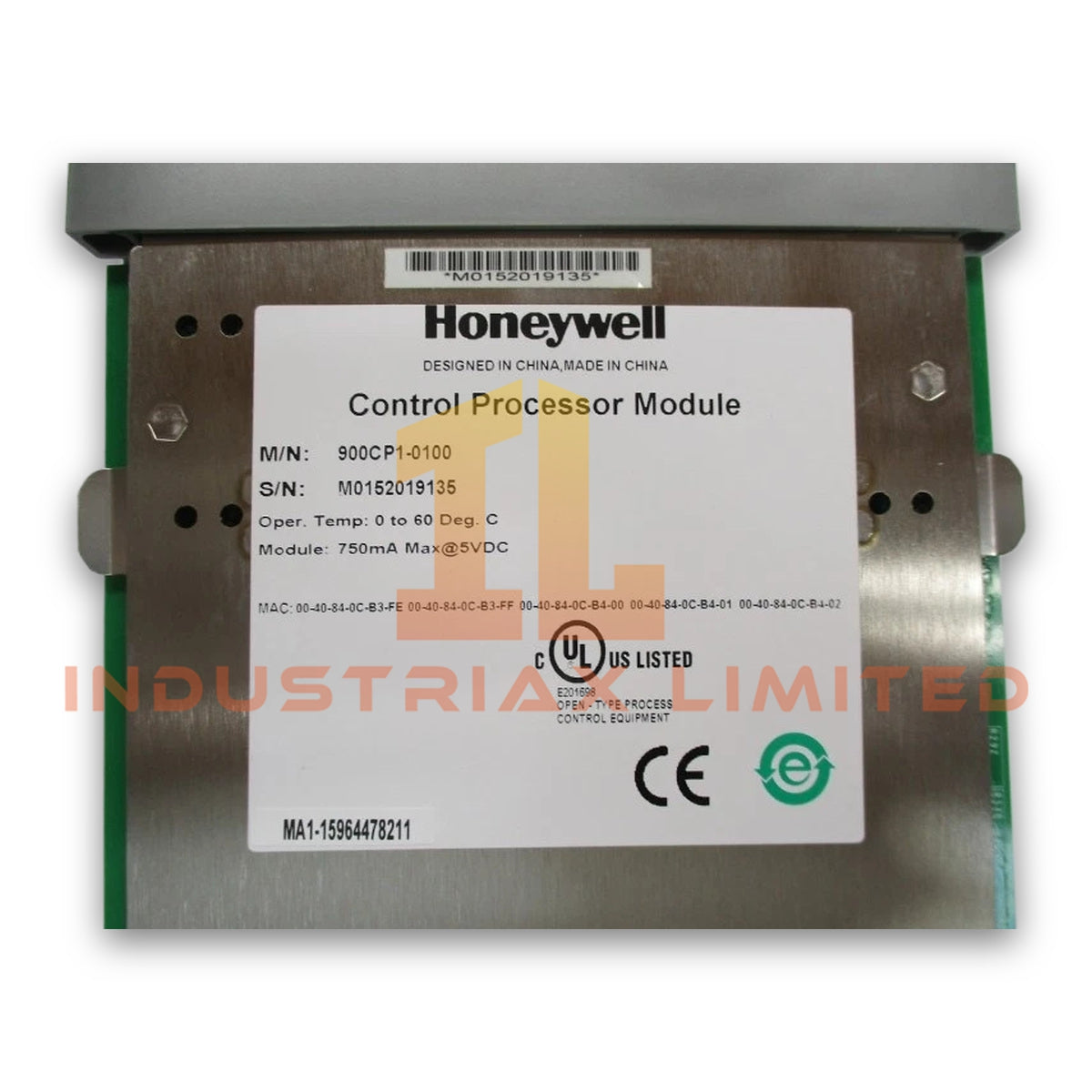

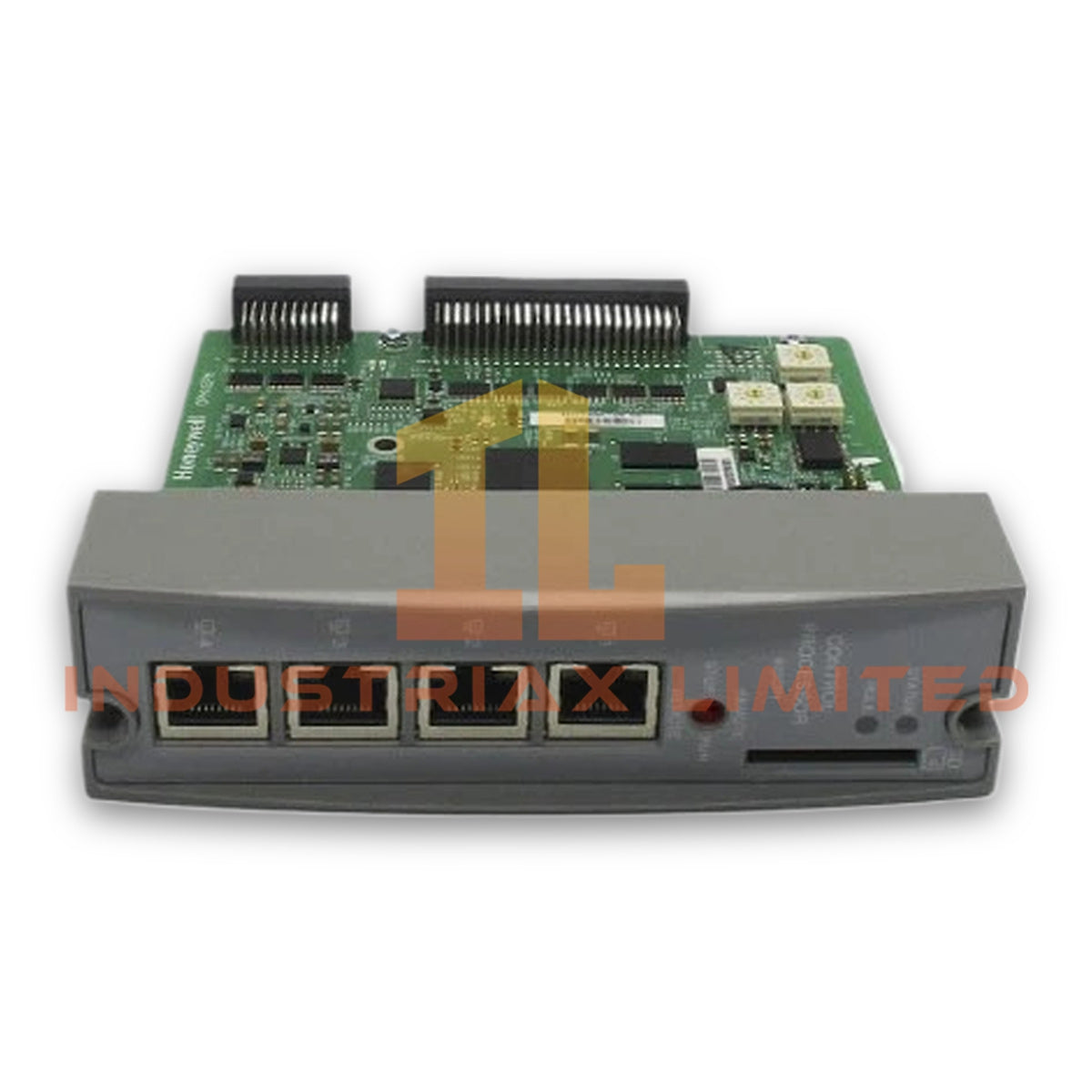

Honeywell 900CP1-0100 Control Processor Module
The Honeywell 900CP1-0100, also cataloged as the 900CP1-0100 Control Processor Module, operates as a dedicated hardware component for executing control logic, data processing, and communication management within the Honeywell ControlEdge PLC system.
Hardware Specifications
Parameter
Specification
Model
900CP1-0100
Brand
Honeywell
Origin
USA
Product Type
Control Processor Module / CPU Processor
Processor Architecture
Dual Core ARM Cortex-A9 32-bit processor, 667 MHz
User Programming Memory
10 MB Flash memory, including 5 MB program storage and 5 MB data storage
Running Memory
High-speed RAM for real-time control execution
External Memory Support
SD card support up to 32 GB, Class 6 or Class 10
Weight
Approx. 1,751 g
Dimensions
Height: 137 mm; Width: 261.6 mm; Depth: 151.7 mm
Mounting Type
Modular rack-mounted installation
Communication Interface
Ethernet communication, peer-to-peer data exchange, SCADA and HMI integration
System Compatibility
Honeywell ControlEdge PLC hardware platform
Process Control Communication and Signal Processing
The Honeywell 900CP1-0100 manages controller-level execution through the ControlEdge PLC backplane architecture. It processes application logic, coordinates I/O data exchange, and controls communication paths between connected modules.
Additionally, the module supports industrial process data handling functions, including communication with field I/O devices and supervisory systems. Honeywell control architectures commonly integrate 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA networks through compatible interface modules. Channel-to-channel isolation depends on the installed I/O module configuration.
The processor maintains deterministic execution by coordinating program scanning, memory access, and rack communication. Furthermore, SD card expansion supports local data storage functions, firmware transfer procedures, and application backup operations.
Frequently Asked Questions
Q: Does the 900CP1-0100 support hot-swap replacement during controller operation? A: The module is designed for rack-mounted ControlEdge PLC installations. Hot-swap operation depends on the rack configuration, controller firmware, and system operating procedures.
Q: What external storage device can be used with the 900CP1-0100? A: The module supports industrial SD card storage up to 32 GB with Class 6 or Class 10 specifications for data storage and firmware-related functions.
Q: Can the 900CP1-0100 operate with redundant processor configurations? A: Redundant operation depends on the selected ControlEdge PLC rack architecture and supported controller configuration. The module specification provided does not define redundancy switching parameters.
Field Installation Guidelines
Install the 900CP1-0100 in the designated ControlEdge PLC rack slot according to the hardware configuration manual.
Verify that the rack backplane connectors are clean and correctly aligned before insertion.
Disconnect system power before removing or installing the processor module unless the installed configuration specifically supports live replacement procedures.
Route Ethernet communication cables separately from high-voltage power wiring to reduce electromagnetic interference.
Use proper cabinet grounding practices and connect shielded communication cable shields according to site electrical standards.
Confirm firmware compatibility between the processor module, engineering software, and connected I/O modules before commissioning.
Secure SD card installation and verify storage media compatibility before enabling data logging functions.
