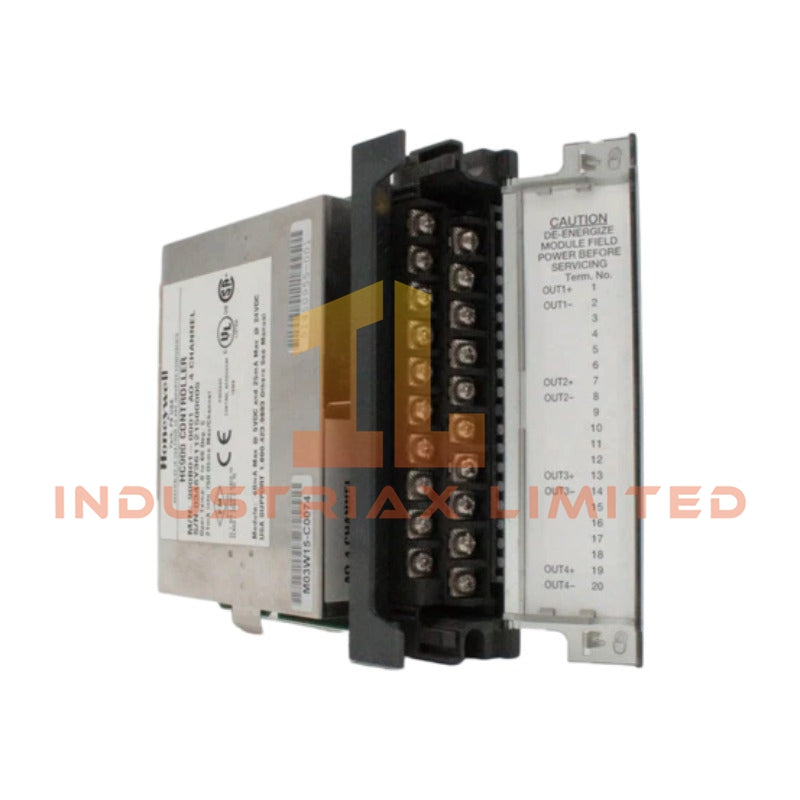

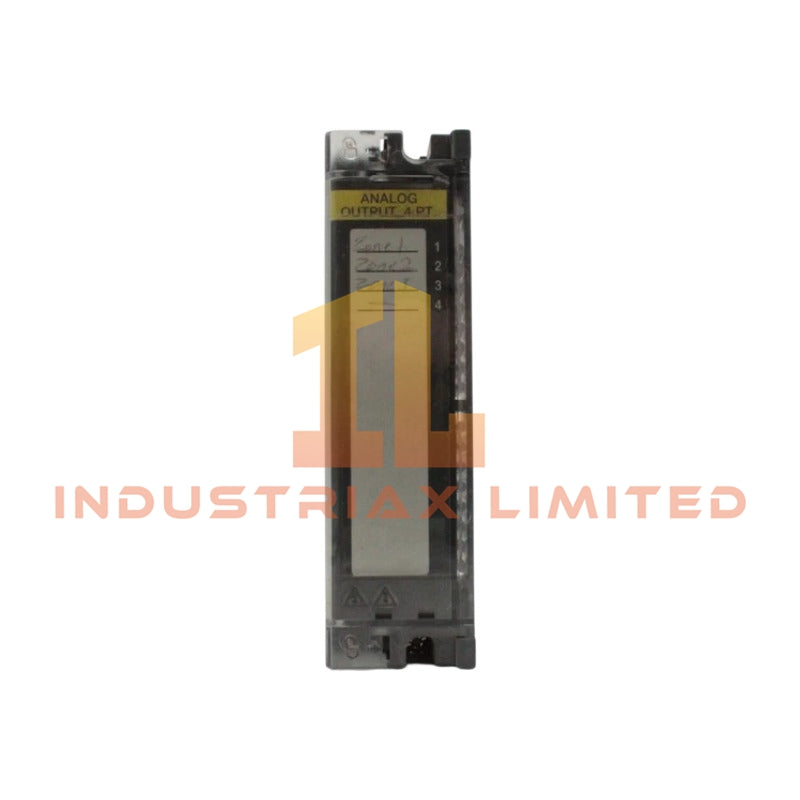

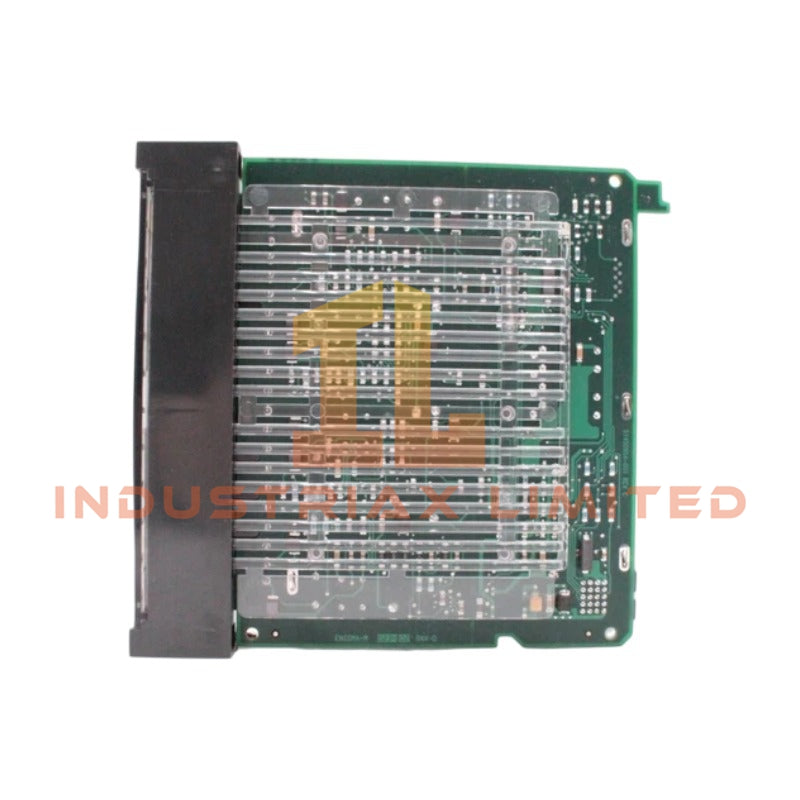

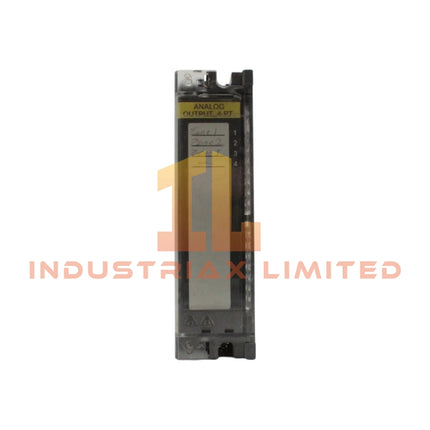

Honeywell 900B01-0001 ControlEdge HC900 4-Channel Analog Output Module

Configured for isolated analog current output execution in the Honeywell ControlEdge HC900 system, the Honeywell 900B01-0001 (900B01-0001 4-Channel Analog Output Module) provides direct physical signal conversion from controller data to field device control loops.

Hardware Specifications

Parameter	Specification
Model	900B01-0001
Brand	Honeywell ControlEdge
Product Type	4-Channel Isolated Analog Output Module
System Compatibility	Honeywell ControlEdge HC900 Hybrid Controller
Origin	Thailand
Weight	0.3 kg
Dimensions	3.8 cm x 14.0 cm x 14.0 cm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	Supplied through HC900 I/O rack power system
Number of Channels	4 analog output channels
Output Range	0 to 21.8 mA configurable for 0-20 mA or 4-20 mA
Maximum Load Resistance	750 ohm
Resolution	12-bit
Accuracy	+/- 0.1% of span
Isolation	Channel-to-channel and channel-to-chassis galvanic isolation
Response Time	Less than 10 ms
Mounting Method	Honeywell HC900 I/O rack / DIN rail installation
Status Indication	Front panel LED diagnostics

Process Control Signal Isolation and Loop Interface

The 900B01-0001 integrates isolated analog output circuits for Honeywell ControlEdge HC900 process control applications. Each channel converts internal controller values into continuous current signals for external devices.

The module supports 4-20 mA HART loop protocol environments when connected with compatible field devices. However, the module itself provides analog current output generation and does not perform HART communication processing.

Additionally, the channel-to-channel isolation design reduces interference caused by ground potential differences and electrical noise. The module maintains separated signal paths for multiple control loops, supporting applications that require independent analog actuator control.

Frequently Asked Questions

Q: Does the 900B01-0001 provide individual channel isolation?
A: Yes. The module provides galvanic isolation between output channels and between channels and chassis reference.

Q: What field devices can connect to the analog outputs?
A: The module can interface with devices requiring current control signals, including control valves, actuators, variable frequency drives, and analog recorders.

Q: Is the module configured through the HC900 engineering software?
A: Yes. Output scaling, channel parameters, and diagnostic settings are configured through the Honeywell HC900 controller configuration environment.

Field Installation Guidelines

Install the 900B01-0001 module only in compatible Honeywell ControlEdge HC900 I/O rack positions.

Connect field wiring according to the channel terminal assignments defined in the HC900 hardware documentation. Use shielded instrumentation cable for analog signal wiring when the installation environment contains electromagnetic interference sources.

Terminate cable shields according to site grounding standards. Avoid routing analog output wiring in the same conduit as high-voltage power cables or switching circuits.

Verify controller rack power availability before module insertion. Check LED status indicators after installation and confirm output scaling through the controller configuration before connecting field actuators.

Spesifikasi

• Merek: Honeywell
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
