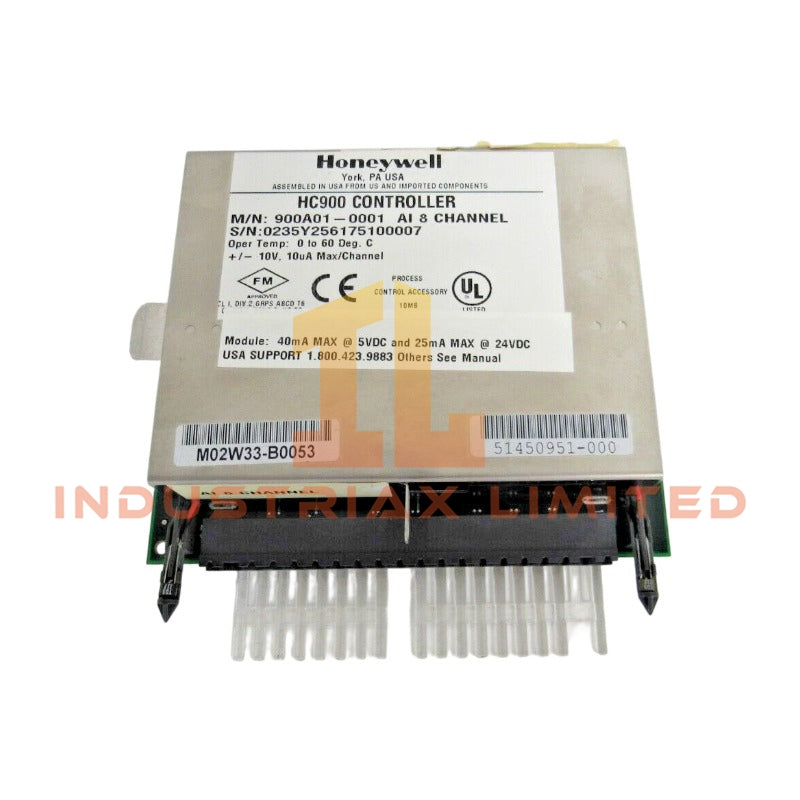

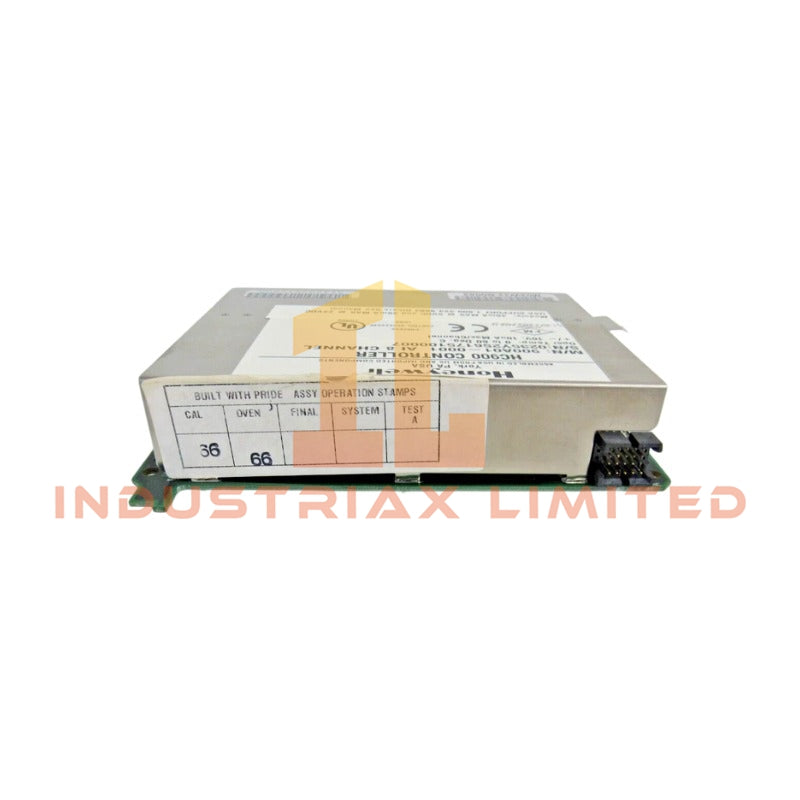

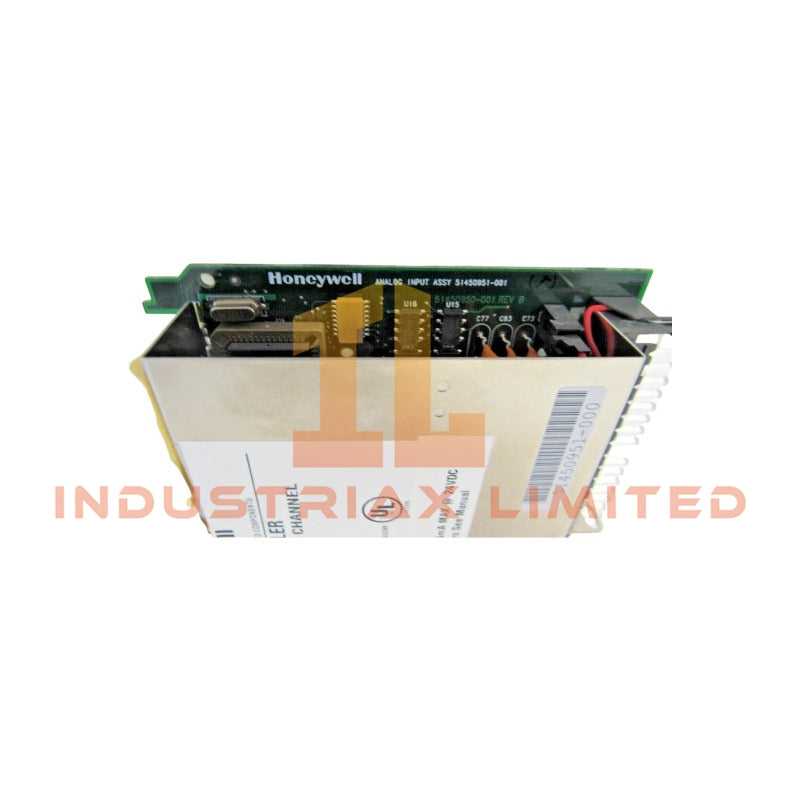

Honeywell 900A01-0001 ControlEdge HC900 Universal Analog Input Module
Configured for multi-signal analog acquisition in the Honeywell ControlEdge HC900 Control System, the Honeywell 900A01-0001 (900A01-0001 Universal Analog Input Module) provides direct electrical conversion of field voltage, current, thermocouple, RTD, and resistance signals into controller data.
4-20 mA DC, 0-20 mA DC with external shunt resistor
Resolution
16-bit binary conversion
Accuracy
+/-0.1% of full scale
Sampling Rate
100 ms per channel
Full Cycle Update
Up to 500 ms
Isolation Type
Channel-to-channel and channel-to-chassis galvanic isolation
Status Indication
Tri-color LED module status indicator
Hot Swap Function
Supported with RIUP operation
Humidity Range
5% to 95% RH, non-condensing
Environmental Protection
G3 conformal coating
Process Control Signal Interface and Isolation Features
The Honeywell 900A01-0001 uses individual channel configuration to process different analog field signals through the ControlEdge HC900 architecture. Each input channel performs signal conversion independently, therefore allowing mixed sensor types within one module.
The module supports process instrumentation interfaces including 4-20 mA current loops and voltage measurement inputs. In addition, thermocouple channels use temperature compensation functions within the controller configuration environment, while RTD inputs provide direct resistance-based temperature measurement.
Furthermore, the channel-to-channel isolation design reduces signal interference between independent field circuits. This isolation method supports stable analog measurement when multiple transmitters, sensors, or grounding conditions exist within the same control cabinet.
Frequently Asked Questions
Q: Does the Honeywell 900A01-0001 support mixed input signal types on one module? A: Yes. Each of the 8 channels can be individually configured for voltage, current, thermocouple, RTD, resistance, or millivolt input signals.
Q: Can the 900A01-0001 module be replaced while the ControlEdge HC900 system remains powered? A: Yes. The module supports RIUP hot-swapping operation, allowing removal and insertion under power according to system installation procedures.
Q: How does the module handle field signal interference? A: The module provides channel-to-channel and channel-to-chassis galvanic isolation to reduce ground loop effects and electrical noise coupling.
Field Installation Guidelines
Install the 900A01-0001 module in the designated ControlEdge HC900 rack position according to the controller hardware configuration.
Verify terminal wiring before applying field power to prevent incorrect signal connection.
Use shielded instrumentation cables for low-level analog signals such as thermocouples, RTDs, and millivolt inputs.
Connect cable shields according to the cabinet grounding design to reduce electromagnetic interference.
Separate analog signal wiring from high-voltage power cables and switching circuits.
Confirm input type configuration in the Process Control Designer software before placing the channel into operation.
During hot-swap replacement, follow the approved rack maintenance procedure to prevent unintended controller events.
