Description

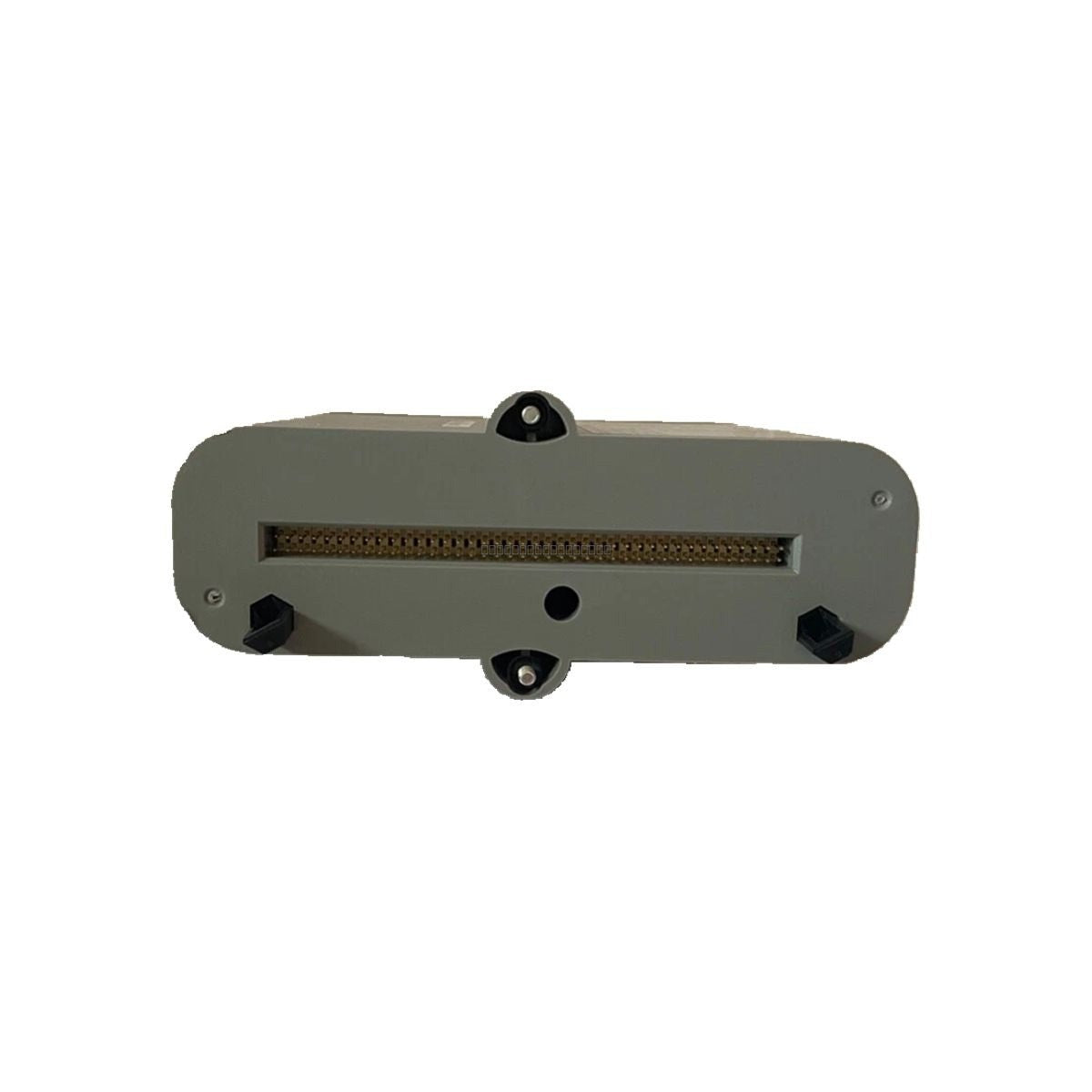

The Honeywell 8U-PDISA1 is a high-performance 32-channel digital input module engineered for Sequence of Events (SOE) recording in critical industrial automation environments. This module provides high-speed signal monitoring with 1 ms resolution, enabling precise timestamping of field events for root-cause analysis and operational diagnostics in power generation, oil and gas, and complex process control applications.
Features
- 32 discrete input channels supporting 24 VDC industrial signals.
- Sequence of Events (SOE) capability with 1 ms resolution for accurate event logging.
- Dual scanning modes: 20 ms normal scan cycle and 5 ms fast scan cycle for high-priority signals.
- Integrated optical isolation providing 1000 VAC RMS or ±1000 VDC galvanic separation.
- Hot-swappable design allowing for module replacement without interrupting system operation.
- Robust electrical protection against ground potential differences and transient surges.
Applications
This module is designed for use in systems requiring detailed event sequence tracking, such as turbine control, emergency shutdown systems (ESD), and complex process monitoring where millisecond-level accuracy is required to analyze process disturbances and equipment trips.
Technical Specifications
| Model |
8U-PDISA1 |
| Input Channels |
32 discrete inputs |
| Input Voltage Range |
18 to 30 VDC |
| Nominal Voltage |
24 VDC |
| SOE Resolution |
1 ms |
| Scan Time |
20 ms (normal) / 5 ms (fast) |
| Isolation |
1000 VAC RMS / ±1000 VDC |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Current Consumption |
95 mA |
Installation Guidelines
- Ensure the system power is managed according to site safety protocols before installing or removing the module, although the unit supports hot-swapping.
- Verify that field wiring is correctly terminated to the appropriate terminal blocks before seating the module into the I/O rack.
- Maintain proper grounding practices to ensure the effectiveness of the module's galvanic isolation.
- Ensure adequate ventilation in the cabinet to maintain ambient temperatures within the specified 0 to 60 deg C range.
- Handle with care to prevent electrostatic discharge (ESD) damage to the module's internal circuitry.
FAQ
Does this module support hot-swapping?
Yes, the 8U-PDISA1 is designed to support removal and insertion under power (hot-swap), which helps minimize downtime during maintenance in continuous process environments.
What is the primary purpose of the SOE functionality?
The Sequence of Events (SOE) functionality allows the system to capture and timestamp field signal transitions with 1 ms resolution, which is essential for post-incident analysis and troubleshooting complex process disturbances.
