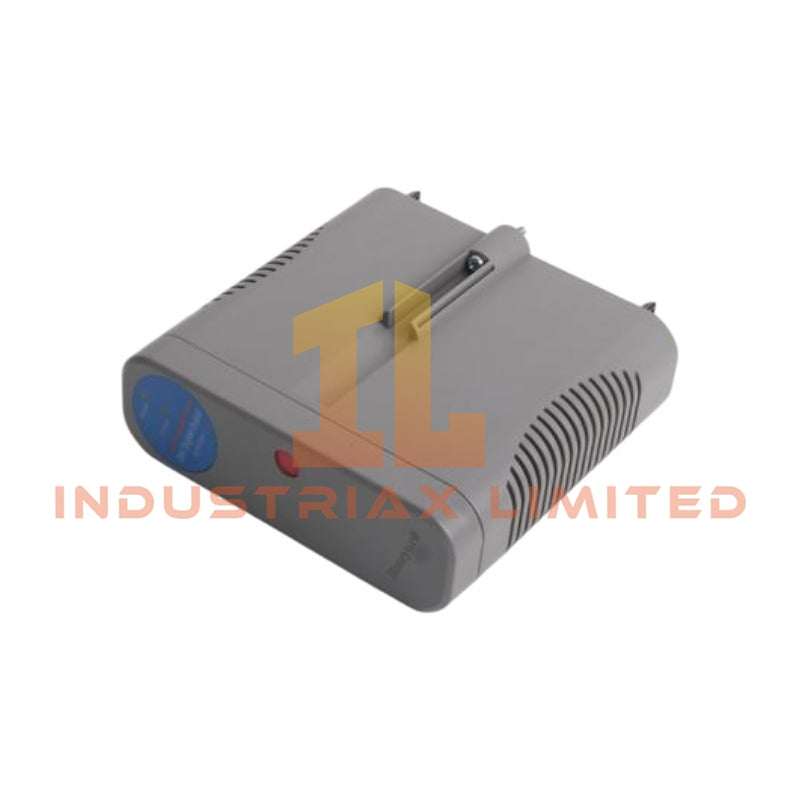

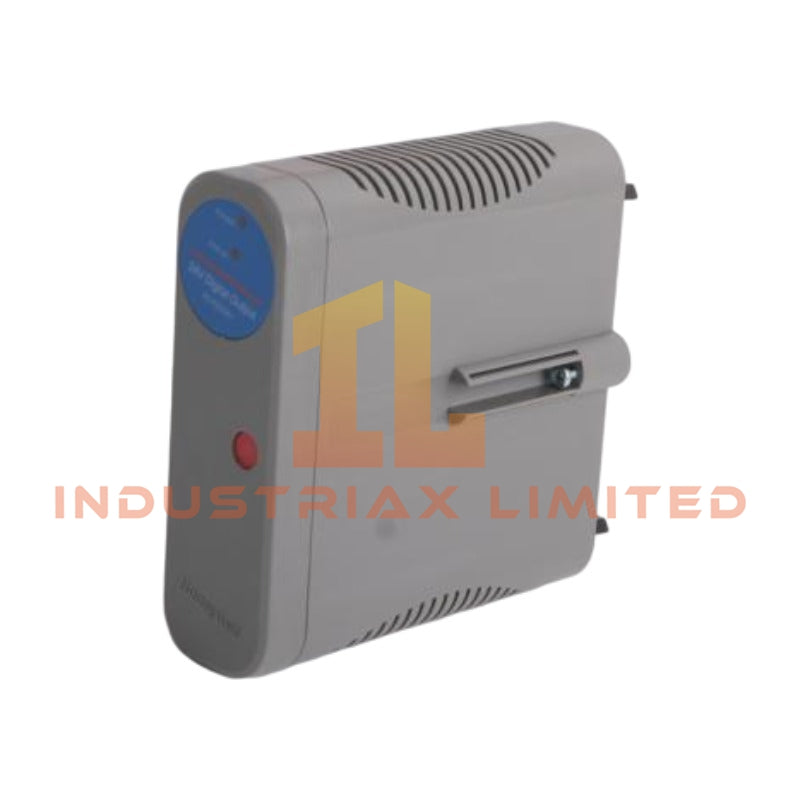

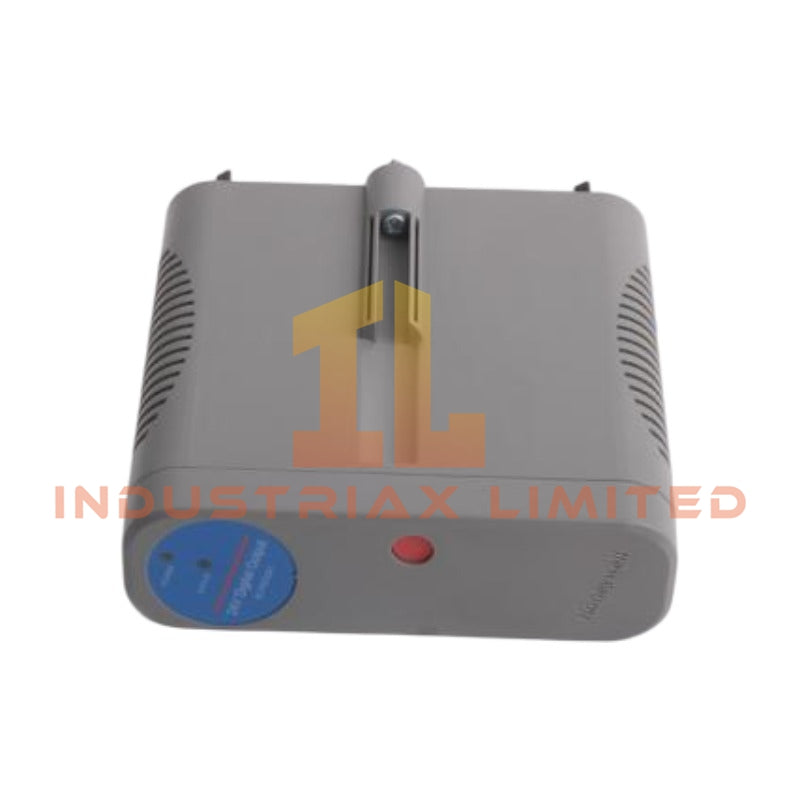

Honeywell 8C-POODA1 Series 8 Analog Output Module

Configured for analog current signal execution in Honeywell Experion PKS C300 control systems, the Honeywell 8C-POODA1 (8C-POODA1 Analog Output Module) provides direct electrical output conversion for field control loops.

Hardware Specifications

Parameter	Specification
Model	8C-POODA1
Brand	Honeywell
Origin	USA
Product Type	Analog Output Module
Product Family	Experion PKS Series 8 I/O
Controller Platform	Honeywell C300 Controller
Output Channels	16 Channels
Output Signal	4-20 mA DC
Digital Resolution	12 to 16 bits typical DAC resolution
HART Support	HART pass-through compatible depending on base configuration and firmware
Redundancy	Supported through redundant module base configurations
Channel Isolation	Channel-to-channel and channel-to-bus galvanic isolation
Operating Voltage	24 VDC system power
Form Factor	Series 8 vertical I/O form factor
Conformal Coating	Available for harsh environmental applications

4-20 mA HART Loop and Channel Isolation Characteristics

The Honeywell 8C-POODA1 processes digital control commands from the Experion PKS C300 controller and converts them into analog 4-20 mA output signals for field actuators. Therefore, the module supports direct regulation of devices such as control valves, positioners, and variable frequency drives.

The module supports HART pass-through functions when the installed base configuration and firmware provide compatibility. Additionally, channel-to-channel and channel-to-bus galvanic isolation separates field circuits from internal system communication paths, reducing interference between independent analog loops.

The Series 8 architecture supports high I/O density within the Experion PKS platform. Furthermore, the module supports removal and insertion under power (RIUP) functions for maintenance activities when installed within compatible Series 8 configurations.

Frequently Asked Questions

Q: Does the 8C-POODA1 support hot-swapping during system operation?
A: The module supports Removal and Insertion Under Power (RIUP) when installed in compatible Honeywell Series 8 I/O configurations. The site procedure must follow the approved Experion PKS maintenance guidelines.

Q: What type of field signals does the 8C-POODA1 generate?
A: The module provides analog output signals in the 4-20 mA DC range for connection to field control devices.

Q: Does the module provide electrical isolation between output channels?
A: Yes. The module design provides channel-to-channel and channel-to-bus galvanic isolation for separated analog output circuits.

Field Installation Guidelines

• Install the 8C-POODA1 module only in compatible Honeywell Series 8 I/O termination and carrier assemblies.
• Verify that field wiring polarity matches the assigned analog output channel terminals before energizing the loop.
• Use shielded instrumentation cables for analog current loops where electromagnetic interference may affect signal stability.
• Connect cable shields according to site grounding standards and avoid creating multiple grounding paths.
• Separate analog signal wiring from high-current power cables and variable frequency drive output cables.
• Confirm controller configuration, module addressing, and I/O channel assignments before commissioning.
• Verify output loop operation using calibrated measurement equipment before connecting final field actuators.
