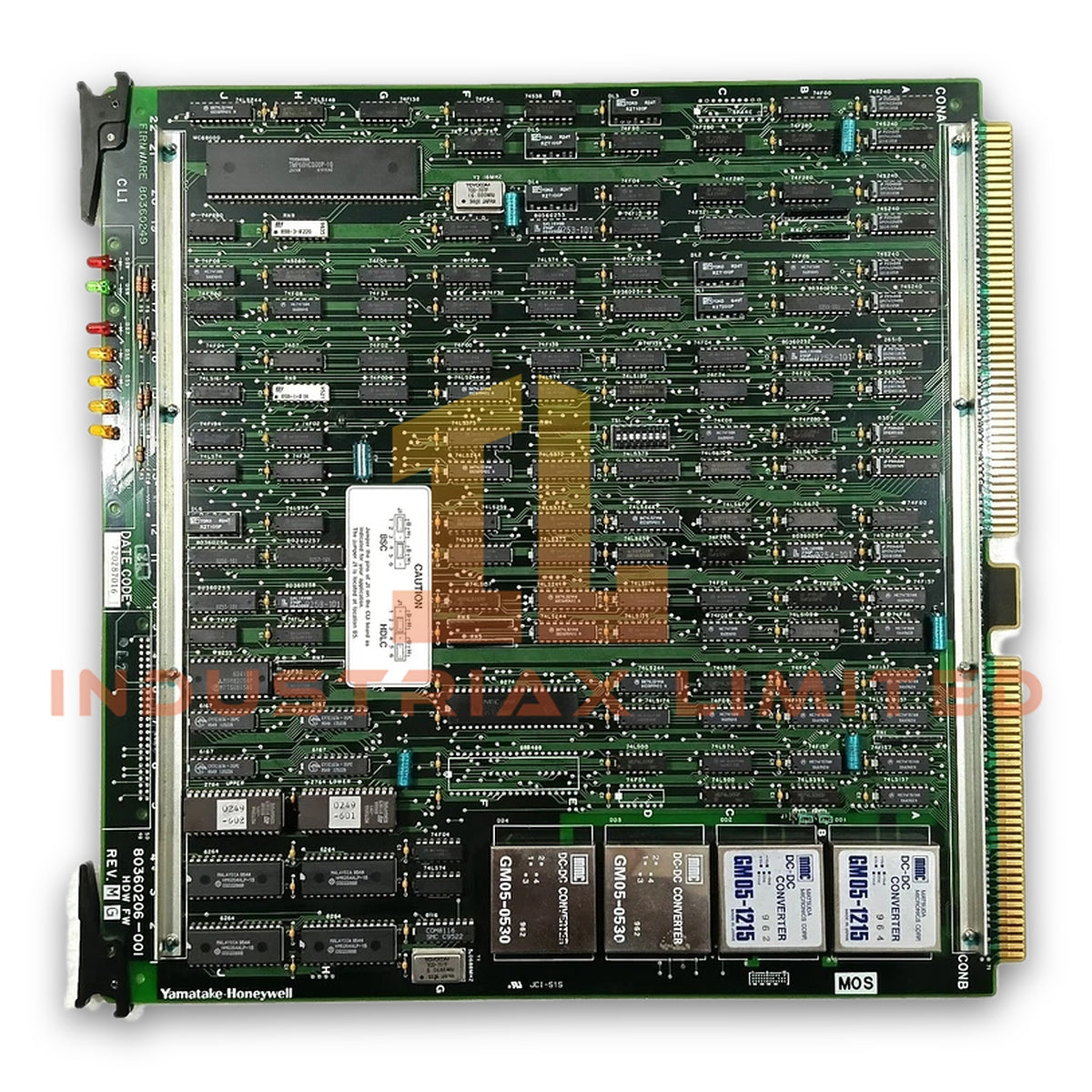

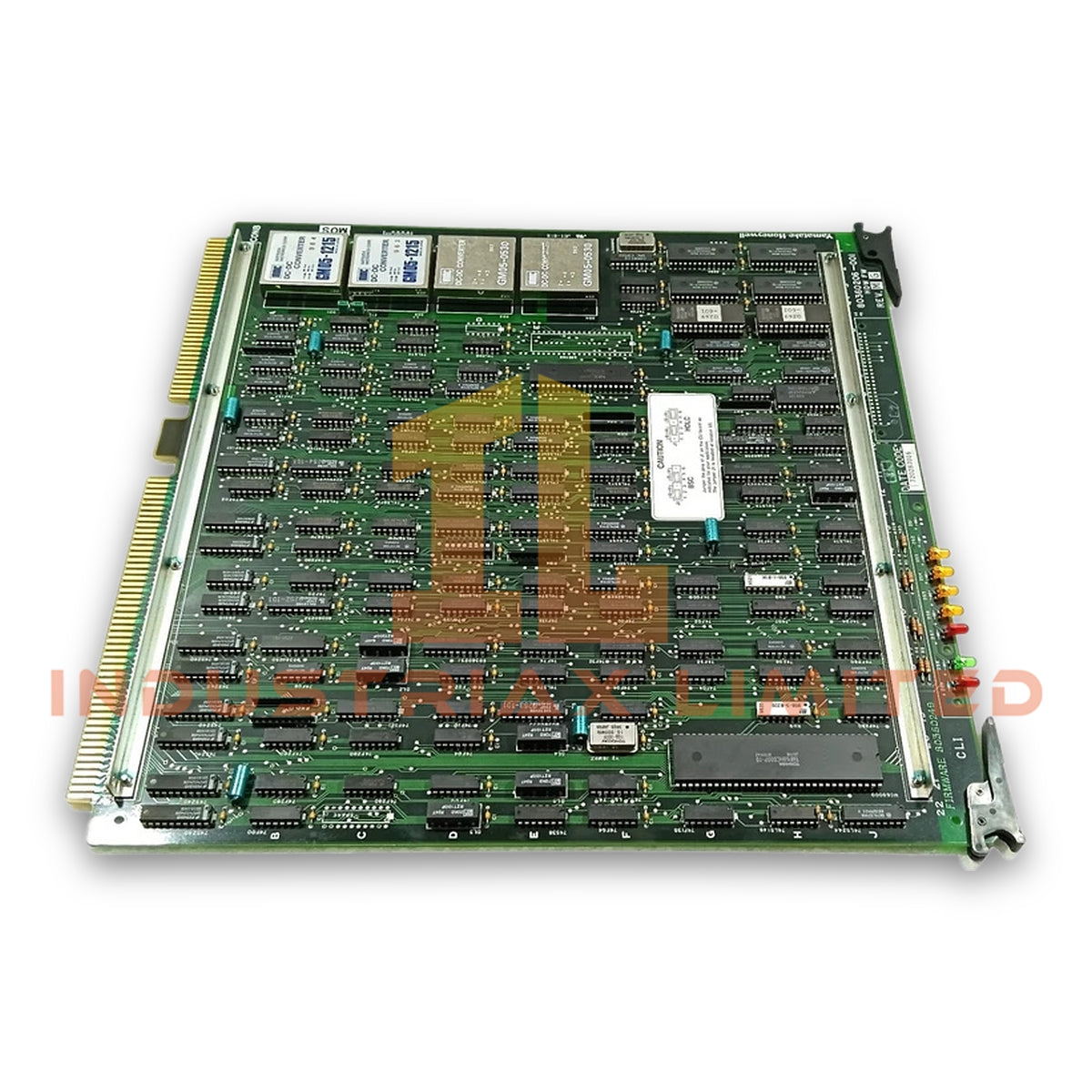

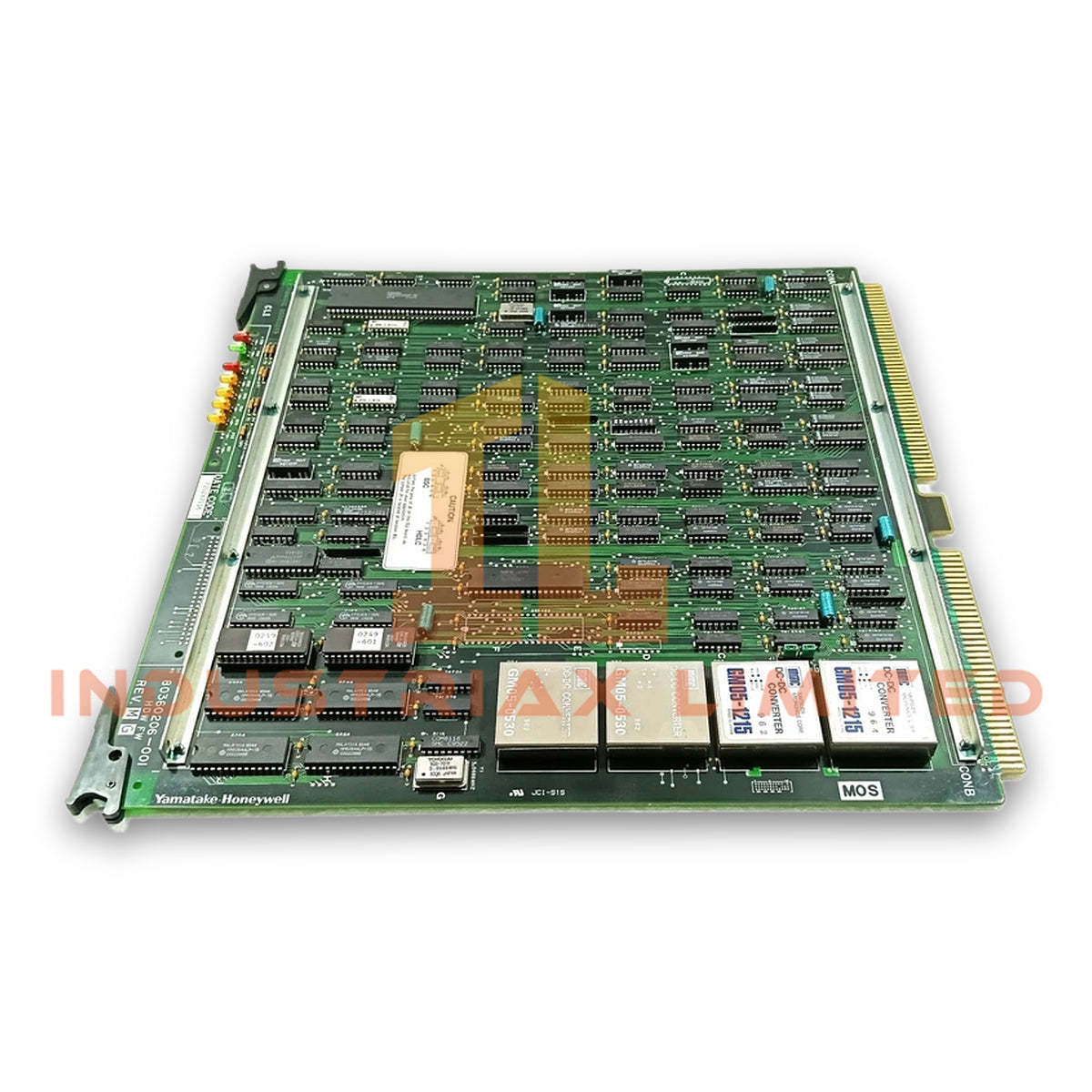

Honeywell 80360206-001 CLI Computer Gateway Board

The Honeywell 80360206-001, also cataloged as the 80360206-001 CLI Computer Gateway Board, operates as a dedicated communication interface component for data transfer and signal processing within Honeywell TDC 3000 and Measurex MXOpen control platforms.

Hardware Specifications

Parameter	Specification
Model	80360206-001
Brand	Honeywell
Origin	USA
Operating Temp	0 deg C to 60 deg C
Power Consumption	Supplied through system backplane power
Component Type	Control Local Interface (CLI) / Computer Gateway Board
System Compatibility	Honeywell TDC 3000 / Measurex MXOpen Process Control Systems
Function	Communication interface, data gateway processing, signal translation
Form Factor	Rack-mounted PCB assembly
Input Voltage	Standard system backplane logic supply (5 V / 12 V DC)
Mounting Type	Card cage or chassis backplane slot
Humidity Range	5% to 95% RH, non-condensing

DCS Communication Interface and Signal Processing

The Honeywell 80360206-001 CLI board manages communication exchange between local control nodes, gateway processors, and host computer systems. It processes digital data streams through the proprietary Honeywell backplane bus architecture.

Furthermore, the board performs signal translation functions required by legacy TDC 3000 and Measurex MXOpen environments. The hardware design supports deterministic communication paths between controller resources and supervisory computer interfaces.

For Honeywell process control platforms, communication modules typically maintain compatibility with field data protocols and controller-level interfaces. However, this CLI board specifically functions as a computer gateway interface rather than a direct 4-20 mA HART or FOUNDATION Fieldbus field termination module.

Frequently Asked Questions

Q: What is the primary function of the Honeywell 80360206-001 board?
A: The board provides a communication gateway interface for data exchange between Honeywell control processors, local interface nodes, and host computer systems.

Q: Can the 80360206-001 be installed in any Honeywell chassis?
A: No. The module requires compatibility with the specified TDC 3000 or Measurex MXOpen card cage and backplane configuration.

Q: Does the module support direct field transmitter connections?
A: No. The board performs computer gateway and communication processing functions rather than direct analog or digital field signal termination.

Field Installation Guidelines

1. Verify the card cage slot assignment and backplane compatibility before installation.
2. Disconnect system power according to the control system maintenance procedure before removing or inserting the PCB assembly.
3. Inspect edge connectors and backplane contacts for contamination, oxidation, or mechanical damage.
4. Install the module firmly into the designated chassis slot and confirm proper mechanical seating.
5. Maintain cable separation between communication wiring and high-current power conductors to reduce electrical interference.
6. Connect grounding and shielding according to the Honeywell system cabinet wiring specification.
7. Confirm firmware revision compatibility and controller configuration parameters before returning the system to operation.
