Description

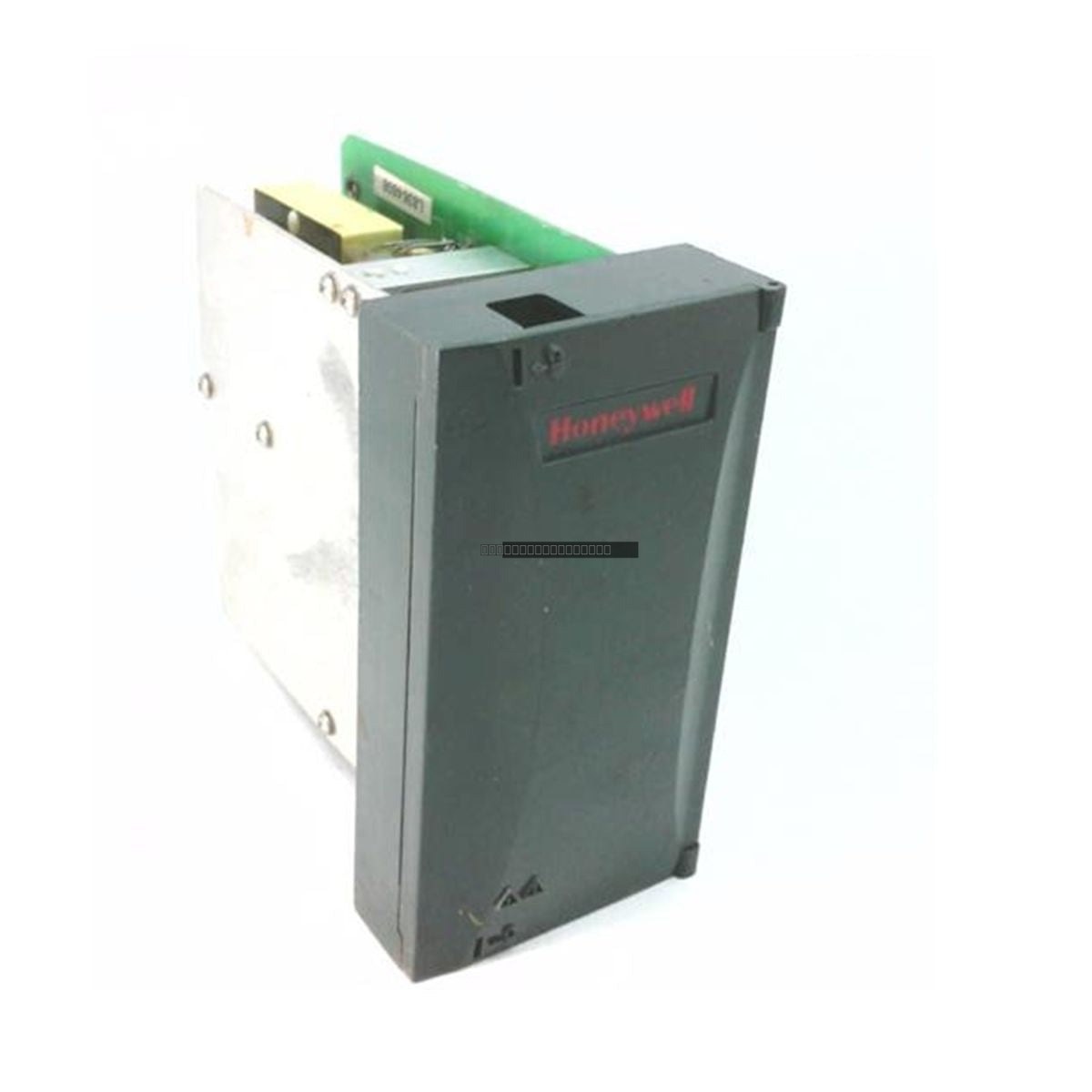

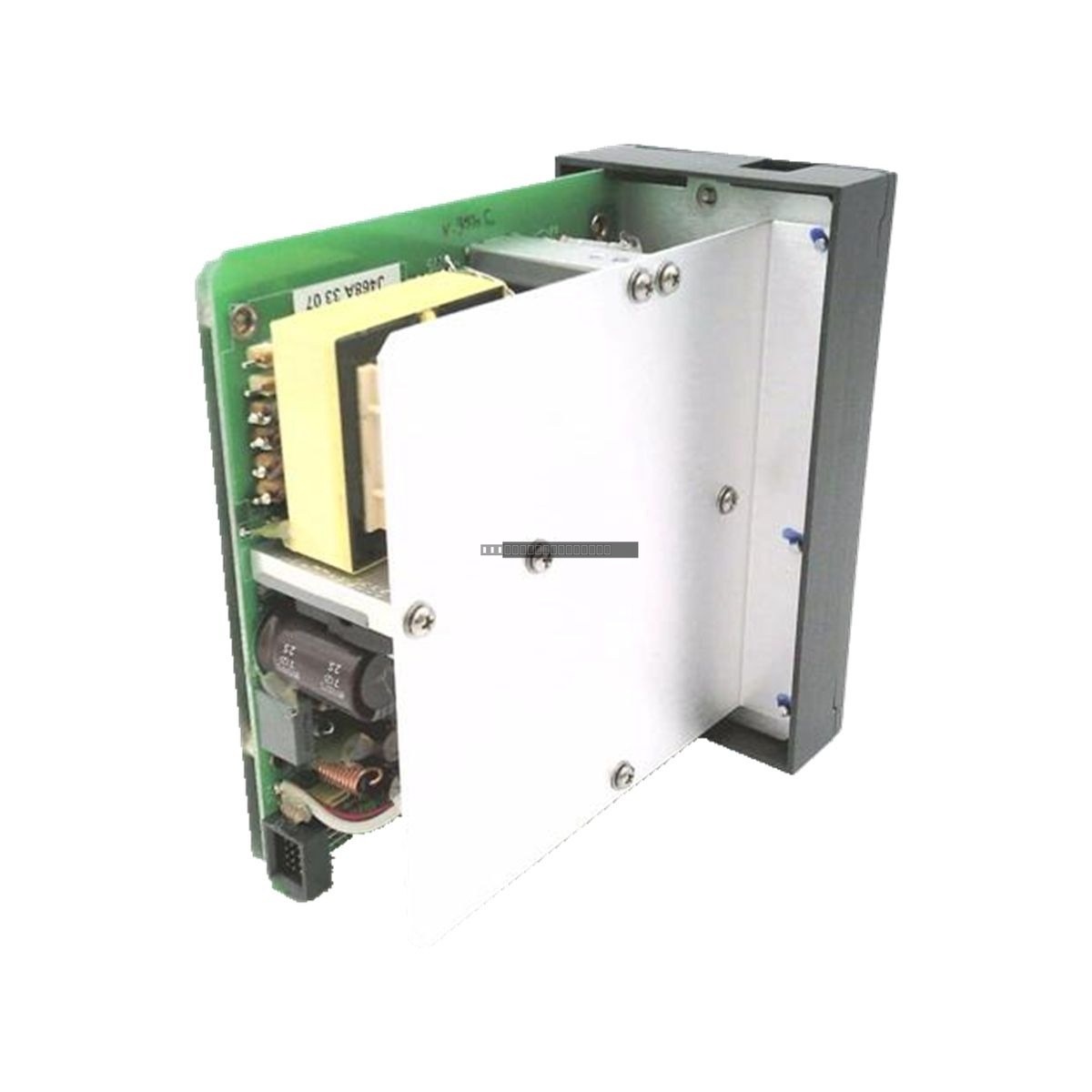

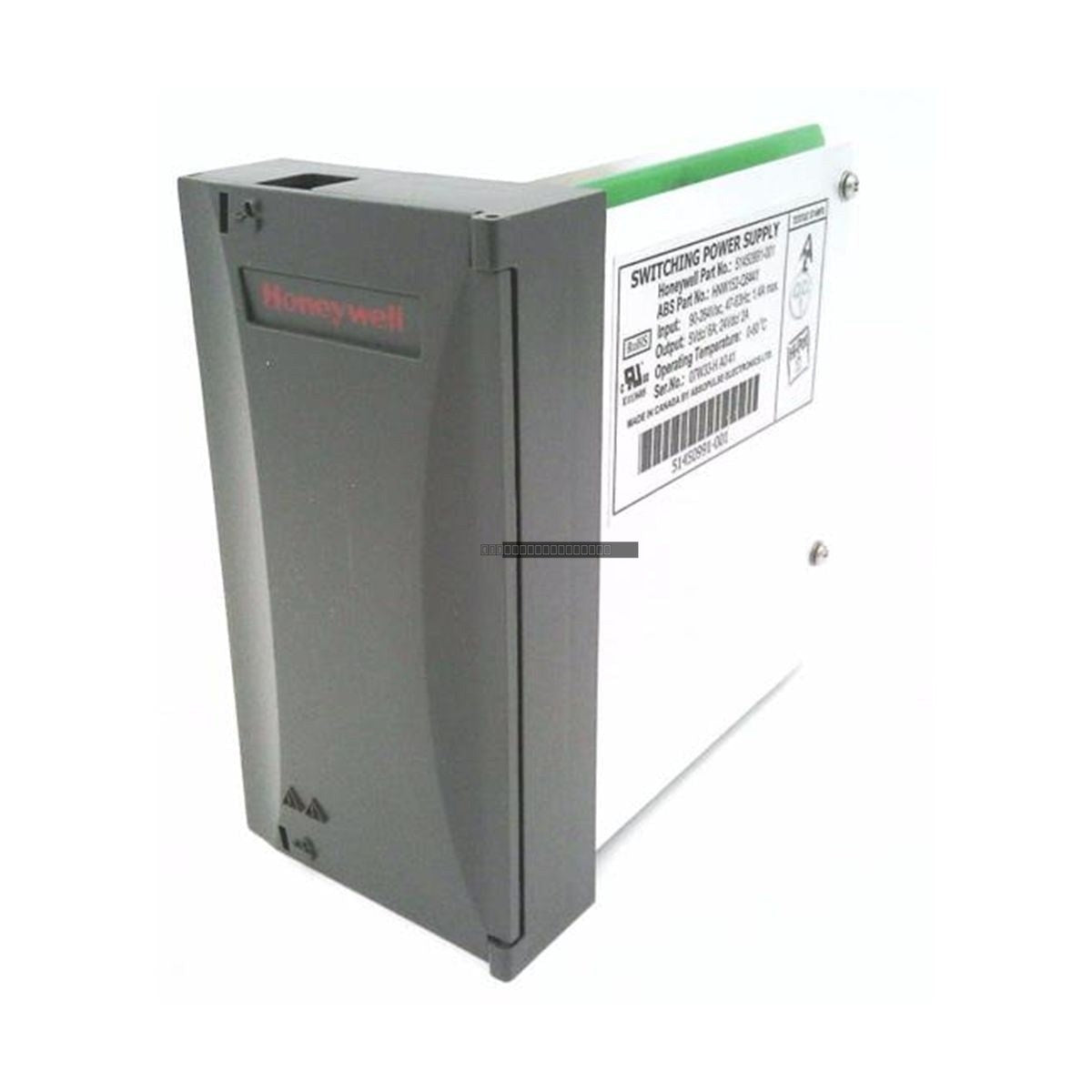

The Honeywell 51450991-001 is a robust switching power supply module engineered for reliable DC power distribution within industrial control architectures. This unit is designed to convert standard AC line voltage into stable, regulated dual-rail DC outputs, ensuring consistent operation for controller backplanes, communication interfaces, and field-mounted I/O modules. The module is widely utilized across critical infrastructure sectors including petrochemical processing, power generation, and large-scale manufacturing, where high availability and voltage stability are essential for continuous process control.
Features
- Dual-rail output architecture providing 5 VDC and 24 VDC to support diverse controller logic and field requirements.
- Wide-range universal AC input (90-264 VAC) suitable for global industrial power standards.
- Integrated safety features including thermal shutdown, overcurrent protection, and input surge suppression.
- High-efficiency switching topology designed to minimize heat dissipation in confined cabinet spaces.
- Optimized for continuous, long-term duty cycles in demanding rack-mounted environments.
Technical Specifications
| Model |
51450991-001 |
| Input Voltage |
90 to 264 VAC |
| Input Frequency |
47 to 63 Hz |
| Input Current |
1.4 A (max) |
| Output 1 |
5 VDC at 6 A (max) |
| Output 2 |
24 VDC at 2 A (max) |
| Total Power |
58 W continuous |
| Operating Temp |
0 to 60 deg C |
| Storage Temp |
-40 to 85 deg C |
| Humidity |
5 to 95 percent (non-condensing) |
Installation Guidelines
- Ensure the power supply is installed in a location with adequate clearance to permit natural convection cooling.
- Verify that the AC input source is within the specified 90-264 VAC range before applying power.
- Always disconnect primary power before inserting or removing the module from the controller rack to prevent arcing or electrical damage.
- Ensure proper grounding of the chassis to minimize EMI interference and maintain safety compliance.
- Avoid mounting the module in direct proximity to high-heat sources or high-vibration equipment to ensure component longevity.
FAQ
Does this module require external cooling fans?
No, the 51450991-001 is designed for natural convection cooling. Ensure that the cabinet ventilation allows for adequate airflow around the unit to maintain operating temperatures within the 0 to 60 deg C range.
Can this power supply handle input voltage fluctuations?
Yes, the unit supports a wide-range input of 90-264 VAC and includes internal surge protection, making it suitable for industrial environments where line voltage may be subject to minor fluctuations.
