Description

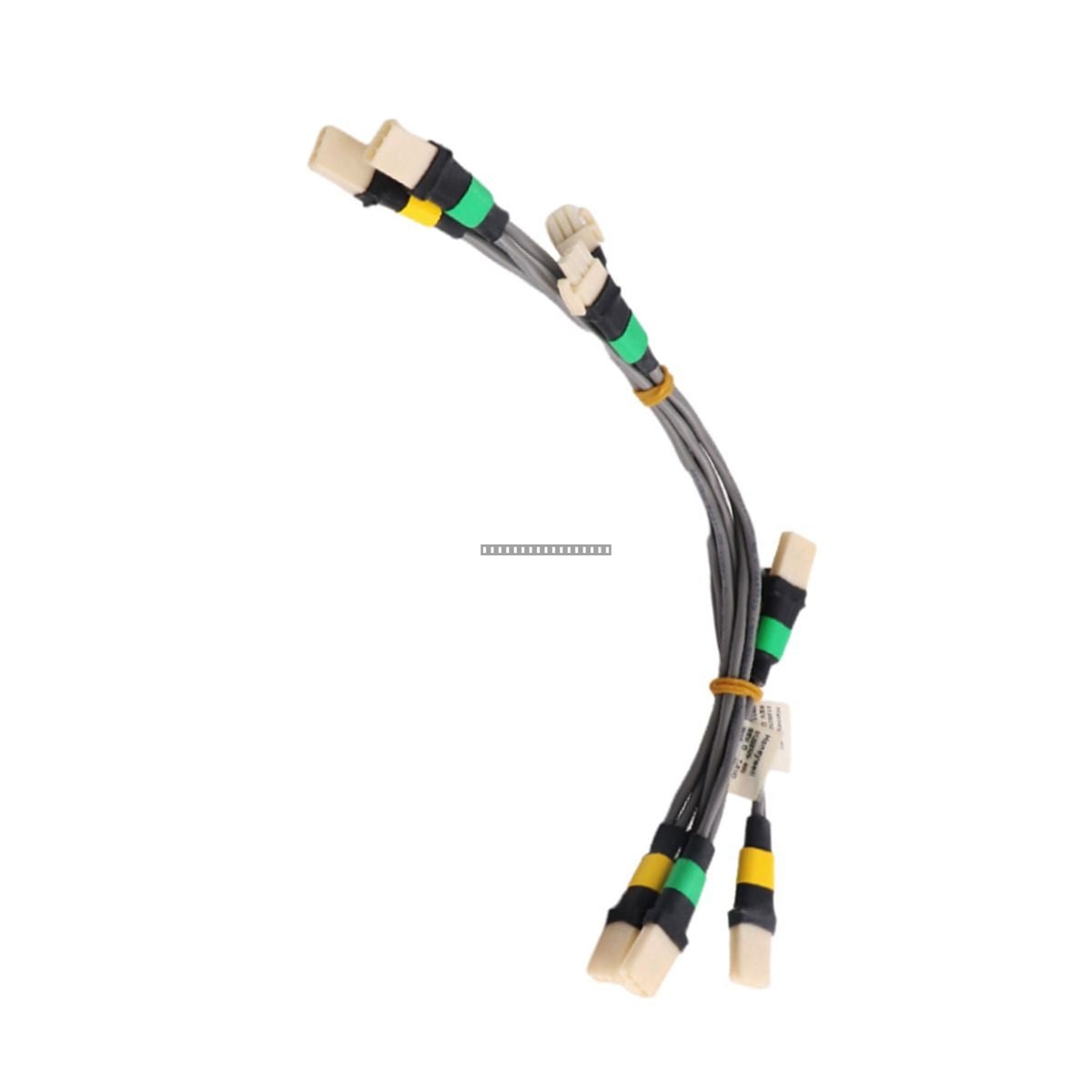

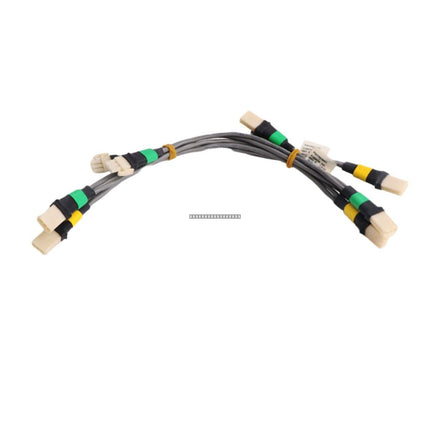

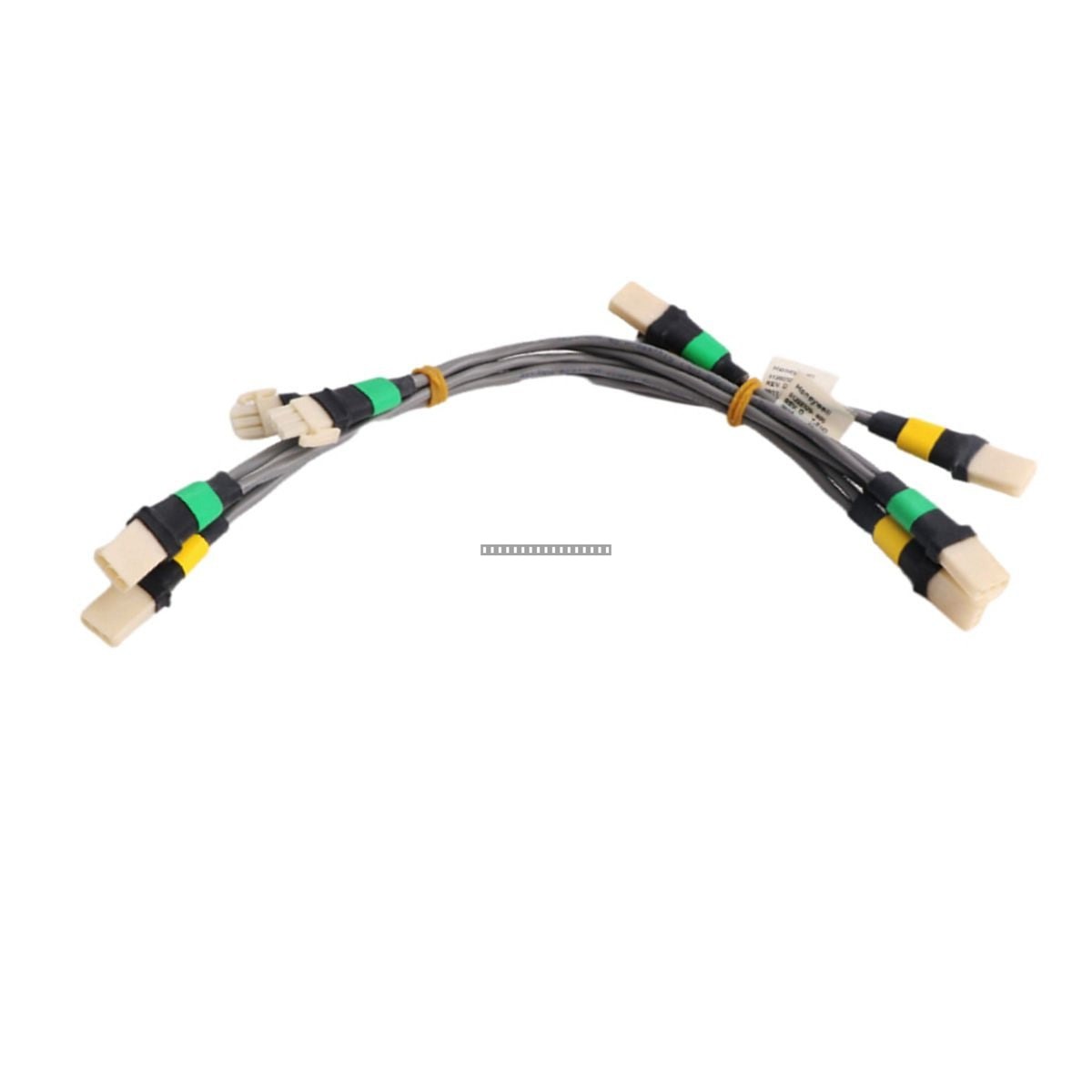

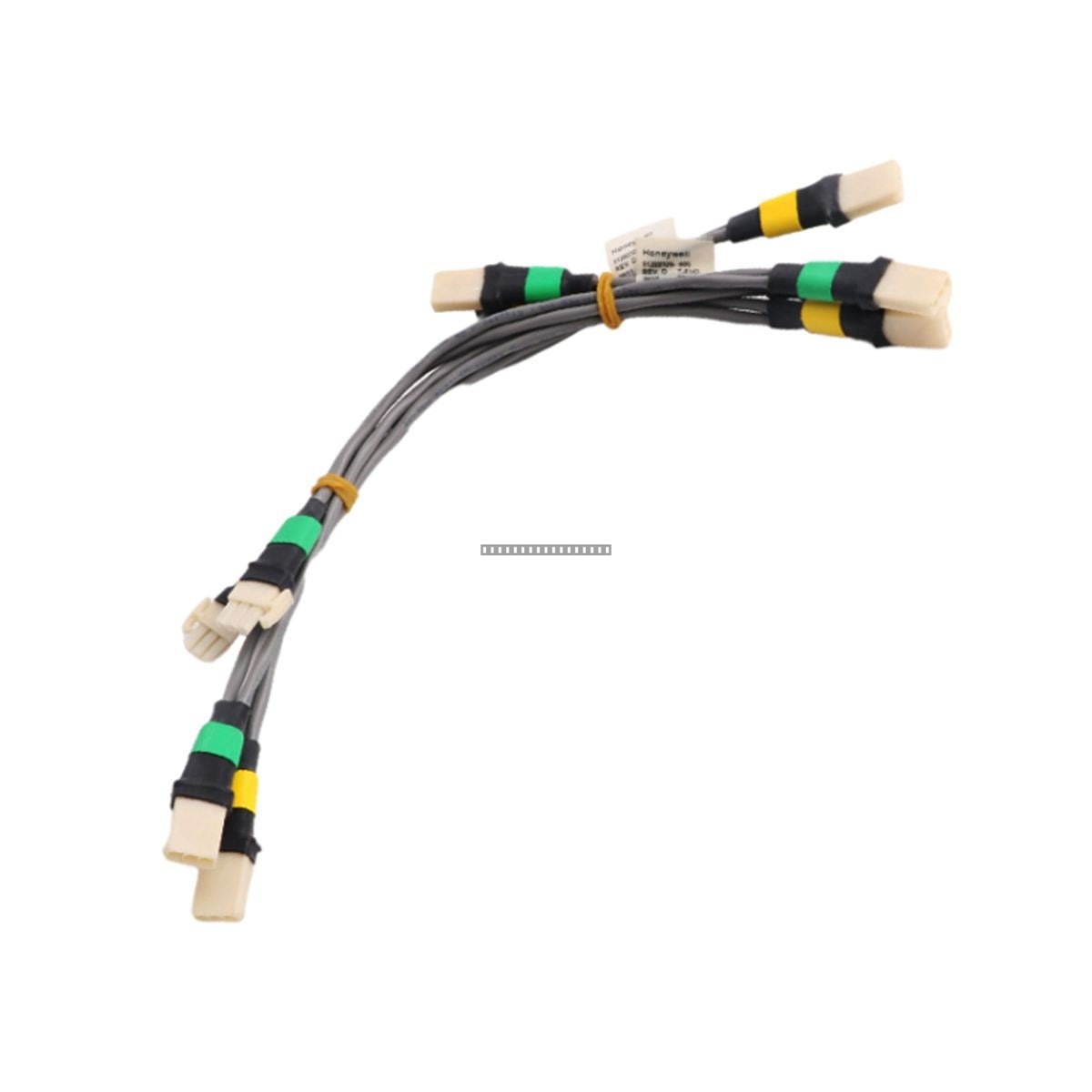

The Honeywell 51202329-606 is a specialized I/O link cable designed for reliable signal transmission within industrial automation systems. This 3-core cable is engineered to facilitate connectivity between field devices and control modules, ensuring stable communication and power delivery in demanding environments.
Features
- 3-core configuration for standard I/O signal routing.
- Equipped with M12 connectors for secure, vibration-resistant industrial interfacing.
- Designed for low-voltage control applications up to 30V DC.
- Robust construction suitable for operating temperatures ranging from -25 degC to +70 degC.
Technical Specifications
| Product Model |
51202329-606 |
| Cable Type |
I/O Link Cable |
| Core Count |
3-core |
| Connector Type |
M12 |
| Voltage Rating |
≤30V DC |
| Current Rating |
≤2A |
| Operating Temperature |
-25 degC to +70 degC |
| Tariff Code |
8537101190 |
Installation Guidelines
- Ensure the M12 connectors are fully seated and tightened to the specified torque to maintain IP ratings and connection integrity.
- Route cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal noise.
- Avoid sharp bends or excessive tension on the cable during installation to prevent internal conductor damage.
- Verify that the total loop resistance is within the acceptable range for your specific I/O module at 24V DC before final commissioning.
- Always power down the associated I/O modules before connecting or disconnecting the link cable to avoid electrical arcing or potential damage to pins.
FAQ
What is the primary use of the 51202329-606 cable?
This cable is primarily used as an I/O link for connecting field sensors or actuators to Honeywell control system I/O modules, providing a secure and standardized physical connection.
Can this cable be used in high-temperature environments?
The cable is rated for an operating temperature range of -25 degC to +70 degC. It should not be used in environments exceeding these limits, such as near high-heat process equipment or steam lines, without additional protective shielding.
