Description

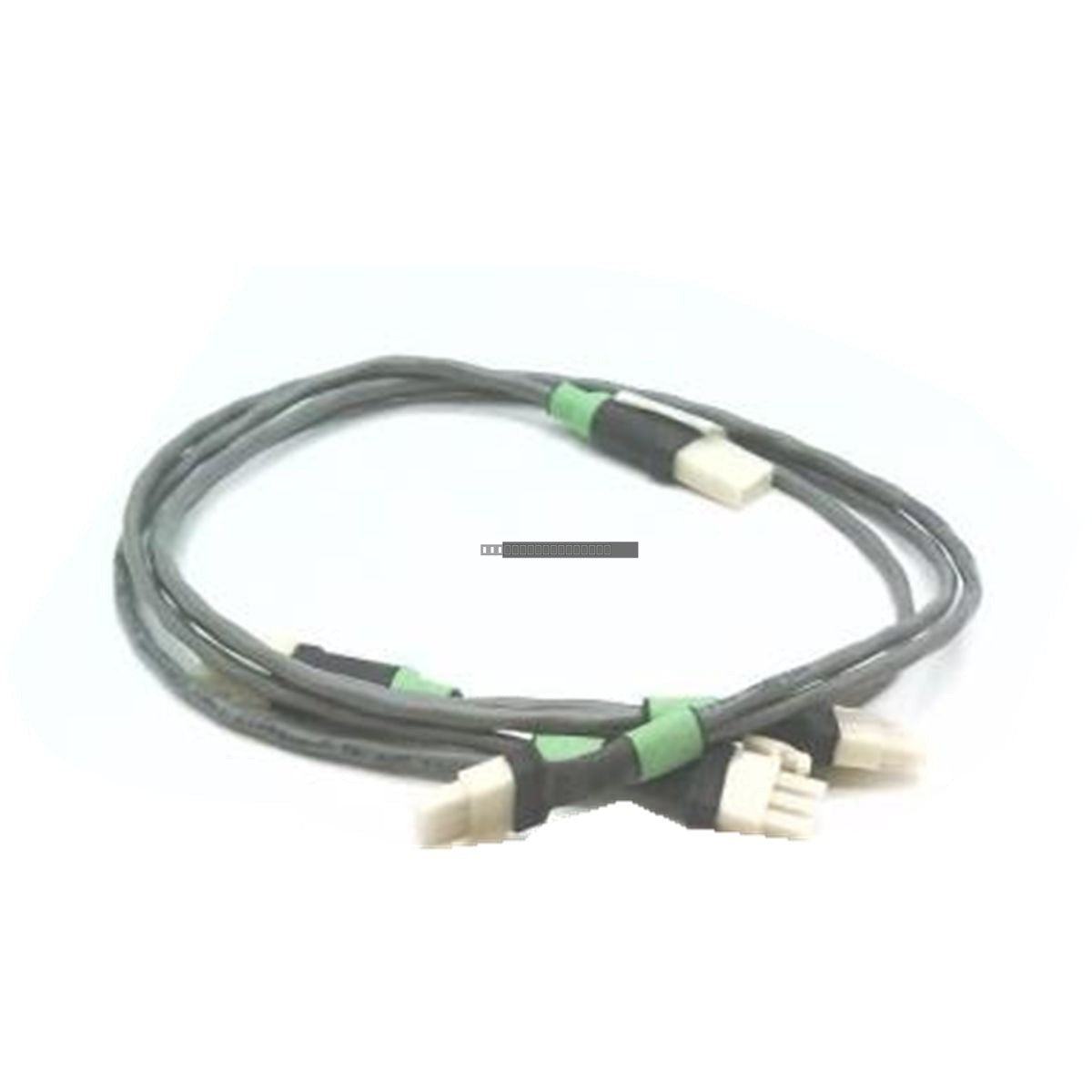

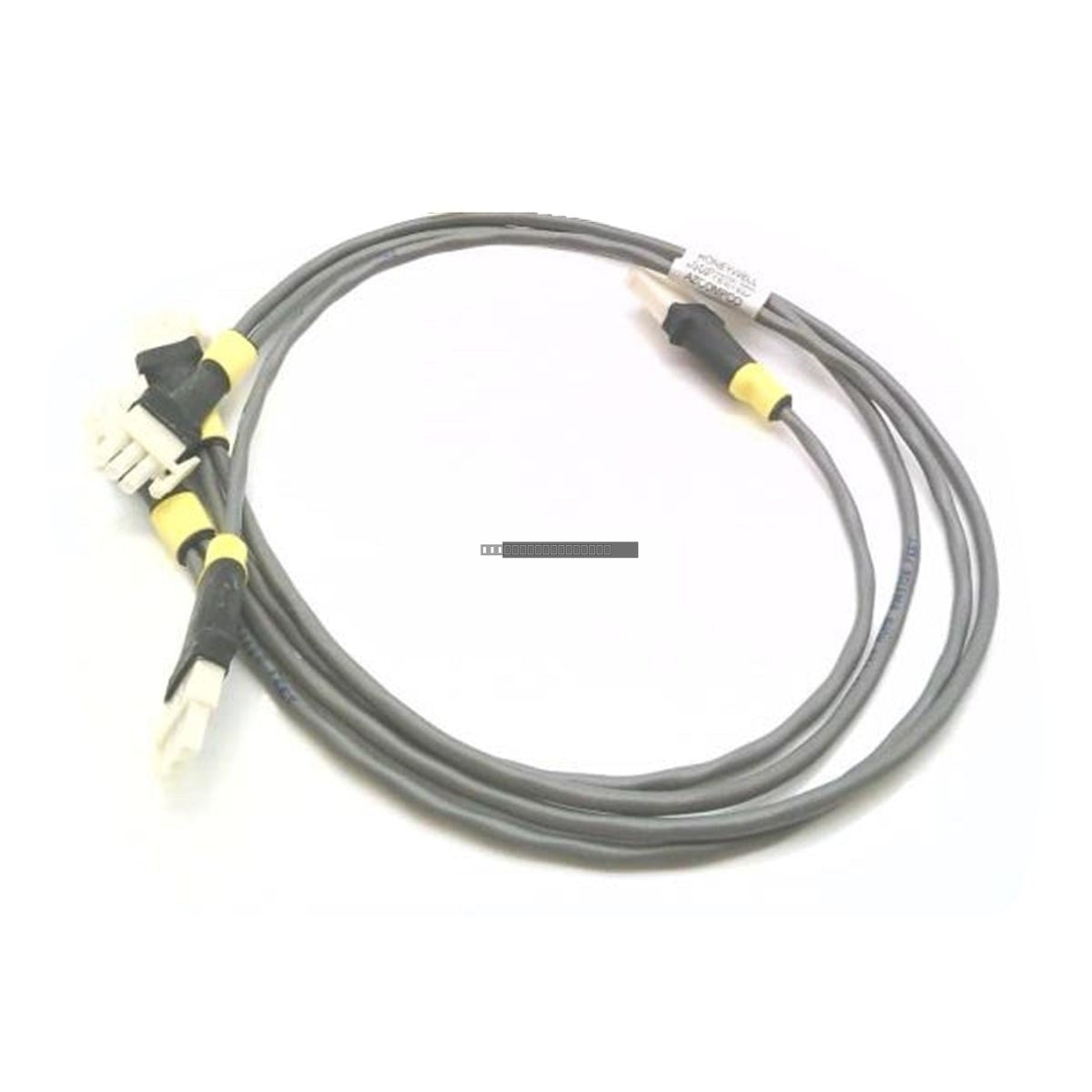

The Honeywell 51202329-302 is an I/O link cable designed for reliable signal transmission within industrial automation environments. This cable assembly is engineered to facilitate connectivity between field devices and control system I/O modules, ensuring consistent data integrity and power delivery for low-voltage instrumentation.
Features
- Robust construction suitable for industrial control applications
- Designed for 24V DC signal and power distribution
- Compatible with standard M8 or M12 4-/5-pin connector interfaces
- Wide operational temperature range for diverse plant environments
Technical Specifications
| Product Model |
51202329-302 |
| Component Type |
I/O Link Cable |
| Voltage Rating |
≤30V DC |
| Current Rating |
Up to 2A |
| Operating Temperature |
-25 degC to +70 degC |
| Tariff Code |
8537101190 |
Installation Guidelines
- Ensure the cable is routed away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal noise.
- Verify that the M8/M12 connector pins are properly aligned before mating to avoid pin damage.
- Ensure that the connector is fully seated and tightened to maintain the intended ingress protection rating.
- Avoid sharp bends or excessive tension on the cable during installation to prevent internal conductor fatigue.
- Power down the associated I/O module before connecting or disconnecting the cable to prevent electrical arcing or potential damage to the port.
FAQ
What is the primary use of the 51202329-302 cable?
This cable is primarily used as an I/O link for connecting field instrumentation and sensors to Honeywell control system hardware, facilitating reliable communication and power supply.
Can this cable be used in high-temperature environments?
The cable is rated for operation between -25 degC and +70 degC. It should not be installed in areas where ambient temperatures exceed these limits.
