Description

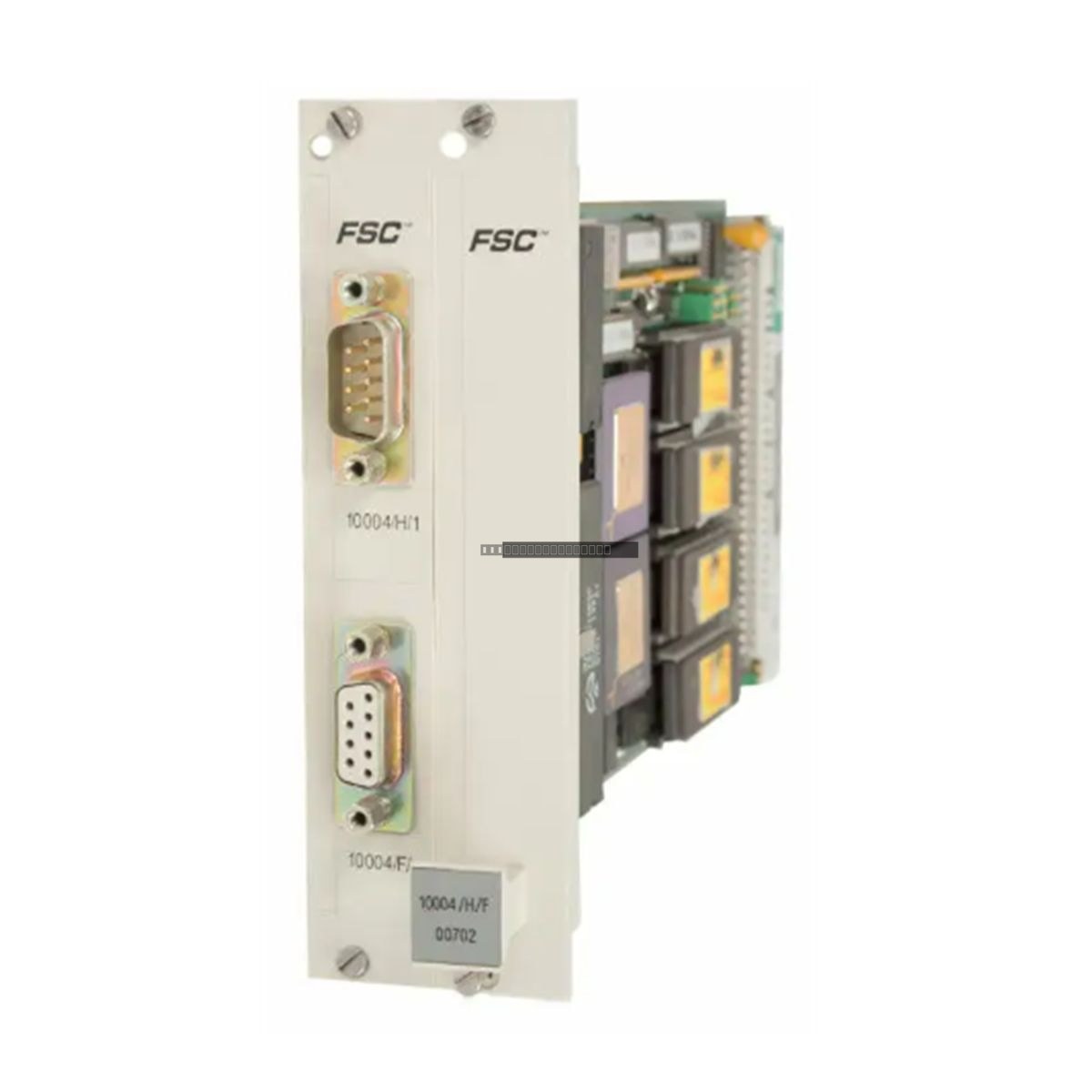

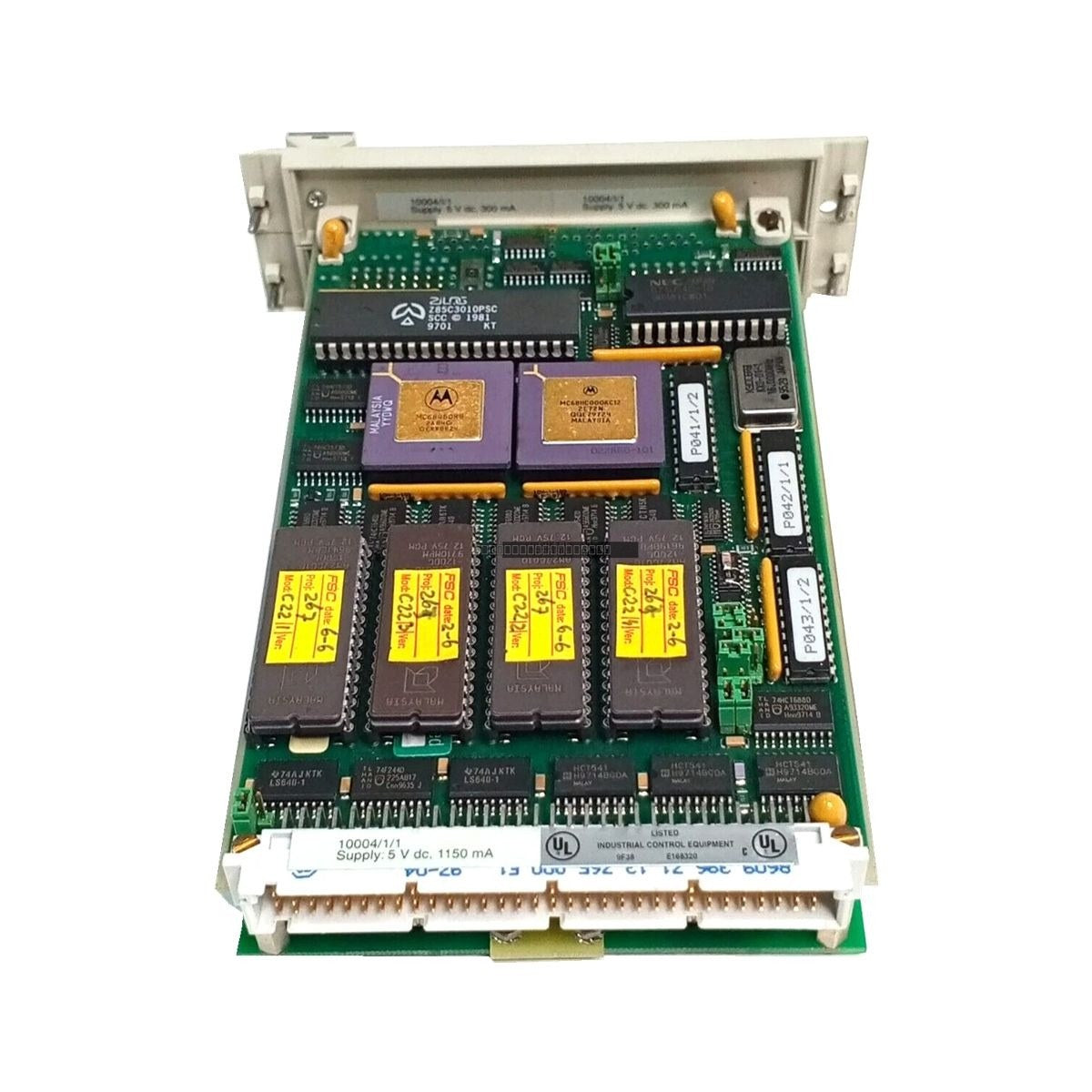

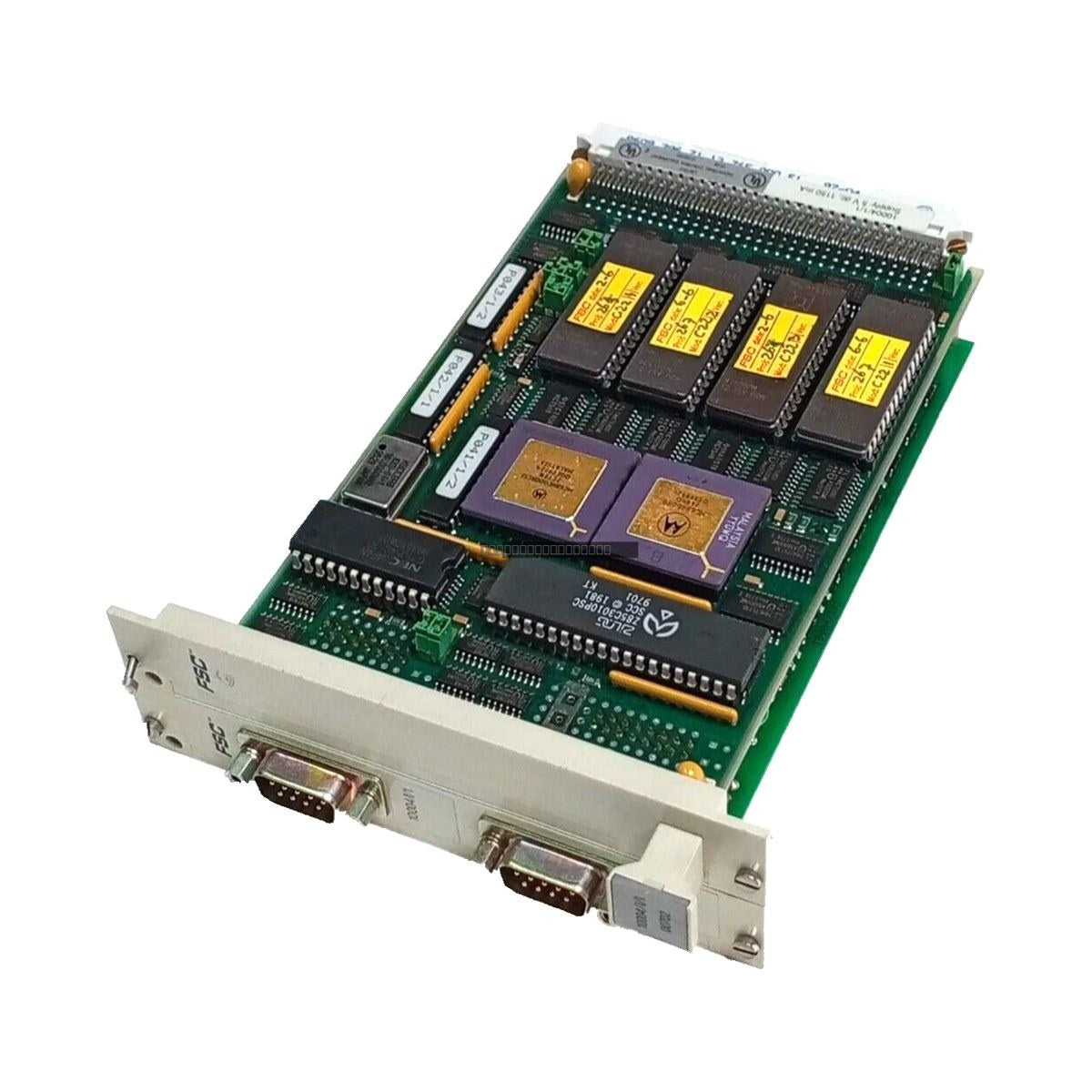

The Honeywell 10004/1/1 is an engineered communication module designed to facilitate high-reliability data exchange within industrial automation architectures. By bridging the gap between controllers, remote I/O subsystems, and supervisory control layers, this module ensures consistent, low-latency signal throughput. It is specifically built to withstand the demanding requirements of continuous-process industries, including power generation, chemical processing, and refinery operations, where network stability is critical to overall system availability.
Features
- Robust signal isolation to protect against ground loops and electrical interference.
- Advanced link integrity diagnostics for real-time fault detection.
- Compact hardware footprint optimized for high-density cabinet mounting.
- Designed for high-availability operation in harsh industrial environments.
- Supports diverse network topologies including point-to-point and multi-device configurations.
Applications
This module is intended for deployment in distributed control systems (DCS) and complex industrial networks. It is suitable for integration into environments requiring reliable serial or protocol-based communication, such as automated monitoring in mining facilities, power plant control rooms, and chemical processing plants.
Technical Specifications
| Model |
10004/1/1 |
| Brand |
Honeywell |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Power Consumption |
5 W (approx.) |
| Mounting |
Cabinet / DIN Rail |
| Design |
EMI-resistant with integrated fault monitoring |
Installation Guidelines
- Ensure the cabinet environment is within the specified operating temperature range of 0 to 60 deg C.
- Always power down the rack or backplane before inserting or removing the module to prevent electrical damage.
- Use shielded communication cabling to maintain signal integrity, particularly in areas with high electromagnetic interference (EMI).
- Ensure proper grounding of the module chassis to the cabinet earth bus to minimize noise coupling.
- Verify that all connector pins are free of debris or oxidation before installation.
FAQ
Is the Honeywell 10004/1/1 suitable for high-EMI environments? Yes, the module features an EMI-resistant design and robust signal isolation specifically intended to maintain data integrity in electrically noisy industrial settings.
What is the typical power requirement for this module? The 10004/1/1 consumes approximately 5 W during normal operation.
Can this module be mounted on a standard DIN rail? Yes, the module is designed for standard cabinet and DIN rail installation, facilitating efficient integration into existing control panels.
