Description

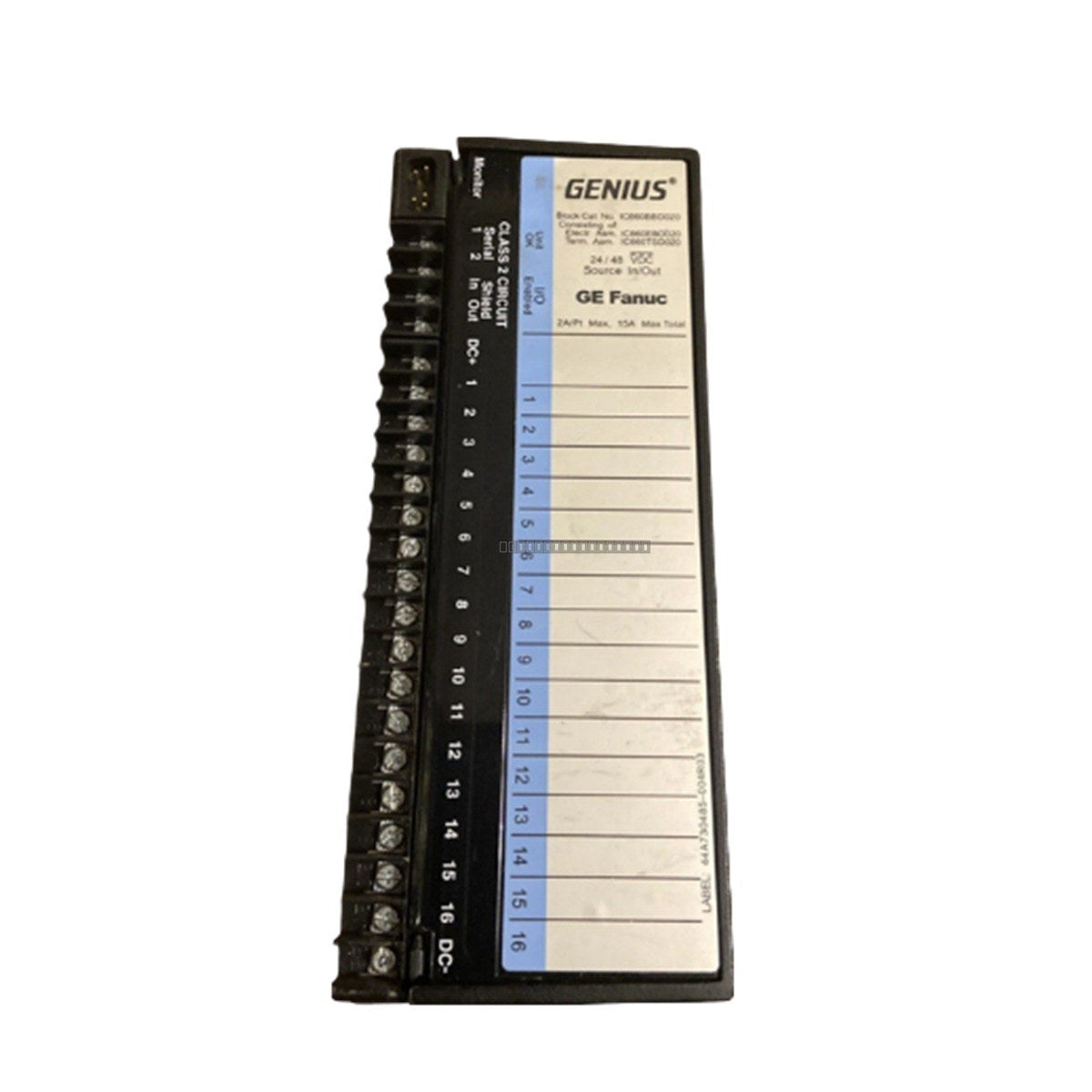

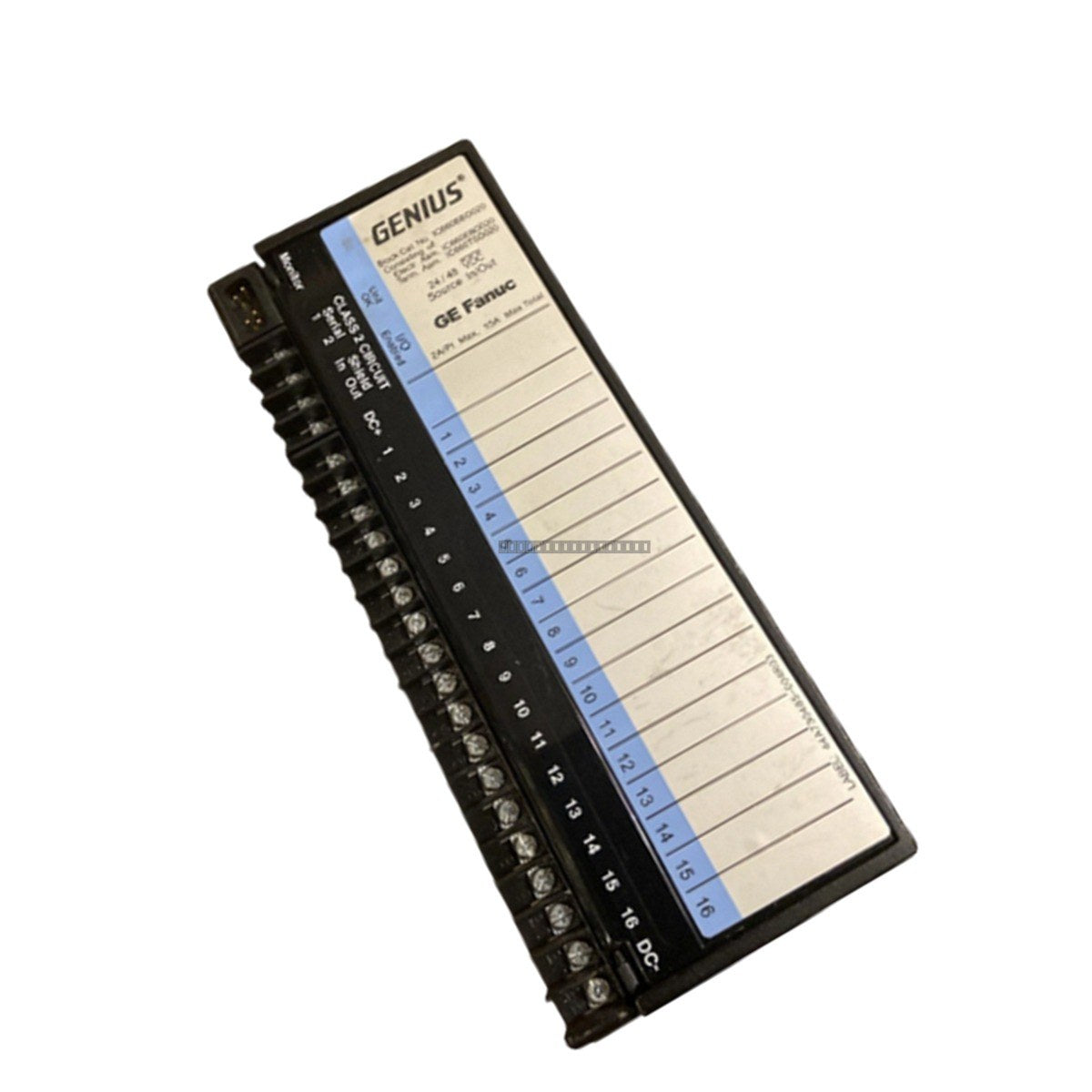

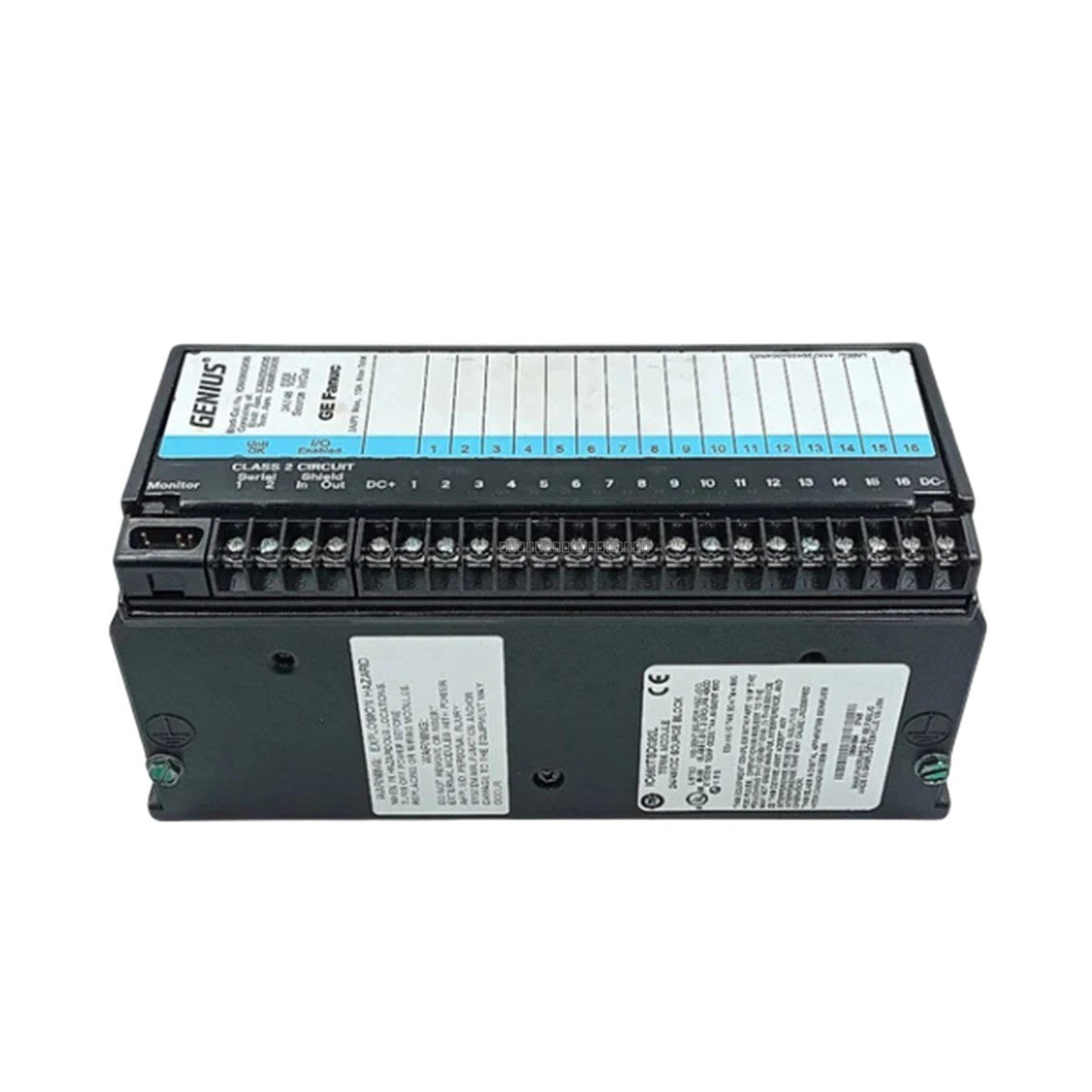

The General Electric IC660EBD020 is a high-performance Electronics Assembly module from the Genius I/O product series. Designed for industrial automation environments, this block I/O module serves as a critical interface for managing discrete signals within a distributed control architecture. It is engineered to provide robust signal processing and reliable communication between field devices and the primary control system.
Features
- Sixteen (16) discrete inputs for comprehensive signal monitoring.
- Wide operating voltage range of 18-56V DC, supporting nominal 24V DC systems.
- High-level block-to-block isolation of 1500V to protect sensitive control circuitry from field-side transients.
- Designed for high-reliability applications with a thermal drift specification of 70 PPM per degree Celsius.
- Integrated heat dissipation management rated at 68.8 Watts.
Technical Specifications
| Model |
IC660EBD020 |
| Series |
Genius I/O |
| Module Type |
Electronic Assembly / Block I/O |
| Discrete Inputs |
16 |
| Input Voltage Range |
18-56V DC |
| Nominal Input Voltage |
24V DC |
| Power Requirements |
150 mA / 300 mA (max) |
| Heat Dissipation |
68.8 Watts |
| Operating Temperature |
0 degC to 60 degC |
| Storage Temperature |
-40 degC to 100 degC |
| Thermal Drift |
70 PPM/degC |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module from the I/O bus.
- Mount the module in an environment that allows for adequate ventilation, adhering to the 68.8W heat dissipation requirement.
- Use shielded cabling for all I/O connections to minimize electromagnetic interference (EMI) in industrial settings.
- Verify that the power supply voltage is within the 18-56V DC range before energizing the block.
- Handle the module using proper ESD (Electrostatic Discharge) prevention techniques to avoid damaging internal electronic components.
FAQ
What is the primary function of the IC660EBD020?
The IC660EBD020 is a Genius Block I/O module used for discrete input signal acquisition within a GE Genius I/O network, allowing for distributed control of field devices.
What are the power requirements for this module?
The module operates on a DC power supply ranging from 18V to 56V, with a maximum current draw of 300 mA.
Is this module suitable for high-temperature environments?
The module is rated for an operating temperature range of 0 degC to 60 degC. It should be installed in a climate-controlled enclosure or area that does not exceed these limits to ensure long-term reliability.
