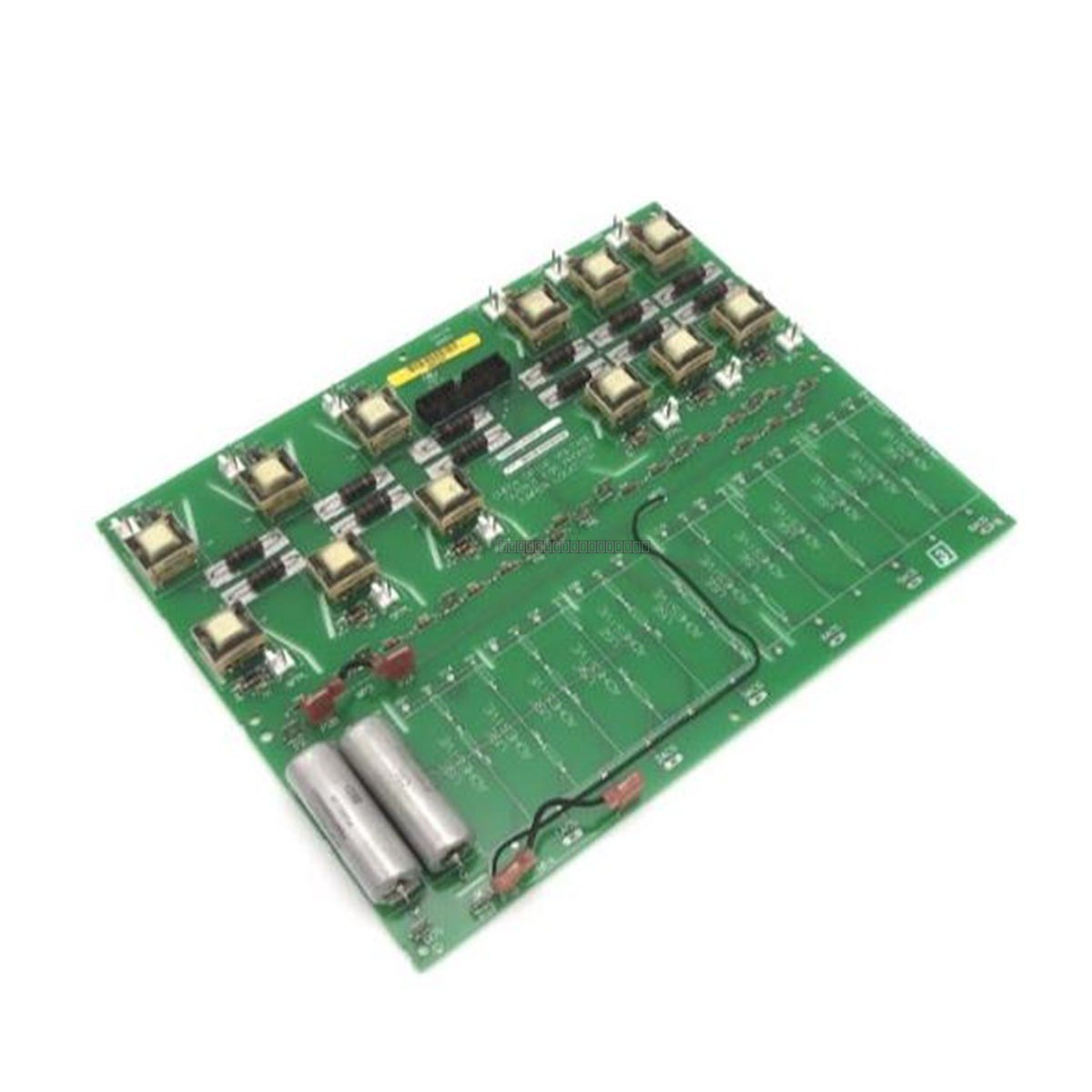

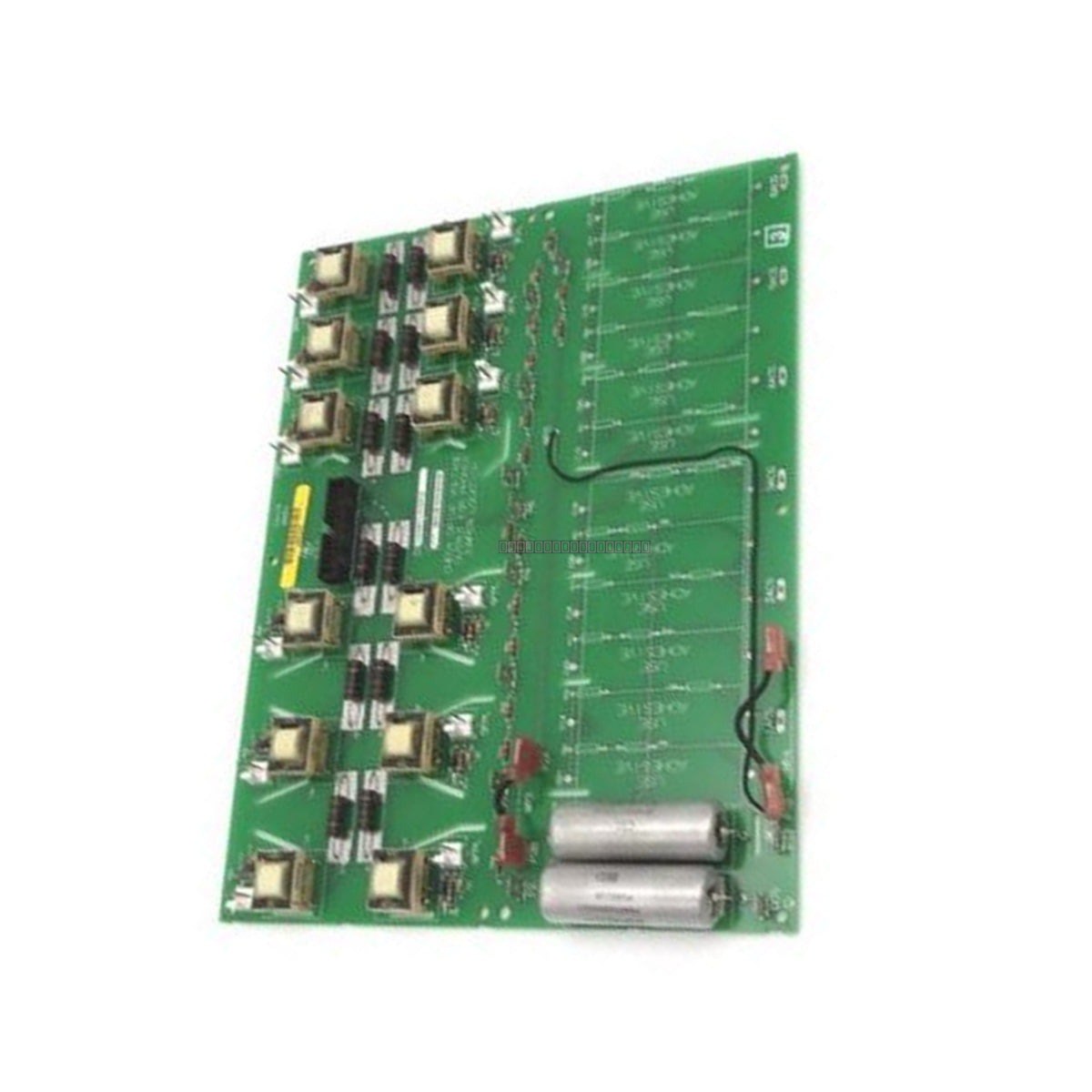

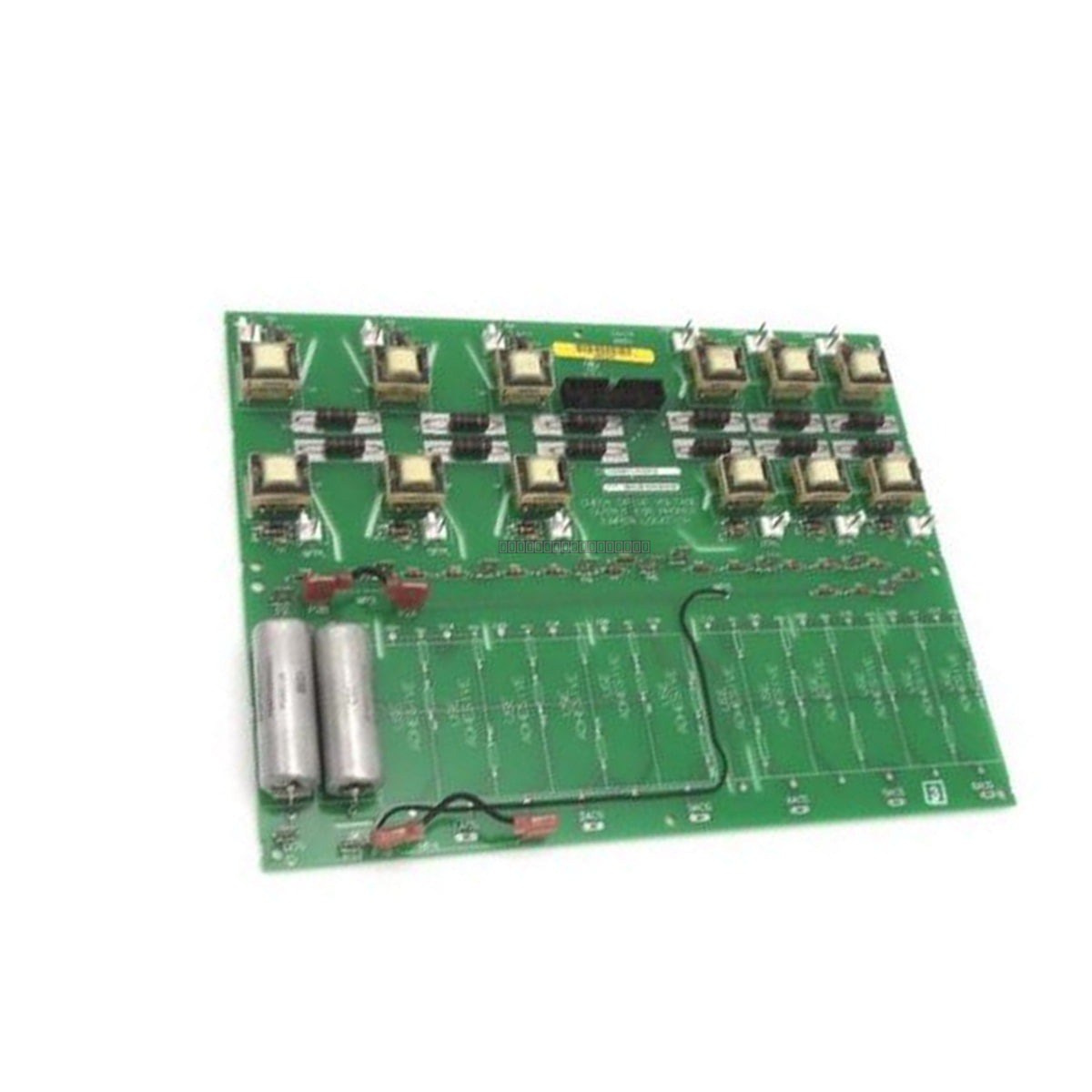

The DS200PCCAG9A is a Power Connect Card (PCCA) engineered by GE Fanuc for the EX2000 Excitation Control Series. This module serves as the primary interface between the drive's digital control circuitry and the SCR power bridge. It is designed to convert 5 V gate array signals into high-level gate drive pulses required for forward and reverse power conversion. The board is specifically optimized for low-to-medium horsepower controllers and includes integrated snubber circuits to suppress voltage transients across AC lines and DC buses, protecting sensitive semiconductor components.
Features
-
Gate Drive Isolation: Utilizes pulse transformers to provide robust signal decoupling between control logic and power stages.
-
Integrated Circuitry: Features twelve relay channels and dedicated gate pulse amplifier circuits using surface mount technology (SMT).
-
Voltage Regulation: Onboard regulator maintains stable 5 V power for gate array logic operations.
-
Transient Protection: Built-in snubber circuits mitigate voltage spikes, enhancing the reliability of the power bridge.
Applications
The DS200PCCAG9A is widely deployed in industrial environments requiring precise excitation control, including metal processing, mining operations, and power generation facilities. It is a critical component for maintaining stable power conversion and reducing system downtime in EX2000 drive systems.
Technical Specifications
| Model |
DS200PCCAG9A |
| Series |
EX2000 Excitation |
| Product Type |
Power Connect Card (PCCA) |
| Power Requirements |
+5 VDC, 6 A |
| Auxiliary Voltage |
28 VDC |
| Relay Channels |
12 |
| Operating Temperature |
-30 to +65 deg C |
| Interface |
Pulse Transformer Gate Drive |
| Manual Reference |
GEH-6005 |
Installation Guidelines
-
Power Down: Ensure all system power is disconnected before installing or removing the PCCA board to prevent electrical damage.
-
ESD Precautions: Handle the board using proper electrostatic discharge (ESD) protection measures, as the module contains sensitive surface-mount components.
-
Seating: Ensure the card is fully seated in the designated EX2000 rack slot to maintain reliable electrical contact.
-
Environment: Verify that the operating environment remains within the specified -30 to +65 deg C range to prevent thermal degradation.
FAQ
What is the primary function of the DS200PCCAG9A?
The DS200PCCAG9A acts as an interface card that converts low-level digital control signals into high-level gate drive pulses for the SCR power bridge in EX2000 excitation systems.
Is this board compatible with all EX2000 drives?
The G-number (G9A) indicates a specific configuration. Compatibility depends on system voltage, frame size, and whether the system is regenerative or non-regenerative. Always verify your system requirements against the GEH-6005 manual.
