Description

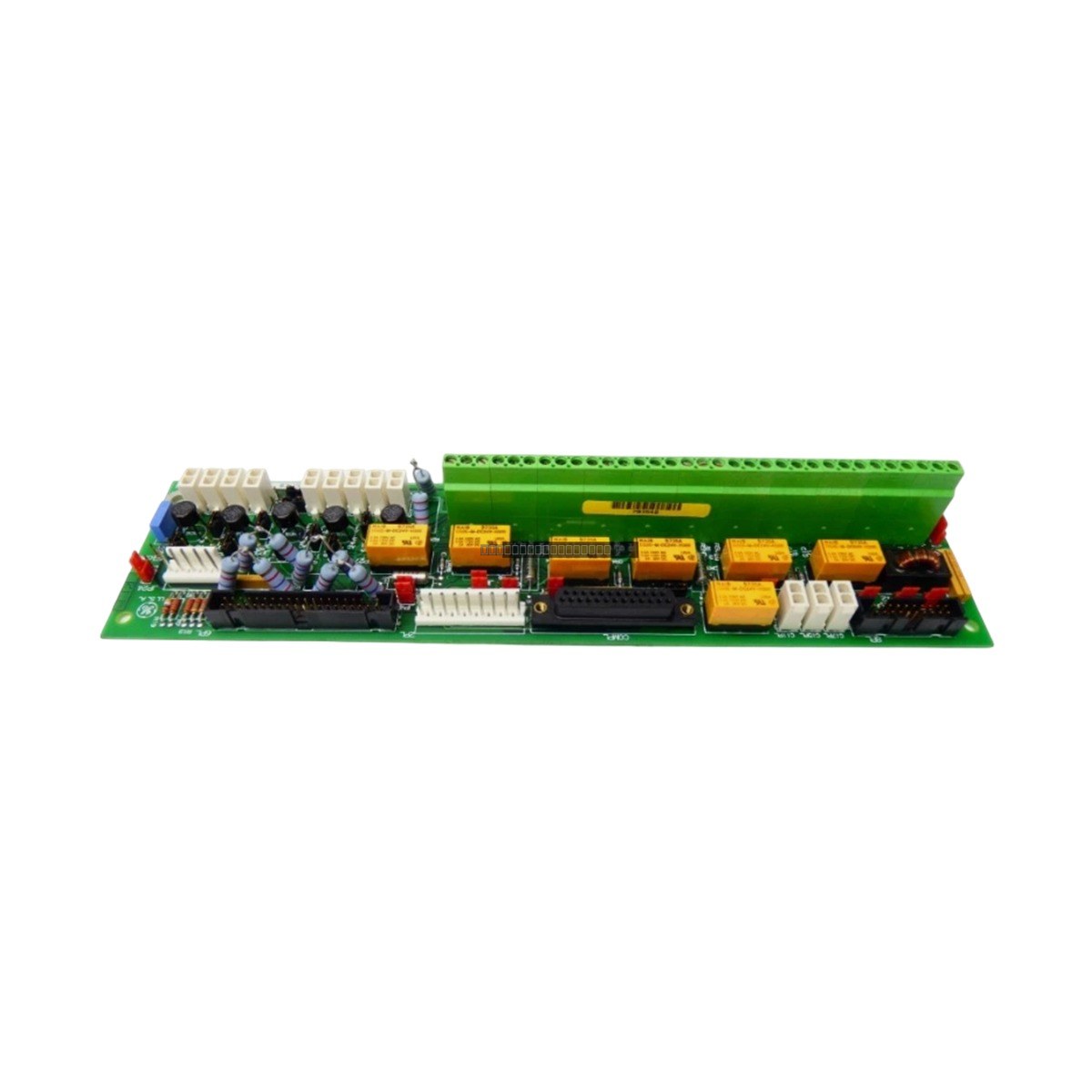

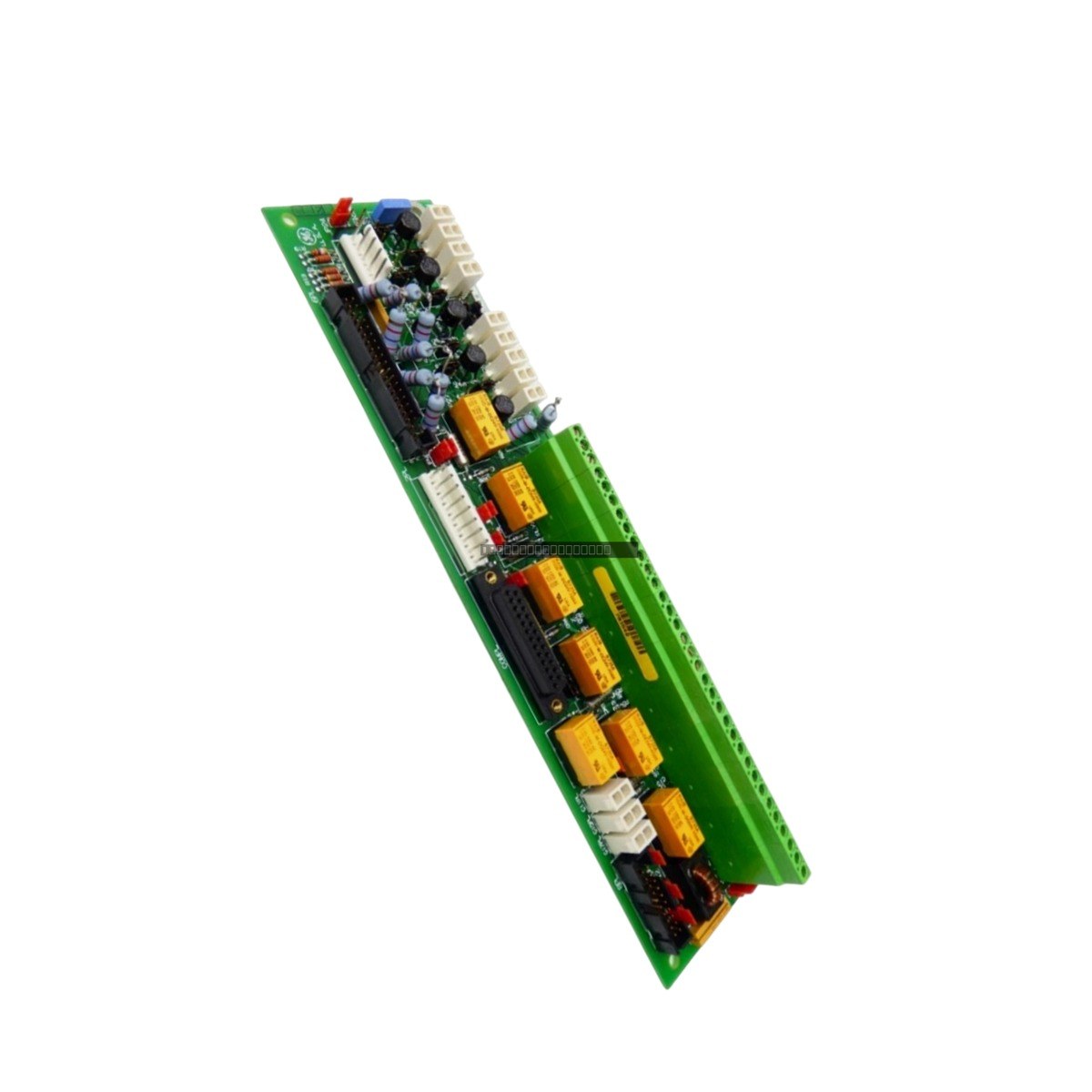

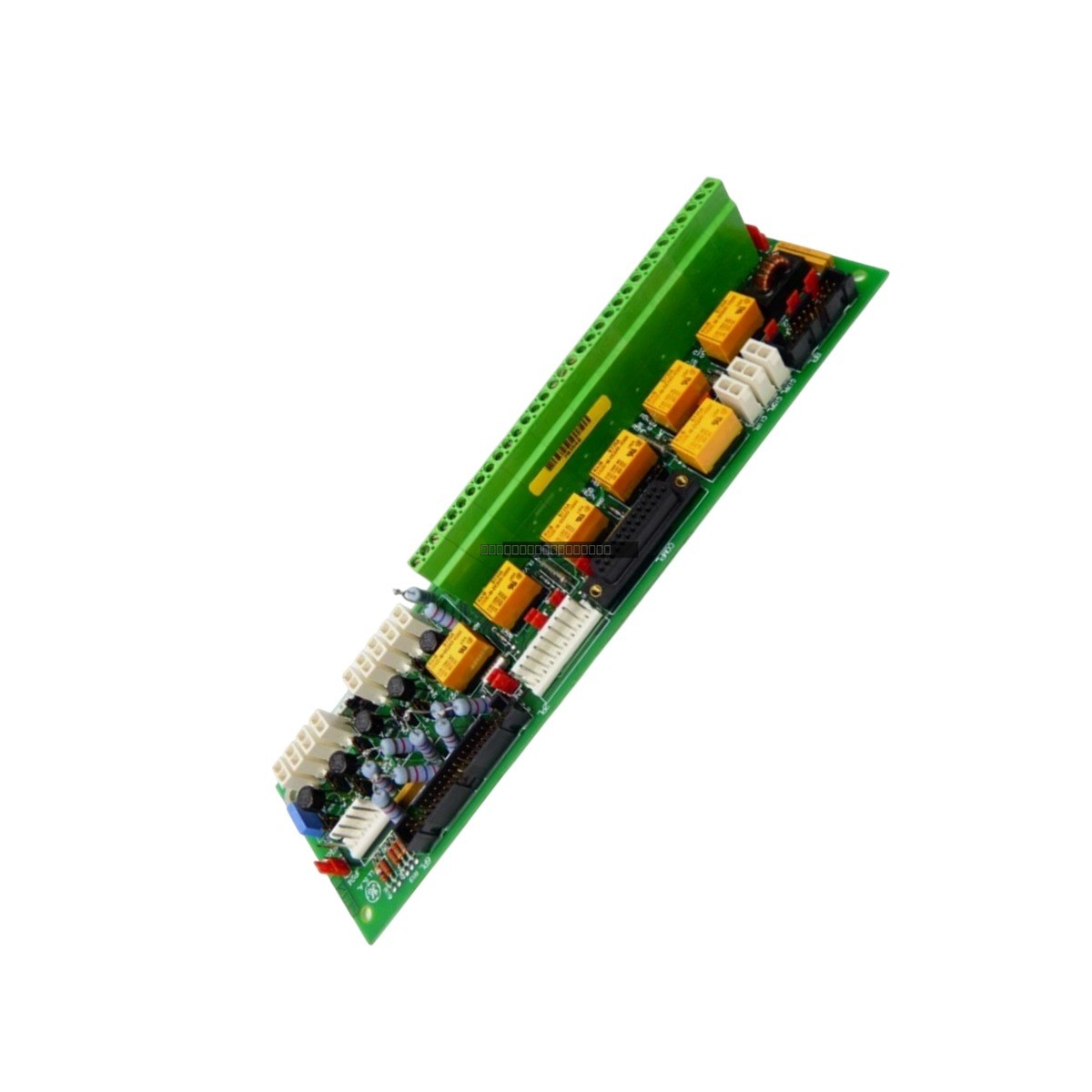

The GE Fanuc DS200STBAG1A is a foundational drive terminal board designed for the Drive Control series. This component provides essential signal routing and power distribution capabilities for demanding industrial environments, including large-scale motor control systems and utility infrastructure. By facilitating precise terminal connectivity and voltage regulation, the board maintains signal integrity and supports stable operation of peripheral control hardware, helping to minimize maintenance requirements and operational interruptions.
Features
- Integrated 60-point terminal interface for complex wiring configurations.
- Four dedicated analog input channels for precise process monitoring.
- Comprehensive power distribution: +5 VDC and +15 VDC (250 mA each), 124 VDC (500 mA), and 120 VAC (0.4 A).
- Eight digital input channels (CI1 through CI8) for versatile signal processing.
- RS232C serial communication port for system integration.
- Hardware-based jumper settings for flexible encoder load distribution between supply rails.
Applications
This terminal board is commonly utilized in heavy-duty drive control applications, such as steel processing lines, high-capacity pumping stations, and industrial motor control centers where reliable signal management and auxiliary power delivery are required.
Technical Specifications
| Model |
DS200STBAG1A |
| Terminal Count |
60 |
| Digital Inputs |
8 (CI1 - CI8) |
| Analog Inputs |
4 |
| Power Outputs |
+5VDC/250mA, +15VDC/250mA, 124VDC/500mA, 120VAC/0.4A |
| Communication |
RS232C |
| Connectors |
CP1PL, CP2PL, CP3PL, CP4PL |
Installation Guidelines
- Ensure all power is disconnected from the drive cabinet before attempting to install or remove the board.
- Use proper ESD mitigation techniques, such as a grounded wrist strap, when handling the PCB to prevent damage to sensitive electronic components.
- Verify that all wiring to terminals 62, 64, and 66 is secure and complies with local electrical standards.
- Configure hardware jumpers to match the specific voltage requirements of your connected encoders before initializing the system.
- Ensure the board is correctly seated within the drive rack to maintain proper contact with backplane connectors.
FAQ
What is the primary function of the DS200STBAG1A?
It serves as a terminal board for GE Drive Control systems, managing signal routing, input/output interfacing, and the distribution of regulated/unregulated power to peripheral devices.
Can I adjust the encoder load settings on this board?
Yes, the board features integrated hardware jumpers that allow technicians to balance encoder power requirements between the +5 VDC and +15 VDC rails.
