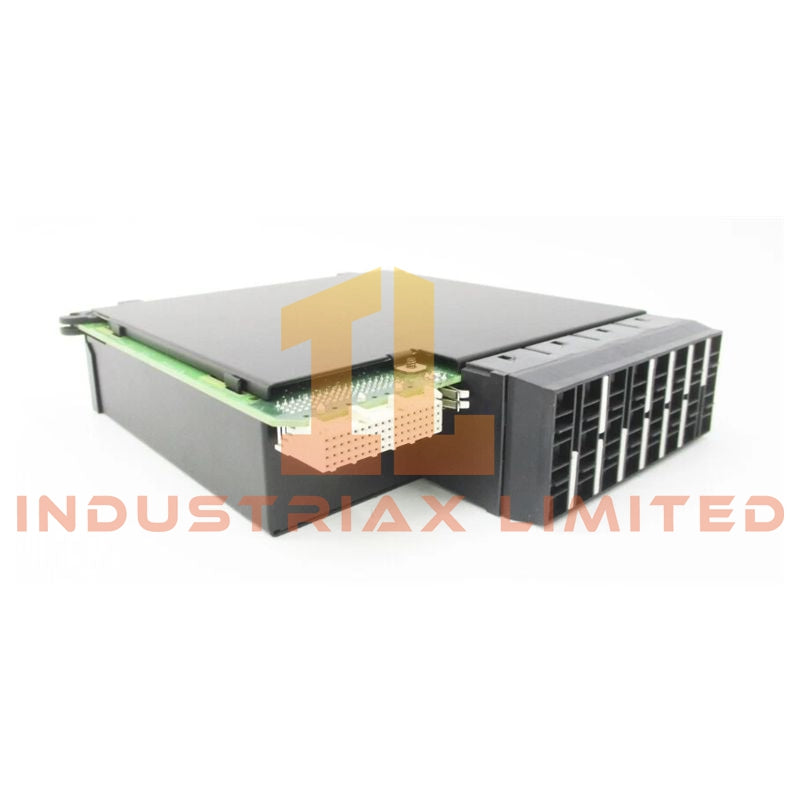

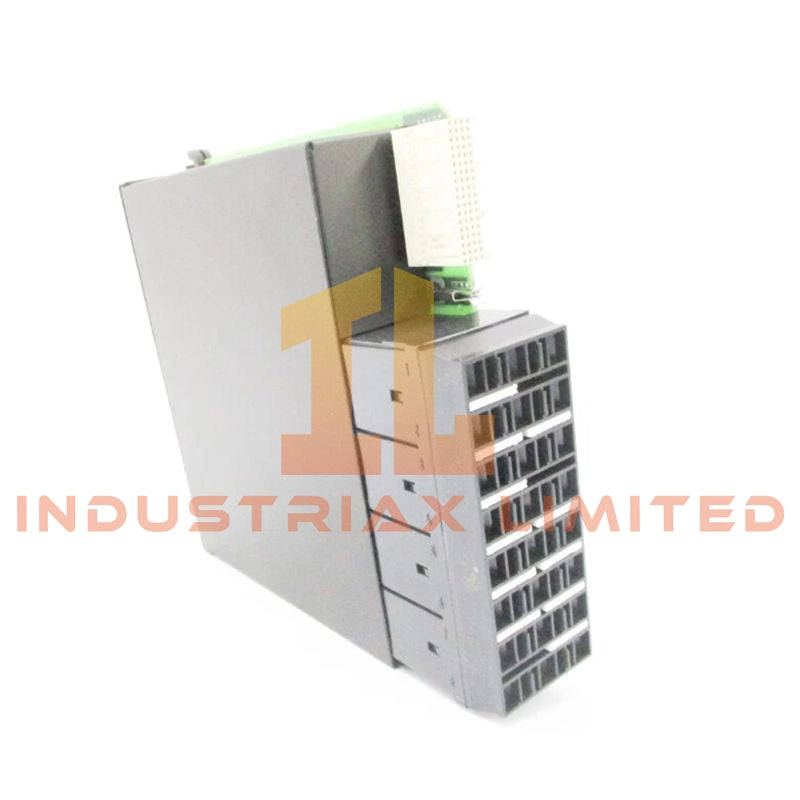

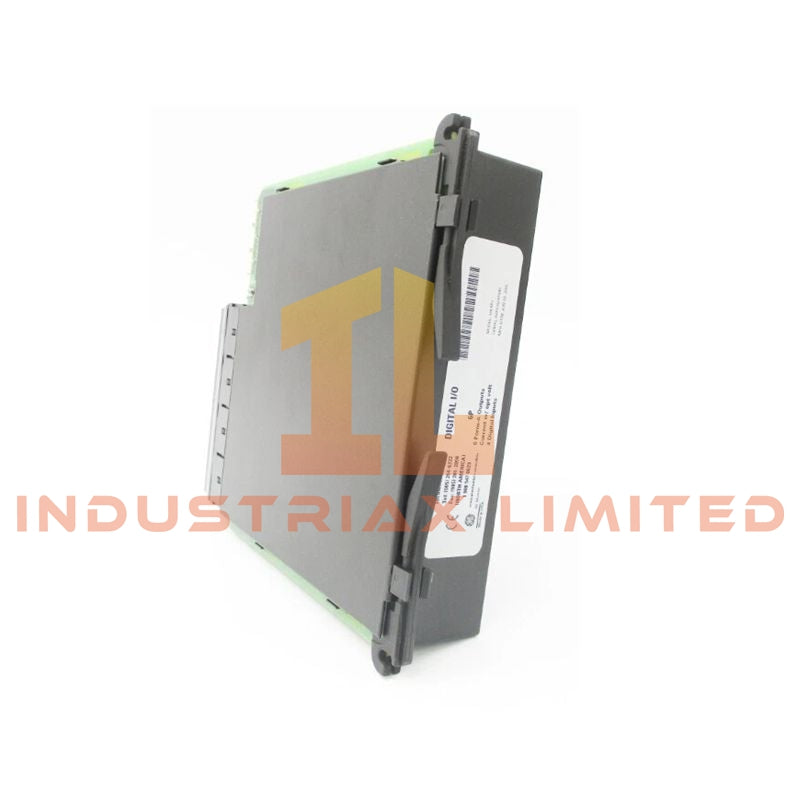

GE Multilin UR6TV UR-6TV Voltage Terminal Unit
The GE Multilin UR6TV, also cataloged as the UR6TV Voltage Terminal Unit, operates as a dedicated hardware component for AC voltage measurement, transformer protection monitoring, and voltage-based protection execution within GE Universal Relay (UR) modular relay platforms.
Hardware Specifications
Parameter
Specification
Model
UR6TV
Brand
GE Multilin
Origin
General Electric Universal Relay (UR) family
Dimensions
Modular UR chassis form factor; dimensions depend on chassis configuration
Operating Temp
-40 deg C to +60 deg C
Power Consumption
Approximately 15 to 30 W depending on hardware configuration
Platform
GE Universal Relay modular chassis architecture
Processor Architecture
High-speed digital signal processor (DSP) with numerical protection algorithms
AC Voltage Inputs
50 V AC to 240 V AC phase-to-neutral
Frequency Range
50 Hz or 60 Hz nominal; 40 Hz to 70 Hz tracking range
Voltage Sampling
64 to 128 samples per cycle depending on configuration
Input Burden
Less than 0.1 VA at nominal voltage
Protection Functions
27P, 27N, 59P, 59N, 59G, 25, 47, 60, 81O, 81U
Power Supply Options
88 to 300 V DC or 88 to 264 V AC; optional 24 to 48 V DC
Event Recording
Up to 1024 time-tagged event logs with 1 ms resolution
The UR6TV integrates with the GE Universal Relay platform through modular backplane communication and numerical processing functions. The module supports IEC 61850 GOOSE and MMS messaging for deterministic relay-to-relay and station-level communication. The architecture provides configurable I/O density scaling through the UR chassis design and supports firmware flash compatibility within the applicable UR hardware revision range.
Voltage processing functions include RMS phase voltage calculation, sequence voltage measurement, frequency calculation, phase angle measurement, and loss-of-potential detection. The module processes PT input signals for undervoltage, overvoltage, synchronism verification, and voltage balance protection elements.
Frequently Asked Questions
Q: Does the UR6TV support hot-swap operation during relay operation? A: Hot-swap capability depends on the installed GE Universal Relay chassis configuration and approved maintenance procedure. Module replacement should follow the applicable relay service instructions.
Q: Which communication interfaces are available for system integration? A: The UR6TV supports Ethernet interfaces including 10/100Base-T RJ45 or 100Base-FX fiber options, along with serial RS485 and RS232 interfaces.
Q: What voltage protection functions are executed by the module? A: The module supports phase and neutral undervoltage, phase and neutral overvoltage, ground overvoltage, synchrocheck, phase sequence voltage, loss-of-potential detection, and frequency protection functions.
Field Installation Guidelines
Install the UR6TV within the designated GE Universal Relay modular chassis position according to the hardware configuration documentation.
Verify AC voltage input wiring polarity and phase assignment before energizing the relay system. PT secondary wiring should use appropriate shielded cable practices, with cable routing separated from high-current conductors to reduce electrical interference.
Connect communication wiring according to the selected interface type. Fiber optic communication should maintain proper bend radius and connector cleanliness. Serial communication cables should follow industrial grounding and shielding practices.
Confirm power supply voltage range before connection. Protective earth and chassis grounding should be installed according to the relay panel grounding design.
After installation, verify voltage measurements, sequence quantities, frequency values, communication status, and event recording operation through the relay configuration and diagnostic interface.
