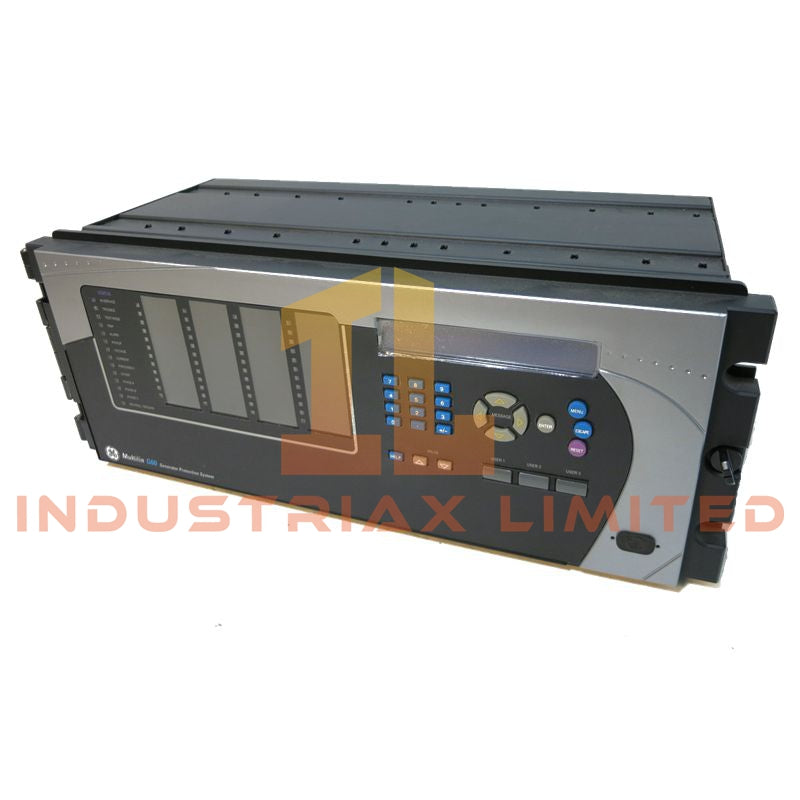

GE Multilin G60-G01-HCH-F8F-H67-M8F-P6D-U6D-W6C Generator Protection System

The GE Multilin G60-G01-HCH-F8F-H67-M8F-P6D-U6D-W6C, also cataloged as the G60 Generator Protection System, operates as a dedicated hardware component for generator protection, control, metering, and fault signal processing within GE Multilin Universal Relay (UR) platforms.

Hardware Specifications

Parameter	Specification
Model	G60-G01-HCH-F8F-H67-M8F-P6D-U6D-W6C
Brand	GE Multilin
Origin	General Electric Grid Solutions
Dimensions	19-inch rack format Universal Relay enclosure
Operating Temp	-40 deg C to +60 deg C
Product Series	UR Series Universal Relay G60 Generator Protection
Power Supply	125-250 VDC / 120-240 VAC high voltage supply option
Protection Functions	Generator differential, stator ground, field ground, loss of excitation, overexcitation V/Hz, power swing blocking, out-of-step tripping
AC Input Modules	Configurable CT and VT input modules supporting generator current and voltage measurement circuits
Digital I/O	Configurable contact inputs and Form-A/Form-C output relay modules
Communication Protocols	IEC 61850 Ed. 1 and Ed. 2, DNP 3.0, Modbus RTU/TCP, IEC 60870-5-104, IEEE 1588
User Interface	Front panel LCD interface with RS232 communication port
Cybersecurity Functions	CyberSentry functions including RBAC, RADIUS authentication, Syslog, and audit trail logging

PLC/DCS Communication and Modular Architecture

The GE Multilin G60 platform uses a modular Universal Relay architecture with configurable CPU, power supply, communication, and I/O assemblies. The hardware configuration supports deterministic substation communication through IEC 61850 networks and integration with protection control systems.

The UR backplane structure provides module-to-module communication between protection processing units and field interface assemblies. Firmware flash compatibility supports controlled configuration updates for installed hardware revisions.

The G60 design supports I/O density scaling through selectable CT, VT, digital input, and output relay modules. Ethernet communication interfaces provide integration capability with substation automation systems and distributed control system networks.

Frequently Asked Questions

Q: Does the G60 support hot-swappable hardware modules?
A: The UR Series uses field-replaceable modular assemblies. Hot-swap operation limitations depend on the installed module type and system configuration. Power isolation and approved maintenance procedures are required before module replacement.

Q: Which communication interfaces are supported by the G60-G01-HCH-F8F-H67-M8F-P6D-U6D-W6C configuration?
A: The configuration supports Ethernet-based IEC 61850 communication and additional protocols including DNP 3.0, Modbus RTU/TCP, IEC 60870-5-104, and IEEE 1588 time synchronization.

Q: How are generator measurement signals connected to the relay?
A: Generator current and voltage signals are connected through configurable CT and VT input modules. Digital status and trip signals are handled through installed contact input and output relay modules.

Field Installation Guidelines

• Install the relay in the specified 19-inch rack mounting structure with adequate mechanical support.
• Verify power supply wiring polarity and voltage range before energizing the unit.
• Use shielded wiring for low-level CT, VT, and communication signal circuits where required by site practices.
• Connect cable shields according to the grounding method defined for the protection panel design.
• Separate high-voltage wiring paths from communication and low-level measurement wiring to reduce electrical interference.
• Verify CT polarity, VT phase references, and digital input contact logic before commissioning.
• Confirm Ethernet network addressing, protocol configuration, and time synchronization settings before system integration.
