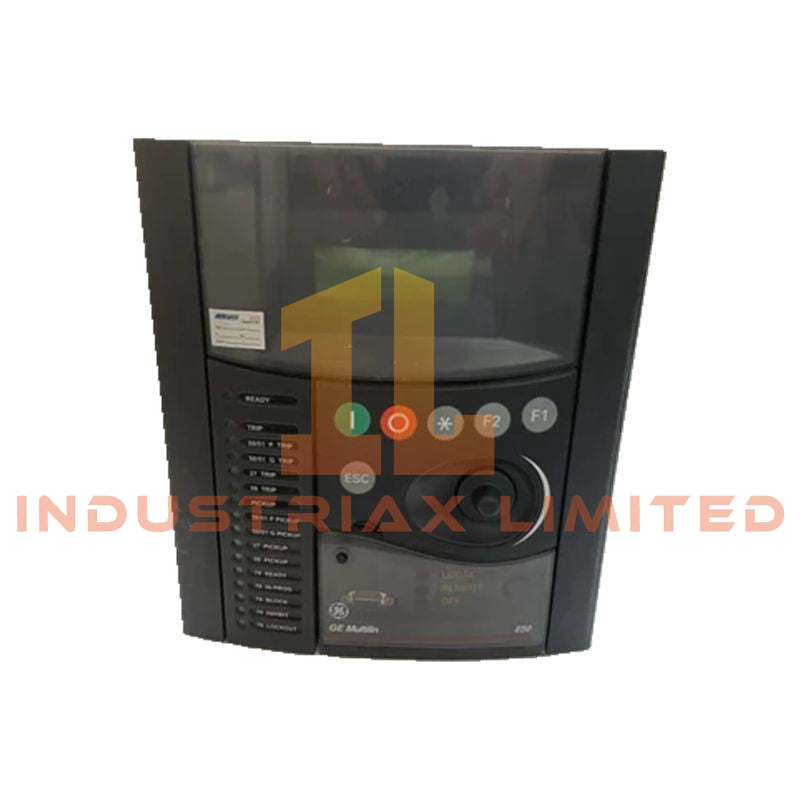

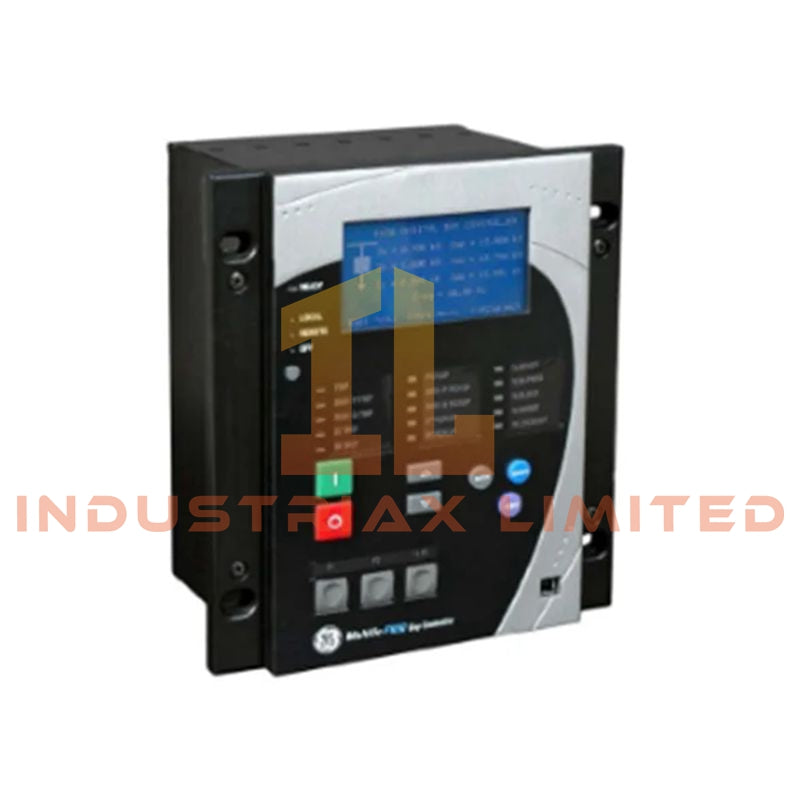

GE Multilin F650NFLF2G5HIP6E Feeder Protection Relay and Digital Bay Controller

The GE Multilin F650NFLF2G5HIP6E, also cataloged as the F650 Feeder Protection Relay and Digital Bay Controller, operates as a dedicated hardware component for feeder protection, circuit breaker control, and substation automation within GE Multilin 650 series protection systems.

Hardware Specifications

Parameter	Specification
Model	F650NFLF2G5HIP6E
Brand	GE Multilin
Origin	General Electric, USA
Dimensions	Standard 19-inch rack / flush-mount drawout or fixed case construction
Operating Temp	-20 deg C to +60 deg C
Auxiliary Supply Voltage	110-250 V DC / 110-230 V AC
Phase Current Inputs	1 A / 5 A selectable
Ground Current Inputs	1 A / 5 A nominal
Voltage Inputs	50-240 V AC nominal phase-to-neutral
Frequency Range	50 Hz / 60 Hz configurable
Current Input Burden	< 0.2 VA at 5 A
Communication Protocols	IEC 61850 Ed.1/Ed.2, Modbus RTU/TCP, DNP3.0, IEC 60870-5-103/-104
Ethernet Interface	Dual Ethernet RJ45/Fiber optic with HSR, PRP, RSTP support depending on board assembly
Time Synchronization	IEEE 1588 PTP, IRIG-B, SNTP
Recording Function	Oscillography up to 128 samples per cycle, COMTRADE format
Event Storage	Timestamped event recorder, up to 512-1024 events

Industrial Control and Communication Architecture

The GE Multilin F650 platform incorporates digital signal processing, programmable FlexLogic control, and configurable communication interfaces for protection and automation functions. The F650NFLF2G5HIP6E configuration includes expanded I/O capability, IEC 61850 communication support, and redundant Ethernet hardware options for integration with substation control networks.

The relay supports deterministic Ethernet communication structures through IEC 61850 messaging and synchronized data exchange. The hardware configuration supports Ethernet redundancy functions including HSR, PRP, and RSTP where applicable, allowing network topology adaptation within protection and control systems.

Firmware flash compatibility is managed through the GE EnerVista 650 Setup software environment, providing configuration access, relay logic programming, event extraction, and maintenance functions.

Frequently Asked Questions

Q: Does the F650NFLF2G5HIP6E support hot-swapping of internal hardware modules?
A: The F650 is designed as a fixed protection relay assembly. Module replacement and servicing should follow GE maintenance procedures with the relay isolated from auxiliary power and field circuits.

Q: What communication interfaces are available for SCADA integration?
A: The relay provides front USB/RS232 access and rear communication interfaces including Ethernet and RS485. Supported protocols include IEC 61850, Modbus, DNP3.0, and IEC 60870 series protocols.

Q: How is firmware compatibility handled during configuration updates?
A: Firmware and configuration management are performed through compatible GE EnerVista 650 Setup software. The installed firmware version must match the supported relay hardware configuration.

Field Installation Guidelines

• Install the relay in a suitable protective enclosure using the specified rack or flush-mount mechanical arrangement.
• Connect auxiliary supply wiring according to the rated 110-250 V DC or 110-230 V AC input range.
• Maintain separation between CT/VT signal wiring, communication cables, and high-energy switching circuits to reduce electromagnetic interference.
• Ground cable shields according to substation grounding practices, with shield termination applied consistently at the designated grounding points.
• Verify CT polarity, phase sequence, and grounding circuit connections before energizing protection functions.
• Confirm Ethernet fiber or copper communication routing meets site network requirements before enabling IEC 61850 services.
• Perform functional verification of protection elements, breaker control logic, and communication channels after installation.
