GE Multilin F650BABF1G0HI Feeder Protection Relay and Digital Bay Controller

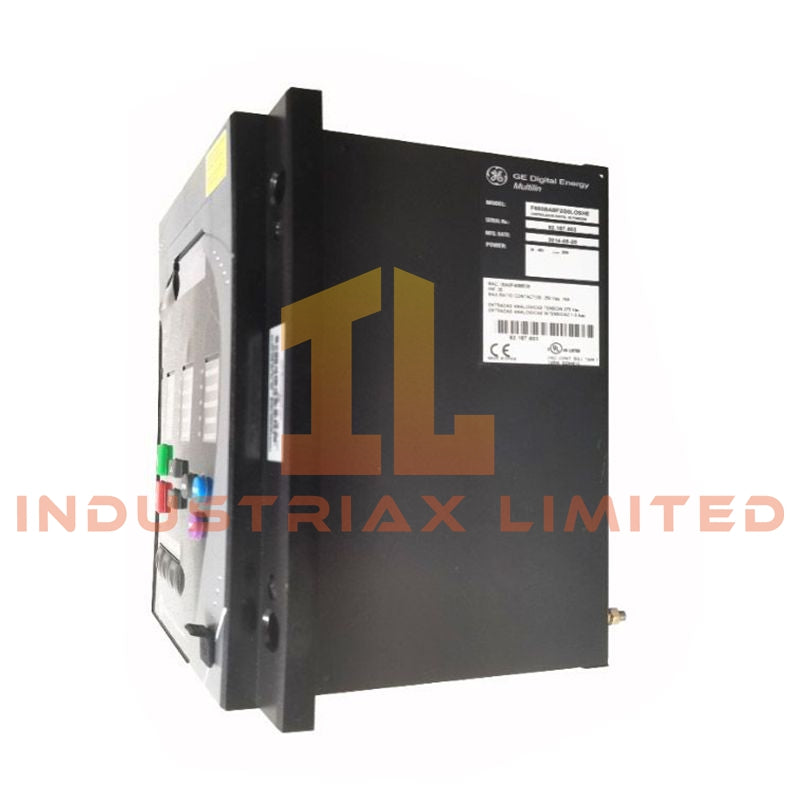

The GE Multilin F650BABF1G0HI, also cataloged as the F650 Feeder Protection Relay and Digital Bay Controller, operates as a dedicated hardware component for feeder protection, breaker control, and substation automation data exchange within GE Multilin F650 protection platforms.

Hardware Specifications

Parameter	Specification
Model	F650BABF1G0HI
Brand	GE Multilin
Operating Temp	-20 deg C to +60 deg C
Power Consumption	30 W / 30 VA nominal
Device Type	Feeder Protection Relay and Digital Bay Controller
Power Supply	110-250 V DC / 110-240 V AC
Phase Current Inputs	1 A or 5 A CT configurable
Ground Current Inputs	1 A or 5 A CT configurable
Voltage Inputs	Up to 300 V AC nominal VT input
Frequency Rating	50 Hz / 60 Hz
Display Interface	Graphical LCD with configurable SLD display
Mounting Type	Flush mount / draw-out case structure
Front Communication	Isolated RS232 setup port
Rear Communication	10/100Base-T Ethernet RJ45 and RS485
Supported Protocols	IEC 61850, DNP3.0, Modbus RTU, Modbus TCP, IEC 60870-5-103/104

Profinet / Ethernet Communication and Firmware Compatibility

The GE Multilin F650BABF1G0HI integrates Ethernet-based substation communication interfaces with deterministic data exchange requirements for protection and control networks. The rear Ethernet 10/100Base-T interface supports IEC 61850 communication services, while RS485 communication supports serial protocol integration.

Firmware flash compatibility allows configuration updates through approved GE Multilin engineering tools. Communication parameters, protection logic settings, and programmable control functions are stored within the relay configuration environment for controlled commissioning procedures.

Frequently Asked Questions (FAQ)

Q: What current transformer inputs are supported by the F650BABF1G0HI?
A: The relay supports configurable phase and ground current inputs for 1 A or 5 A nominal CT applications.

Q: Does the F650BABF1G0HI support hot-swapping of hardware modules?
A: The available documentation does not specify hot-swap capability. Hardware replacement should follow approved isolation and maintenance procedures for protection relay equipment.

Q: Which communication interfaces are available for system integration?
A: The unit provides an isolated RS232 front setup port, Ethernet 10/100Base-T rear port, and RS485 serial communication interface supporting IEC 61850, DNP3.0, Modbus, and IEC 60870 communication protocols.

Field Installation Guidelines

Install the F650BABF1G0HI in a suitable protection panel or control cabinet using the specified flush-mount or draw-out case arrangement. Maintain separation between CT/VT signal wiring, communication cables, and high-voltage switching conductors to reduce electromagnetic interference.

Terminate CT secondary wiring according to protection relay wiring practices and verify polarity before energizing the protection circuit. Use shielded communication cables where required and connect cable shields according to the substation grounding design.

Before commissioning, confirm power supply polarity, communication addressing, CT/VT scaling parameters, breaker control wiring, and trip circuit supervision connections. Verify protection settings and logic operation through approved relay test equipment before placing the device into service.
