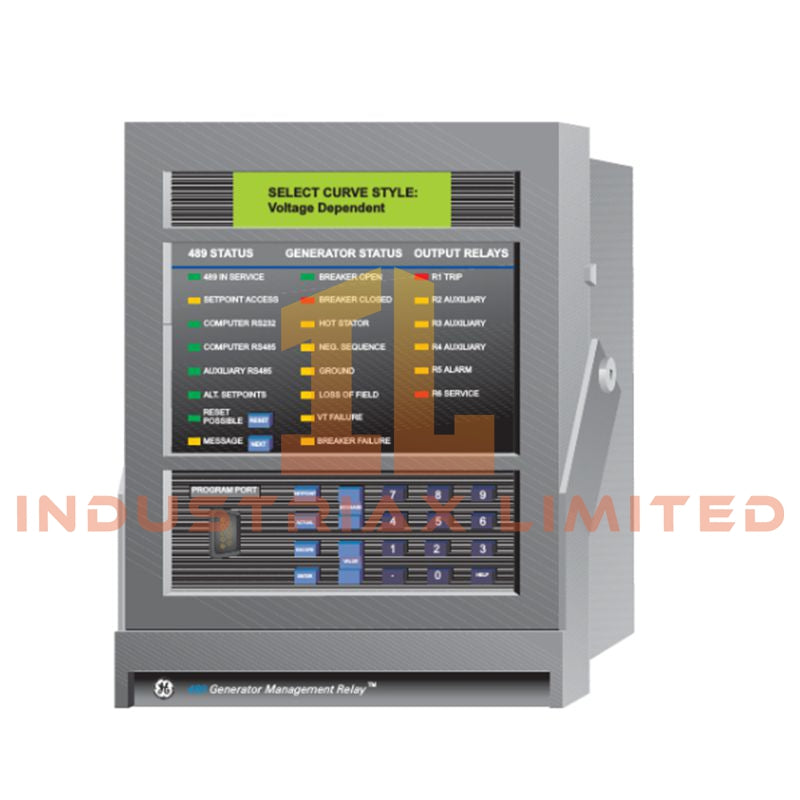

GE Multilin 489-P5-HI-A20 Generator Management Relay

The GE Multilin 489-P5-HI-A20, also cataloged as the 489 Generator Management Relay, operates as a dedicated hardware component for generator protection, measurement, and control within GE Multilin generator protection relay platforms.

Hardware Specifications

Parameter	Specification
Model	GE Multilin 489-P5-HI-A20
Brand	GE Multilin
Power Consumption	20 W nominal, 45 W maximum
Device Type	Generator Management Relay
Power Supply	90-300 VDC or 70-265 VAC, 50/60 Hz
Phase CT Inputs	5 A CT secondary
Ground CT Inputs	1 A / 5 A selectable
Voltage Inputs	100-240 VAC VT secondary inputs
Frequency Measurement Range	20.00 Hz to 70.00 Hz
RTD Inputs	12 RTD channels supporting 100 Ohm Platinum, 100 Ohm Nickel, 120 Ohm Nickel, and 10 Ohm Copper sensors
Analog Outputs	4 isolated 4-20 mA outputs
Digital Inputs	8 opto-isolated assignable inputs
Output Relays	6 configurable output relays
Communication Interface	RS485 Modbus RTU, RS232 programming port
Display Interface	40-character backlit LCD with keypad and status LEDs
Event Recording	Up to 256 events with fault reports and oscillography capture

Profinet / EtherNet-IP Deterministic Networks and Firmware Flash Compatibility

The GE Multilin 489-P5-HI-A20 applies microprocessor-based protection processing for generator electrical parameters including current, voltage, frequency, thermal condition, and power flow. The relay performs continuous acquisition from CT, VT, and RTD measurement circuits and executes ANSI protection functions including 87G generator differential, 50/51 overcurrent, 49 thermal overload, 40 loss of excitation, 32R reverse power, and 81O/U frequency protection.

The relay architecture supports firmware-controlled processing, event logging, and communication diagnostics. The device integrates into DCS and SCADA systems through RS485 Modbus RTU communication, while internal firmware compatibility defines supported protection algorithms, measurement functions, and configuration operations.

Frequently Asked Questions

Q: What CT secondary input rating is supported by the GE Multilin 489-P5-HI-A20?
A: The P5 configuration provides 5 A phase CT secondary inputs. Ground CT inputs are field selectable for 1 A or 5 A secondary operation.

Q: Does the relay support direct generator thermal monitoring?
A: Yes. The relay includes 12 RTD inputs and applies thermal modeling functions for stator temperature monitoring and ANSI 49 thermal overload protection.

Q: What communication protocol is available for DCS or SCADA integration?
A: The rear communication interface supports RS485 Modbus RTU for system integration and remote data access.

Field Installation Guidelines

Install the GE Multilin 489-P5-HI-A20 in a suitable protective relay cabinet with controlled environmental conditions according to the equipment enclosure requirements.

CT and VT wiring should maintain separation from high-current power conductors to reduce induced noise. CT circuits must use appropriate terminal practices and avoid open-circuit operation during energized conditions.

Analog output wiring should use shielded instrumentation cable where required. Connect cable shields according to the site grounding standard and avoid multiple-point shield termination that may create ground loops.

RS485 communication wiring should follow industrial serial network practices, including correct polarity, termination arrangement, and separation from switching power cables.

RTD sensor wiring should maintain consistent lead routing and separation from electromagnetic interference sources to preserve temperature measurement accuracy.
